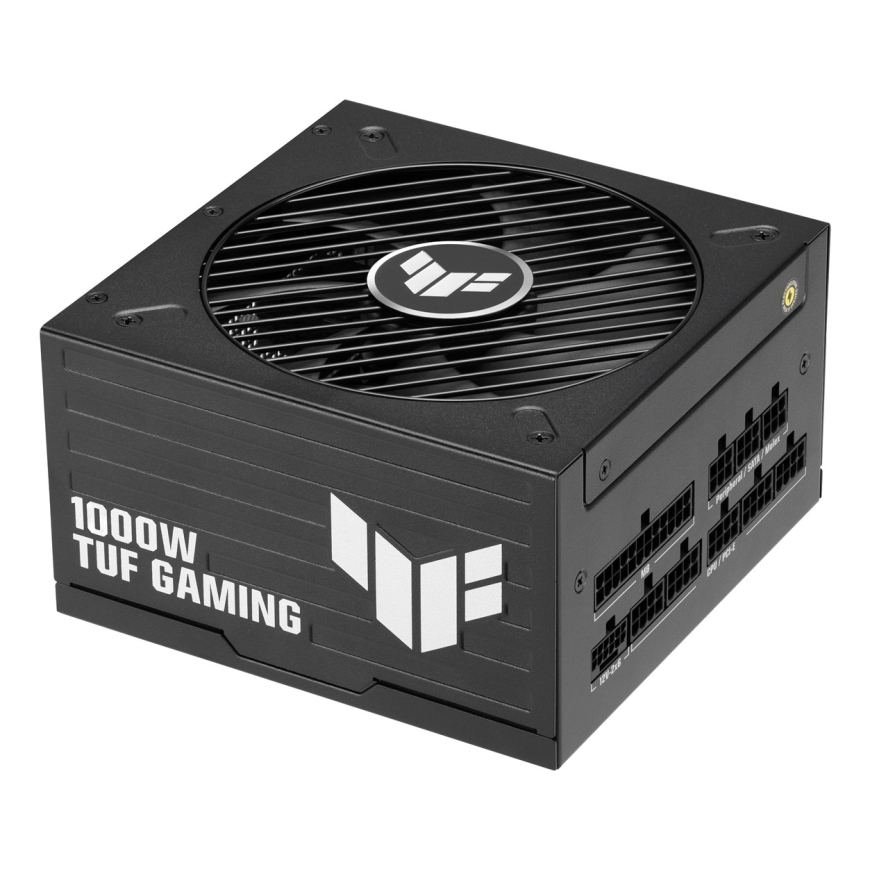

ASUS TUF-GAMING-1000P power supply unit 1000 W 20+4 pin ATX ATX Black
249.00 €
Monthly payment from 7,31 €
5012223 90YE0101-B0NA00
4711636489768, 0199291489769
2026-10-28
You are interested in this product?
All about the product
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Total power | 1000 W |
| Combined power (+3.3V) | 125 W |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Over power |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Combined power (-12V) | 3.6 W |
| AC input voltage | 100 - 240 V |
| Combined power (+5Vsb) | 15 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (+12V) | 83.3 A |
| Weight | 1.51 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 150 mm |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 120000 h |
| Package weight | 3.29 kg |
| Package type | Box |
| Package height | 127 mm |
| Package width | 304 mm |
| Package depth | 188 mm |
| Compliance certificates | RoHS |
| Cabling type | Fully-Modular |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power cable length | 67.5 cm |
| SATA power cable length | 400 |
| SATA power cable length | 150 |
| CPU power connector (4+4 pin) | Yes |
| Number of SATA power connectors | 6 |
| Motherboard power connector | 20+4 pin ATX |
| CPU power cable length | 75 cm |
| Peripheral (Molex) power cable length | 150 |
| Peripheral (Molex) power cable length | 400 |
| Motherboard power cable length | 61 cm |
| PCI Express power connectors (16-pin) | 1 |
