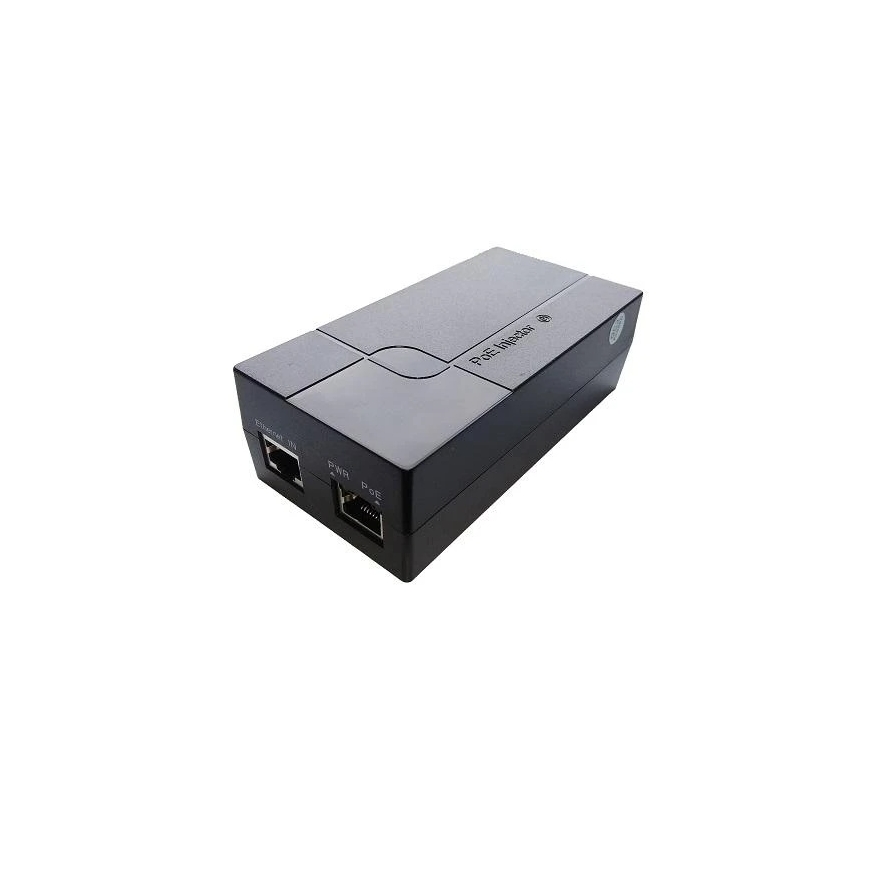

Extra Digital PoE 1000M Injector, 60W
5008661 POE-006
9990000993604
Shipping 5-8 b.d.
All about the product
PoE gigabit inserter, 60W.
Features:
AC power supply 100-240V.
Transmits Ethernet data and PoE power 60W.
Supports two PoE power types 1,2(+)/3,6(-) or 4,5(+)/7,8(-).
Complies with PoE standards IEEE802.3AF/AT/BT.
Fanless, natural cooling, compact and quiet design, suitable for desktop use or wall mounting.
Specifications:
LAN input: 1x 10/100/1000M RJ45 connector.
AC power supply: 100-240V 50-60Hz.
PoE output: 1x 10/100/1000M RJ45 connector; 52V, 60W.
PoE power contact assignment: 1,2(+)/3,6(-) / 4,5(+)/7,8(-).
Network medium: 1000BASE-TX: 5Cat and newer UTP cable (up to 100 meters).
PoE standards: IEEE 802.3af/at/bt.
Network throughput: 10/100/1000Mbps.
LED indicators: PoE operating status.
Operating temperature: -20°C~+55°C.
Operating humidity: 10%~90% (non-condensing).
Dimensions: 108x44x33 mm.
Weight: 140g.
Safety standards: complies with IEC61000-4-2 (ESD); CE, FCC Part 15 Class B, RoHS.
Warranty: 24 months.
