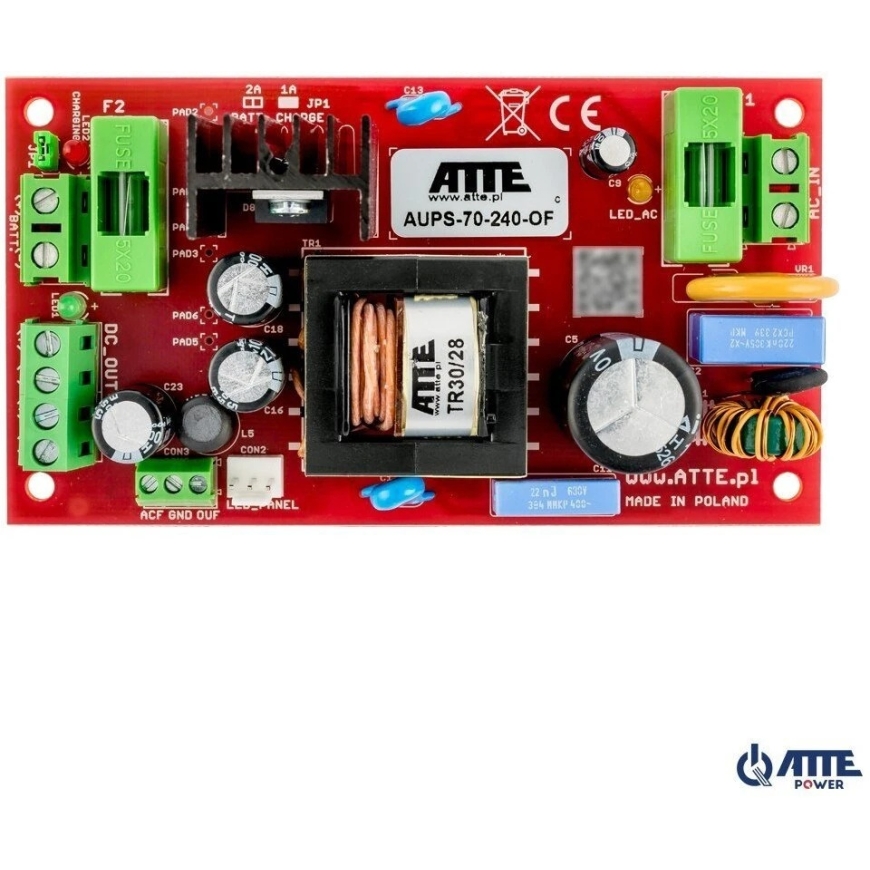

Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF – 2
Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF
Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF
Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF
Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF
Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF
Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF

79.00 €
Monthly payment from 2,93 €
5007684

AUPS-70-240-OF

5902143691020

Shipping 8-12 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Buffer Power Supply SMPS 24V 3A 72W ATTE AUPS-70-240-OF

Model: AUPS-70-240-OF

Purpose

The device is a buffer power supply intended to power video surveillance and access control systems. It provides a convenient solution to the buffering power issue for cameras and other surveillance equipment requiring uninterrupted power supply. The power supply allows the creation of distributed monitoring systems with a central buffer power supply. The systems are compatible with lead-acid or sealed lead-acid SLA batteries.

OF (open frame) design allows the device to be mounted in any housing. However, the most convenient mounting option is to use special ABOX series housings and mounting plates with a 10.8 mm grid system. It is compatible with the mounting hole distances of built-in modules. This system solution allows chosen devices to be mounted vertically or horizontally in any part of the housing or mounting plate.

KEY FEATURES:

  • Complete power solution for CCTV devices in a compact housing
  • central power buffer
  • long backup power time compared to traditional systems using UPS
  • low internal heating of the housing due to high power supply efficiency
  • easy installation in housings with system holes in a 10.8 mm grid

Technical Specifications

Battery 2 x gel or AGM batteries 12V / 7...18Ah (identical batteries connected in series)
Output Voltage 24 V DC +/-15 %
Output Current 3A
Power Supply Power 72 W
Efficiency 90 % at 70 W power
Input Voltage 190–260 V AC, 50 Hz
Battery Charging Current 1 A or 2 A (selectable with jumper JP1)
Power Supply Input Protection 3.15 A slow-blow fuse
Power Supply Output Protection Power Supply: Electronic overload protection at 5 A current (overload of power supply required). Battery Power: 3.15 A fuse.
Battery Circuit Protection Protection against reverse connection and overcharging: 3.15 A fuse. Deep discharge protection: battery disconnection when voltage is below 20.4 V, with automatic return.
Signaling LED1 (yellow) – presence of mains voltage LED2 (green) – presence of output voltage LED3 (red) – battery charging
Technical Results OUF – no voltage +DC_OUTACF – no AC voltage Open collector outputs with a maximum load of 50 mA (each output)
Start Without AC Power Automatic power supply start when battery is connected
Housing Construction None – integrated module
Installation Press-fit spacers, mounting holes arranged in 10.8 mm grid
Operating Temperature -10 ... +40°C
Dimensions 65 x 118 x 45 mm
Weight 0.14 kg
