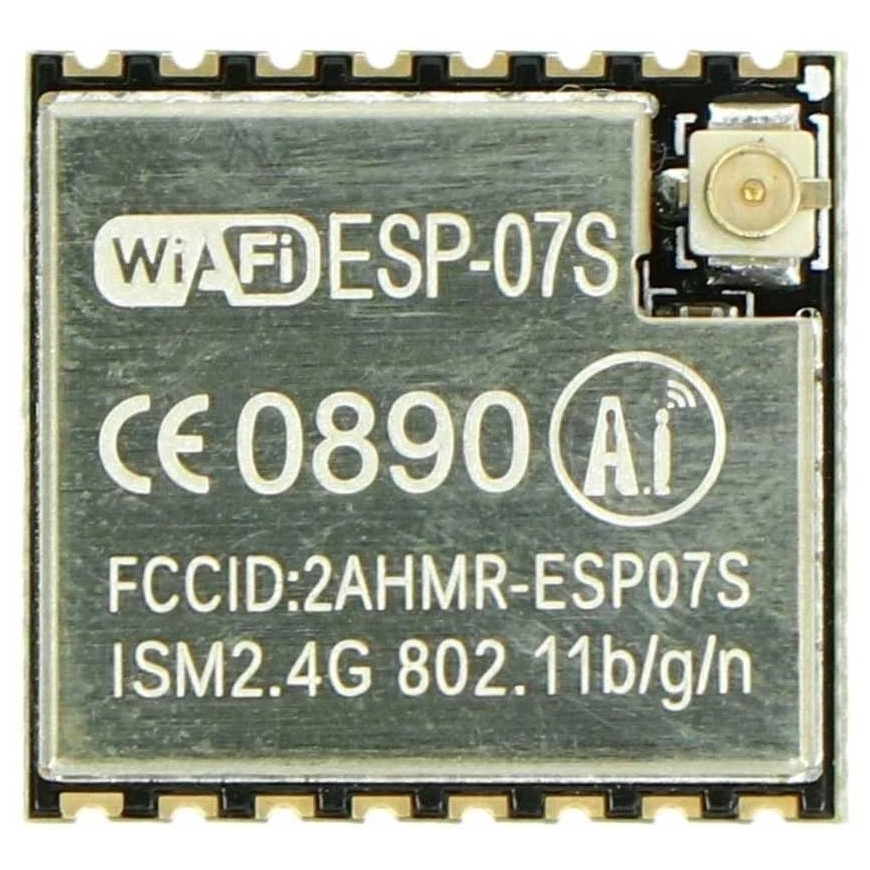

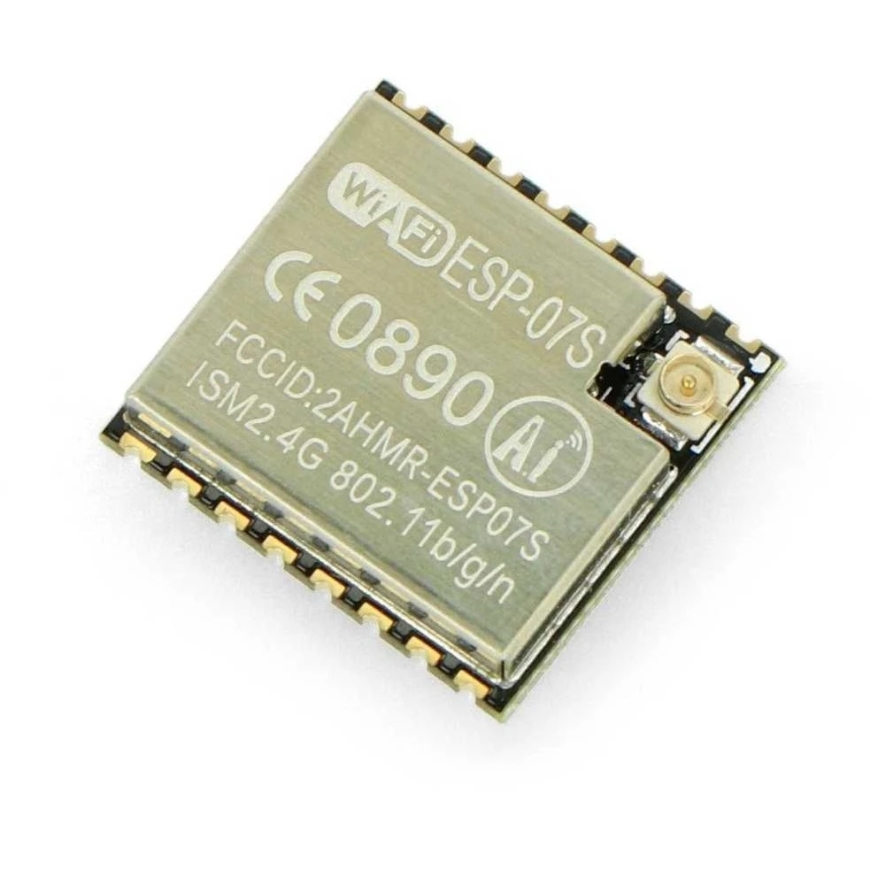

Oem WiFi module ESP-07S ESP8266 - 9 GPIO, ADC, u.FL connector
19.41 €
5007225 AN-16184
5904422344306
Shipping 8-15 b.d.
You are interested in this product?
All about the product

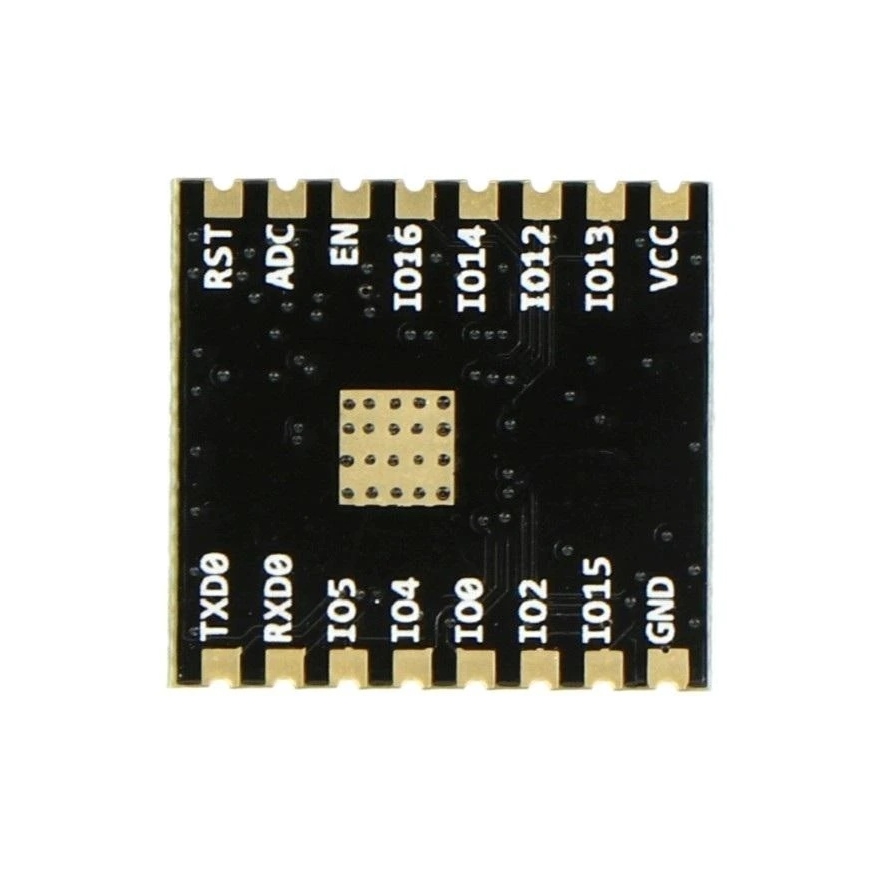

ESP-07S module, based on the ESP8266 chip, interacts with the 802.11 b/g/n Wi-Fi standard at a frequency of 2.4 GHz. This is an improved version of the ESP-07 module; compared to its predecessor, the S version increased the flash memory to 4 MB, removed the built-in antenna, replaced the IPX u.FL socket, and redesigned the board, providing greater stability for the module. The module has 16 outputs, of which 9 are general-purpose GPIO pins, 1 is ADC, and there is a UART bus.
Key features:
- It has 16 output pins
- 9 x GPIO - digital input/output pins
- 1 x ADC - analog to digital converter
- 2 x UART (TX, RX) - for interaction with, e.g., Arduino
- Installation: SMD
- Communication speed: 115200 bps
- Equipped with a connector for connecting an external u.FL antenna
- Power supply voltage: 3.3 V
- Chip: ESP8266
- Standard: Wi-Fi: 802.11 b/g/n
- Flash memory: 4 MB
- Operating frequency: 2.4 GHz
- Supports security: WPA / WPA2
- Can operate in AP (Access Point), STA (station) and AP+STA modes
- Supported network protocols: IPv4, TCP / UDP / HTTP / FTP
- Encryption standards: WEP / TKIP / AES
- Integrated 10-bit ADC
- GPIO - 16 outputs
- 9 x GPIO - digital input/output pins
- 1 x ADC - analog to digital converter
- 2 x UART (TX, RX) - for interaction with, e.g., Arduino
- Operating temperature: -40 °C to 125 °C
- Dimensions: 16 x 17 x 3 mm
- Weight: 1.4 g
