KENIK KG-8G60TAS-ILCD-B IP CAMERA
259.00 €
Monthly payment from 7,57 €
5006580 KG-8G60TAS-ILCD-B
5903716300578
Shipping 8-10 b.d.
You are interested in this product?
All about the product

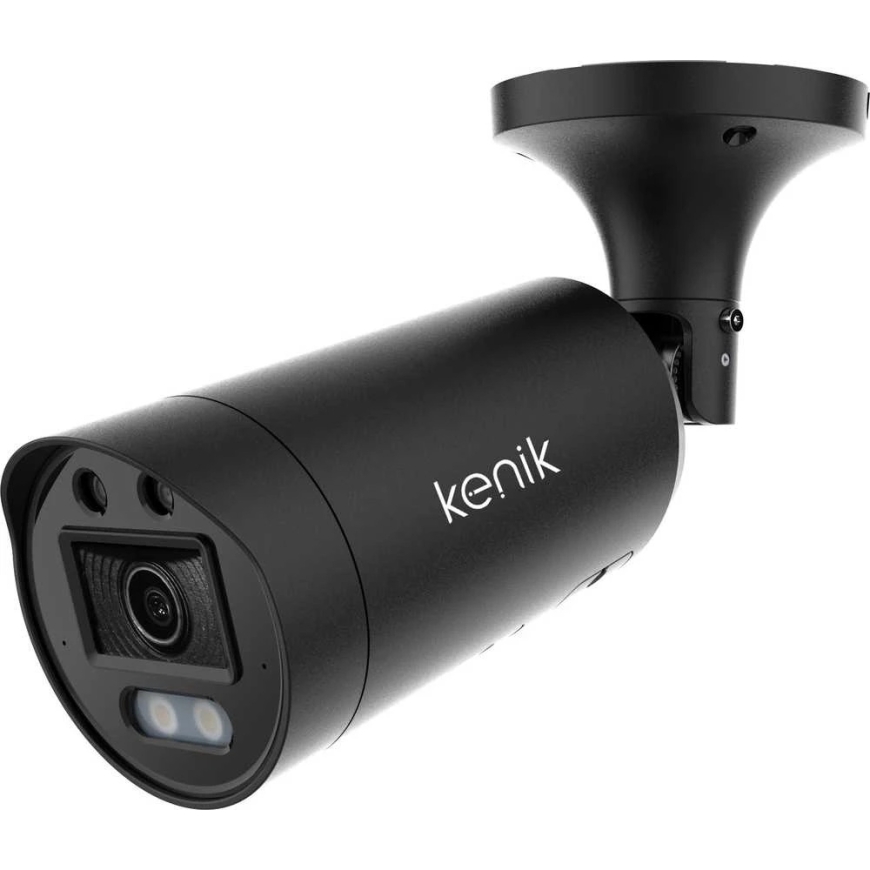

IP CAMERA KENIK KG-8G60TAS-ILCD-B
Model: KG-8G60TAS-ILCD-B
Main features:
- 8 MP (3840 x 2160) resolution, 25 frames per second
- 1/1.8 inch sensor
- H.265+/H.264+ compression
- WDR (130 dB), day/night (ICR), 3DNR, AWB, AGC, BLC
- 2.8 mm lens (F1.0)
- AI-IPT GeckoVu technology
- Color night vision 3.0
- Integrated dual microphone
- Active deterrence (siren + red/blue LEDs)
- IR + LED spotlight up to 60 m / 50 m
- MicroSD card reader up to 512 GB
- Intelligent video analytics IVS (SMD+PP 2.0), people counting, face detection
- IG function
- Reset button
- Corridor mode
- Alarm input/output 1/1
- Audio input/output 1/1
- Dual power supply 12 V DC / PoE (802.3af)
- IP67 rated housing
- Supports ONVIF 2.6 standard
- Mobile viewing on smartphone ("Android", "iPhone")
- Free software in Polish for registration on your computer
Purpose
The camera is designed for outdoor use. Its housing allows it to be mounted on both ceilings and walls. It is ideal for monitoring parking lots, sports areas, arenas, squares, government institutions, schools, and more.
Technical specifications:
| Camera | |
| Model | KG-8G60TAS-ILCD-B |
| Sensor | 1/1.8 inch |
| Minimum illumination | Color: 0.0006 lux (F1.0, AGC on), 0 lux with illumination |
| Illumination range | 60 m IR illuminator / 50 m LED illuminator |
| Strobe light | NO |
| Intelligent IR | Yes |
| Lens | |
| Focal length | 2.8 mm |
| Aperture | F1.0 |
| Field of view | Horizontal: 110°, Vertical: 60°, Diagonal: 132° |
| Mounting | M16 |
| Compression standards | |
| Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| H.264 codec profile | Baseline/Main/High |
| H.265 codec profile | Main |
| Bitrate | 11 Kb/s ~ 16 Mb/s |
| Three streams | Yes |
| Audio compression | G.711A, G.711U |
| Audio bitrate | 64 Kbps |
| Image | |
| Maximum resolution | 8 MP (3840 × 2160) |
| Main stream | 50 Hz: 25 fps 8 MP (3840 × 2160), 25 fps 6 MP (3200 × 1800), 25 fps 5 MP (3072 × 1728), 25 fps 4 MP (2560 × 1440), 25 fps 1080P (1920 × 1080) 60 Hz: 30 fps 8 MP (3840 × 2160), 30 fps 6 MP (3200 × 1800), 30 fps 5 MP (3072 × 1728), 30 fps 4 MP (2560 × 1440), 30 fps 1080P (1920 × 1080) |
| Secondary stream | 50 Hz: 25 frames per second 720P (1280 × 720), 25 frames per second D1 (704 × 576), 25 frames per second CIF (352 × 288) (default D1) 60 Hz: 30 frames per second 720P (1280 × 720), 30 frames per second D1 (704 × 480), 30 frames per second CIF (352 × 240) |
| Third stream | 50 Hz: 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second CIF (352 × 240) |
| Video settings | Brightness / Contrast / Saturation / Hue / Sharpness |
| Shutter speed | Automatic / Manual, 1/3~1/100000 s |
| Day/Night | Infrared filter |
| WDR | 130 dB |
| NR | 2D/3D NR |
| BLC | Yes |
| HLC | Yes |
| ROI | Yes |
| Video rotation | Yes |
| Image analytics features | |
| Events | Motion detection (person/vehicle/motorbike), image masking |
| Smart features | Line crossing, Intrusion detection, Area entry, Area exit (person/vehicle/motorbike), Loitering detection |
| People counting | Yes |
| Face detection | Yes |
| Network | |
| Network storage | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| Supported standards | Onvif (S, G, T profile), SDK |
| Security | Password protection (8 character password required), HTTPS encryption, IP address filtering, basic and digest HTTP/HTTPS, TLS 1.1/1.2 version, WSSE and basic authentication for ONVIF protocol |
| User | Requires a direct view plugin: IE 10, IE 11. Direct view without plugins: "Chrome 57.0+", "Firefox 52.0+", "Edge 89+". Local service: "Chrome 57.0+", "Firefox 52.0+". |
| Number of users | Up to 40 users |
| Mobile service | iOS, Android |
| Active deterrence | |
| Blue/red LEDs | Yes |
| Siren | Yes |
| Interface | |
| LAN interface | 10M/100M |
| MicroSD card | up to 512 GB |
| Microphone | Yes x2 |
| Speaker | Yes |
| Audio input/output | 1/1 |
| Alarm input/output | 1/1 |
| RS485 | Yes |
| Reset button | Yes |
| General | |
| Operating conditions | (-40°C ~ 60°C) humidity 95% or less (non-condensing) |
| Power supply | 12 V DC ±25 % |
| POE | PoE (802.3af) |
| Power consumption | MAX 11.5 W |
| Ingress protection class | IP67 |
| Material | Metal |
| Dimensions | Φ105 x 278.9 mm |
| Weight | 1250 g |
