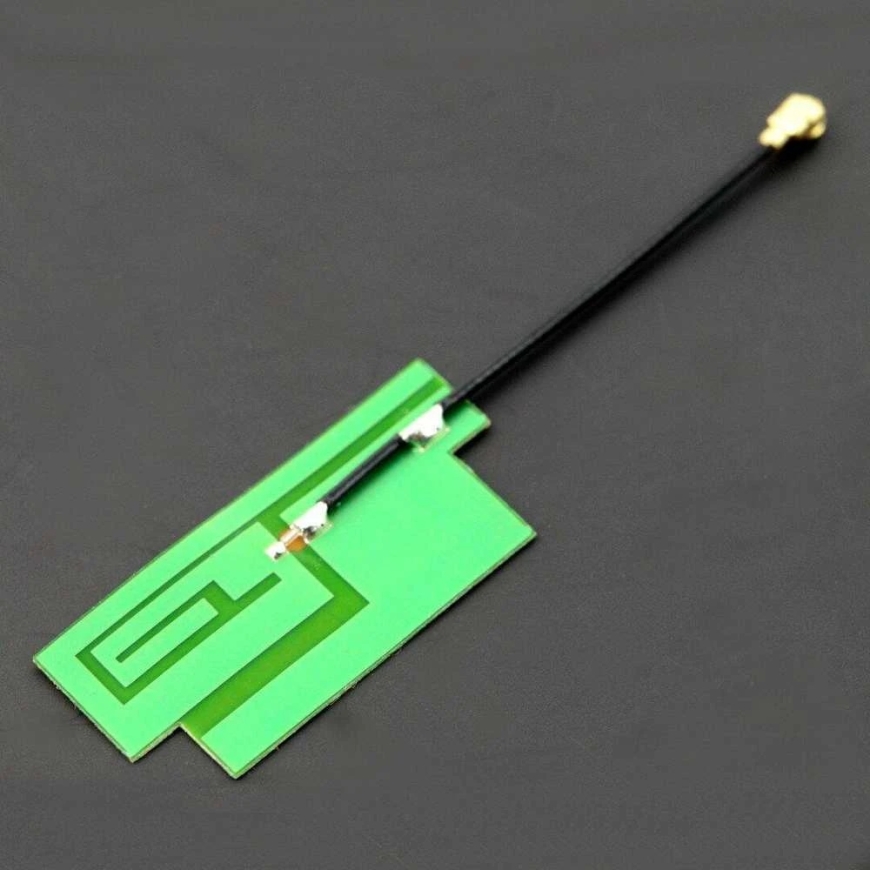

Odseven Thin Adhesive Type GSM/Panel Four-Strip Antenna - 3dBi uFL
12.97 €
5006356 AN-13809
5904422321499
Shipping 8-13 b.d.
You are interested in this product?
All about the product

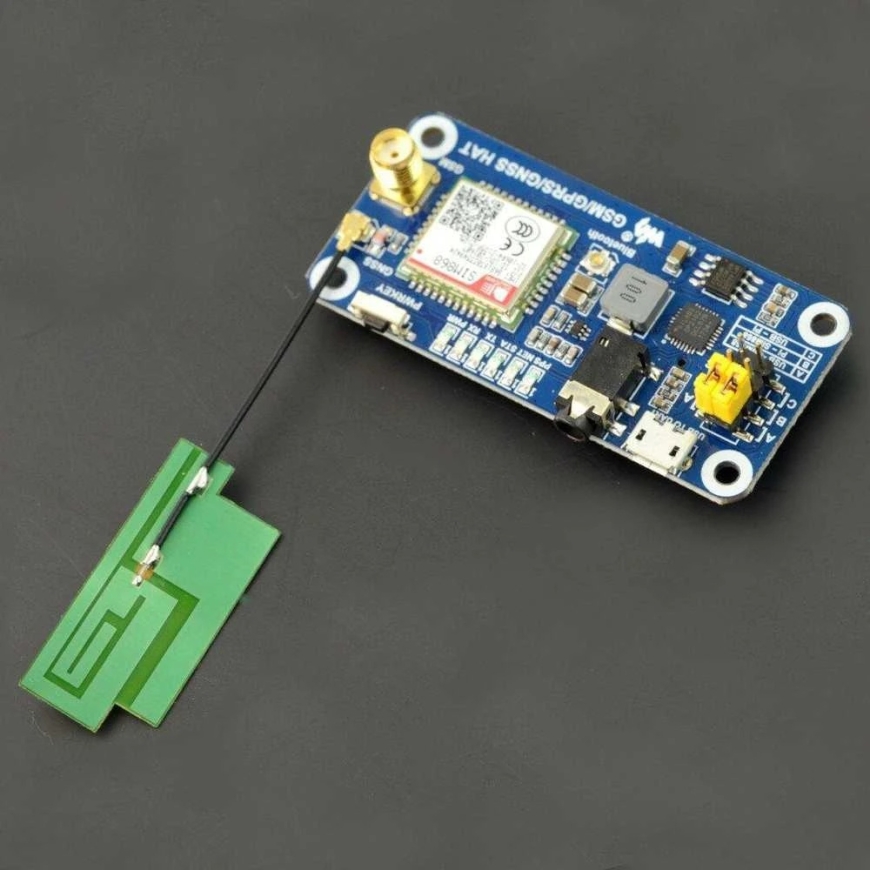

The slim antenna operating in the GSM frequency band features a u.FL connector. It works with c-uGSM and d-u3G modules. The antenna has an adhesive strip layer, allowing it to be attached to a case. It operates at frequencies of 850/900/1800/1900/2100 MHz, compatible with other mobile devices or GSM/GPRS. The cable length is 35 mm.
Specifications:
- Frequency: GSM
- Impedance: 50 ohms
- Voltage Standing Wave Ratio (VSWR): 3.0:1 max.
- Return Loss: -6 dB max.
- Radiation: directional antenna
- Antenna Gain: 3 dBi
- Cable Loss: 2.4 dB/m max.
- Polarization: linear, vertical
- Demand Power: 2 V
- Connector: mini connector
- Antenna Material: FPCB
- Cable Type O. D. 1.13 mm // 35 mm
- Operating Temperature: -10 ~ +60 °C
- Storage Temperature: -10 ~ +70 °C
- Cable Color: black
- Cable Length: 35 mm
- Weight: 0.5 g
