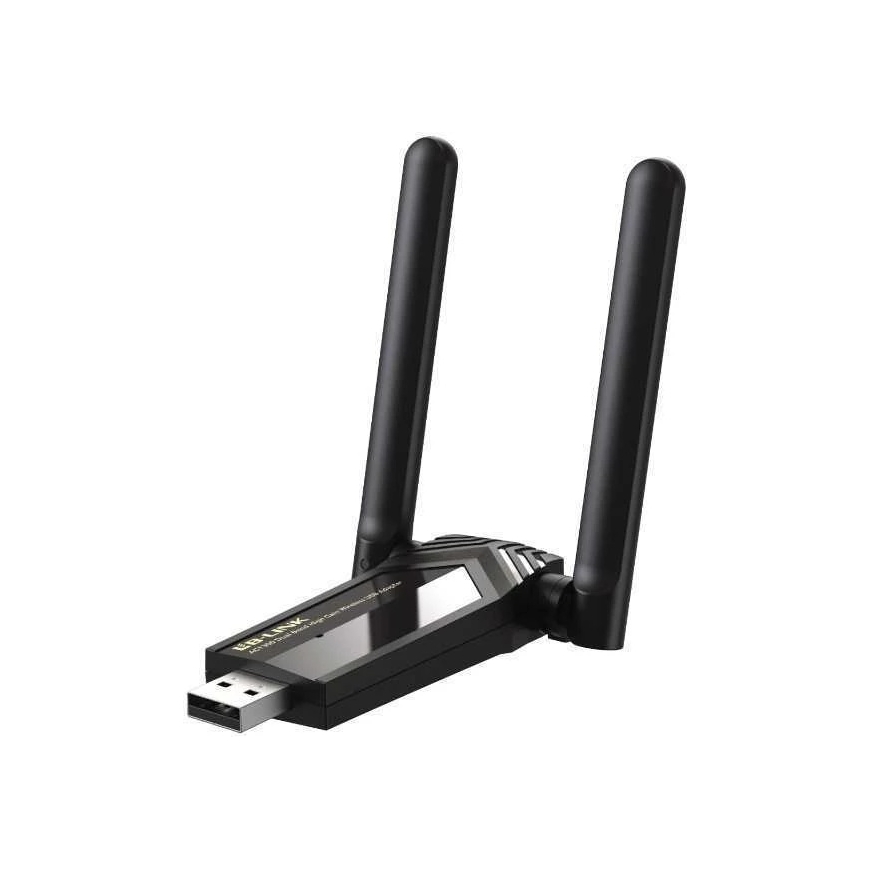

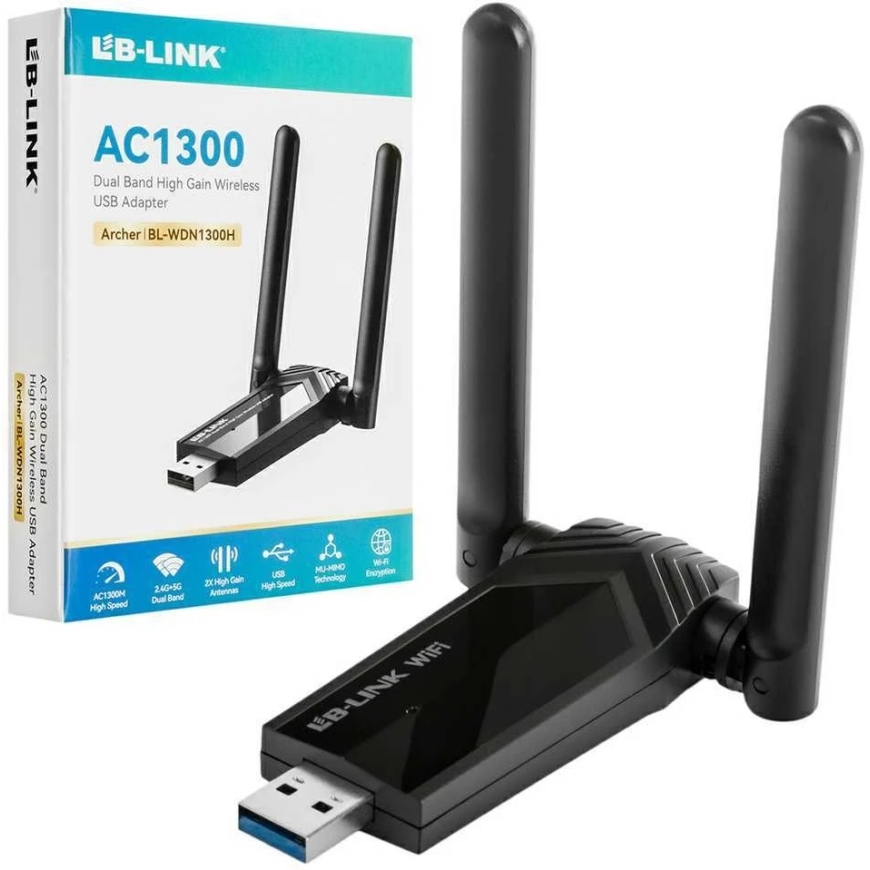

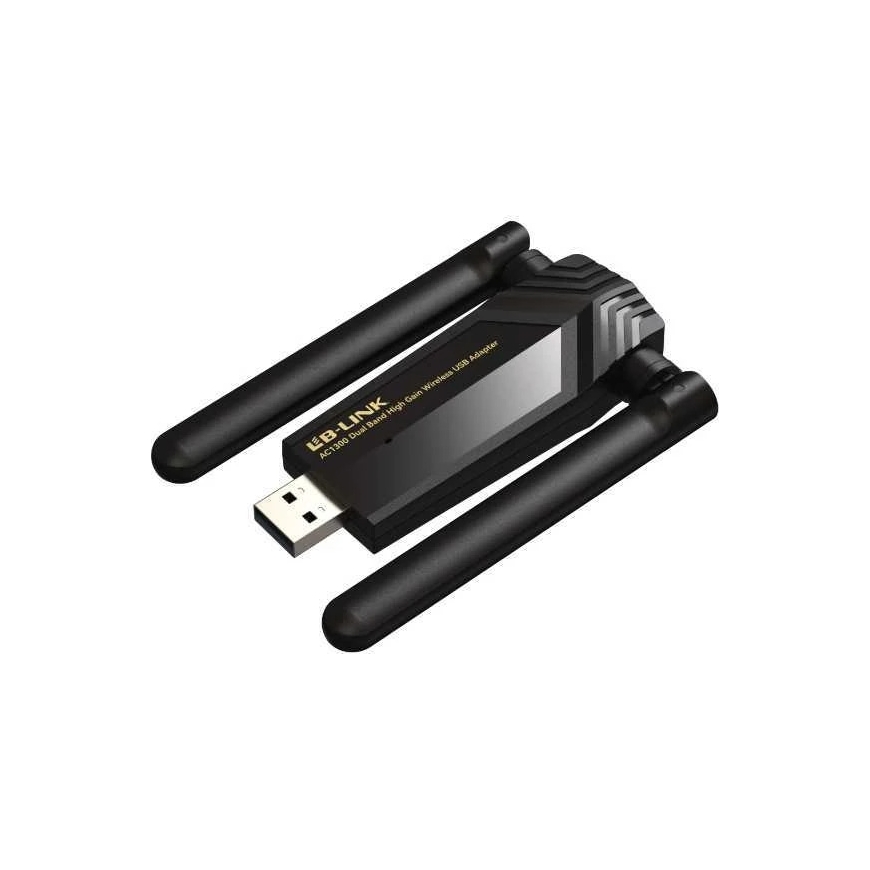

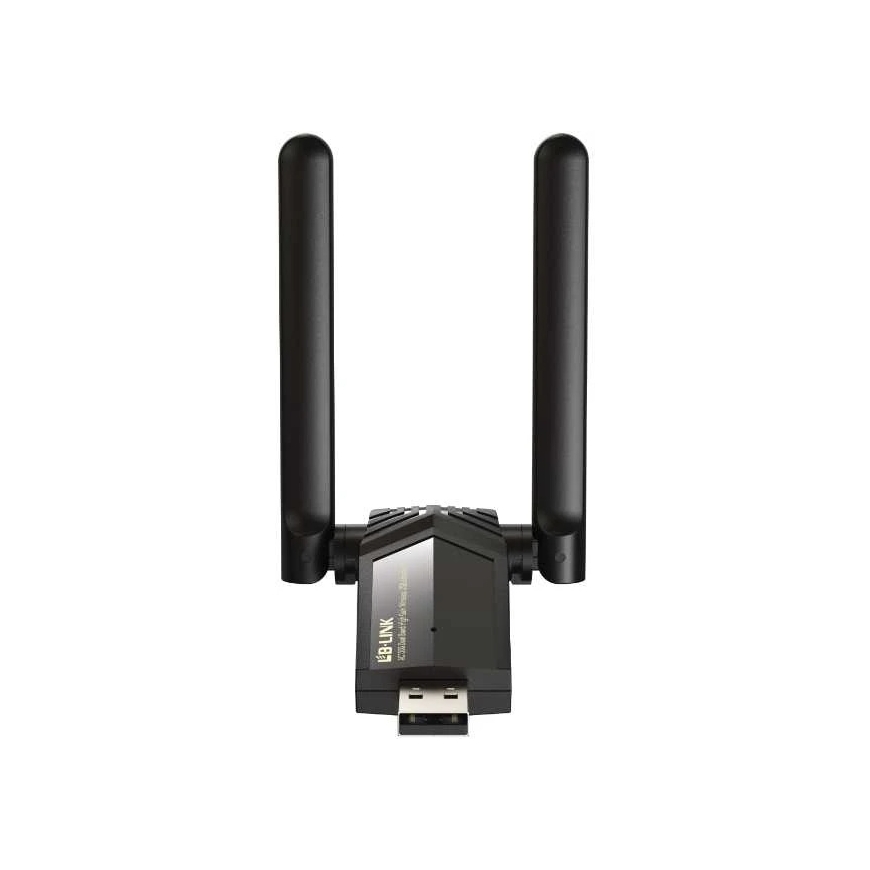

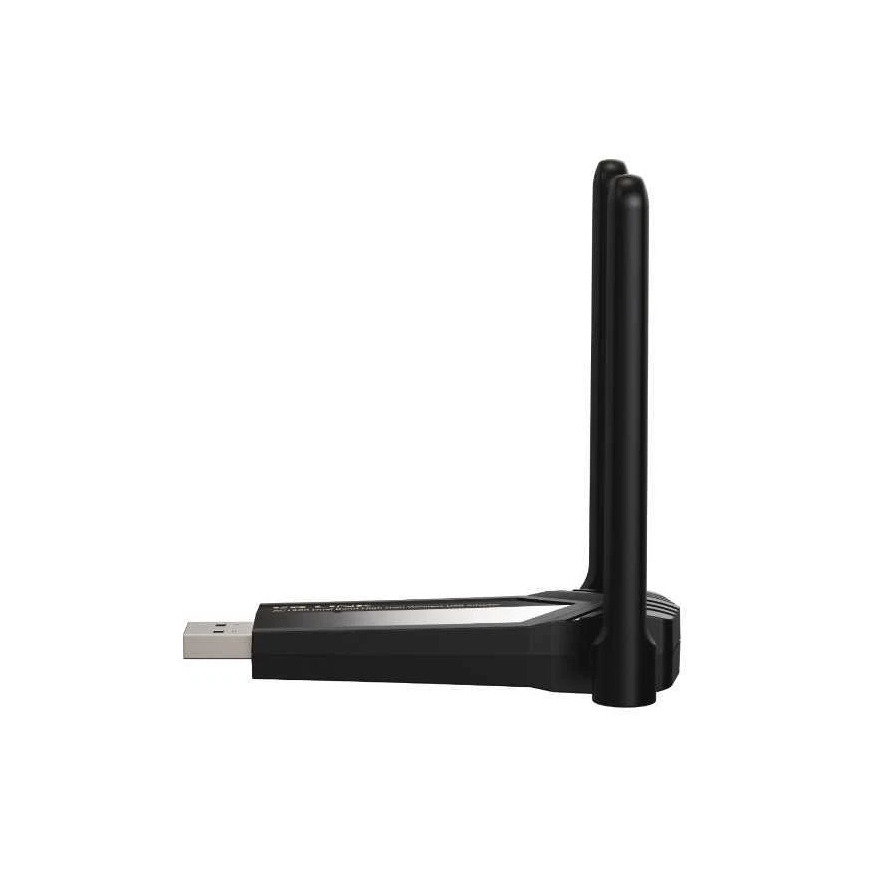

Lb Link USB 3.0 Network Card Wi-Fi 5 1300Mbps WDN1300H
5005583 6925394900634
Shipping 8-11 b.d.
All about the product
Main Information
The "LB-Link BL-WDN1300H" USB network adapter supports "Wi-Fi 5" and operates on both 2.4 GHz and 5 GHz frequency bands. The maximum data transfer speed is 1267 Mbps (400 Mbps at 2.4 GHz, 867 Mbps at 5 GHz). The device features a USB 3.0 port and built-in 2dBi antennas. The adapter supports WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK (TKIP/AES) security. It operates in station or software AP mode and has a plug-and-play feature.
Application
Designed for computers with Windows 10 or 11. Allows wireless connection to Wi-Fi networks at home, in the office, or in environments requiring stable internet access and data security.
Specification
Interface and Antennas
- USB 3.0 port
- External antennas, 2dBi gain
Standards and Bands
- IEEE 802.11a/b/g/n/ac
- Dual-band: 2.4 GHz (2.4~2.4835 GHz), 5 GHz (5.150~5.250 GHz, 5.725~5.850 GHz)
Transmission and Modes
- Maximum speed: 1267 Mbps (2.4 GHz: 400 Mbps, 5 GHz: 867 Mbps)
- Operating modes: station, software access point
- Transmission power: up to 20 dBm
- Modulations: OFDMA/OFDM/CCK/16-QAM/64-QAM/256-QAM
Security and System Requirements
– WEP 64/128 bits, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
- Supported systems: Windows 10, Windows 11
Operating Environment
- Operating temperature: 0°C~40°C
- Storage temperature: -40°C~70°C
- Operating humidity: 10–90% relative humidity (non-condensing)
- Storage humidity: 5–90% relative humidity (non-condensing)
