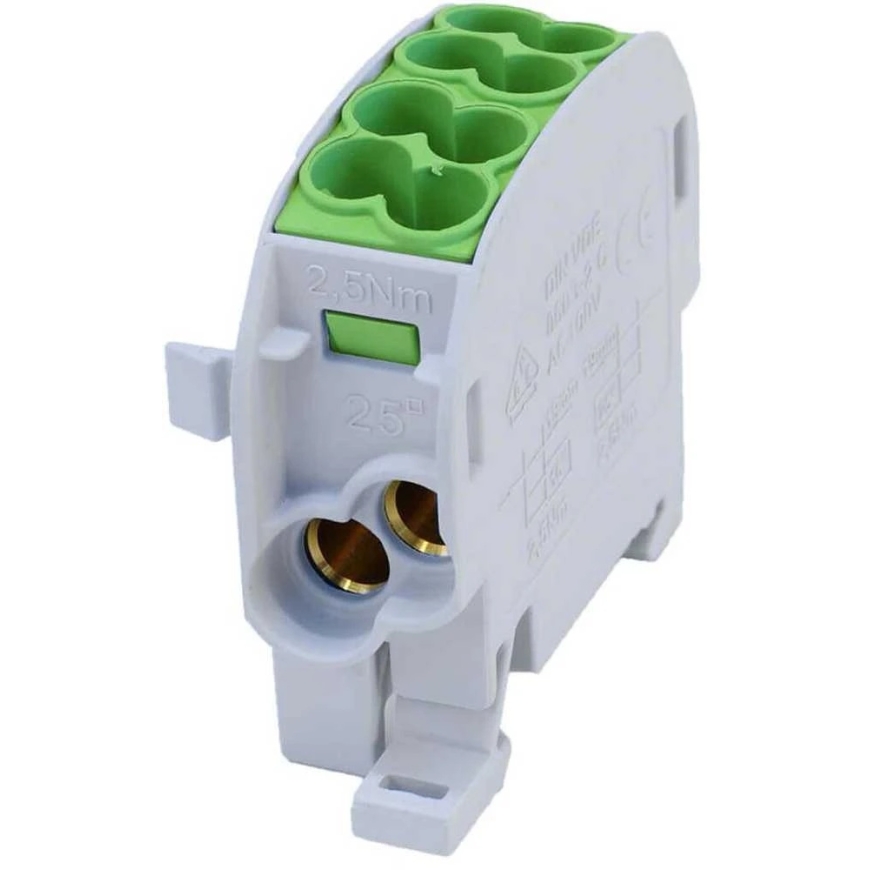

Simet Distribution Block SCB 25 Al/Cu 80110 SIMBLOCK, green 81501005
13.84 €
5005237 68971
5907813232930
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Branch Distribution Block SCB 25 Al/Cu 80110 SIMBLOCK, green 81501005
Model: 81501005

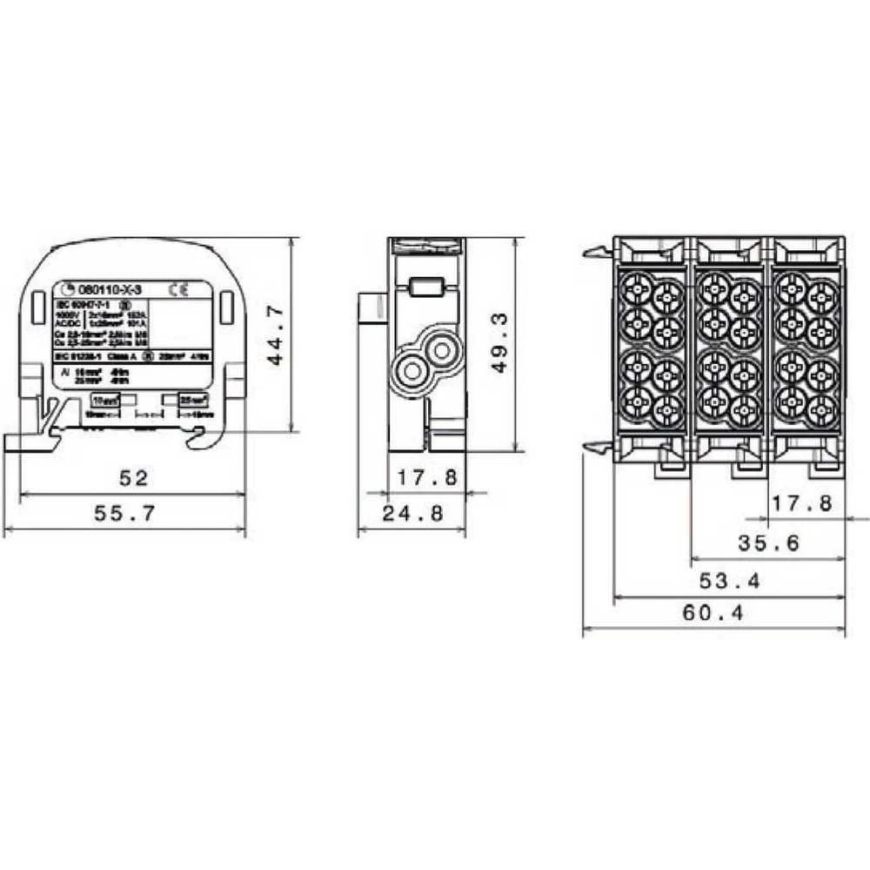

Technical Specifications:
| Color | green |
| Width | 24.8 mm |
| Module Width | 17.8 mm |
| Height | 49.3 mm |
| Length | 55.7 mm |
| Number of Poles | 1 |
| Compatibility | Aluminum/Cu |
| Input (wire) | 2 x (2.5...25) mm² |
| Input (wire with sleeve) | 2 x (1.5...16) mm² |
| Output (wire) | 2 x (2.5...16) mm² |
| Output (wire with sleeve) | 2 x (1.5...10) mm² |
| Rated Voltage | 1000 V AC / 1000 V DC |
| Rated Current Cu | 152 A (2 x 16 mm²) / 101 A (1 x 25 mm²) |
| Mounting | TS 35 rail - Horizontal |
