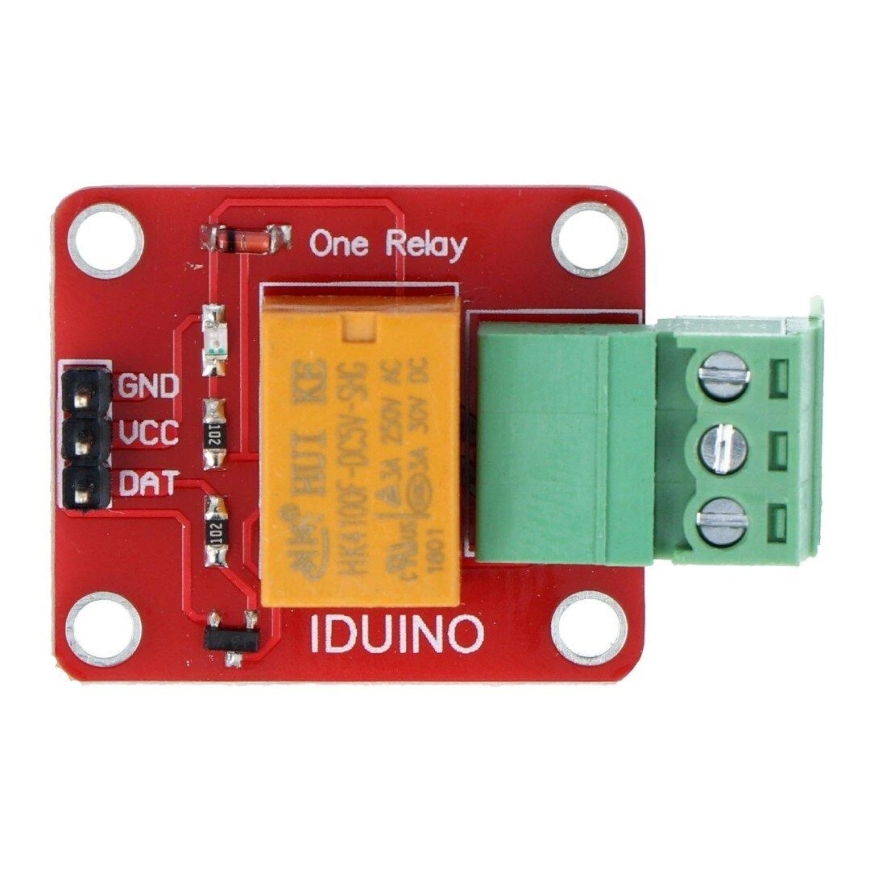

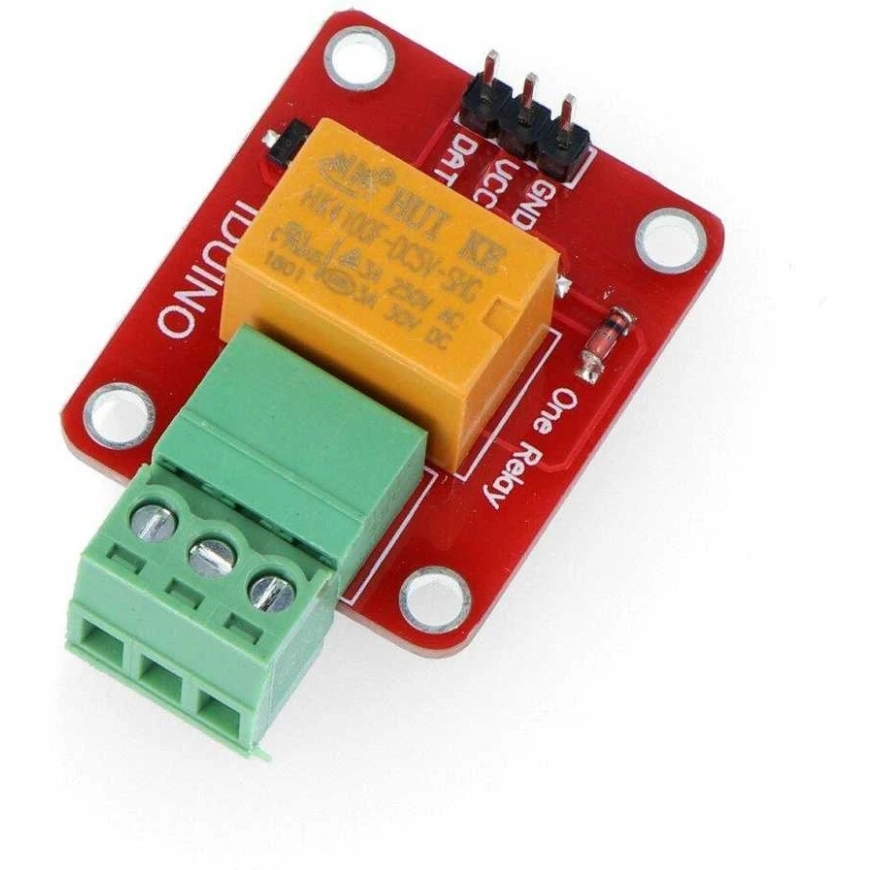

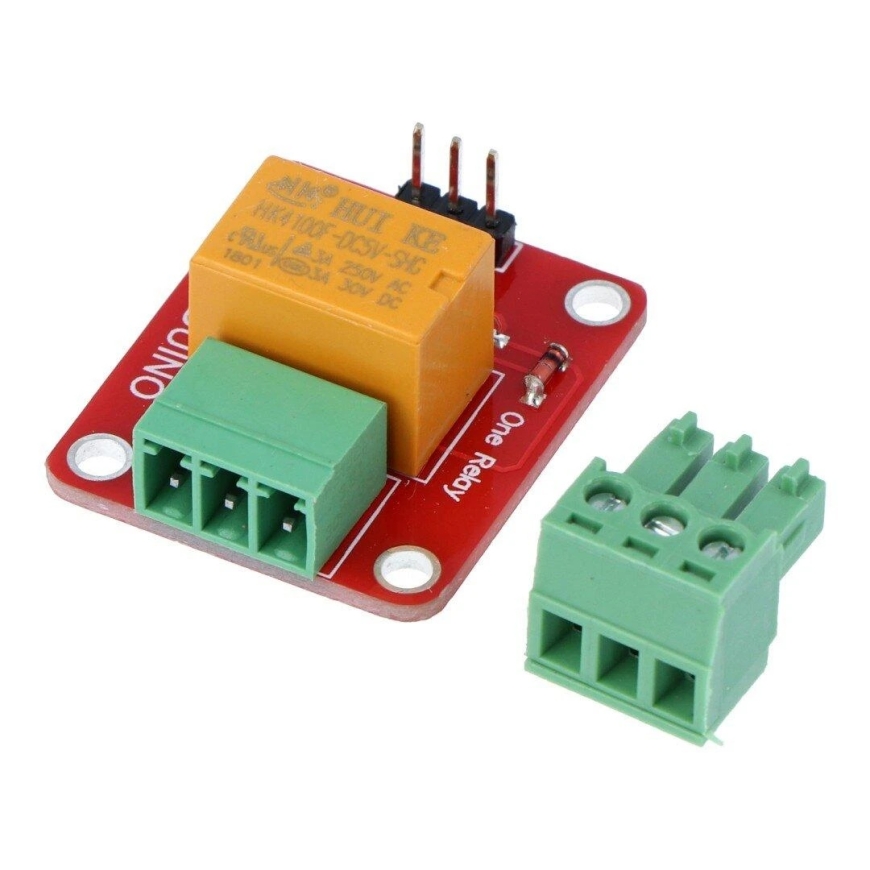

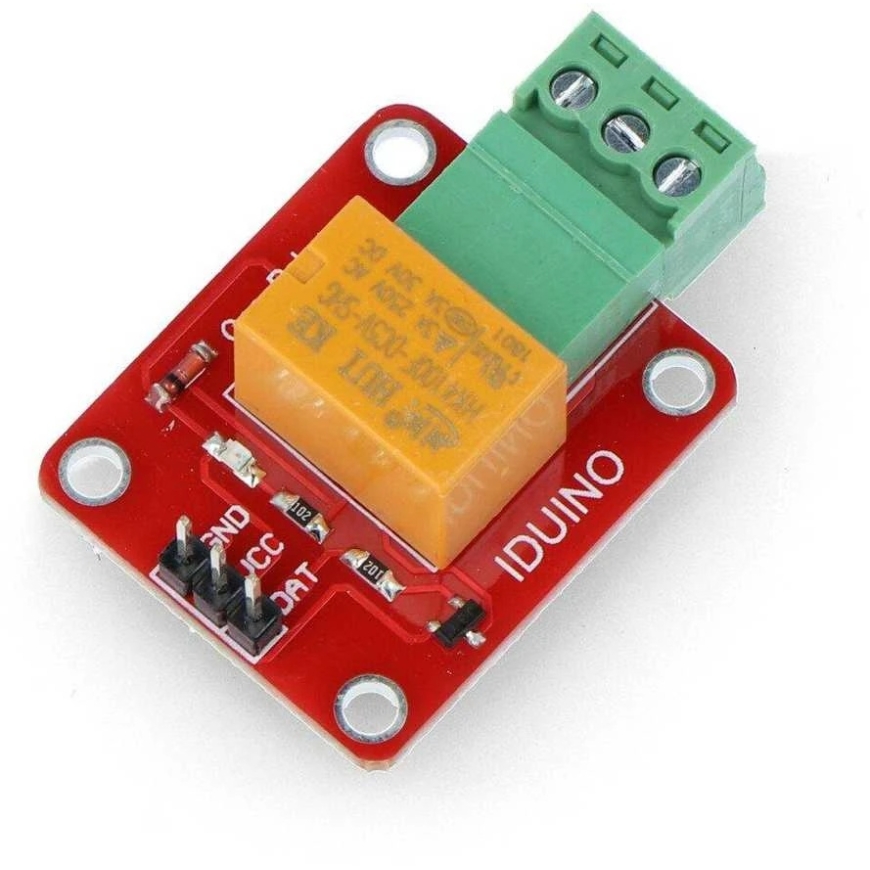

Openplatform Relay Module, 1 Channel - 3A/250V AC Contacts - 5V Coil
13.39 €
5005070 AN-14297
5903351241892
Shipping 8-15 b.d.
You are interested in this product?
All about the product
The module features an HK4100F relay with a voltage of 5 V. The system allows control of drives with a voltage of 250 V AC / 30 V DC using microcontroller ports or any development kit.
Specifications:
- VCC power voltage: 5 V
- Activated by high status
- Relay: HK4100F-DC5V-SHG
- Coil voltage: 5 V
- Maximum contact voltage: 250 V AC, 30 V DC
- Maximum current: 3 A
- Board size: 41 x 26 x 15 mm
- Mounting hole diameter: 3 mm
