Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B – 2
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B – 3
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B – 4
New
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B
Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Gravity, LED switch, LED illuminated button, blue, DFRobot DFR0789-B

21.53 €
5005051

AN-19914

5904422349820

Shipping 8-15 b.d.

You are interested in this product?
(Read terms of service)

All about the product

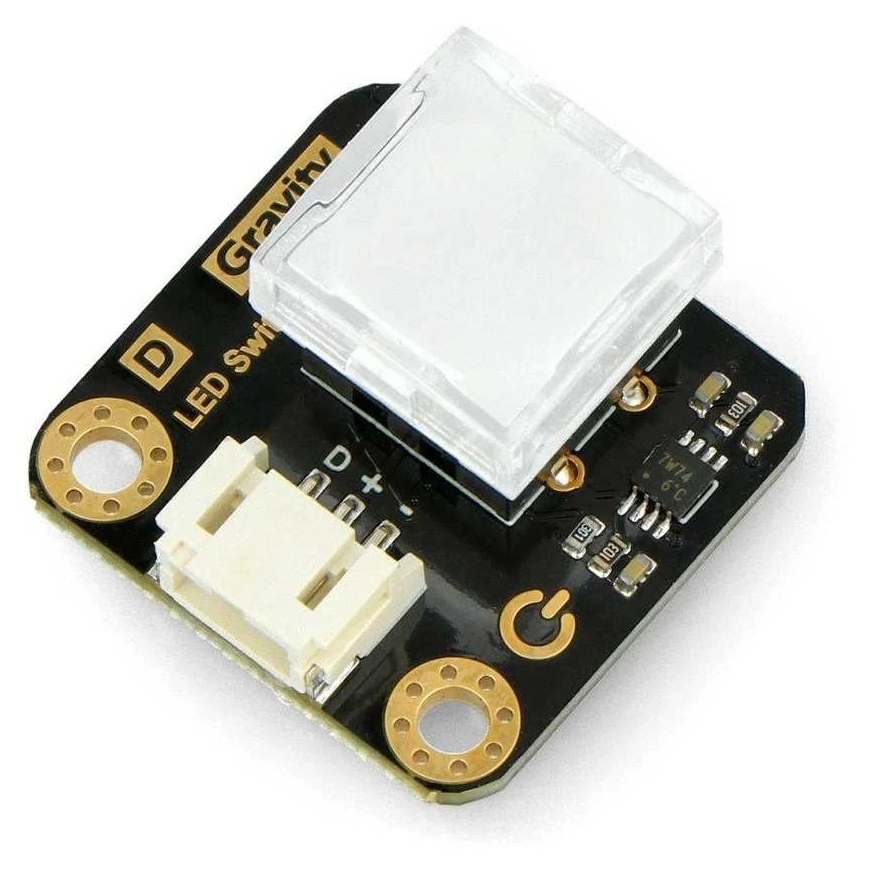

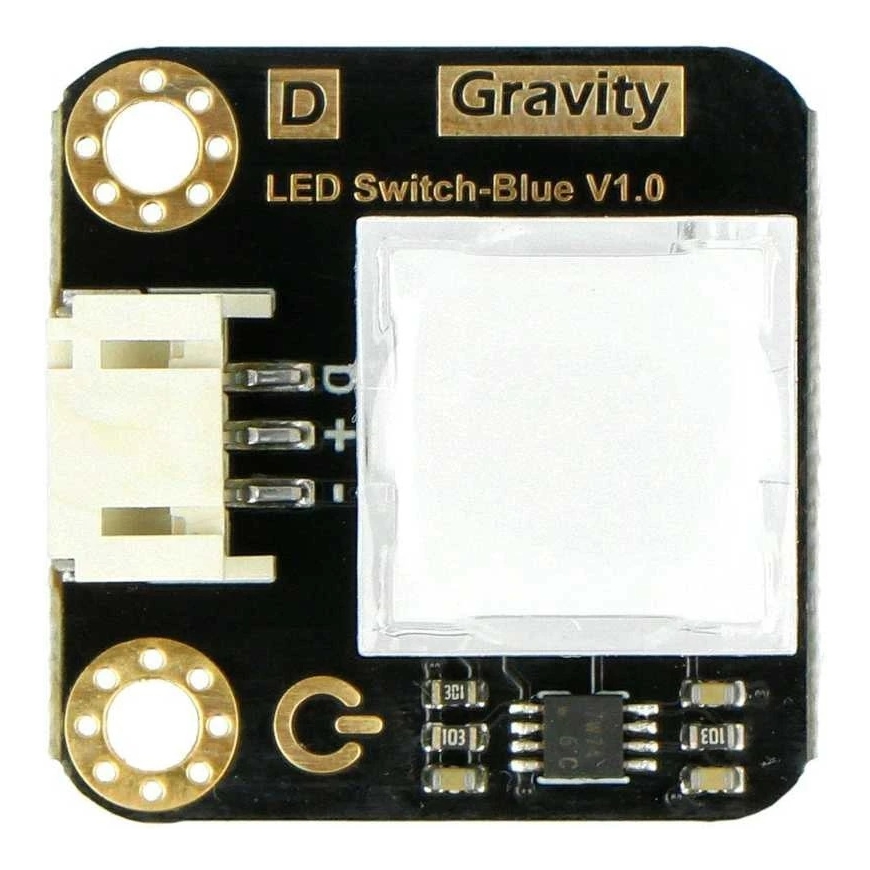

Module with a button and additional lighting responsible for the built-in LED. The mounting element provides blue visual feedback when pressed. The Gravity - blue LED switch is highly versatile and can be used, for example, with the BBC micro:bit or Arduino. A momentary switch with a self-latching function means that when the button is pressed, the module sends a high signal and the LED lights up. Pressing the button again sends a low signal and the LED turns off. These types of switches can be part of backlit keyboard or music panel designs.

Specifications:

  • Operating voltage range: 3.3 V to 5 V (recommended 3.3 V)
  • Output signal type: digital
  • Button type: momentary (self-latching)
  • Connector: Gravity standard (PH2.0-3P)
  • Backlight: LED
  • Backlight color: blue
  • Supported programming environments: Arduino, Mind+, MakeCode
  • Module dimensions: 27 x 26.5 mm

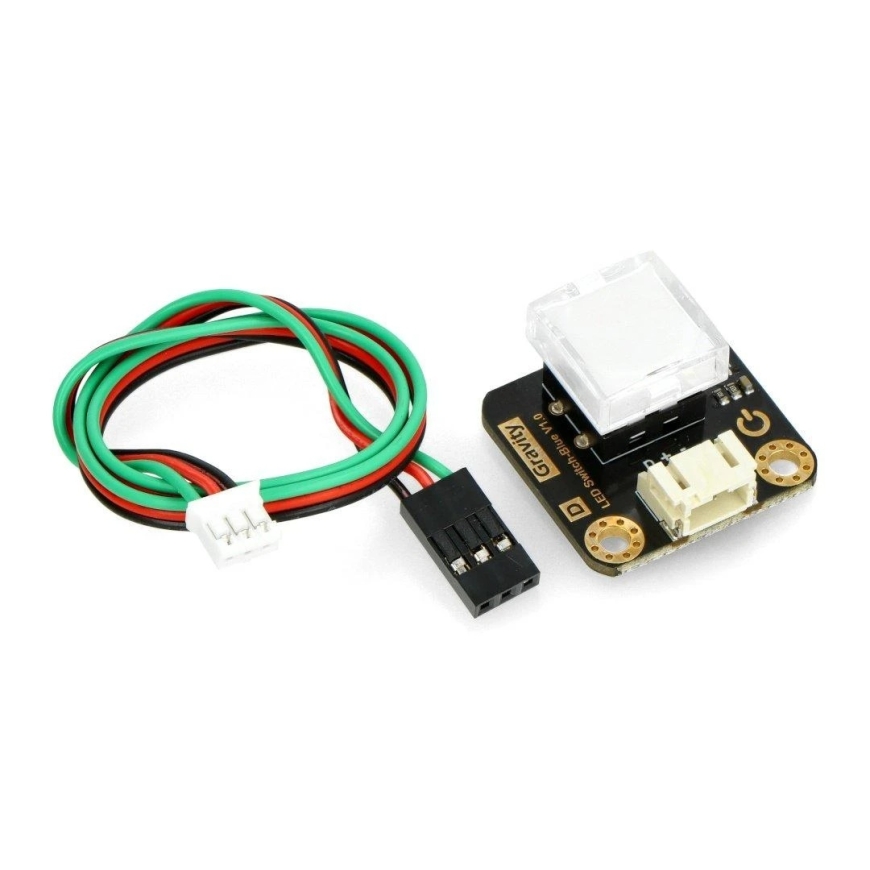

Included:
  • Gravity - LED blue switch - button with blue LED backlight
  • Special digital connection cable
