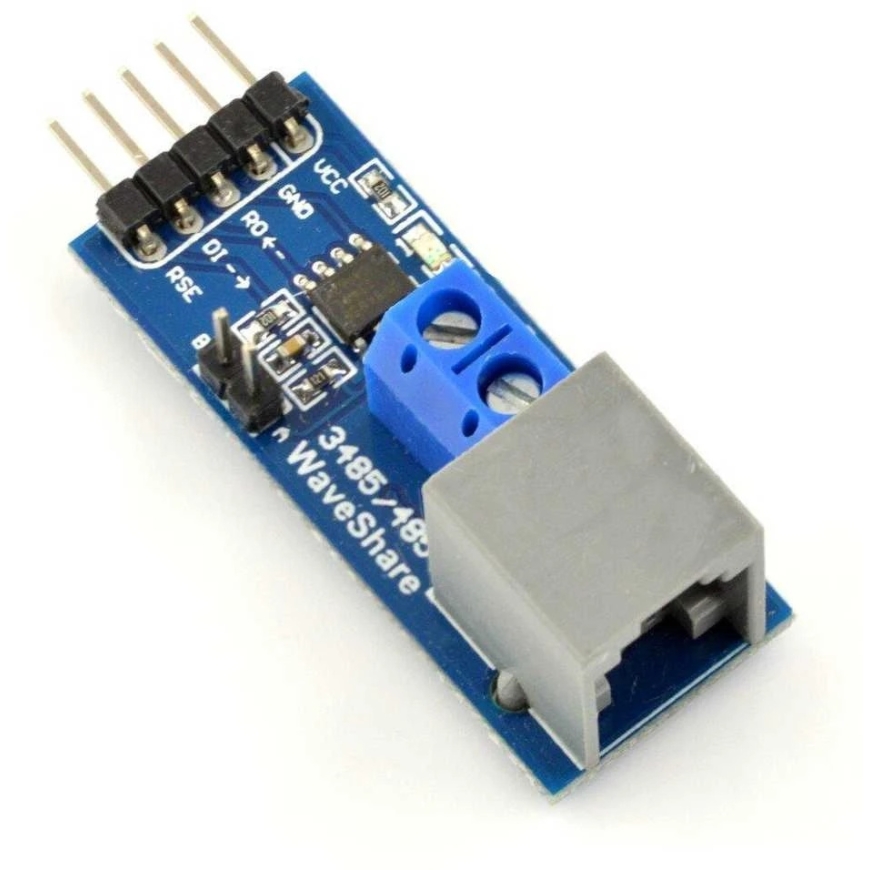

UART converter, RS485 5V, ARK/RJ11, Waveshare 4738
19.00 €
5004810 AN-04493
5904422371470
Shipping 8-15 b.d.
You are interested in this product?
All about the product

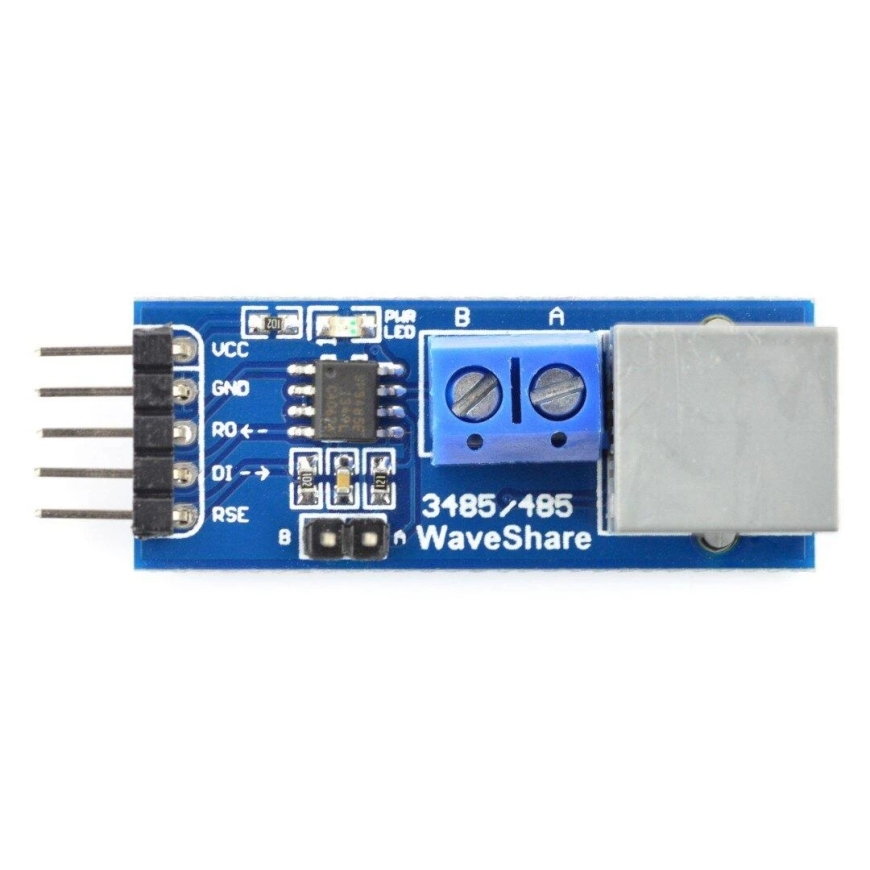

The converter allows connecting a microcontroller via an RS-485 bus, supporting up to 32 devices in line, with a length of up to 1 km and speed up to 10 Mbps. The module is based on SP485, which has connectors: gold pins, 2.54 mm - designed to connect with the microcontroller using the RS485 serial interface ARK and RJ11.
Specifications:
- Operating voltage: 5.0 V
- Controller: SP485 - replaced MAX485
- Interface with microcontroller: serial interface UART
- RS485 connectors: gold pins 2.54 mm, ARK or RJ11

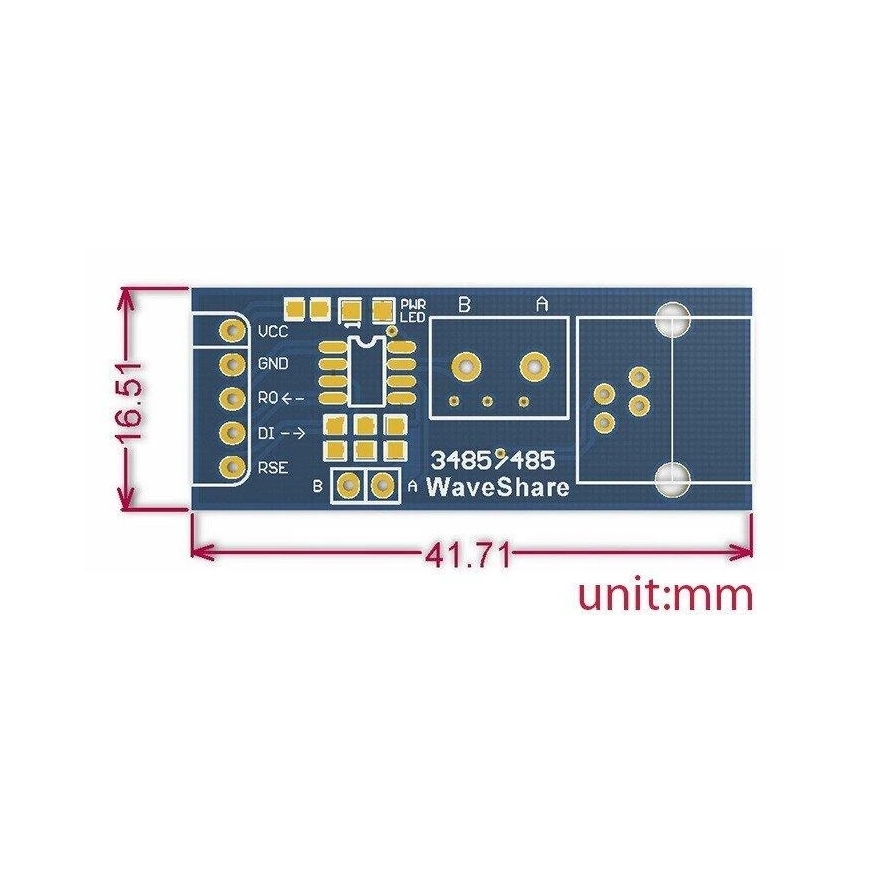

- Dimensions: 42 x 16.5 mm
