TCL Wall Air Conditioner, BreezeIN 2.0 R32 Wi-Fi, 5.2/5.6
5004620 6931084315862
Shipping 7-11 b.d.
All about the product

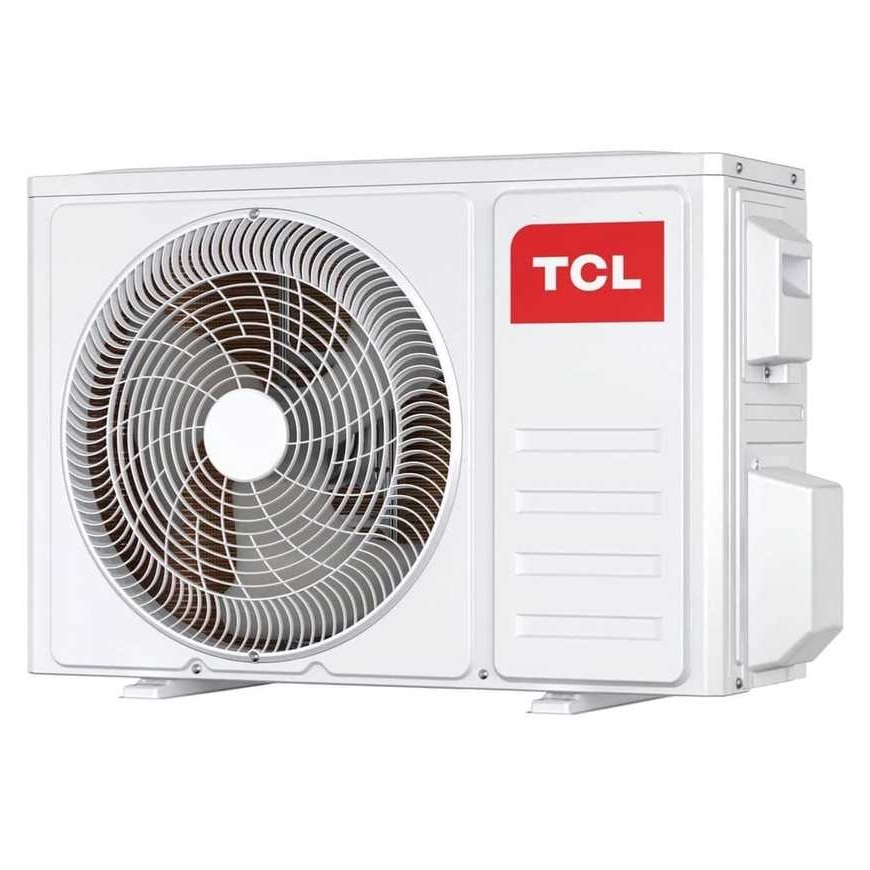

Wall-mounted air conditioner with an outdoor unit included

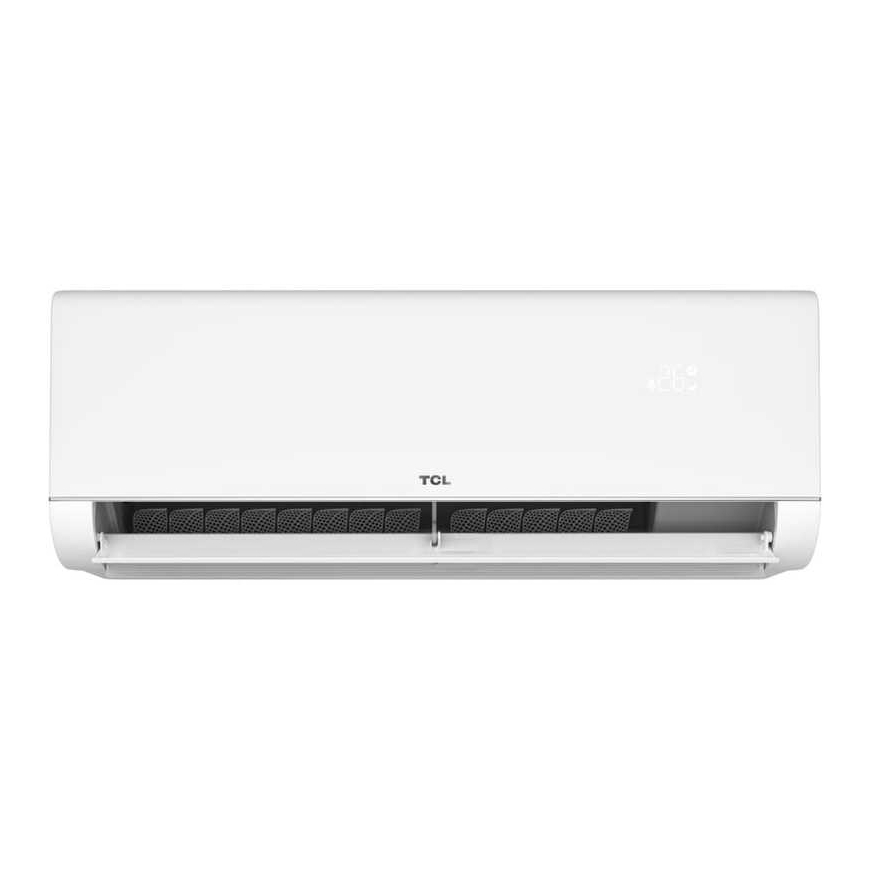

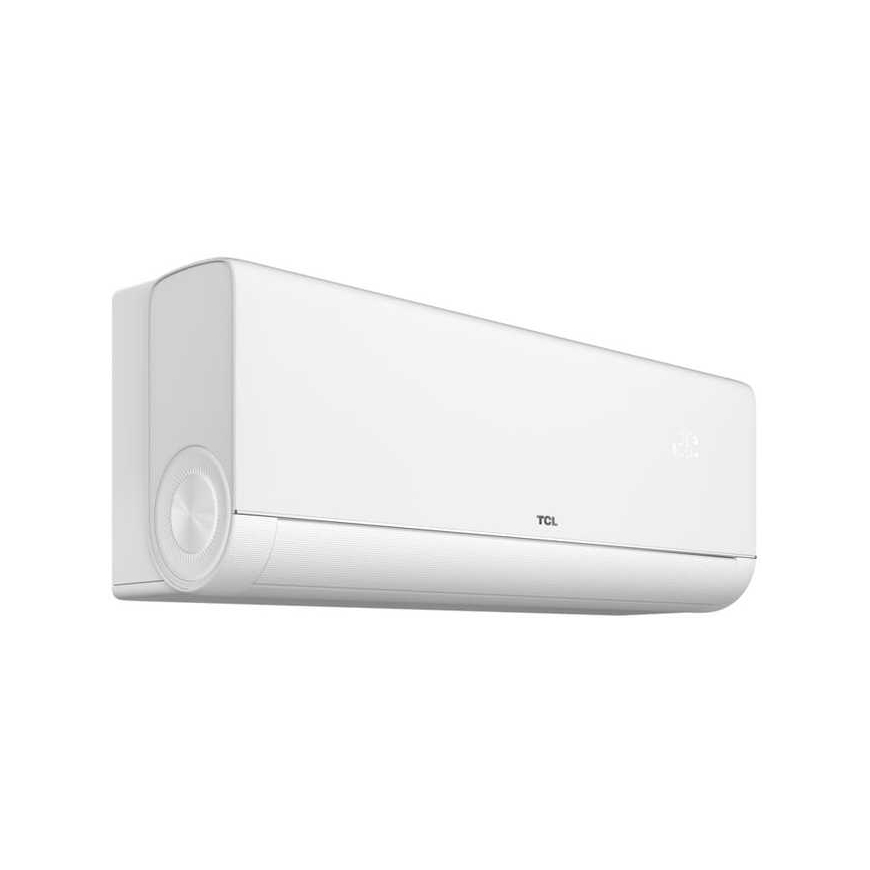

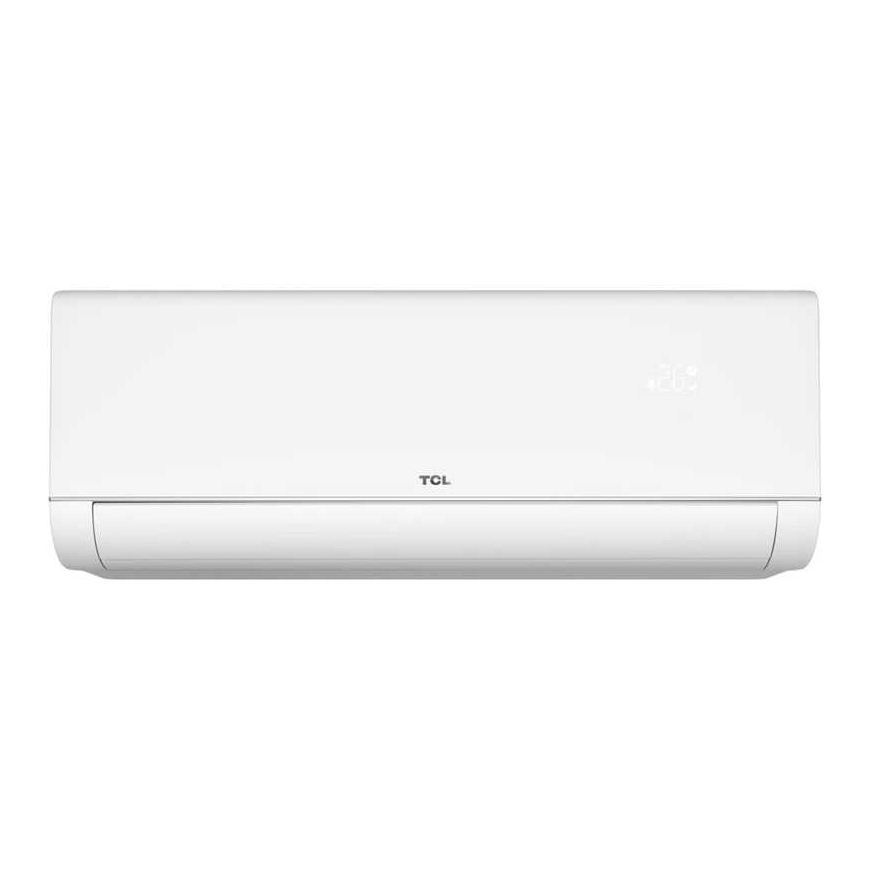

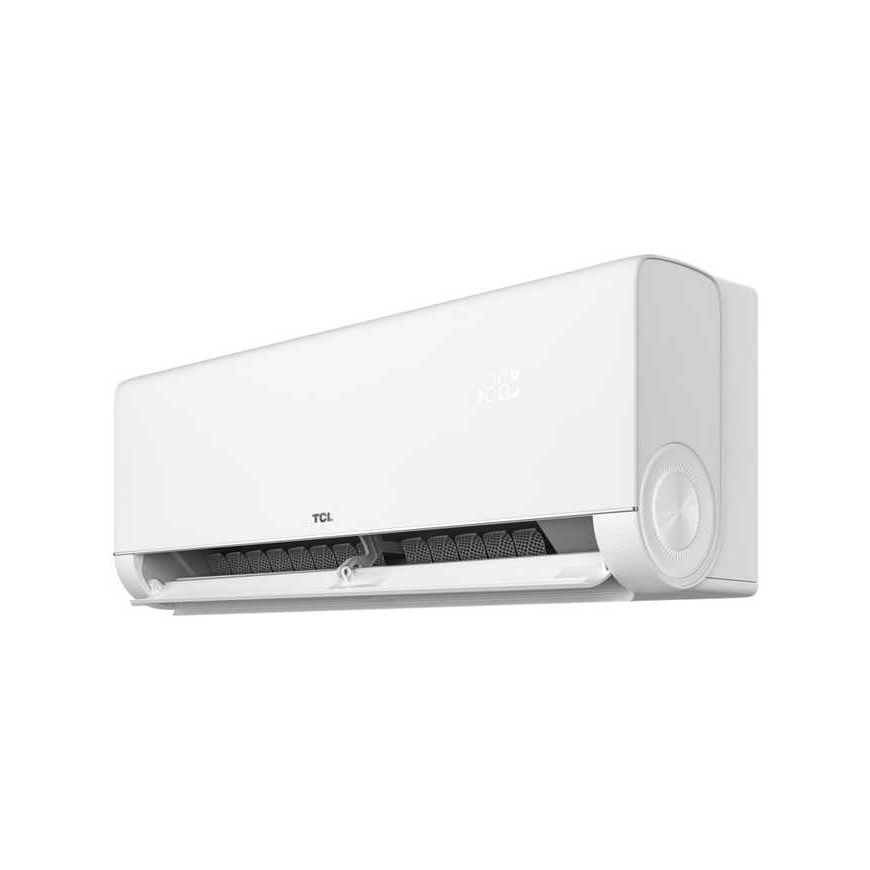

TCL BreezeIN 2.0 5.2 kW wall-mounted air conditioner
TCL BreezeIN 2.0 5.2 kW – inverter wall-mounted air conditioner / heat pump designed for cooling and heating indoor spaces. The model features integrated Wi-Fi control, Gentle Breeze soft airflow technology, a dual air directing system, T-AI energy-saving technology, and a self-cleaning function.
Specifications
- Model: TAC-18CHSD/UG11V3A
- Cooling capacity: 5.26 kW (1.25–6.00 kW)
- Heating capacity: 5.60 kW (1.25–6.80 kW)
- SEER: 8.5
- SCOP: 4.6
- Energy efficiency class: A+++ for cooling / A++ for heating
- Refrigerant: R32
- Airflow for cooling / heating: 860 / 900 m³/h
- Indoor unit sound pressure level: 23–47 dB(A)
- Outdoor unit sound pressure level: 55 dB(A)
- Outdoor temperature operation for cooling: from -15 to +53 °C
- Outdoor temperature operation for heating: from -30 to +30 °C
- Indoor unit dimensions: 909 x 305 x 209 mm
- Outdoor unit dimensions: 927 x 699 x 380 mm
- Maximum pipe length: 25 m
- Maximum height difference: 10 m
- Recommended room area: up to 50 m²
- Package includes: indoor and outdoor units
Gentle airflow
The Gentle Breeze technology distributes the cold airflow through 13 special blades with 1222 micro-holes. This converts strong direct airflow into a more even and gentler breeze.
Wide dual air guide
The dual air directing system allows for more efficient airflow distribution for both cooling and heating. The lower flap moves up to 90°, and the upper flap – up to 180°, enabling air to reach a larger area of the room.
T-AI energy saving
The T-AI system pre-adjusts the inverter compressor's operating frequency and allocates more power for maintaining the targeted temperature rather than unnecessary overcooling of the room.
Smart Wi-Fi control
The air conditioner can be controlled via the TCL Home app, allowing remote adjustments of temperature and operating modes. BreezeIN 2.0 is also compatible with Google Home and Amazon Alexa voice control.
Fast cooling and heating
The efficient inverter compressor allows for quick temperature changes in the room. In fast mode, cooling accelerates in 30 seconds, while heating does so in 60 seconds.
56 °C self-cleaning
The self-cleaning cycle of the indoor unit includes condensation, icing, defrosting, drying, and heating up to 56 °C. The outdoor unit's Reverse Clean function helps remove dust and other impurities from the heat exchanger.
More features and comfort
- 108 mm large diameter fan – optimized fan design ensures powerful airflow; the manufacturer's data indicates that airflow volume is increased by up to 25%.
- Stable cooling up to +53 °C – the system is designed to operate in cooling mode even at high outdoor temperatures.
- Stable heating down to -25 °C – BreezeIN 2.0 can operate in heating mode even at low outdoor temperatures.
- Power Cut Auto Restart – upon restoration of power supply, the unit automatically resumes operation with previous settings.
- Dry Contact control – the ability to link the unit's on/off operation with door, window, or other control systems.
- BMS compatibility – the air conditioner can be integrated into the building management system.
- Electricity consumption monitoring – the TCL Home app allows viewing the electricity usage graph and monitoring the device's operation.
- 3 levels Generator Mode – allows limiting the compressor current and power at three different levels.
- Easier maintenance – improved indoor unit design simplifies access to electronic components for maintenance.
- More convenient installation – integrated level gauge, larger space for pipe connections, wiring access box, and One PRESS mechanism facilitate unit installation.
- Easier disassembly and cleaning – the main elements of the indoor unit are designed for easier removal and access for deeper cleaning.
- OTA updates – electronic control firmware can be updated remotely using cloud technology.
Description created by artificial intelligence.
