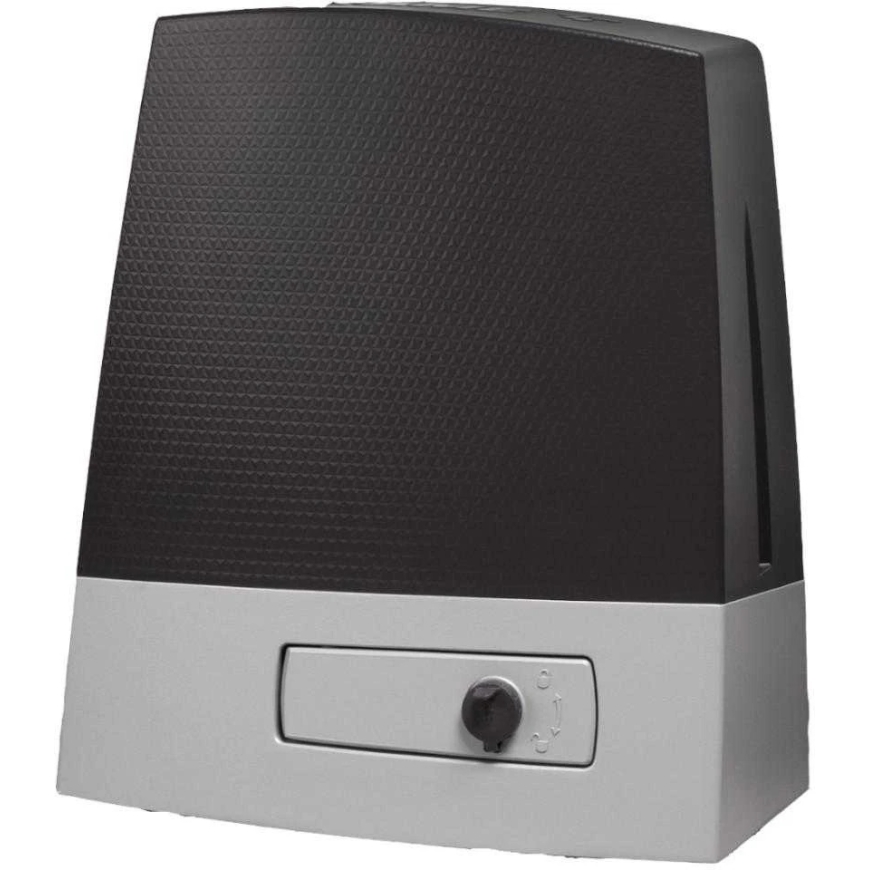

CAME BKX08AGF Gate Automation, 24 V, 24 m/min, 800 kg
449.00 €
Monthly payment from 12,46 €
5003812 801MS-0690
8050456094322
Shipping 8-12 b.d.
You are interested in this product?
All about the product

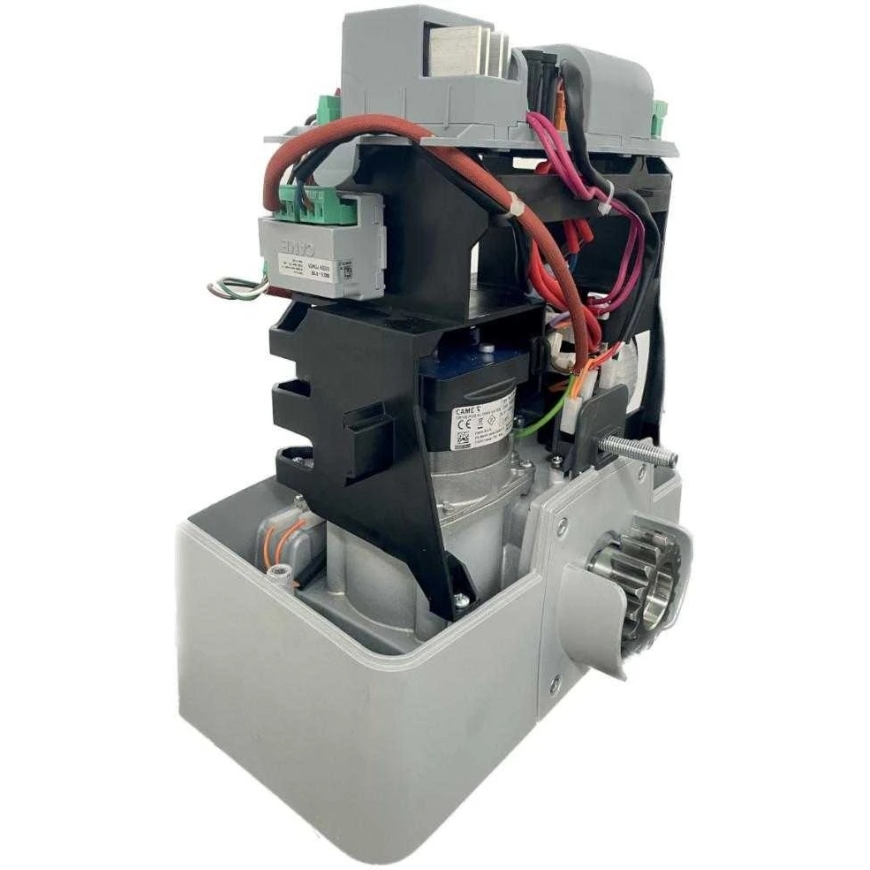

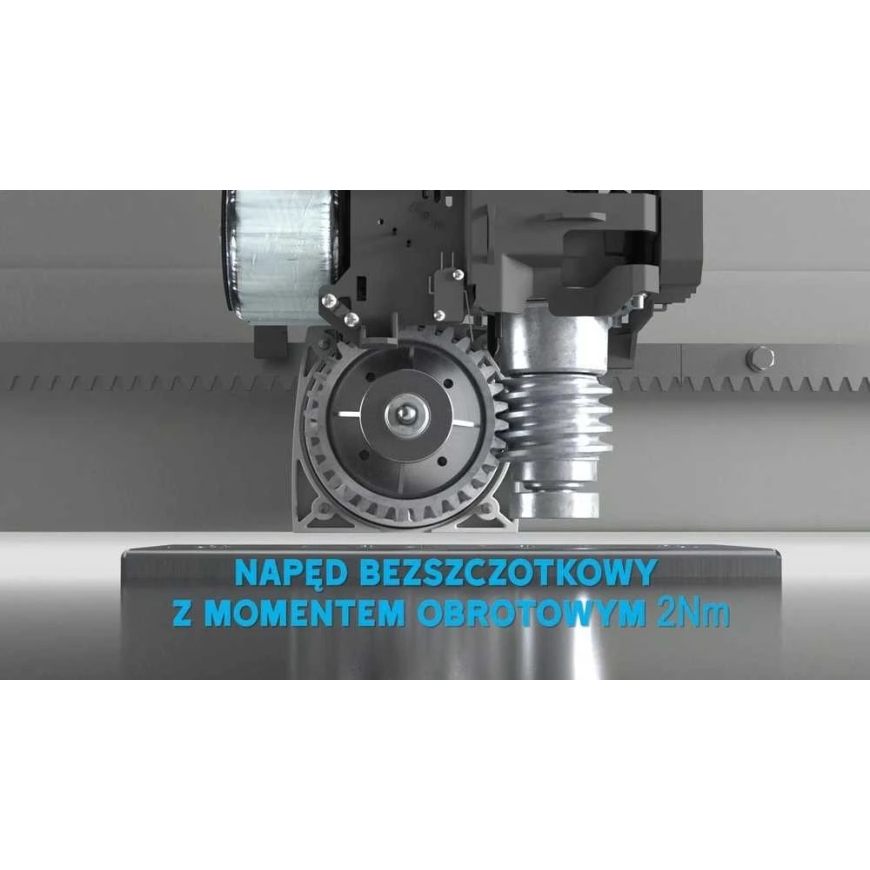

Automation with a 24 V brushless motor, reaching speeds of up to 24 m/min, with adaptive speed and torque technology. Comes with an electronic board with a graphical display, prepared for CAME Key, CXN BUS, B1 and B2 outputs, integrated radio decoding, movement control, and obstacle detection. Designed for gates weighing up to 800 kg and up to 20 m in length.
Specification:
| Technical specifications | |
| Protection class (IP) | 54 |
| Supply voltage (V – 50/60 Hz) | 230 |
| Motor supply voltage (V) | 24 |
| Power (W) | 390 |
| Movement speed (m/min) | 24 |
| Traction force (N) | 800 |
| Number of cycles per hour with a 4 m leaf | Continuous operation |
| Number of cycles per hour with a 10 m leaf | 55 |
| Operating temperature (°C) | -20 ÷ +55 |
| Storage temperature (°C) | -20 ÷ +70 |
| Operating limits | |
| Max. leaf length (m) | 20 |
| Max. leaf weight (kg) | 800 |
