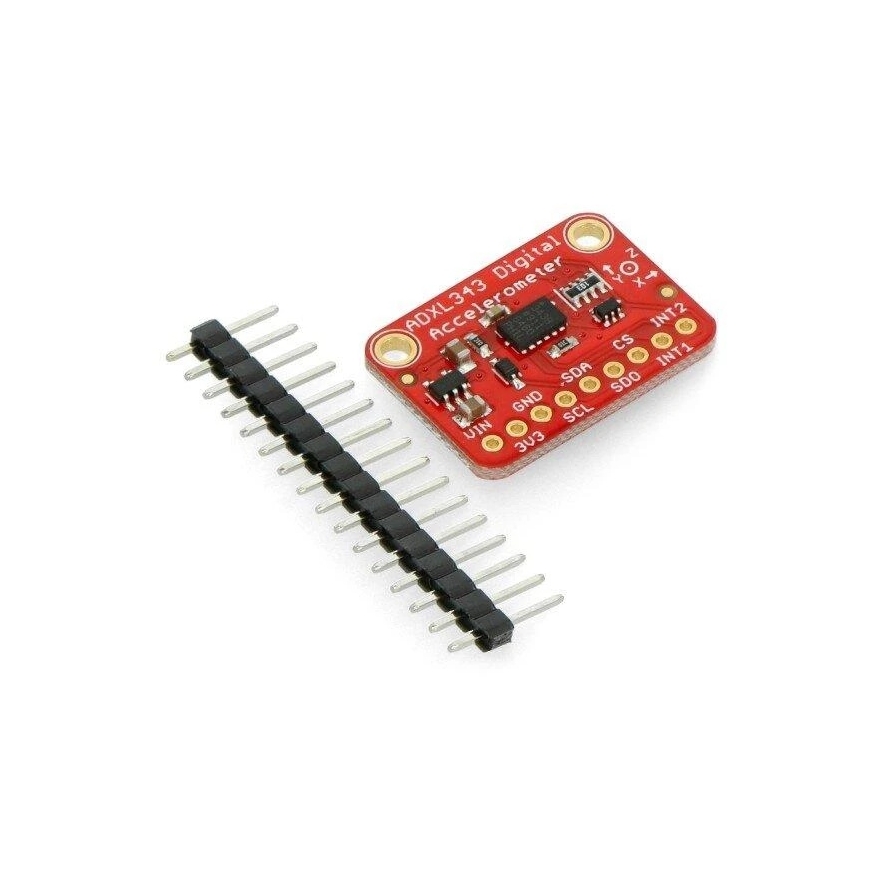

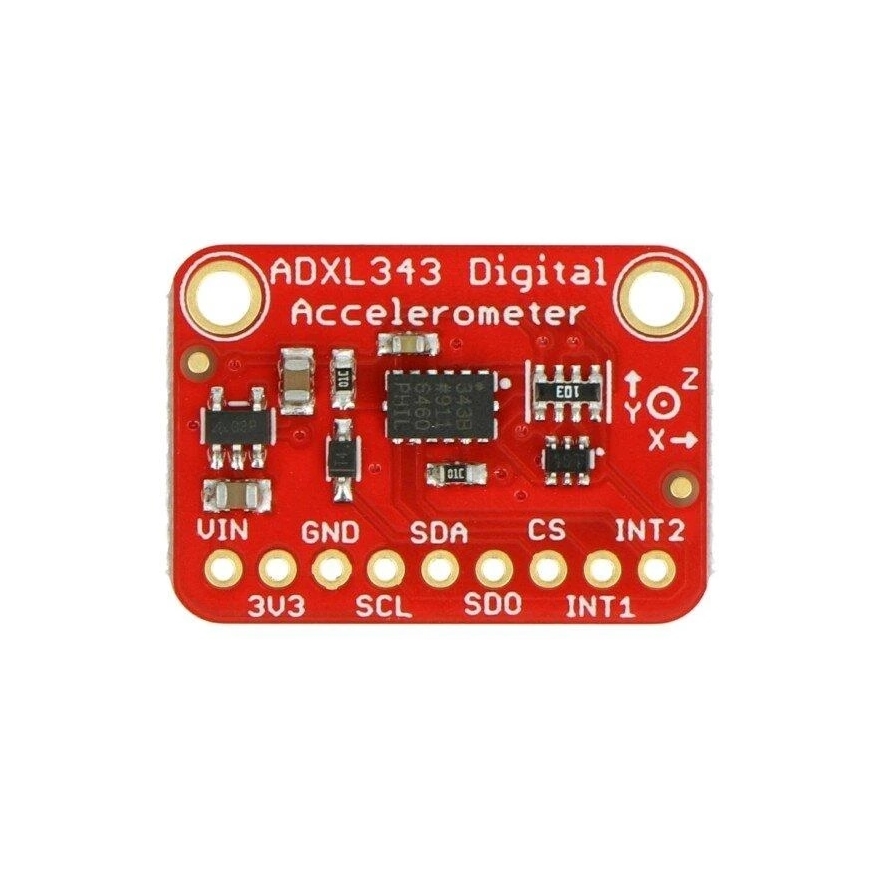

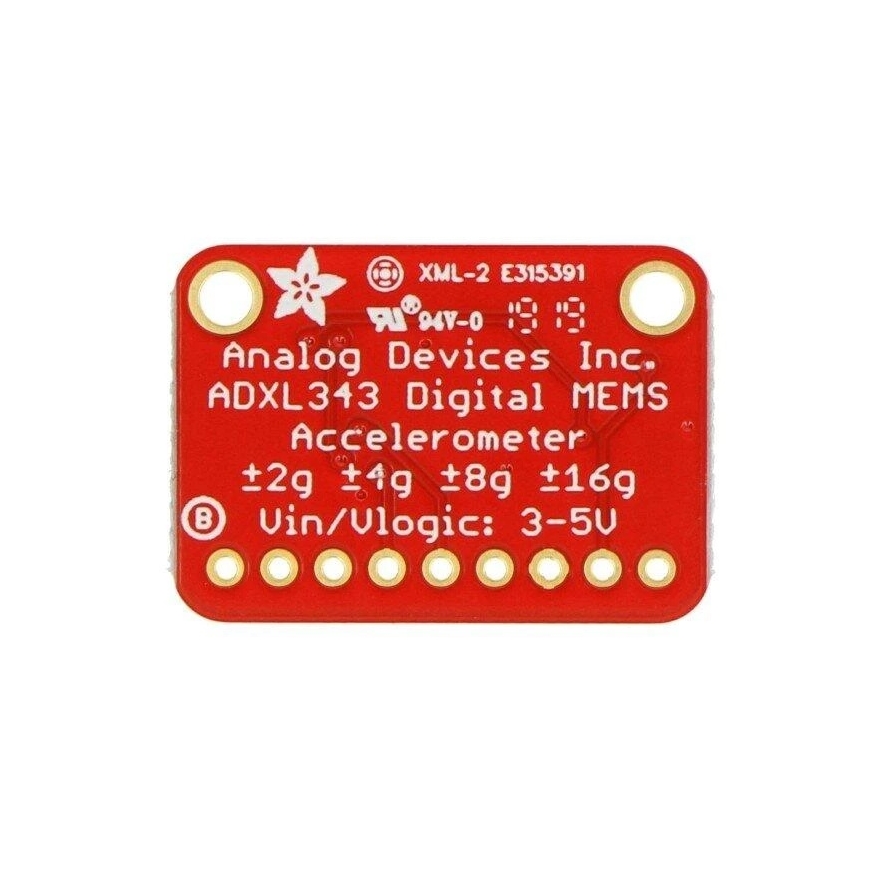

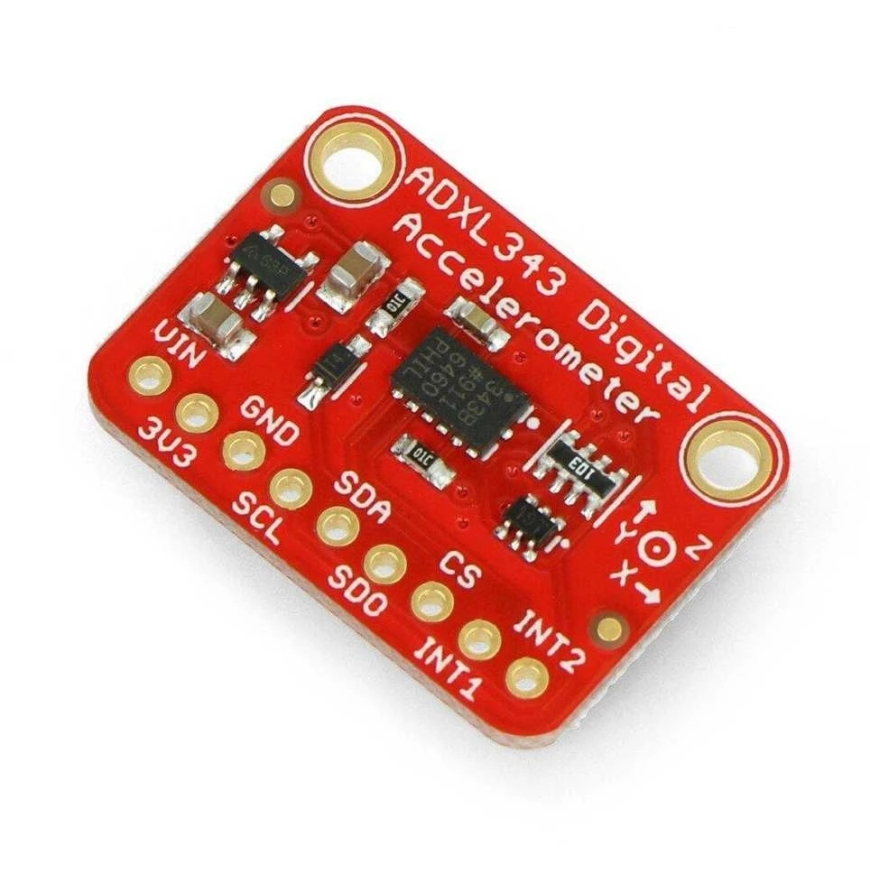

ADXL343 3-axis I2C/SPI digital accelerometer, module, Adafruit 4097
5003602 AN-13948
5904422364328
Shipping 8-15 b.d.
All about the product
The sensor is designed to measure acceleration in three axes at +-2g / 4g / 8g / 16g range. The module operates from 2 V to 3.6 V voltage, with a voltage regulator interfacing via I2C or SPI bus.
The ADXL343 module is a continuation of the popular ADXL345. It features a 3-axis accelerometer with a digital I2C and SPI interface. It is characterized by a wide sensitivity range and high resolution, operating with a 10 or 13-bit internal ADC converter. The module is essential for correct system operation and passive components. The pins are popular gold connectors for wiring the sensor or directly mounting to a breadboard.
The system can be connected to a central device via I2C or SPI bus. To select I2C, you should specify the logical CS pin or permanently pull CS to the voltage. The I2C address depends on the state of the SDO pin. In the high state, it has a value of: 0x1D, in the low state - 0x53.
