KENIK KG-830TPA-DL IP CAMERA
129.00 €
Monthly payment from 4,22 €
5003312 KG-830TPA-DL
5903716301155
Shipping 8-10 b.d.
You are interested in this product?
All about the product

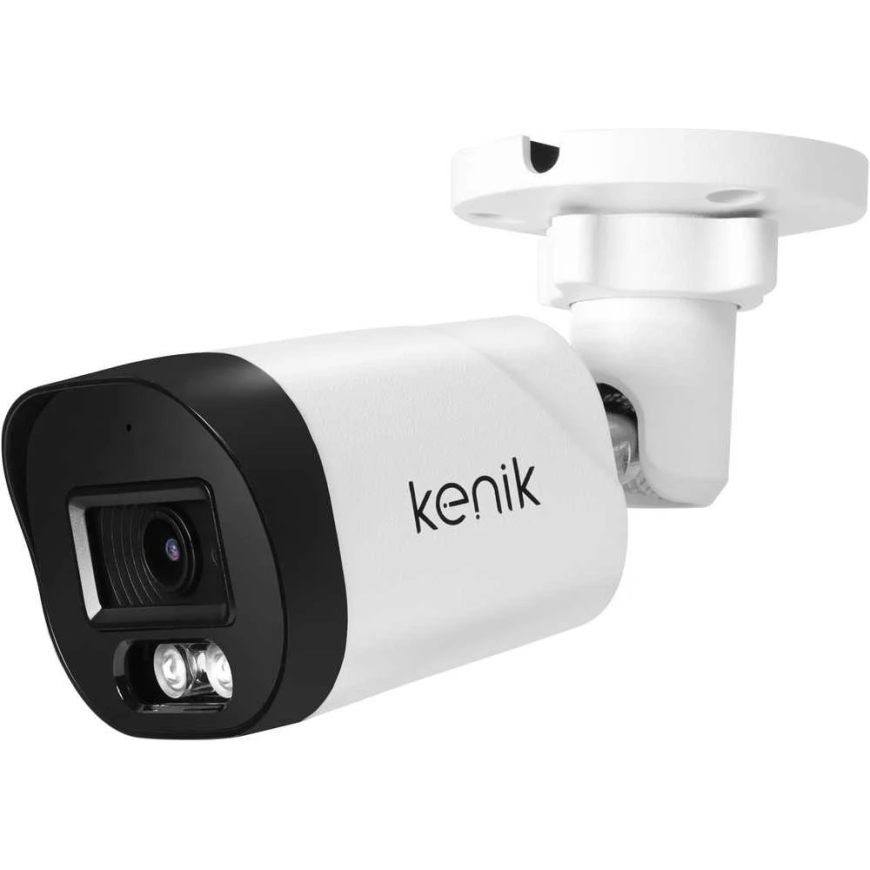

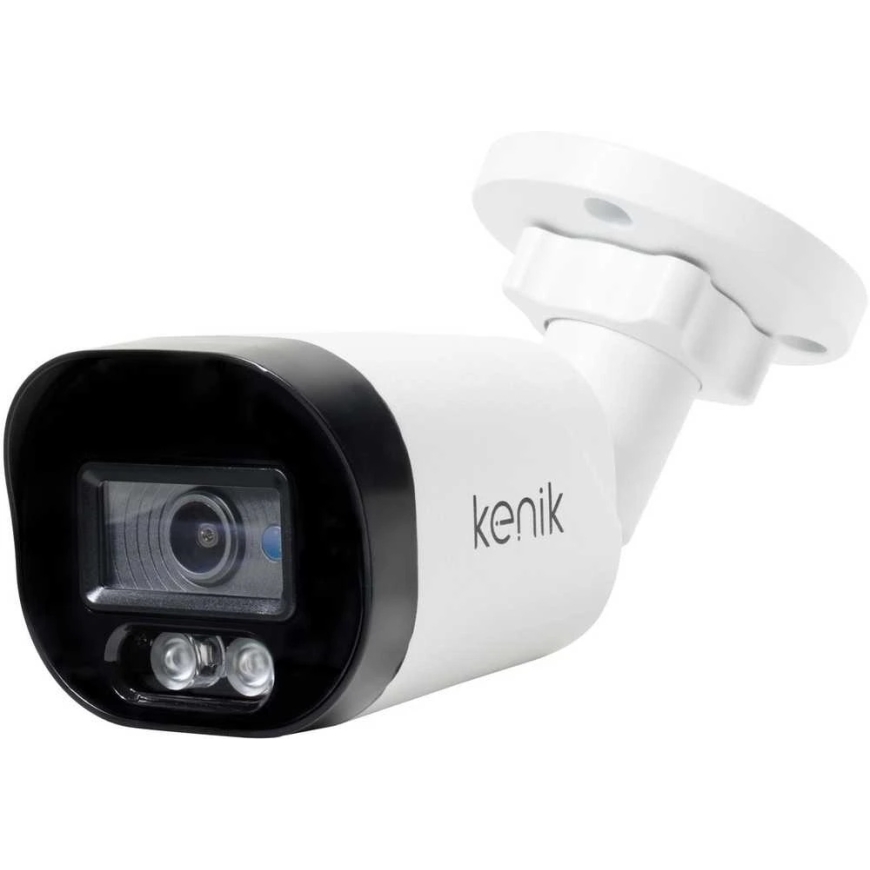

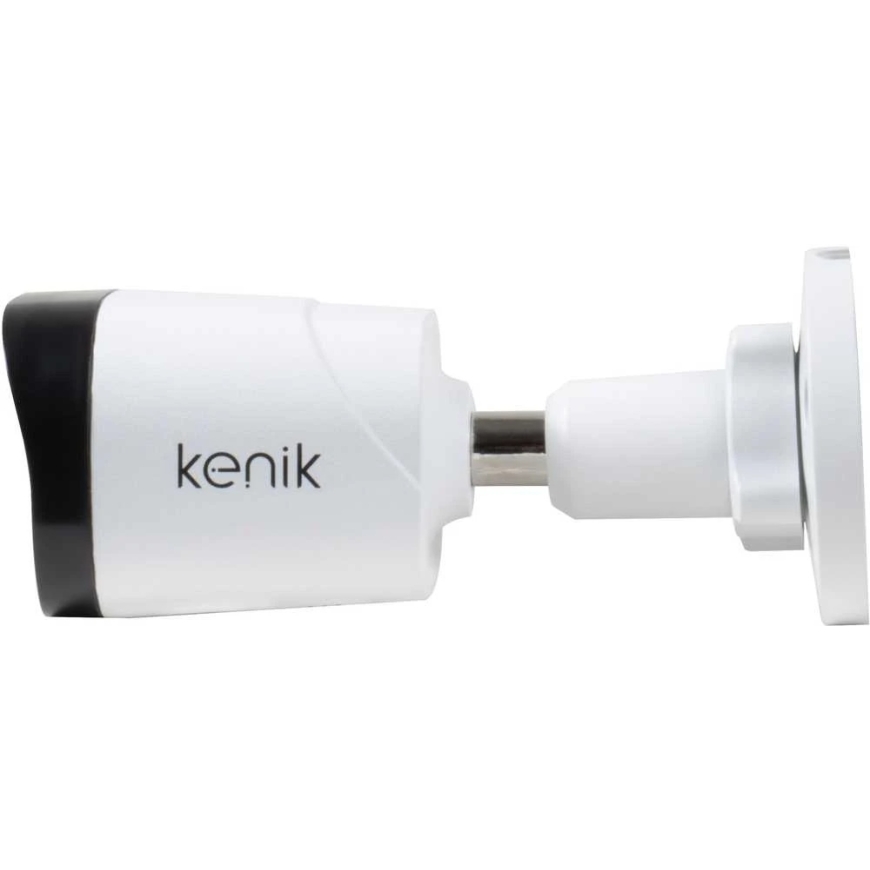

KENIK KG-830TPA-DL IP CAMERA
Model: KG-830TPA-DL
Features
- 8 MP resolution (3830 x 2160)
- HH.265+/H.264+ compression
- WDR, 3D DNR, HLC, BLC

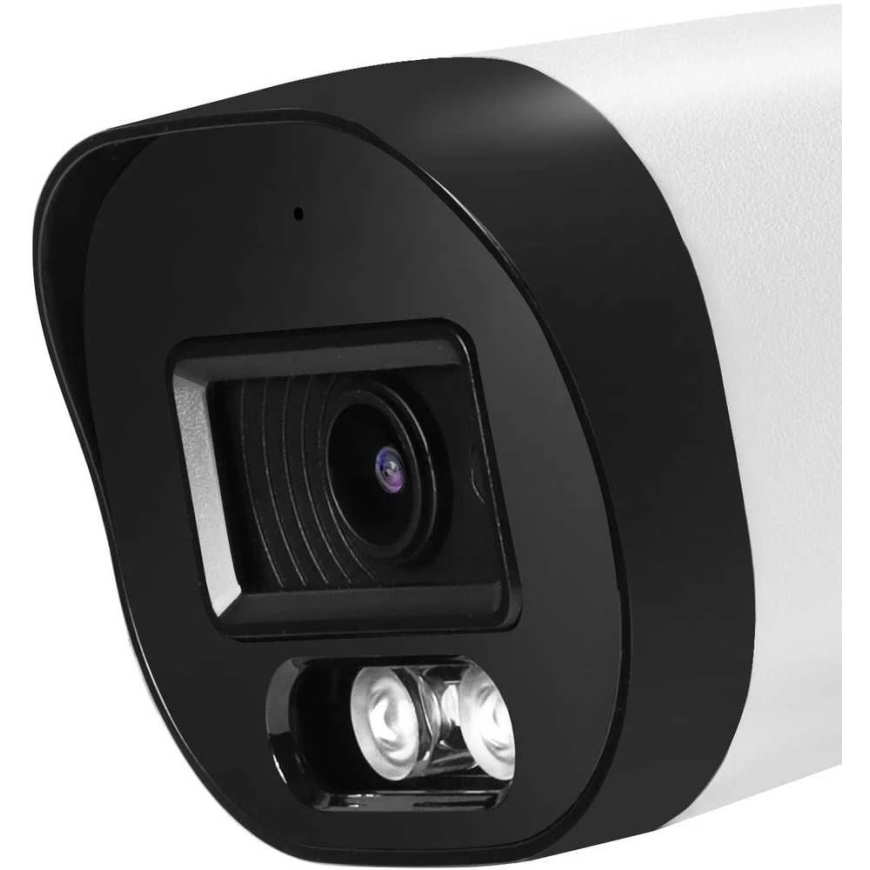

- 2.8 mm lens
- Intelligent dual light reflector (IR + LED) up to 30 m
- built-in microphone
- SMD (human filter)
- 2 streams
- 12 V DC power supply, PoE (802.3af)
- IP67 rated enclosure
- supports ONVIF standard
- enclosure color: white
- mobile viewing on smartphones (Android, iPhone)
- Free software in Polish for registration on your computer
Applications
The camera can be used for surveillance:
- Offices
- Shops
- Schools
- Plants
- Homes
Technical Specifications:
| KG-830TPA-DL (2.8 mm) | ||
| Camera | ||
| Sensor | 1/2.7 inch progressive scan CMOS sensor | |
| Sensitivity | 0.008 lux (color), 0 lux (infrared on) | |
| Shutter speed | Automatic/manual, 1/3~1/10000 s | |
| Lens | 2.8 mm: horizontal viewing angle: 109° | |
| Lens mount | M12 | |
| Day/night | automatic IR filter | |
| Wide dynamic range | WDR | |
| Noise reduction | 3D DNR | |
| IR illuminator range | 30 m | |
| LED spotlight range | 30 m | |
| Intelligent IR | Yes | |
| Microphone | Yes | |
| Compression | ||
| Video compression | H.264/H.264+/H.265/H.265+ | |
| H.264 codec profile | baseline/main/high | |
| H.265 codec profile | main | |
| Audio compression | G.711A/G.711U | |
| Video bit rate | 11 Kbps~13 Mbps | |
| Audio bit rate | 64 Kbps | |
| Image | ||
| Max resolution | 8 MP (3830 x 2160) | |
| Frame rates | Main stream | 50 Hz: 20 fps 8 MP (3840 × 2160), 20 fps 6 MP (3200 × 1800), 25 fps 5 MP (3072 × 1728), 25 fps 4 MP (2560 × 1440), 25 fps 1080P (1920 × 1080) 60 Hz: 20 fps 8 MP (3840 × 2160), 20 fps 6 MP (3200 × 1800), 30 fps 5 MP (3072 × 1728) 30 fps 4 MP (2560 × 1440), 30 fps 1080P (1920 × 1080) |
| Sub stream | 50 Hz: 25 fps D1 (704 × 576), 25 fps CIF (352 × 288) 60 Hz: 30 fps D1 (704 × 480), 30 fps CIF (352 × 240) Note: if the main stream resolution is 8 MP and 6 MP, the sub stream resolution is 20 fps. | |
| Video settings | Brightness / Contrast / Saturation / Hue / Sharpness | |
| BLC | YES | |
| HLC | YES | |
| ROI | YES | |
| Network | ||
| Events | motion detection, video masking | |
| Intelligent image analysis | human detection (SMD) | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, cloud protocol | |
| Supported standards | Onvif (S, G, T profiles), CGI | |
| Security | User authentication, IP filtering, video masking | |
| Mobile viewing | iPhone, iPad, Android | |
| Web | IE, Chrome, Firefox | |
| Interfaces | ||

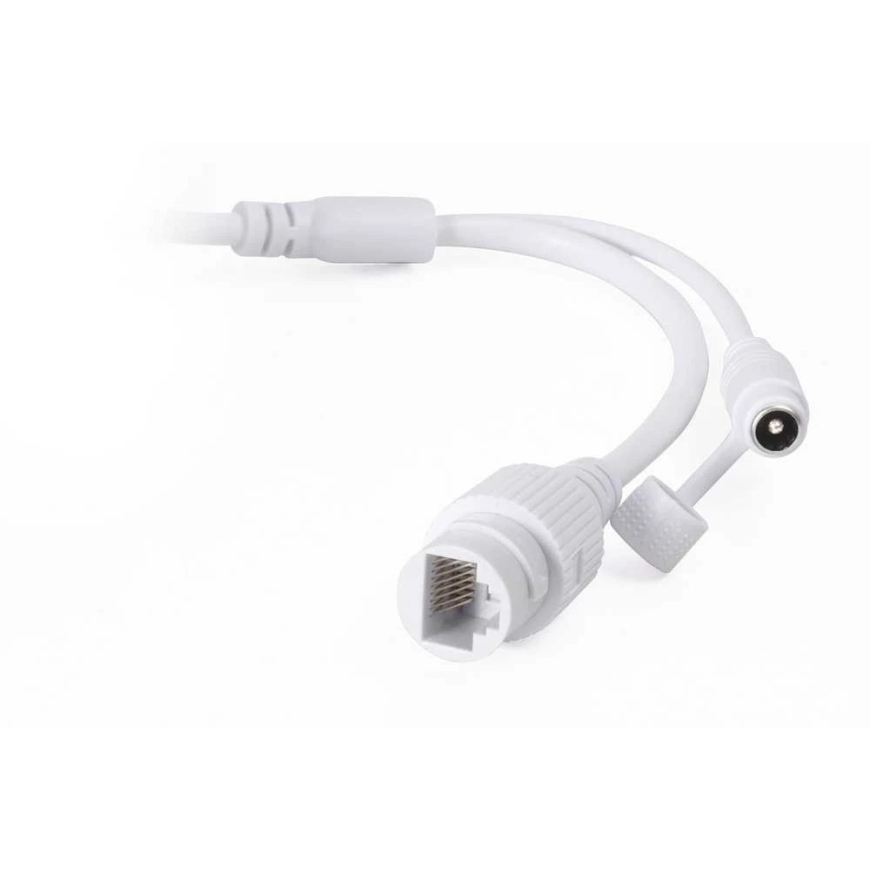

| Communication interface | 1 x RJ45 10M/100M Ethernet port | |
| General | ||
| Operating conditions | -40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing) | |
| Power supply voltage | 12 V DC ±10 % | |
| POE power supply | PoE (802.3af) | |
| Power consumption | Max. 6.3 W | |
| Ingress protection class | IP67 | |
| Dimensions | Φ68 × 153.1 mm | |
| Weight | 460 g |
