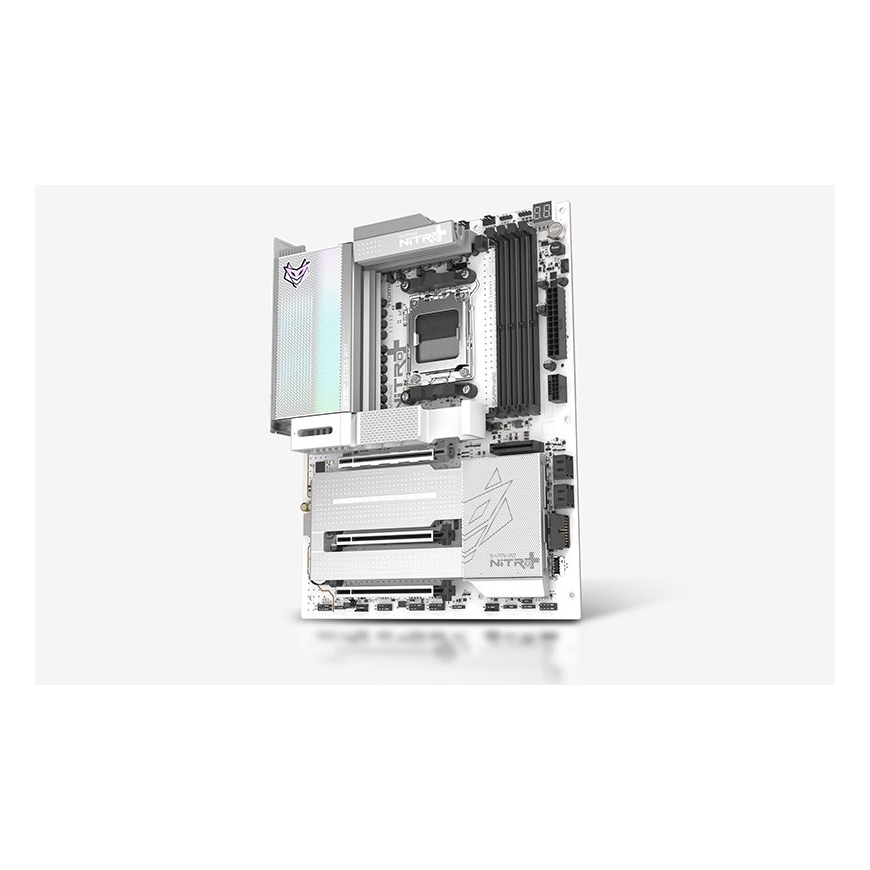

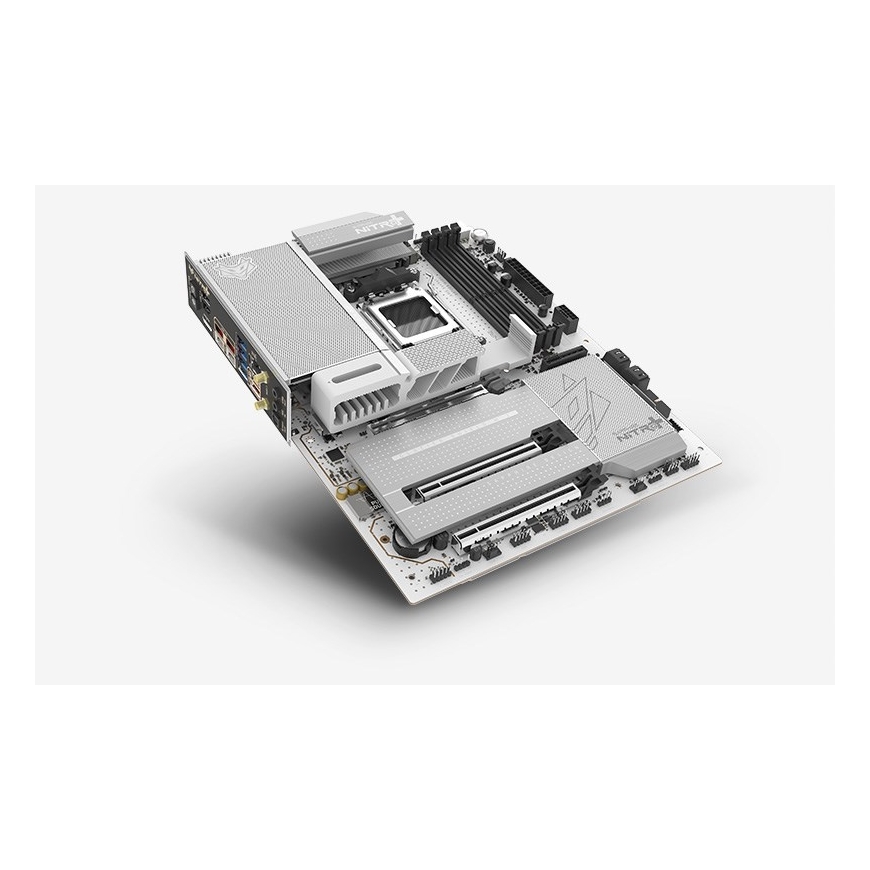

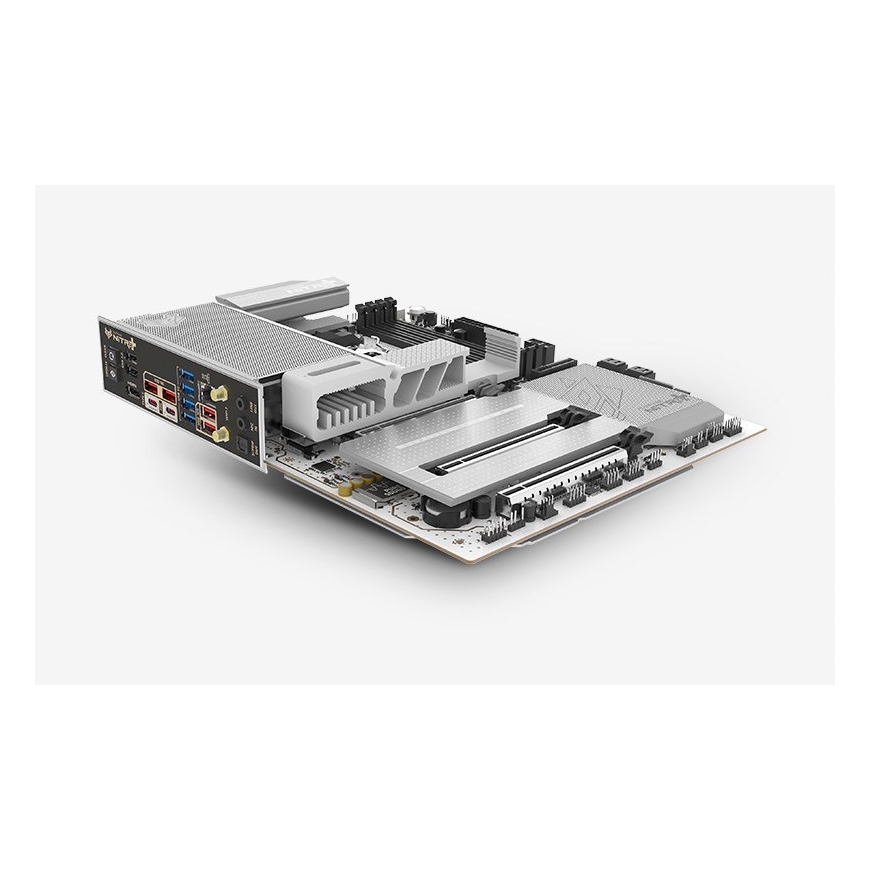

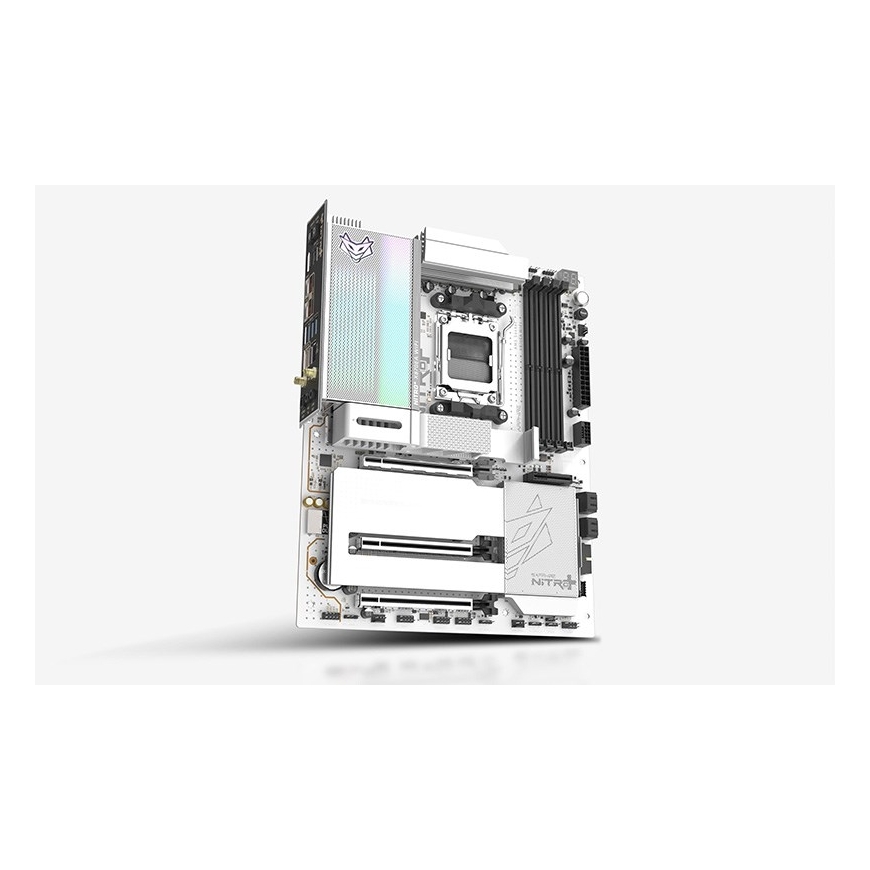

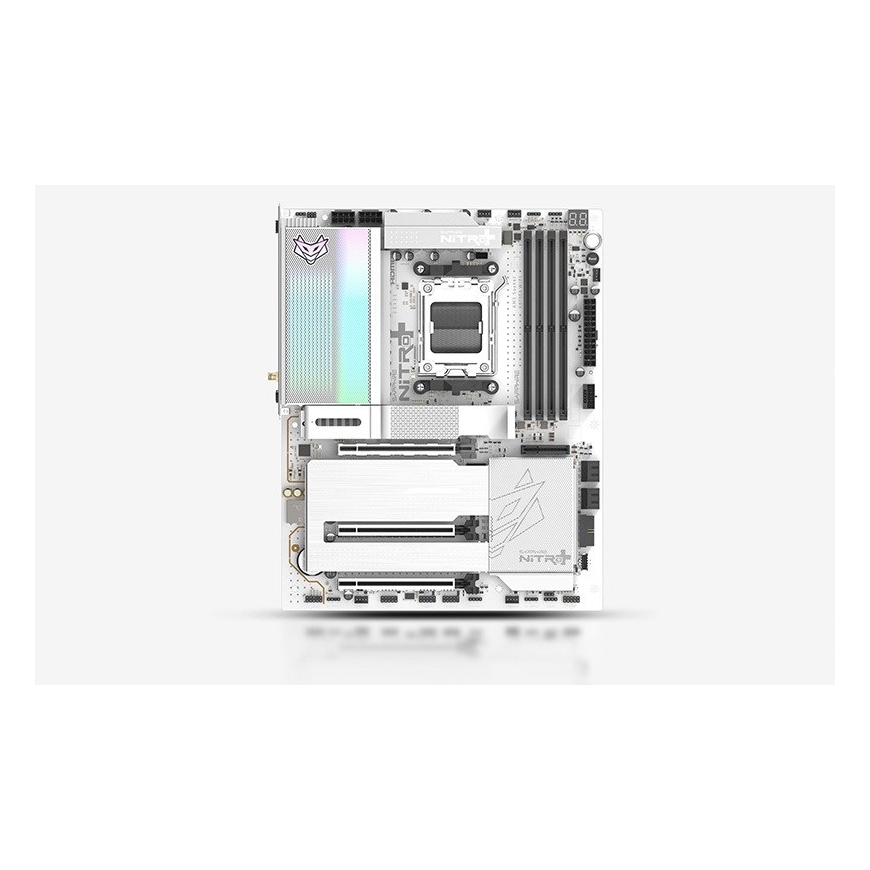

SAPPHIRE NITRO+ X870EA PHANTOMLINK P.E Motherboard
429.00 €
Monthly payment from 11,95 €
5001660 52122-11-40G
4895106297425
2026-10-23
You are interested in this product?
All about the product
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Compatible processor series | AMD Ryzen 9000 Series |
| Compatible processor series | AMD Ryzen 8000 Series |
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
| Parallel processing technology support | Not supported |
| Audio output channels | 5.1 channels |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC897 |
| Product colour | Silver |
| Product colour | Black |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD X870E |
| Windows operating systems supported | Windows 11 |
| Maximum internal memory | 256 GB |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 8400 MHz |
| Maximum internal memory per slot | 64 GB |
| Width | 305 mm |
| Depth | 244 mm |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11 be |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Serial port headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Number of SATA III connectors | 4 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| Number of RGB LED pin headers | 5 |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
| Clear CMOS jumper | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 3 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Line-in | No |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A |
| USB connector type | USB Type-C |
| Number of M.2 (M) slots | 4 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
