Schelinger Distribution Block 30 Terminals 2x15 (11x5.3 mm + 2x7.5 mm + 2x9.1 mm)

All about the product

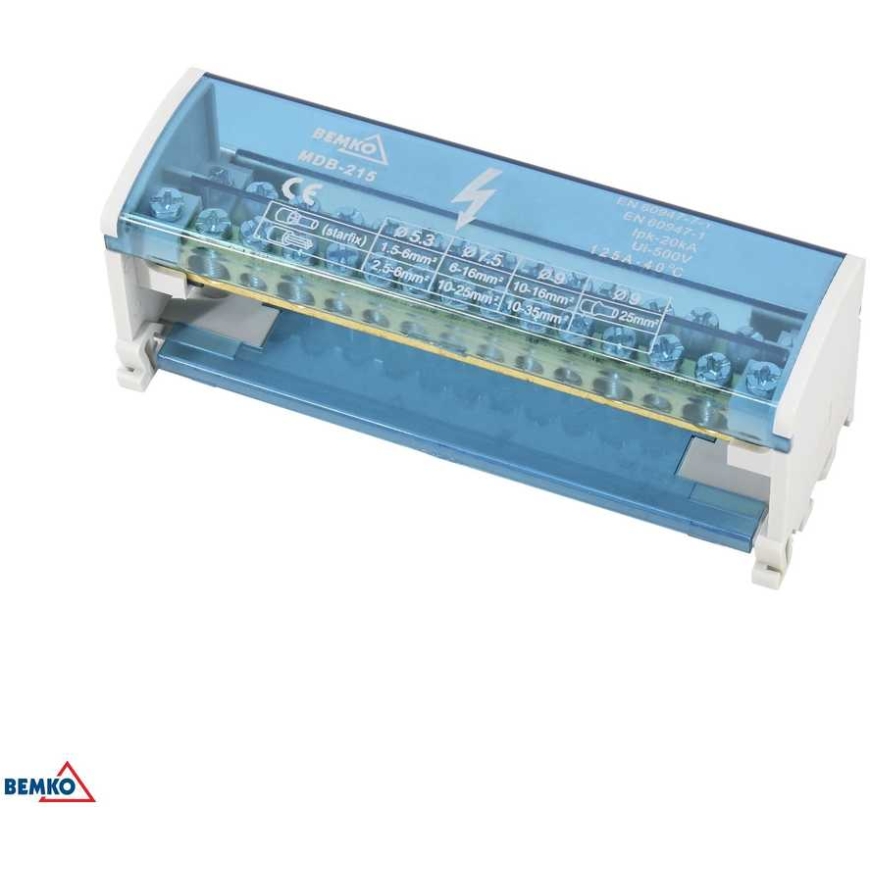

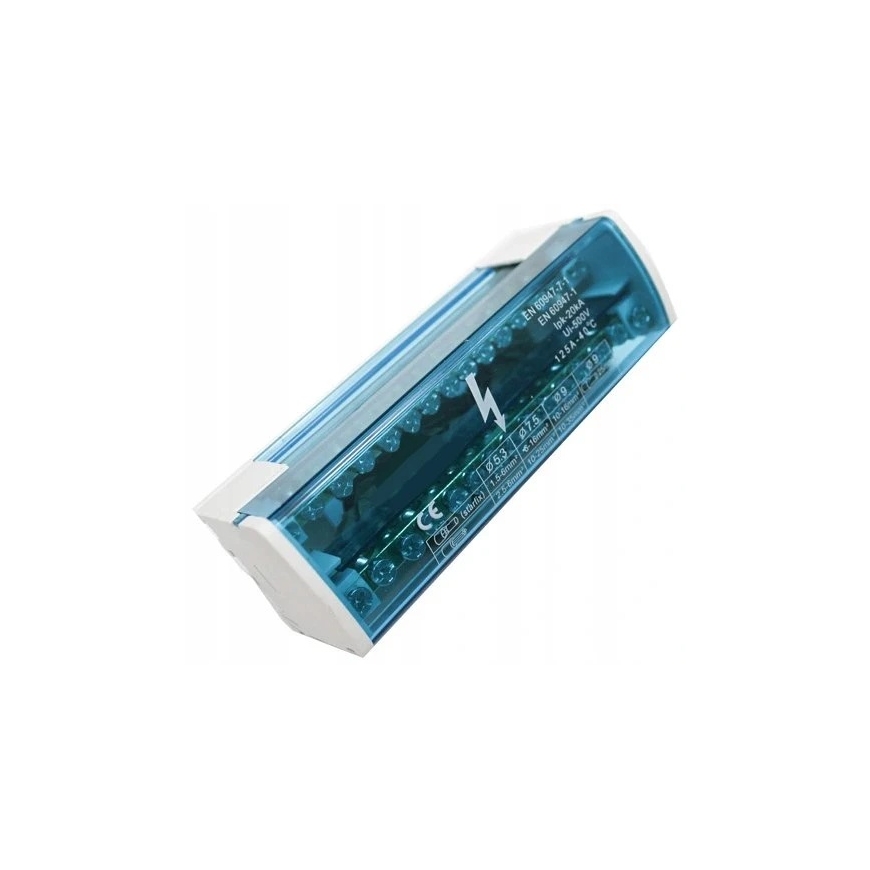

The MDB-215 Distribution Block with 30 terminals 2x15 is a reliable device that ensures efficient distribution of electrical energy in various installations. The use of the MDB-215 distribution block in electrical installations is the ideal solution for those where stability and safety are paramount. With various terminal capacities, this device can manage different wire cross-sections, allowing for flexible adaptation to specific installation needs. Its high resistance to rated current up to 125 A and voltage up to 500 V makes it an excellent choice for high-power tasks. The dimensions and weight of the MDB-215 distribution block stand out with compact dimensions, making it easy to install in limited spaces. Its dimensions are: width 132 mm, height 45 mm, depth 50 mm. The product weighs only 100 g, making it a lightweight and convenient element for electrical installations. Materials and quality – nickel-plated brass and polyamide. The high quality of the MDB-215 distribution block ensures long-lasting use. Nickel-plated brass terminals guarantee excellent electrical conductivity and resistance to corrosion. The polyamide housing ensures durability and resistance to mechanical damage. Additionally, the block features a transparent protective cover that protects the terminals from dirt. Technical specifications of the MDB-215 Distribution Block with 30 terminals 2x15 Brand Bemko Type distribution box Rated current 125 A Operating voltage 500 V Protection degree IP20 Number of poles 2 Maximum rated current 20 kA Wire cross-section 2.5 - 6 mm², 10 - 25 mm², 10 - 35 mm² Installation with conductors 1.5 - 6 mm², 6 - 16 mm², 10 - 25 mm² Dimensions 142 mm x 60 mm x 50 mm CE compliance certificates
