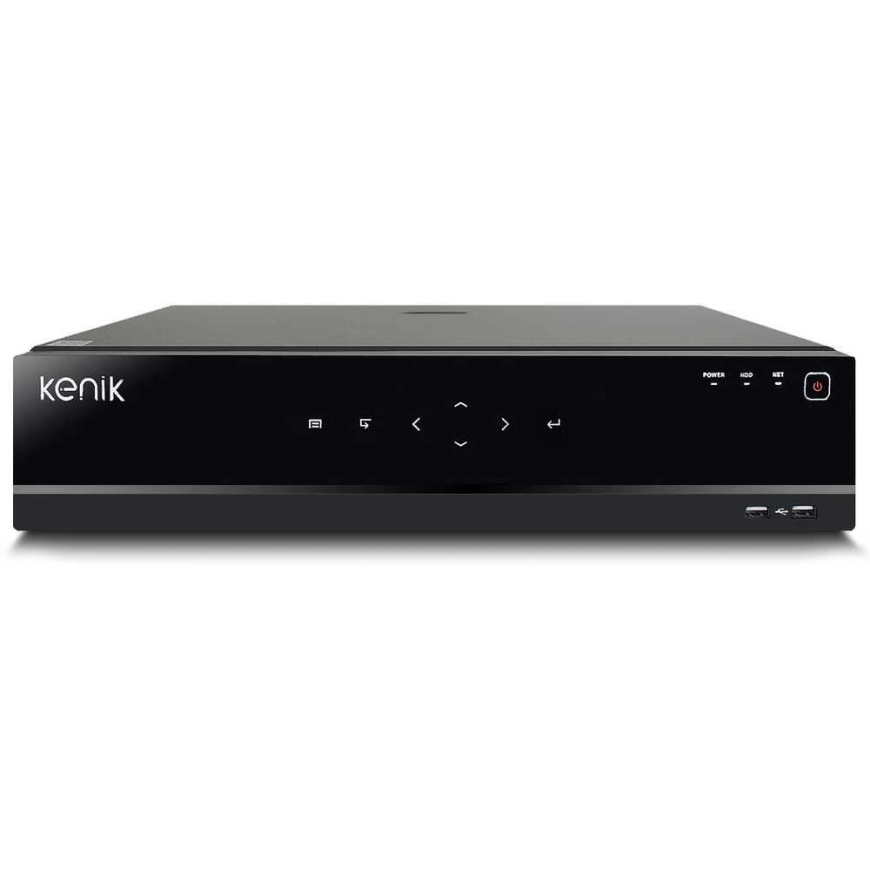

KENIK KG-NVR60864R-V2 IP RECORDER
849.00 €
Monthly payment from 22,76 €
5000304 KG-NVR60864R-V2
5903716300981
Shipping 8-10 b.d.
You are interested in this product?
All about the product
KENIK KG-NVR60864R-V2 IP RECORDER DEVICE
Model: KG-NVR60864R-V2
Key Features:
- Supports 64 IP cameras
- Recording up to 4K (12MP)
- H.265+/H.264+ compression
- Maximum bitrate: 1024 Mb/s
- Supports 8 SATA hard drives up to 22 TB
- Supports RAID0, RAID1, RAID5, RAID10
- Four HDMI video outputs (including one 8K)
- Two RJ45 network interfaces (1000M)
- Alarm inputs/outputs
- USB 3.0 interface
- eSATA output
- Supports ONVIF 2.6 standard
- Direct recording to cloud storage (Google Drive, Dropbox)
- Mobile viewing via smartphone (Android, iPhone)
- Free software in Polish for PC use
- Cloud connection supported (P2P)
- SMART function
- Dual lens camera support
Technical Specifications:
| Model | KG-NVR60864R-V2 |
| Video/Audio Inputs | |
| Number of IP Channels | 64 |
| Audio Input | 1x, RCA |
| Audio Output | 2 RCA |
| Video/Audio Outputs | |
| HDMI/VGA Simultaneous Display Mode | HDMI1: 8K (7680 x 4320), HDMI2, HDMI4: 4K (3840 x 2160), HDMI3: 1080P (1920 x 1080), VGA1: 1080P (1920 x 1080), VGA2: 1080P (1920 x 1080) |
| HDMI/VGA Heterogeneous Mode | HDMI1, HDMI2, HDMI4: 4K (3840 x 2160), HDMI3: 1080P (1920 x 1080) VGA1: 1080P (1920 x 1080), VGA2: 1080P (1920 x 1080) |
| Audio | 1x RCA |
| Recording | |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
| Display | Main display: 1/4/8/9/16/25/36/64 Secondary display: 1/4/8/9/16/25/36 |
| Playback and Backup | |
| Playback Mode | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
| Playback | H.265: 32 channels 1080P@30fps 16 channels 4MP@30fps 8 channels 8MP@30fps 4 channels 16MP@30fps 2 channels 32MP@30fps H.264: 16 channels 1080P@30fps 8 channels 4MP@30fps 4 channels 8MP@30fps 2 channels 16MP@30fps 1 channel 32MP@30fps |
| Playback Mode | Smart / Normal / Tag / Events / Picture Playback / Log |
| Backup | USB / Network / eSATA / Network |
| Extended | |
| Advanced Motion Detection | Intruder detection, line crossing, entering/leaving area, fast movement, object left/missing, loitering detection, parking detection, face detection, gathering detection, merging and scene change detection, sound detection, people/vehicle detection, SMD, PP |
| Smart Playback | face detection / line crossing / intruder detection / motion detection / people / vehicle detection |
| Cloud Recording | Yes (Google Drive, DropBox, FTP) |
| Cloud Updating | Yes |
| Network | |
| Incoming Bandwidth | 1024 Mbps (without RAID), 512 Mbps (with RAID) |
| Outgoing Group | 800 Mbps (without RAID), 400 Mbps (with RAID) |
| Network Interface | 2 x RJ-45 10 / 100 / 1000 / 2500 Mbps auto-adaptive |
| Protocols | HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF |
| Mobile Viewing | iOS (iPhone, iPad), Android |
| Hard Drive | |
| SATA | 8x SATA |
| e-SATA | 1x e-SATA |
| RAID | 2010-05-01 |
| Max Capacity | up to 22 TB per hard drive |
| External Interfaces | |
| USB | Front panel: 2x USB 2.0, rear panel: 2x USB 3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm Input | 16 |
| Alarm Output | 8 |
| 12 V Output | 1 x 12 V @ 1 A |
| General | |
| Power Supply | AC 100–240 V |
| Power Consumption | ≤35 W (without hard drive) |
| Operating Temperature | -10°C~+55°C / 10%~90% relative humidity |
| Dimensions (W × D × H) | 440 × 452 × 90 mm |
| Weight (without hard drive) | 8 kg |
