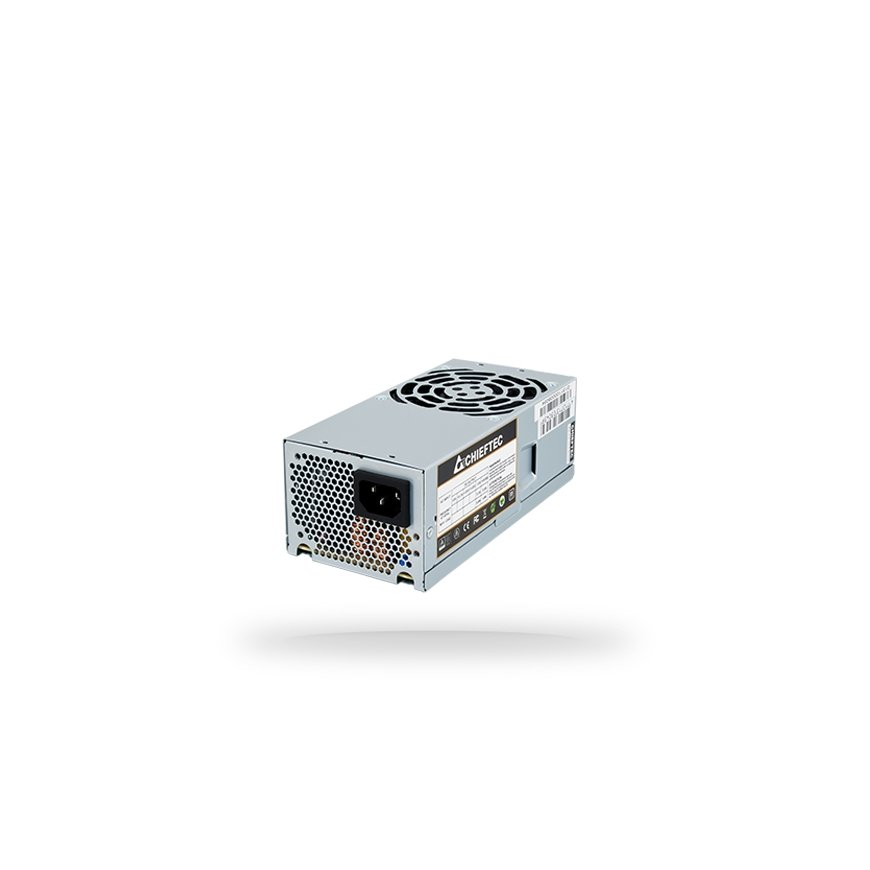

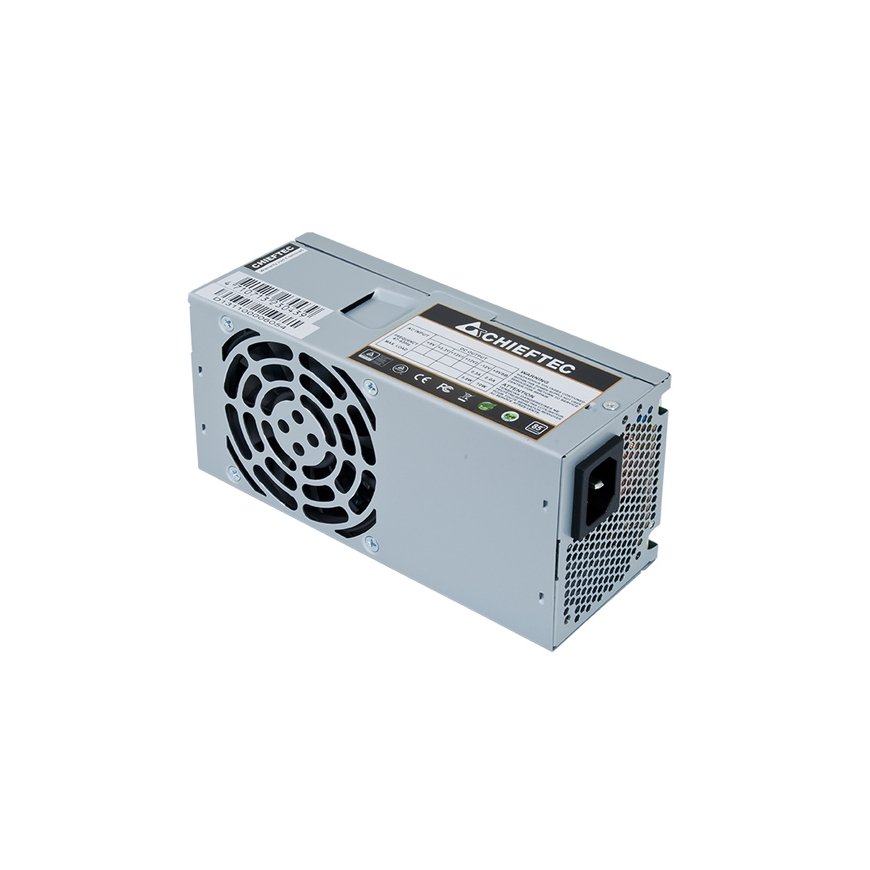

Chieftec GPF-350P power supply unit 350 W 20+4 pin ATX TFX Silver
42.26 €
Monthly payment from 1,99 €
488418 GPF-350P
4710713234673
2026-09-29
You are interested in this product?
All about the product
Chieftec GPF-350P. Total power: 350 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: TFX, Bearing technology: Sleeve. Product colour: Silver, Fan diameter: 8 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: CE, CB, TUVPower | |
| Efficiency | 85% |
| Input current | 6.3 A |
| Power protection features | Overload, Over voltage, Short circuit |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 300 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 15 A |
| Max output current (+12V2) | 15 A |
| Total power | 350 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC |
| Bearing technology | Sleeve |
| Power supply unit (PSU) form factor | TFX |
Design | |
| Product colour | Silver |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| On/off switch | No |
Ports & interfaces | |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Width | 86 mm |
| Depth | 175 mm |
| Height | 65 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Certification | CE, CB, TUV |
| Compliance certificates | RoHS |
