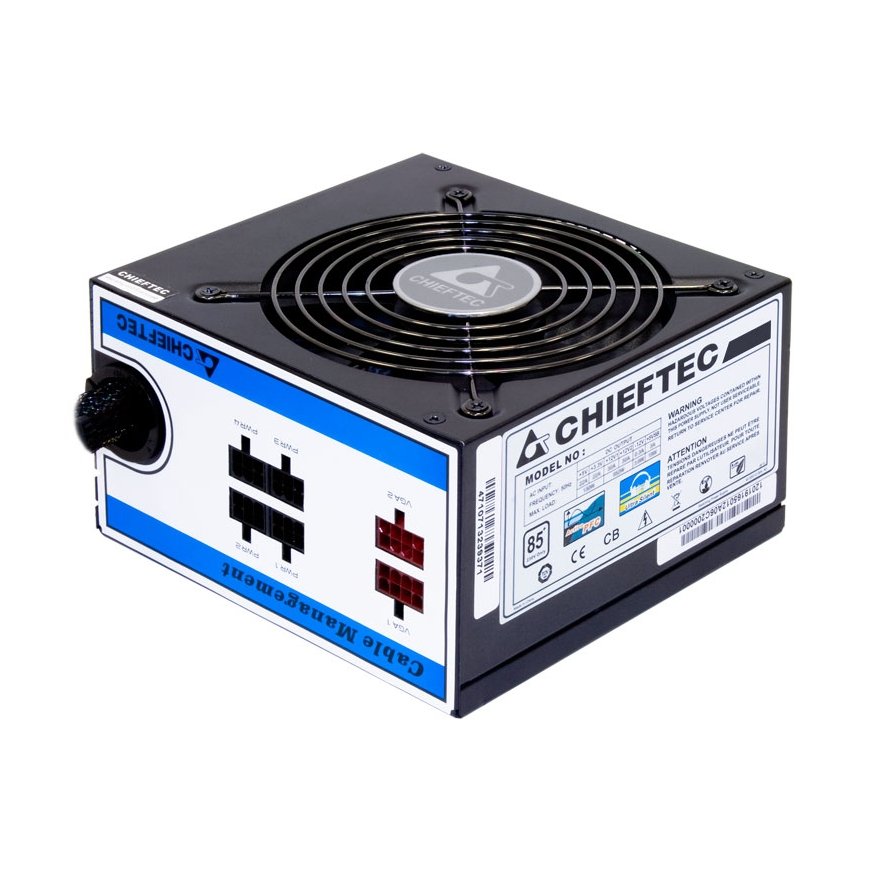

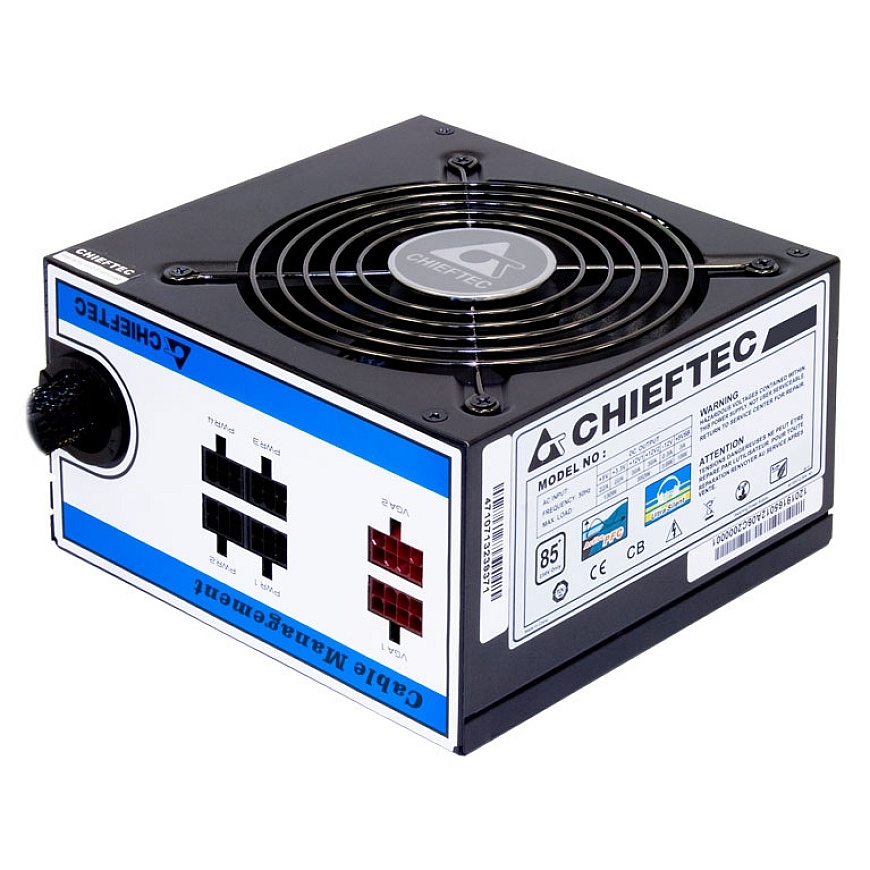

Chieftec CTG-750C power supply unit 750 W 24-pin ATX ATX Black
79,30 €
Monthly payment from 2.94 €
488304 CTG-750C
4710713239388
Shipping 2-3 b.d.
You are interested in this product?
Power | |
| Efficiency | 85% |
| Input current | 6 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.3 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 2 |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Packaging data | |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Certification | CE, CB, FCC |
| Compliance certificates | RoHS |
