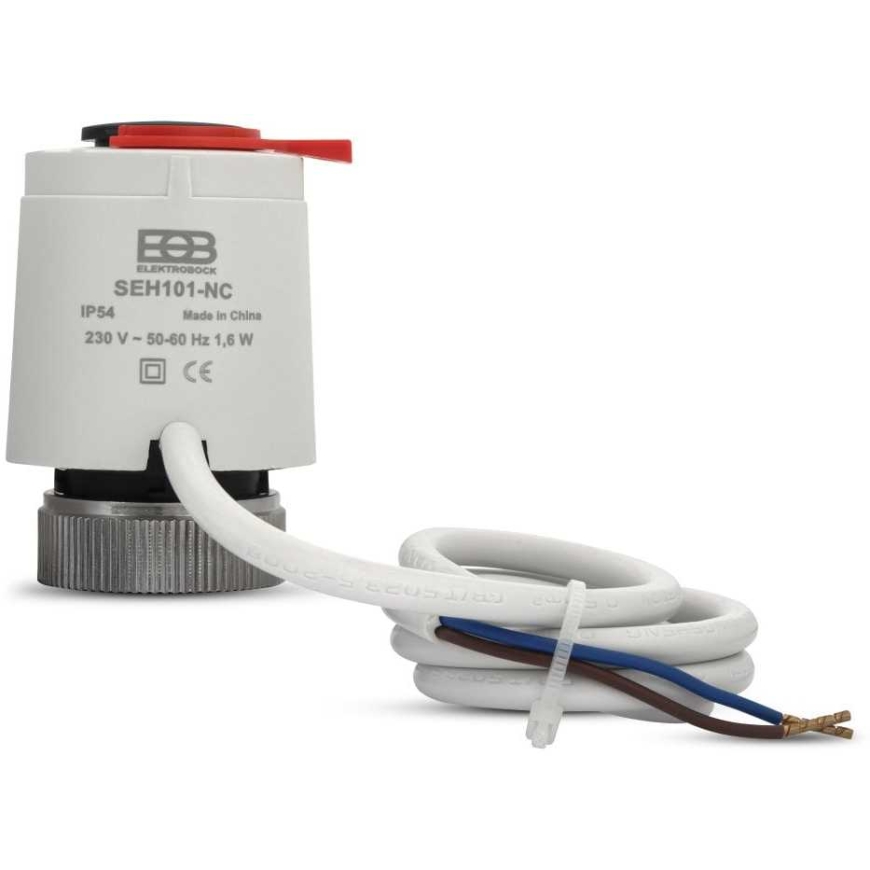

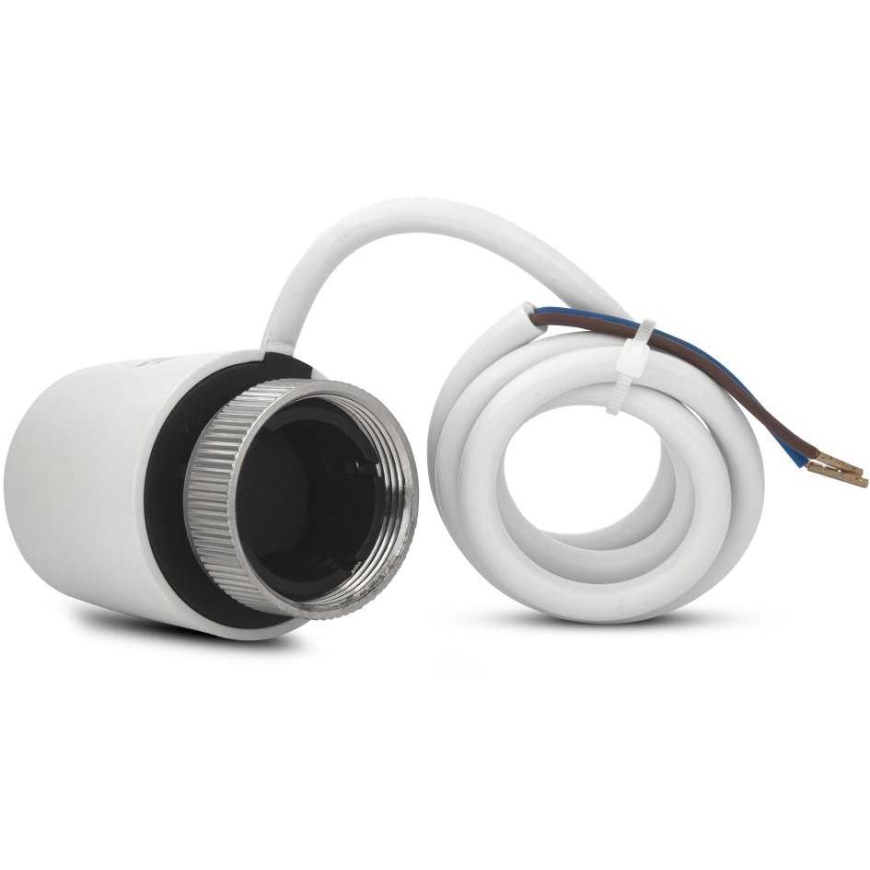

ELEKTROBOCK electric drive SEH101-NC
4558778 SEH101-NC
8595689100742
Shipping 10-15 b.d.
All about the product
Thermoelectric drive at 230 V (no voltage closed NC). Features of SEH101-NC Suitable as a replacement for manual heads on manifolds for individual underfloor heating circuits. These actuators can then be centrally controlled by the PT41 system or wirelessly by the PocketHome® system (PH-BP1-P9 and PH-BP1-V). SEH101-NC is designed for radiator and zone valves. It can be used with 2-position valves to noiselessly control the flow of hot/cold water in systems with radiators, underfloor heating or with an air conditioning unit. The SEH101-NC is in the version - without voltage the valve remains closed (NC). Advantages of SEH101-NC: Connected cable for easier installation. waterproof housing Small design allows installation in confined spaces no special tools required for installation Low power consumption < 1.6 W Controller can be controlled by PWM signal or ON/OFF Noiseless operation indication of the opening status long service life Technical parameters Power supply 230 V AC / 50 Hz Drive type NC (no voltage closed) Power input 1, 60 W Imax 1 A Force 110 N Rated stroke 4 mm Running time 3 min to 4 min Connection to the valve with a coupling nut (M30x1,5) Mounting position vertical and up to 90° (for indoor use) Body material flame retardant plastic Degree of protection IP54 Cable length 100 cm (2x0.5 mm2) Operating temperature 0 °C to 60 °C
