Digital Timer - DPM DT03, White

23.98 €
4557918

AN-05400

5906881174241

Shipping 24-26 b.d.

You are interested in this product?
(Read terms of service)

All about the product

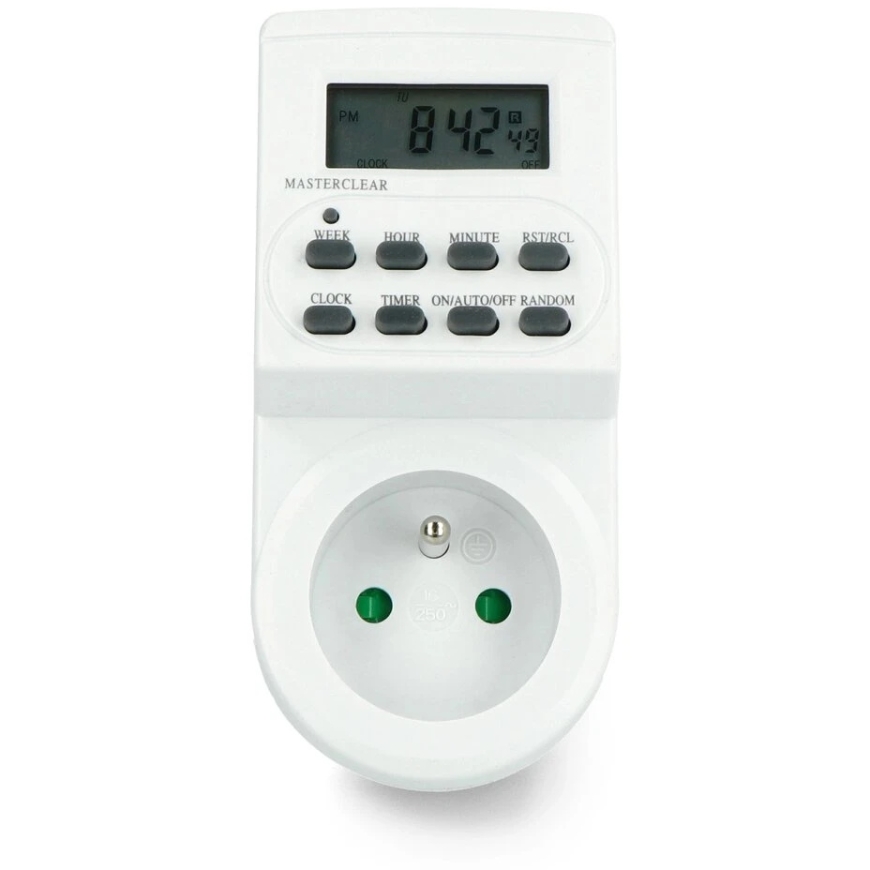

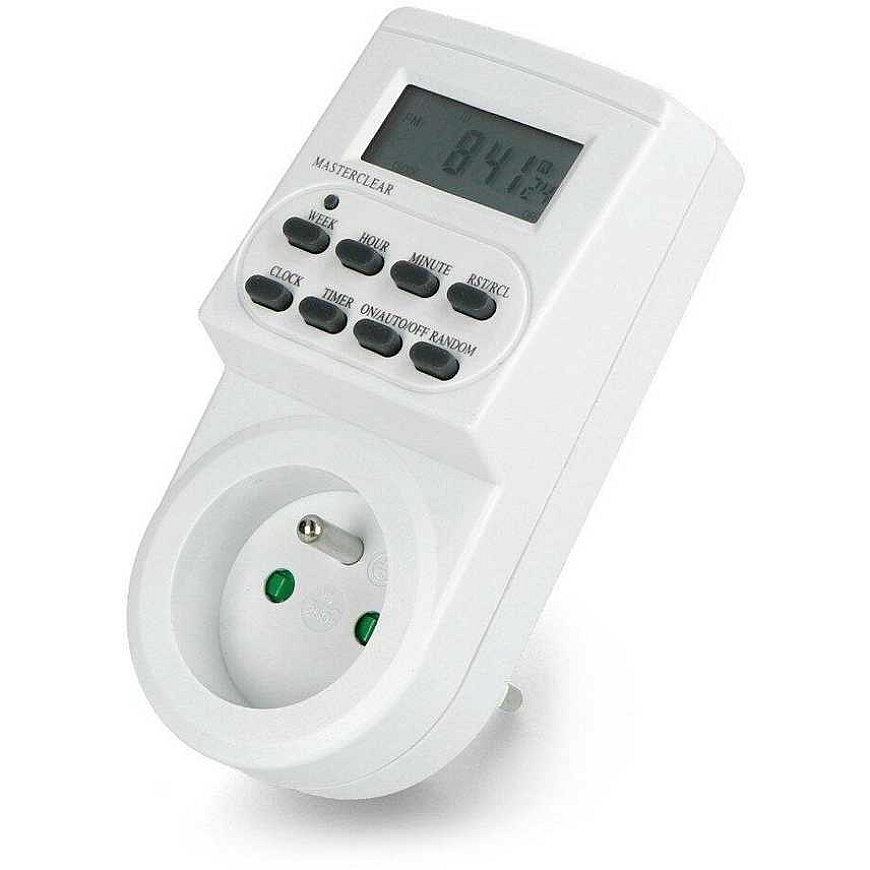

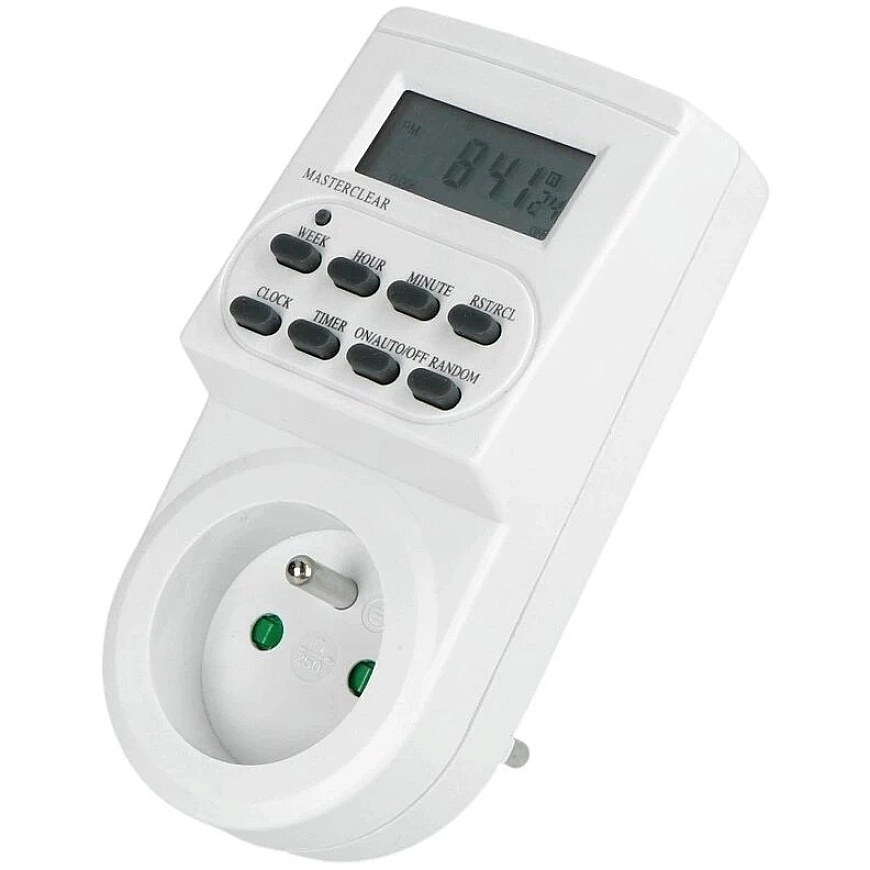

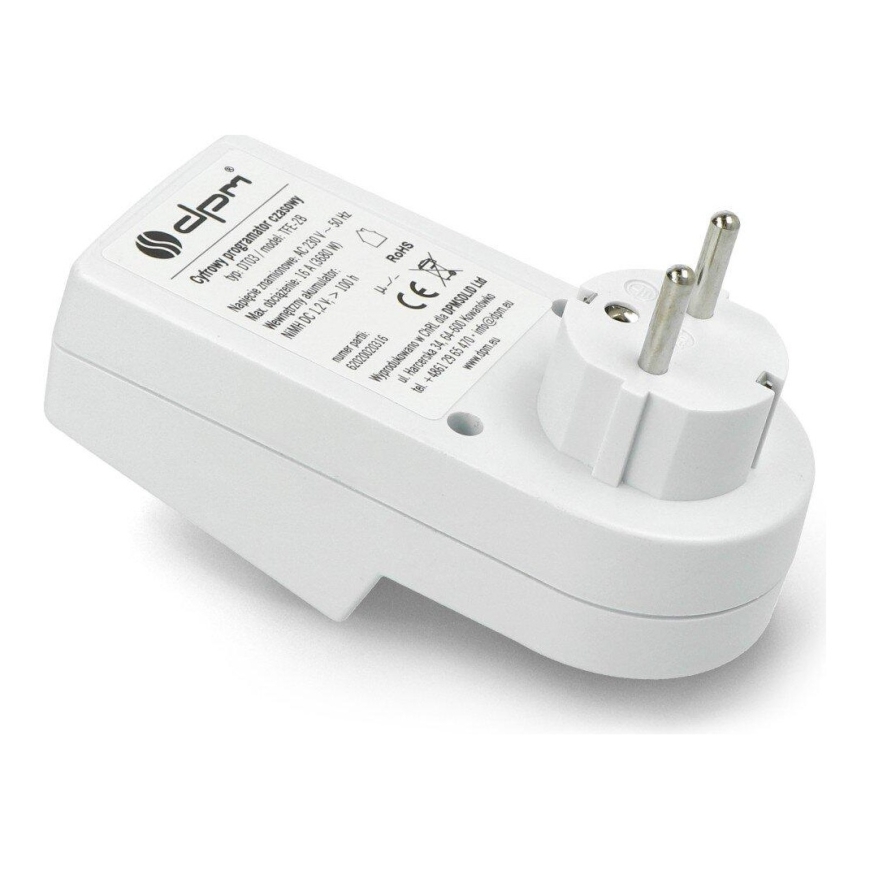

DPM DT03 Digital Timer, White


Digital timer designed to automatically control devices connected to a 230 V AC network according to a 24-hour or weekly cycle. Has 10 programs, supports loads up to 16 A (3,680 W), allows setting of one-minute intervals, and is intended for indoor use (IP20).


  • Digital timer programmer designed to automatically turn connected electrical devices on and off
  • Supports 24-hour and weekly scheduling with 10 independent programs
  • Supports loads up to 16 A (3,680 W) at 230 V AC, 50 Hz voltage
  • Integrated NiMH backup battery retains set programs for over 100 hours during a power outage

Product Information

Product Type Digital Timer Programmer
Model DPM DT03
Color White
Purpose Automatic control of devices connected to a 230 V AC power outlet according to a set schedule

Technical Specifications

Operating Voltage 230 V AC, 50 Hz
Maximum Load 16 A / 3,680 W
Scheduling Modes 24-hour and weekly
Minimum Switching Interval 1 minute
Protection Class IP20
Recommended Operating Environment For indoor use only

Features

Independent Programs 10
Weekly Scheduling Schedules can be assigned to individual days of the week or possible combinations of days
Backup Power during Power Outage Integrated 1.2 V DC NiMH battery retains set programs and allows the timer to operate for over 100 hours without mains power
Random Switching Function Randomly turns on the connected device for 10–31 minute periods in the evening and at night

Safety Information

Safety Warning Designed for indoor use only. Connect only devices compatible with 230 V AC power and do not exceed the maximum load of 16 A / 3,680 W. Do not use in damp or wet areas. Before cleaning the programmer or performing maintenance on connected equipment, disconnect it from the mains power supply. Keep out of reach of children.
