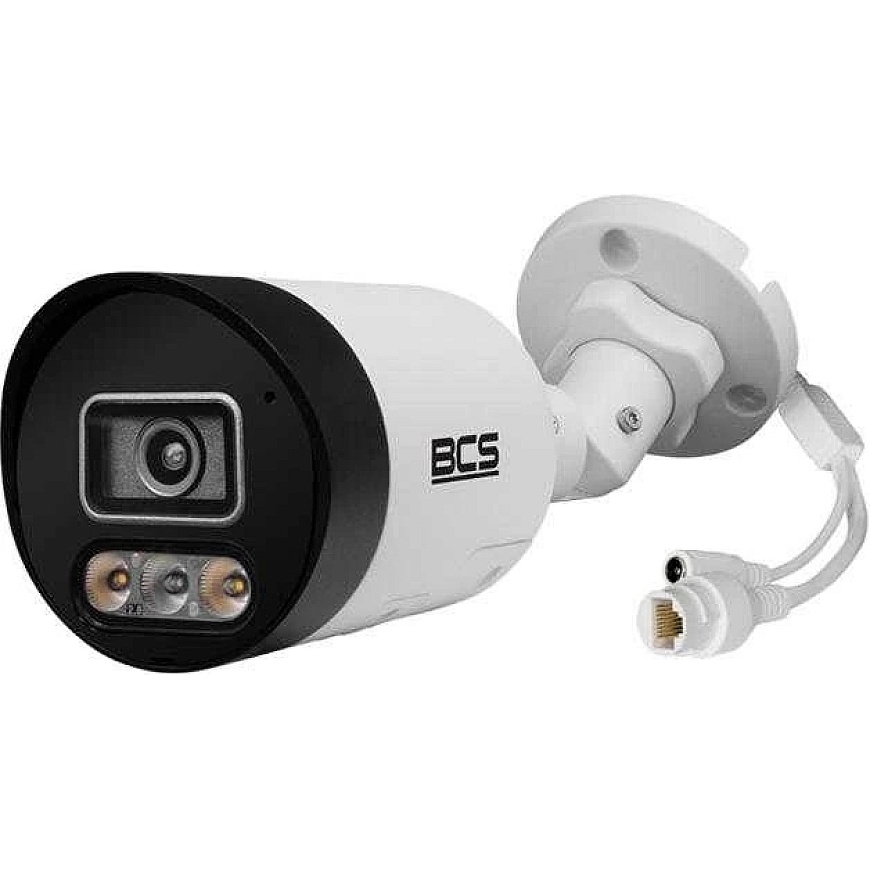

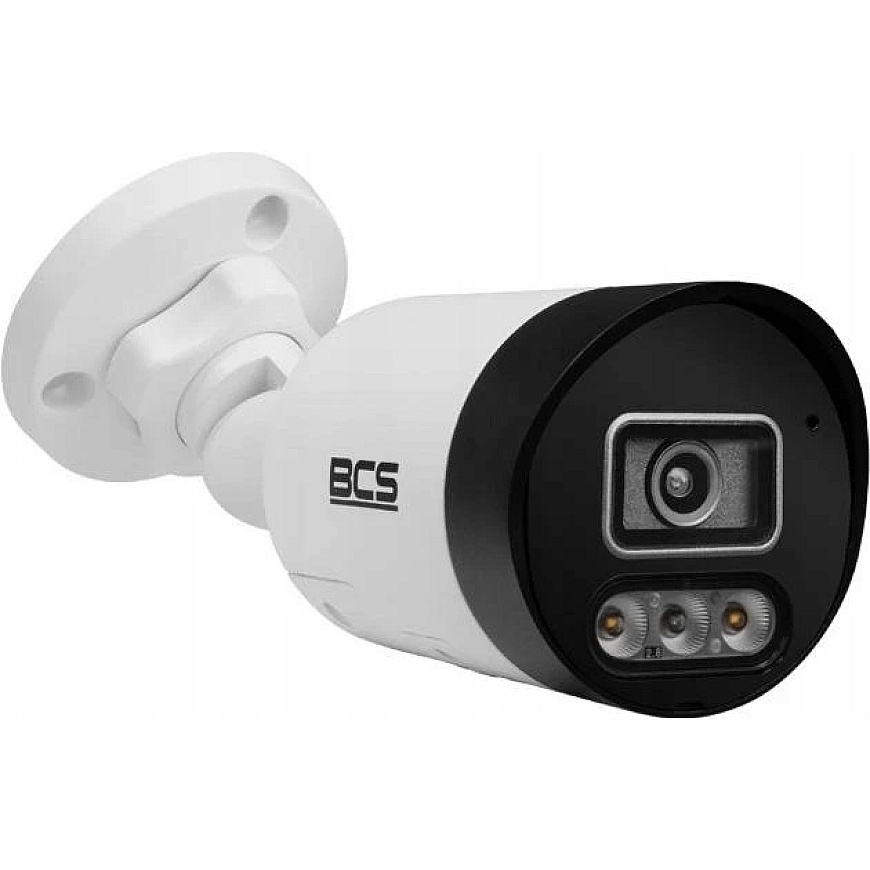

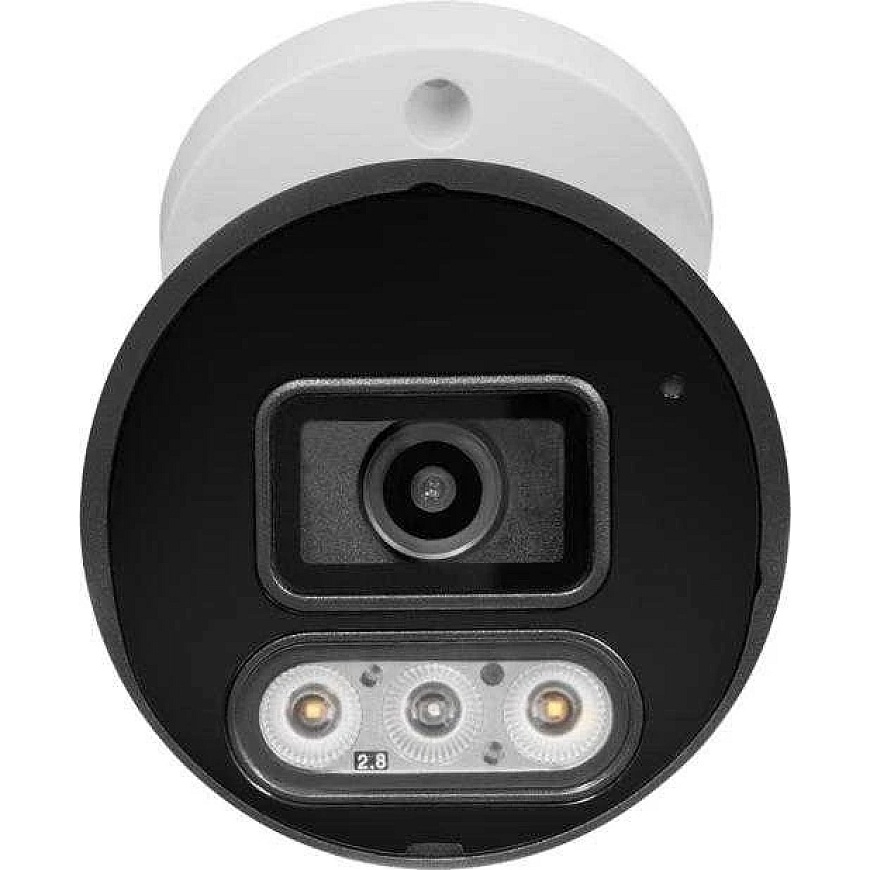

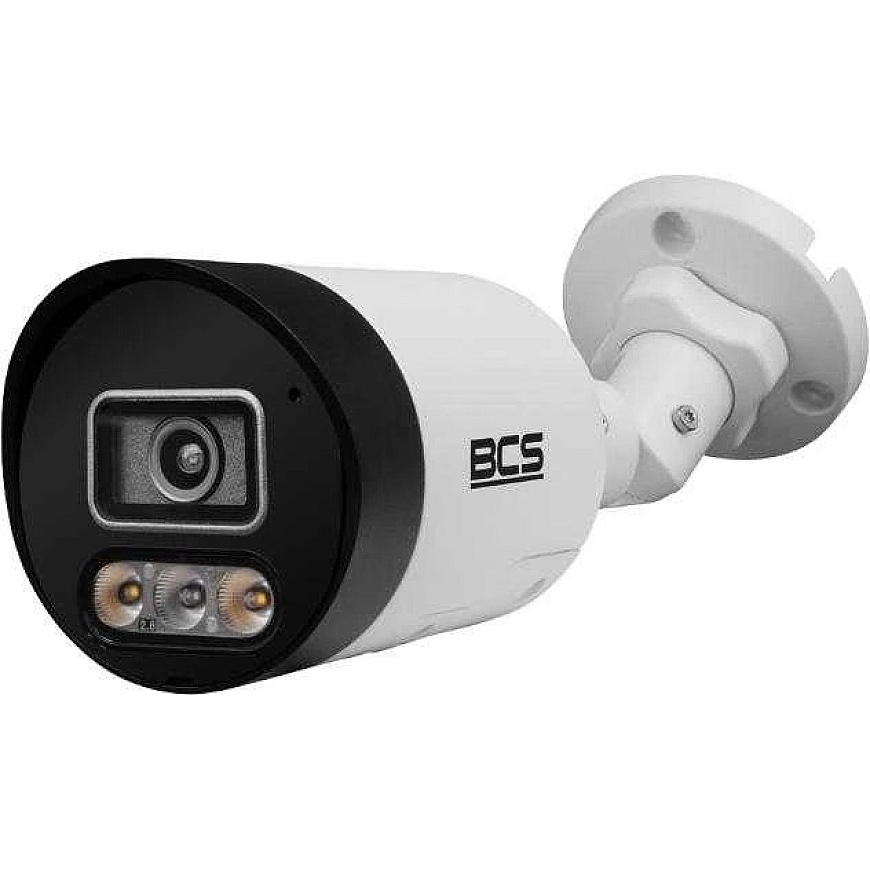

IP Camera BCS POINT BCS-P-TIP14FSR3L3-Ai1
119.00 €
Monthly payment from 3,96 €
4555757 BCS-P-TIP14FSR3L3-Ai1
5904890716933
Shipping 11-15 b.d.
You are interested in this product?
All about the product
BCS POINT BCS-P-TIP14FSR3L3-Ai1 IP camera
Model: BCS-P-TIP14FSR3L3-Ai1
Technical specifications
| Device name | BCS-P-TIP14FSR3L3-Ai1 |
| Product line | BCS POINT |
| NDAA | National Defense Authorization Act |
| Camera type | Bullet |
| Resolution | 4 megapixels |
| Sensor | 1/3 inch CMOS |
| Scanning system | Progressive scan |
| Pixels | 2688 (height) × 1520 (vertical) |
| Lens | Fixed, focal length 2.8 mm, aperture F1.6, fixed focus, fixed aperture |
| Viewing angle | Horizontal: 97°, Vertical: 52.2°, Length: 107.5° |
| DORI | Detect 63 m / Observe 25.2 m / Recognize 12.6 m / Identify 6.3 m |
| Sensitivity | 0.003 lux (F1.6, AGC), 0 lux (color, IR) |
| Signal-to-noise ratio | 52 dB |
| White balance | (AWB) Automatic / manual |
| WDR | 120 dB |
| Backlight compensation | BLC / HLC / WDR (120 dB) |
| Snapshot | Automatic / manual 1~1/100000 s |
| Gain control | (AGC) Automatic / manual |
| Noise reduction | 2D/3D DNR |
| Other features | RoI (region of interest), description (digital), image rotation (mirror, flip 0°/90°/180°/270°) |
| Number of streams | 2 |
| Resolutions | 4M (2688 × 1520 / 2560 × 1440) / 3M (2304 × 1296) / 2M (1920 × 1080) / 720P (1280 × 720) / D1 (720 × 576) / (640 × 360) / 4 C28 (640 × 360) / 2 × C28 (352 × 288) |
| Main stream | 2688×1520@25 fps, 2560×1440@25 fps, 2304×1296@30 fps, 1920×1080@30 fps, 1280×720@30 fps |
| Secondary stream | 720 × 576 @ 30 frames per second, 640 × 360 @ 30 frames per second, 704 × 288 @ 30 frames per second, 352 × 288 @ 30 frames per second |
| Bitrate | 128 Kbps ~ 16 Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator | IR LED + white light (IR/white light range: 30 m) |
| Night color | Yes |
| Microphone / speaker | Yes / Yes |
| Audio compression | G.711A / G.711U |
| Storage | NAS (NFS), microSD up to 512 GB |
| Service | Web service, TVS BCS driver (Windows / Linux / Mac), mobile app (iOS / Android) |
| Motion detection / privacy masks | 46116 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS |
| Security | Password protection, strong password, HTTPS encryption, operation log export, basic / digest authentication RTSP, digest authentication HTTP, TLS 1.2, WSSE / digest authentication ONVIF |
| Power supply | 12 V DC / PoE (802.3af) |
| Power consumption | Max. 9 W |
| Casing color | White |
| Surge protection / IP | IP67 / 4kV |
| Operating conditions | -30°C ~ +60°C, max. 95 % relative humidity |
| Dimensions / weight | 192 × 75 × 74 mm / 0.4 kg |
| Integrated algorithms | Advanced image recognition and analysis |
| Perimeter protection | Intrusion detection, line crossing |
| Object recognition | Human recognition (false alarm reduction) |
| SMD | Intelligent motion detection with human / vehicle recognition |
