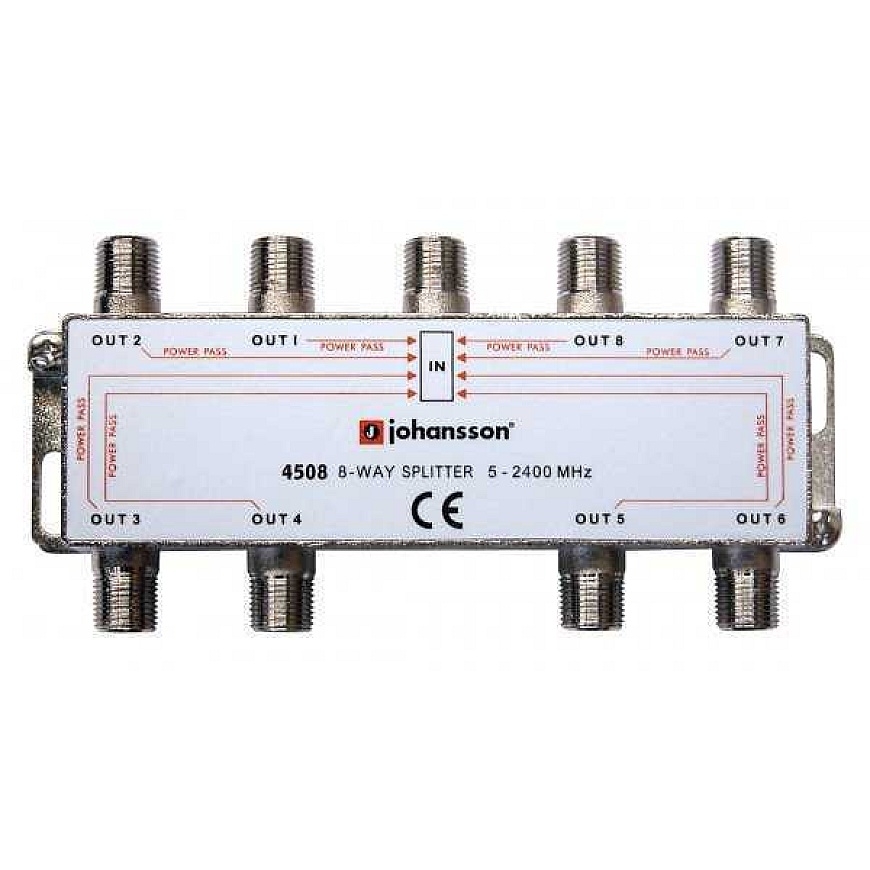

Johansson Typ.4508 8-Port Splitter
4554834 5903031034646
Shipping 11-14 b.d.
All about the product
Main Information
8-channel broadband splitter. Supports broadband communication technology. F-type connectors. Nickel-plated, die-cast zinc housing. Low insertion loss. Diode protection.
Application
To split broadband communication signals. Designed for devices requiring 8 outputs. Compatible with systems operating in the 5–2300 MHz range.
Specification
Specification
Electrical Parameters
- Frequency range: 5–2300 MHz
- Attenuation: 18 dB
- Isolation: 20 dB
- DC power supply: 10
Mechanical Parameters
- Number of outputs: 8
- Connectors: F
- Housing: nickel-plated, zinc alloy
- Dimensions: 57 x 120 x 25 mm
