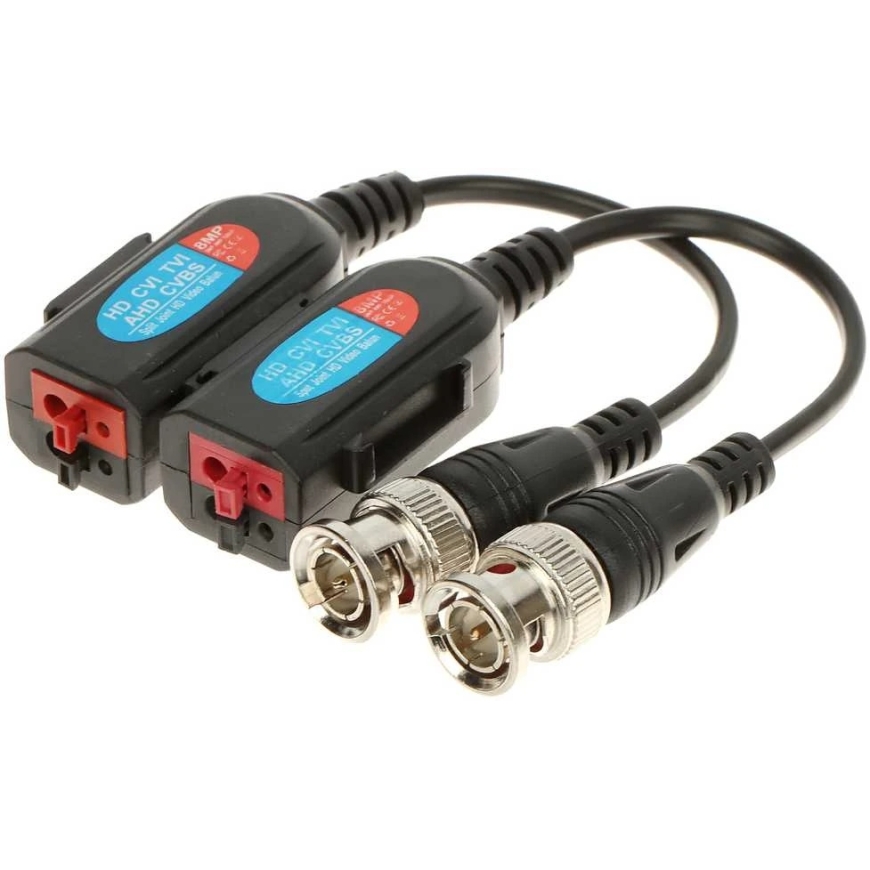

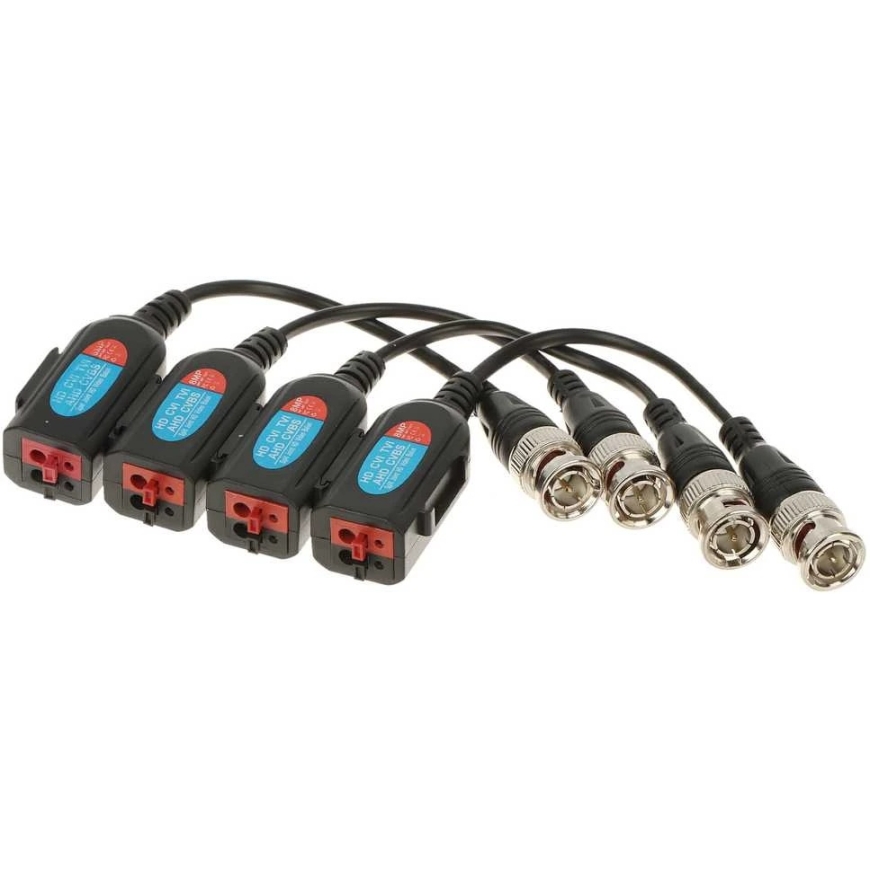

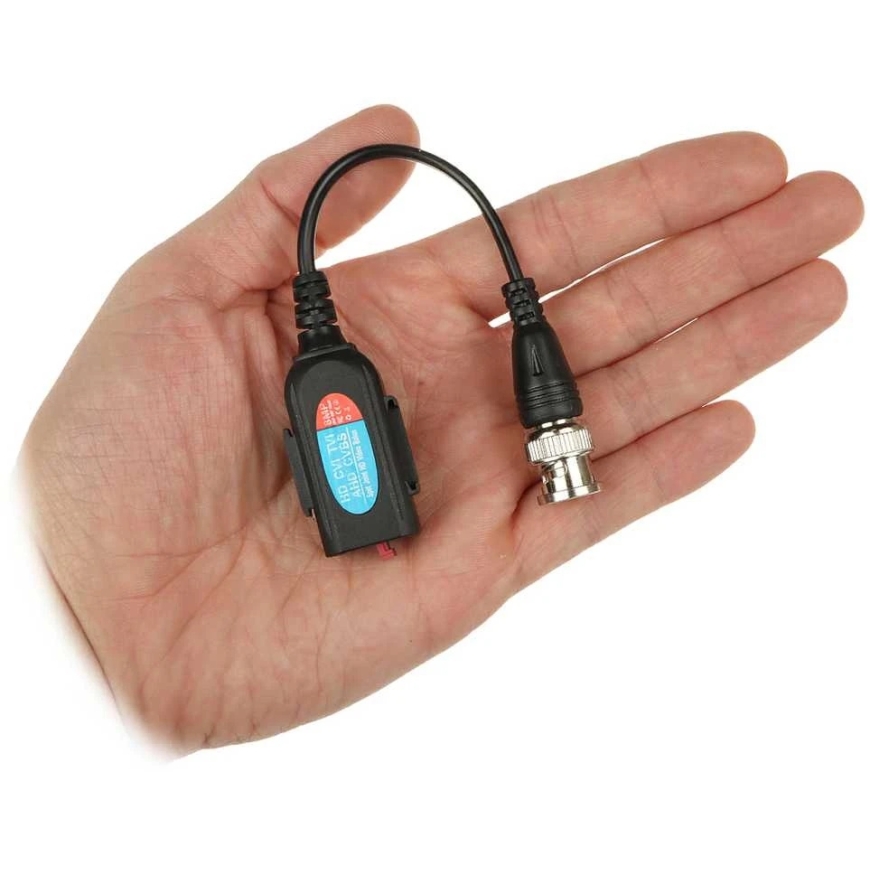

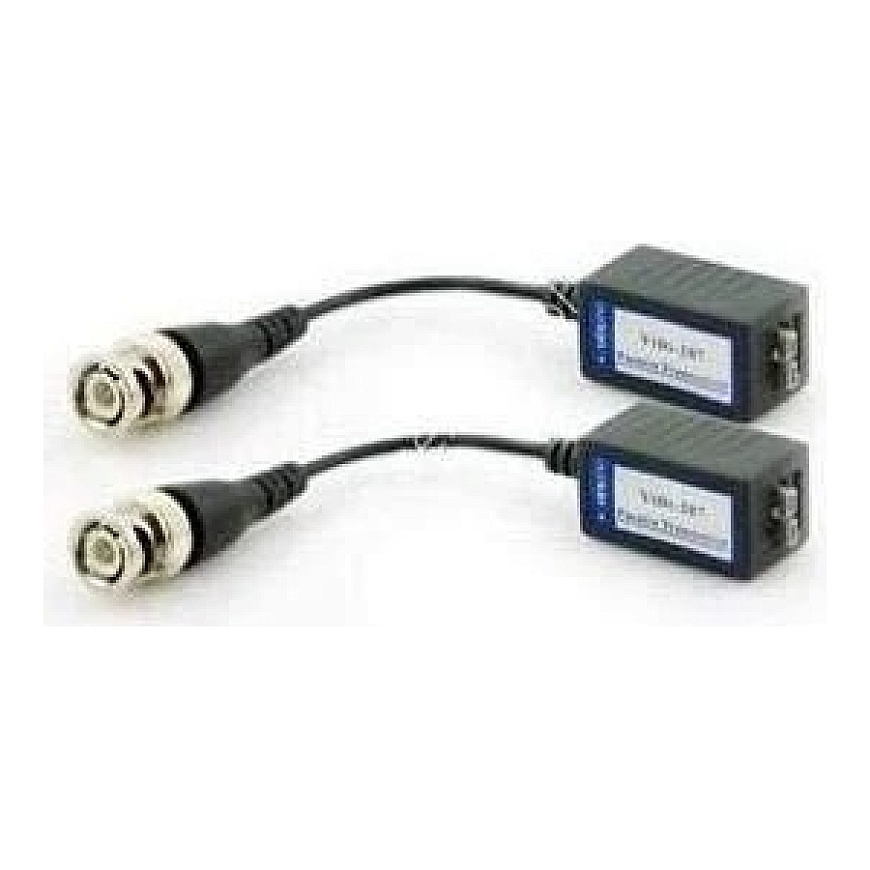

Delta VIDEO TRANSFORMATOR TR-1D-HD*P2
4554133 VIDI-207
5902887024610
Shipping 11-15 b.d.
All about the product
The TR-1D-HD*P2 is designed for transmitting video signals over a computer cable.
The device adapts the 75 Ω impedance of coaxial cable to the symmetric cable impedance, ensuring video signal transmission up to 250m @ 720p / 150m @ 1080p distance (using category 5e twisted pair) and eliminates asymmetric interference.

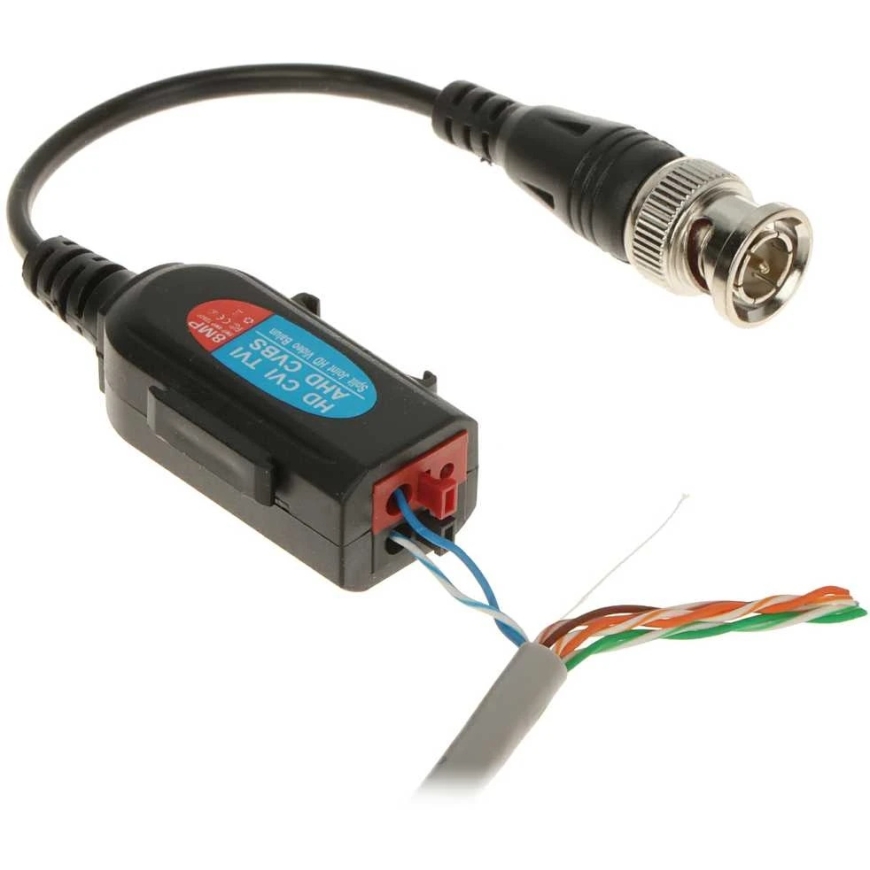

It is important to pay attention to the correct connection of the (+) and (-) terminals.
Reversed connection causes video distortions.
| Packaging : | 2 pcs. The indicated price is for the package |
| Standard : | AHD - 8 Mpx 4K UHD , HD-CVI - 8 Mpx 4K UHD , HD-TVI - 8 Mpx 4K UHD , CVBS - PAL , NTSC |
| Device type : | Passive |
| Number of channels : | 1 |
| Video transmission distance : | 250 m @ 720p - UTP 5e cat. 150 m @ 1080p - UTP 5e cat. 400 m @ CVBS - PAL , NTSC - UTP 5e cat. |
| Attenuation : | 4.43 MHz @ 0.43 dB 11 MHz @ 0.65 dB 21 MHz @ 0.93 dB 38 MHz @ 1.26 dB 42 MHz @ 1.62 dB 67.5 MHz @ 2.28 dB The provided attenuation refers to two connected devices |
| CMRR (dB @ 5MHz) : | 60 dB |
| Coaxial connection impedance : | 75 Ω |
| Symmetrical connection impedance : | 100 Ω |
| Coaxial connection type : | BNC Plug with cable |
| Symmetrical connection type : | Spring terminals |
| Operating temperature : | -10 °C ... 70 °C |
| Allowed relative humidity : | < 95 % |
| Weight : | 0.024 kg |
| Dimensions : | 42 x 17.7 x 20 mm |
| Warranty : | Lifetime warranty |
Frequency and amplitude characteristics - short circuit of 2 transformers (RF PWR OUT = 0 dBm)
