Uni-T UTD2102CL+ oscilloscope

The “Uni-T UTD2102CL+” is a versatile digital oscilloscope that combines high measurement accuracy with ease of use. Designed for engineers, maintenance technicians, and electronics enthusiasts, it offers extensive signal analysis capabilities in a compact and sturdy housing. Discover five key advantages that make it an indispensable tool in modern workshops.

Bandwidth 100 MHz

With a bandwidth of 100 MHz and a rise time of 3.5 ns, the UTD2102CL+ allows precise observation of high-speed digital and analog signals. It is an excellent solution for analyzing pulses, signal edges, and noise in electronic systems – ideal for everyday engineering.

Sampling rate 500 MS/s

With a maximum sampling rate of 500 million samples per second and a memory depth of 64 kbit/s (per channel), the UTD2102CL+ features exceptional time resolution and waveform reconstruction accuracy, which are crucial for analyzing complex signals and rare anomalies.

High sampling rate

The oscilloscope offers up to 500 MS/s sampling rate and 64 kpts memory depth for each channel, enabling the capture and precise representation of even complex waveforms. This allows the device to perform reliable real-time signal analysis without the risk of data loss.

Clarity and working comfort

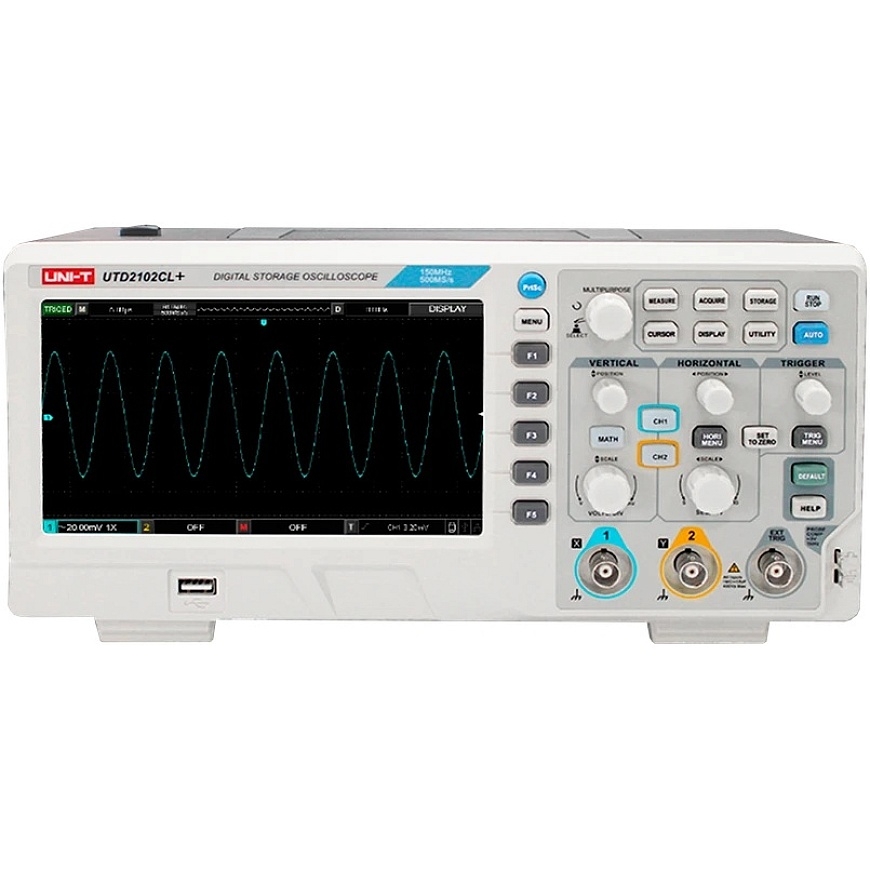

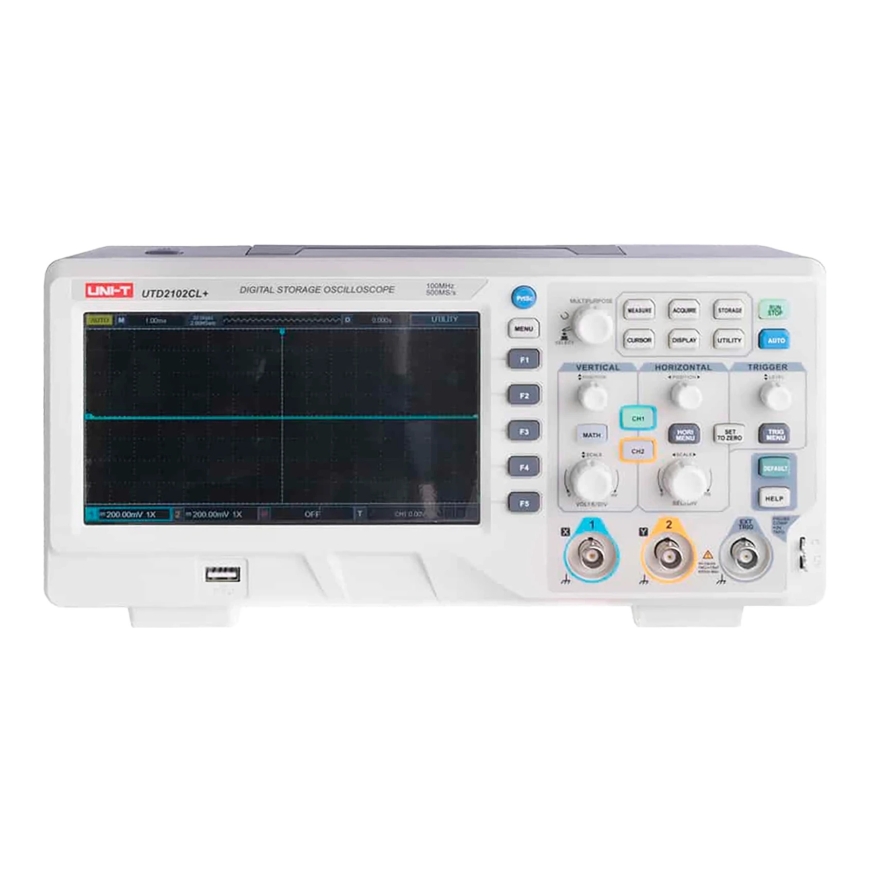

The integrated 7-inch TFT LED display with a resolution of 800 × 480 pixels ensures excellent waveform readability. The bright graphics and intuitive interface facilitate navigation and data analysis, increasing efficiency and ease of use under any conditions.

Advanced triggering and analysis

The UTD2102CL+ offers advanced triggering modes, including slope, pulse width, and video trigger functions. Together with mathematical functions (addition, subtraction, multiplication, division, FFT), the device allows for comprehensive signal analysis and diagnostics without additional software.

Data always at hand

Two USB ports (main and device) allow for quick saving of configurations, waveforms, and screenshots in bitmap formats. This is ideal for documenting measurements, team collaboration, and reporting results. The “Uni-T UTD2102CL+” adapts to your workflow, no matter where you are.
