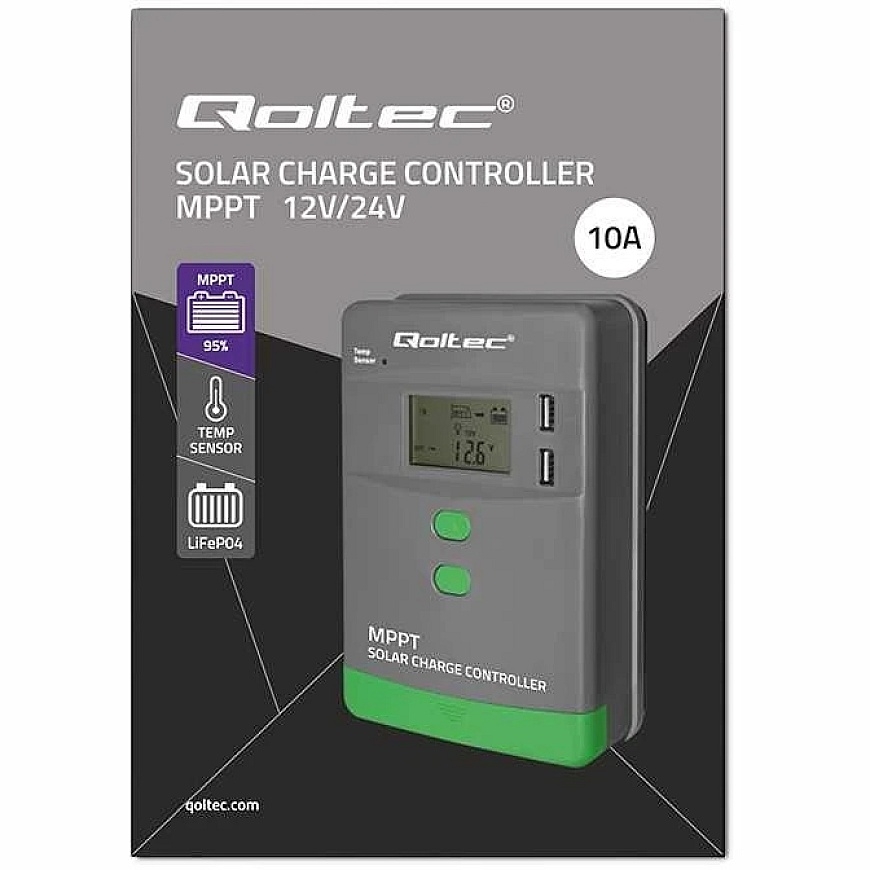

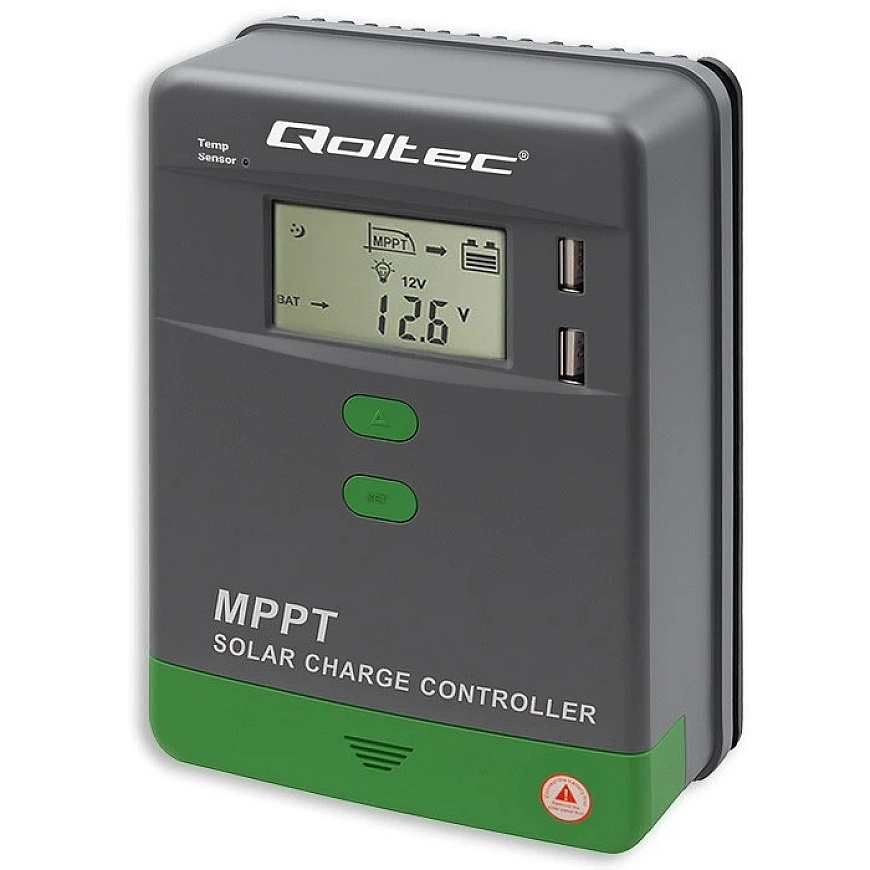

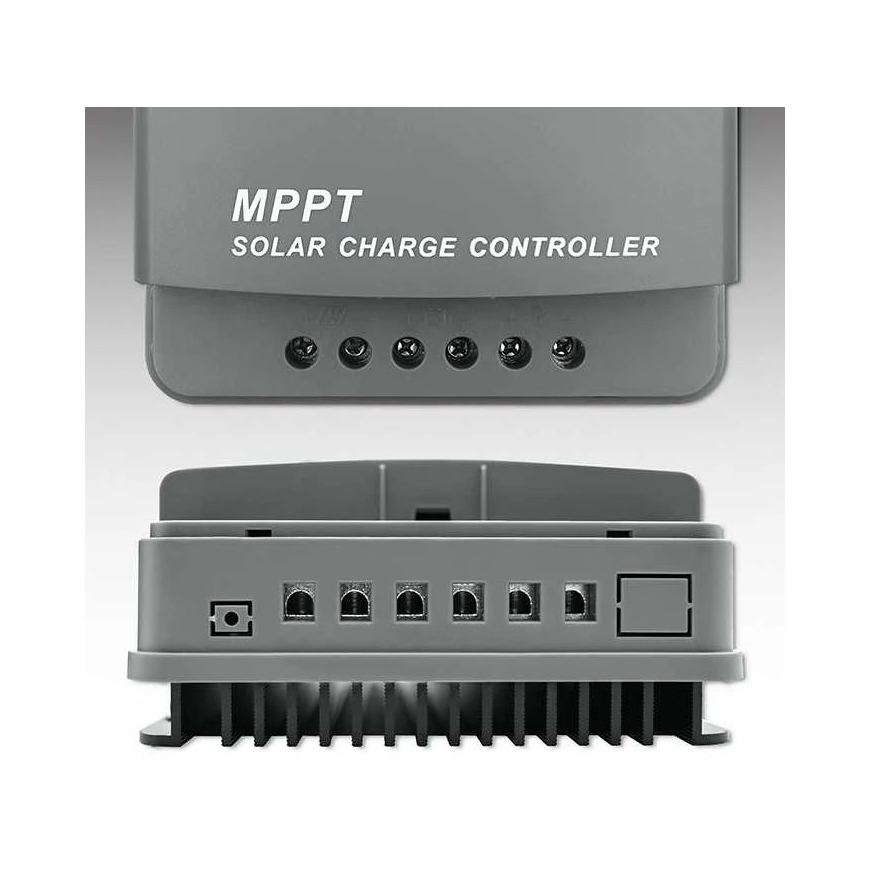

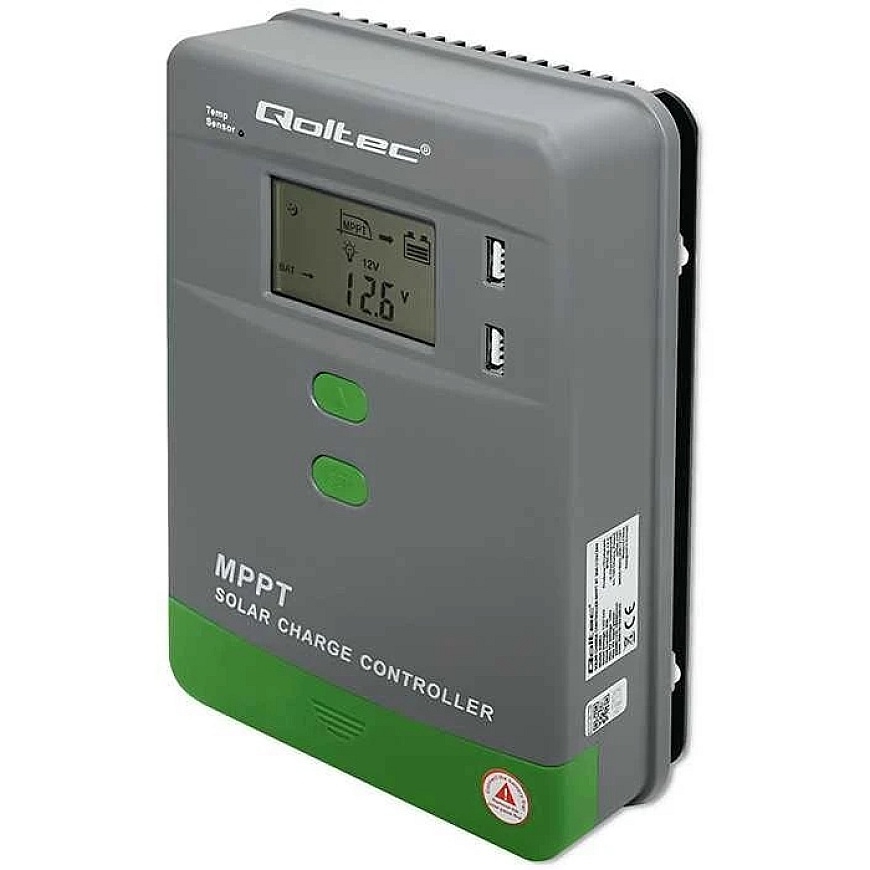

Qoltec MPPT Solar Charge Controller 10A 12V/24V LCD 2xUSB

All about the product

Qoltec MPPT Solar Charging Controller 10A 12V/24V LCD 2xUSB – an advanced solar battery charging controller that ensures maximum battery charging efficiency.

• MPPT Technology: 95% efficiency in optimizing solar energy utilization.
• Voltage and Current: supports 12V/24V systems with a nominal current of 10A.
• USB Ports: 2x USB 5V/2A ports for convenient device charging.
• Battery Compatibility: compatible with GEL, AGM, LiFePO4, Flooded, Li(NiCoMn)O₂ type batteries.
• Protection Features: against short circuits, overheating, overcharging, and excessive charging.
• LCD Screen: clear information about charging status and parameters.

Technical Specifications:

• Manufacturer: Qoltec

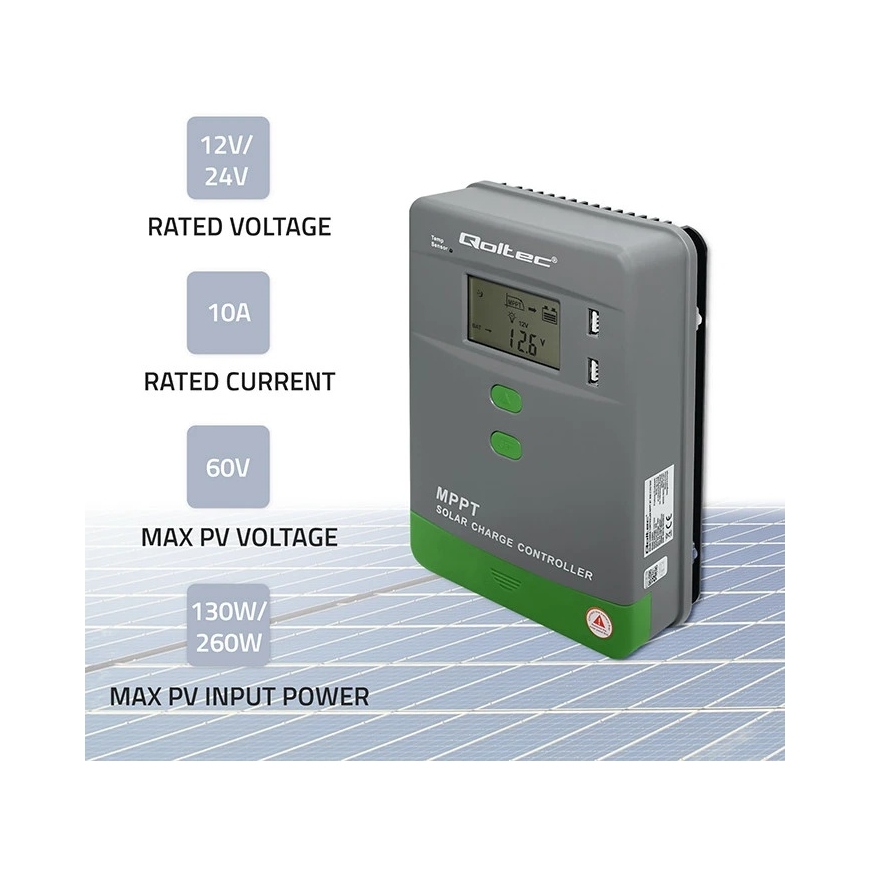

• Maximum Power: 130W PV 12V | 260W PV 24V
• Nominal Voltage: 12/24V
• Nominal Current: 10A
• Maximum PV Open Circuit Voltage: <60V
• MPPT Efficiency: 95%
• Battery Type: compatible with GEL, AGM, LiFePO4, Flooded, Li(NiCoMn)O₂
• Display: LCD
• Protections: against short circuits, overheating, overcharging, excessive charging
• Usage: home photovoltaic systems, portable solar kits, solar systems in campers and trailers, solar devices on boats and yachts, anywhere efficient and reliable battery charging management is needed
• Temperature Sensor: built-in
• USB Output: 5V/2A
• Protection Class: IP30
• Operating Temperature: -20˚C ~ +55˚C
• Storage Temperature: -30˚C ~ +80˚C
• Color: gray, green
• Material: ABS, metal
• Dimensions (Length x Width x Height): 180 x 125 x 50 mm
• Package: box
• Package Contents: 1 x MPPT controller, 1 x user manual, 1 x warranty card
• Net Weight: 0.555 kg
• Gross Weight: 0.629 kg
• Compliance Certificate: CE
• Warranty: 24 months
