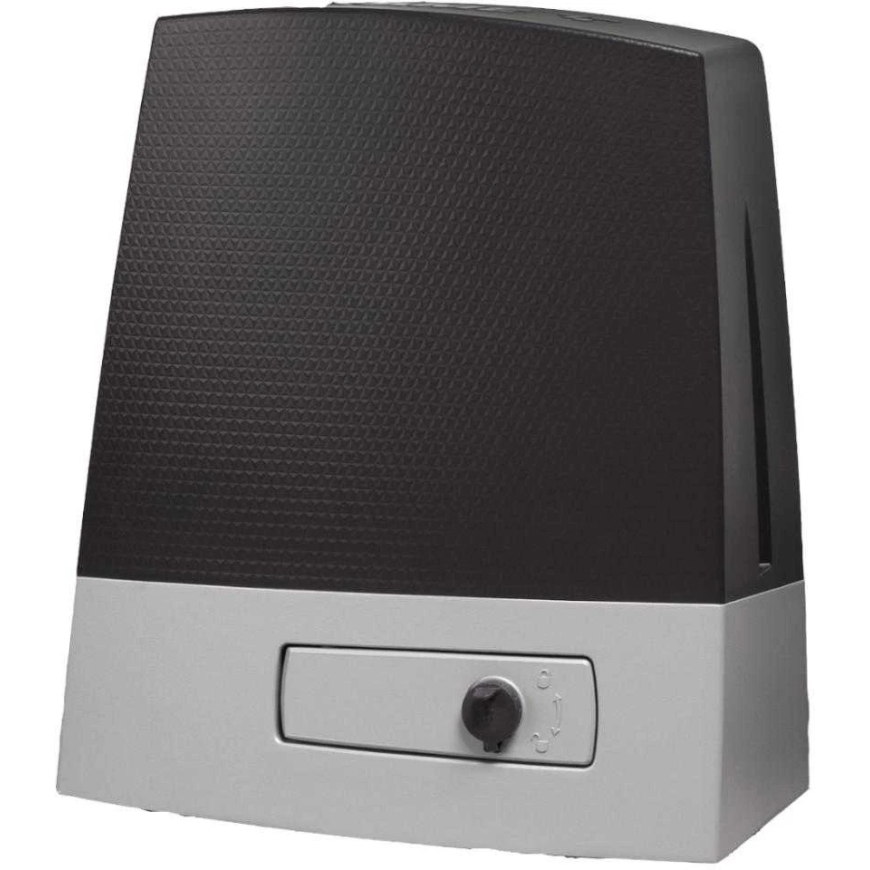

CAME BKX08AGF Gate Automation, 24 V, 24 m/min, 800 kg
439.00 €
Monthly payment from 12,20 €
4550820 801MS-0690
8050456094322
Shipping 11-15 b.d.
You are interested in this product?
All about the product

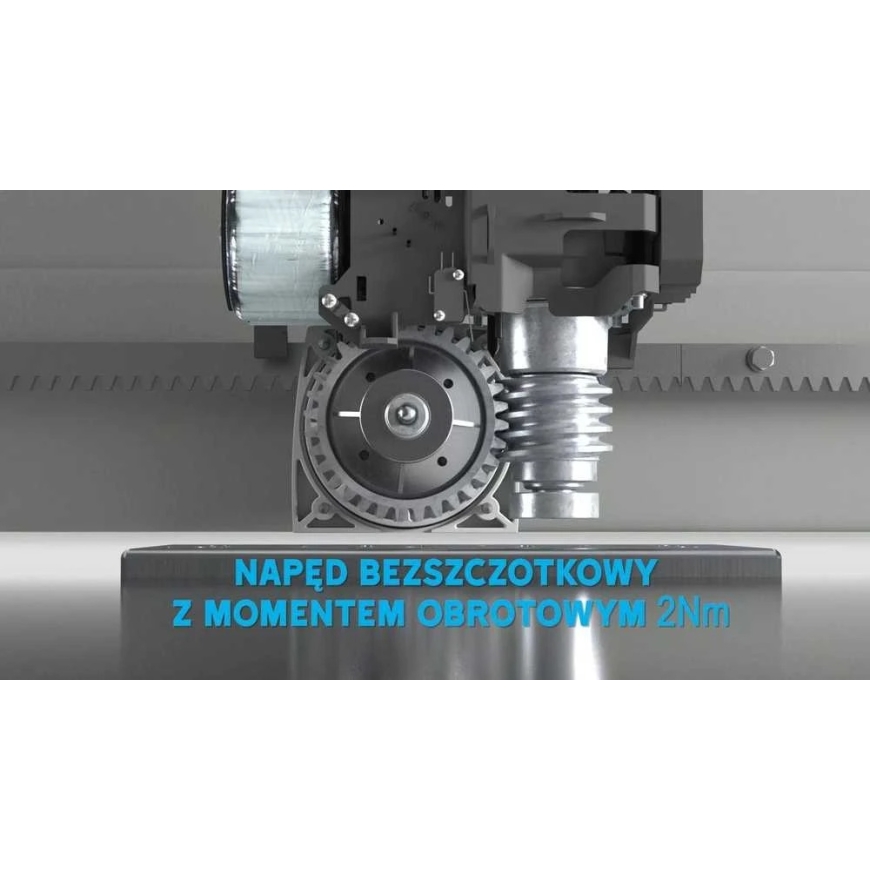

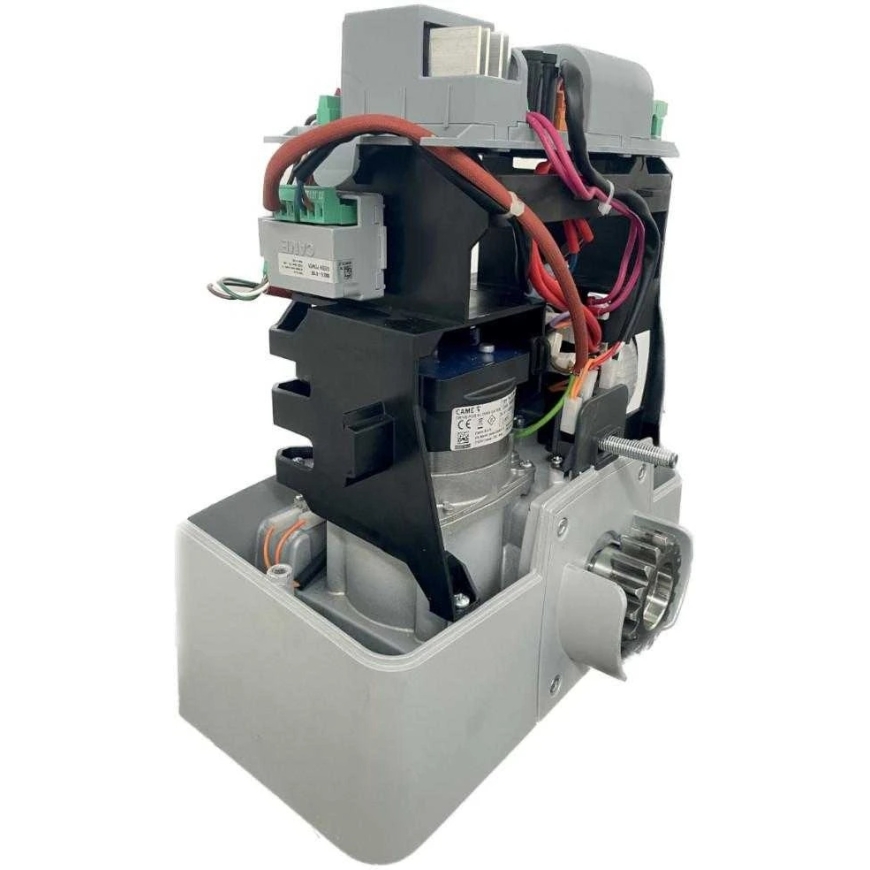

Automation with a 24 V brushless motor, achieving speeds of up to 24 m/min, with adaptive speed and torque technology. Comes with an electronic board with a graphic display, prepared for CAME Key, CXN BUS, B1 and B2 outputs, integrated radio decoding, movement control, and obstacle detection. Designed for gates weighing up to 800 kg and 20 m long.
Specification:
| Technical Specifications | |
| Protection class (IP) | 54 |
| Power supply voltage (V – 50/60 Hz) | 230 |
| Motor supply voltage (V) | 24 |
| Power (W) | 390 |
| Movement speed (m/min) | 24 |
| Traction force (N) | 800 |
| Number of cycles per hour with 4 m leaf | Continuous operation |
| Number of cycles per hour with 10 m leaf | 55 |
| Operating temperature (°C) | -20 ÷ +55 |
| Storage temperature (°C) | -20 ÷ +70 |
| Operating limits | |
| Max. leaf length (m) | 20 |
| Max. leaf weight (kg) | 800 |
