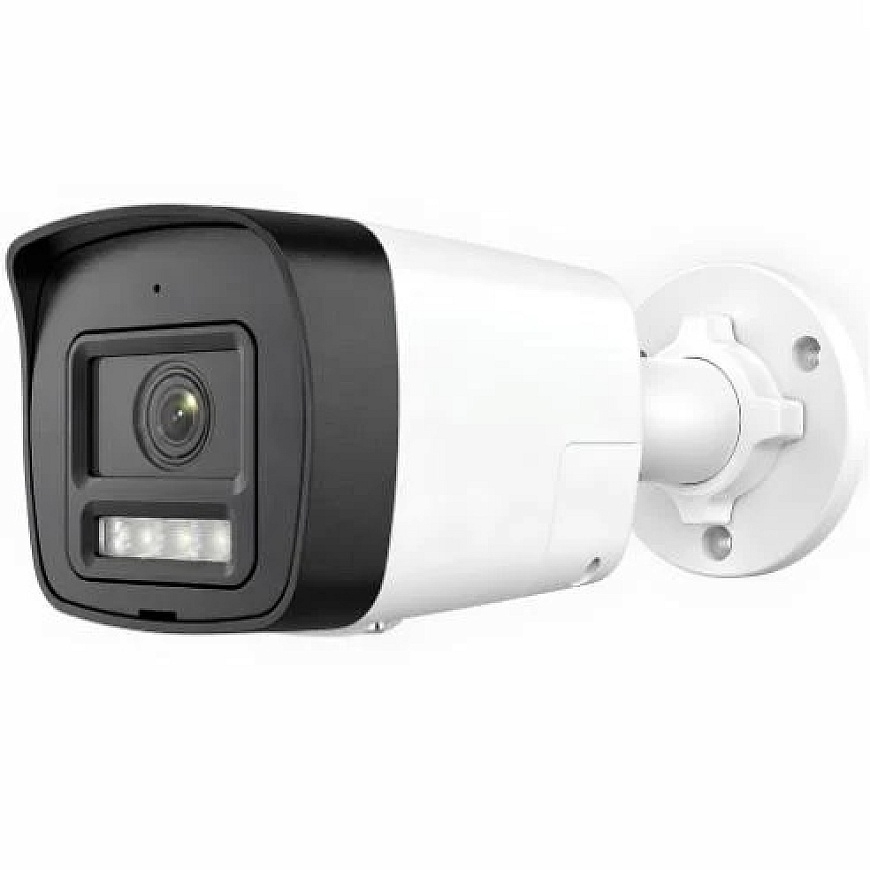

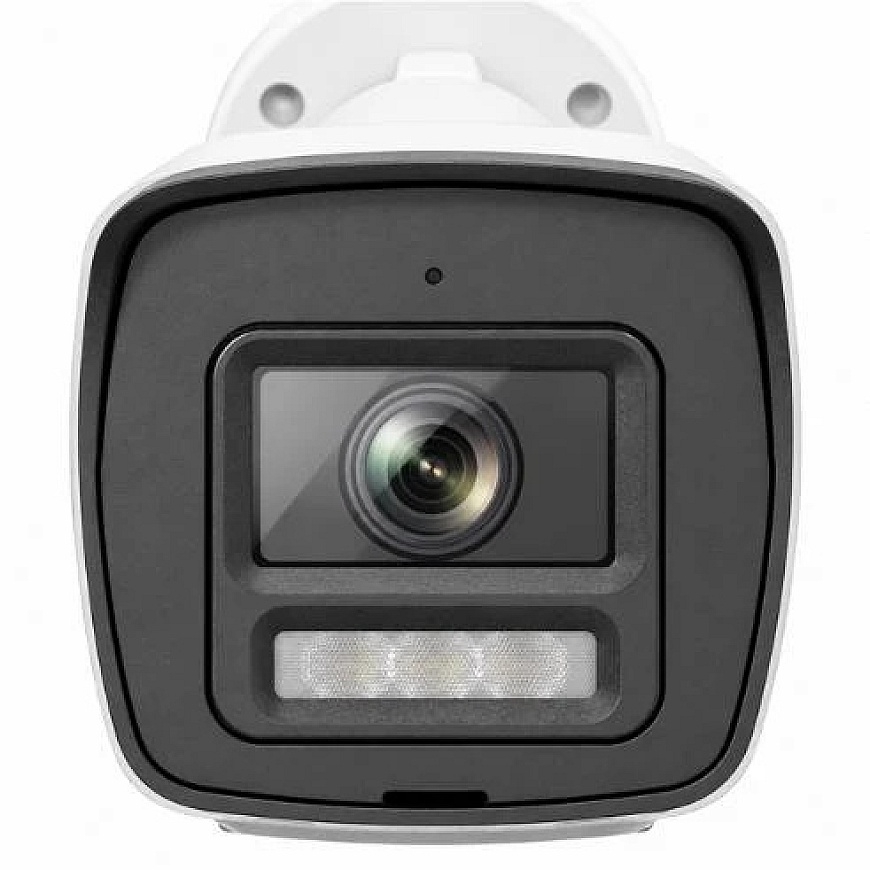

Miton IP CAMERA NT-IP106CA-DL

All about the product

IP CAMERA NT-IP106CA-DL Model: NT-IP106CA-DL Key features: Resolution 6 MPFixed lens 2.8 mmWide viewing angle 98°IR illumination and white light up to 30 mWDR 120 dBHuman and vehicle detectionBuilt-in microphone and speakerActive deterrence with light and soundSupport for microSD cards up to 512 GBIP67 housing and PoE power Technical specifications ModelNT-IP106CA-DLResolution6 MP, 3200 × 1800Sensor1/2.4" Progressive Scan CMOSLensFixed 2.8 mmViewing angleHorizontal 105°, vertical 55°, diagonal 127°ApertureF1.6SensitivityColor: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IRDay/night modeIR cut filter, day/night/auto/scheduleNight illuminationIR + white lightIlluminator rangeUp to 30 mSmart Supplement LightYesWDR120 dBNoise reduction3D DNRImage enhancementBLC, HLCVideo compressionH.265+, H.265, H.264+, H.264, MJPEGMax. frame rate20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080 and 1280 × 720Human/vehicle detectionYes, target classification in motion detectionMotion detectionYesImage tamperingYesBuilt-in microphoneYesBuilt-in speakerYes, max. 1.5 W, up to 95 dB at 10 cmActive alertFlashing light + sound warningMemory cardmicroSD / microSDHC / microSDXC up to 512 GBEthernetRJ-45 10/100 Mb/sPoEIEEE 802.3af, class 3Power supply 12 V DC12 VDC ±25%, max. 8 WPoE power consumptionMax. 9.5 WONVIFProfile S, T, GAPI / integrationONVIF, ISAPI, SDKApp / clientHik-Connect, iVMS-4200Protection degreeIP67Operating temperature-30°C to 60°CMaterial of housingMetal and plasticDimensions179 × 67.4 × 69.1 mmWeightApproximately 285 gHardware resetYesPrivacy masks4 programmable polygonal masksCorridor modeYesSNR≥ 52 dBVideo bitrate32 Kb/s to 16 Mb/sBitrate controlCBR / VBRSVCH.264 and H.265ROI1 fixed area for main streamAudioMonoAudio codecsG.711, G.722.1, G.726, MP2L2, PCM, AAC-LCNoise reductionYesSimultaneous viewUp to 6 channelsNumber of usersUp to 32 usersProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoSQoS, FTP, SMTP, UPnPSecurity featuresPassword protection, watermark, HTTP authentication, WSSE, ONVIF, audit log, MAC host authenticationDORID: 76 m, O: 30 m, R: 15 m, I: 7 mLens mountM12Shutter1/3 s to 1/100 000 sCamera adjustmentPan 0–360°, tilt 0–90°, rotation 0–360°Certification / complianceCE, UL, CB, RoHS, WEEE, RCM, ICStorage conditions-30°C to 60°C, humidity ≤95%, no condensation
