Somfy Ixengo L 3S+ IO Comfort Pack 8 m for double gates
809.00 €
Monthly payment from 21,73 €
4549970 1246485
3660849692490
Shipping 11-15 b.d.
You are interested in this product?
All about the product

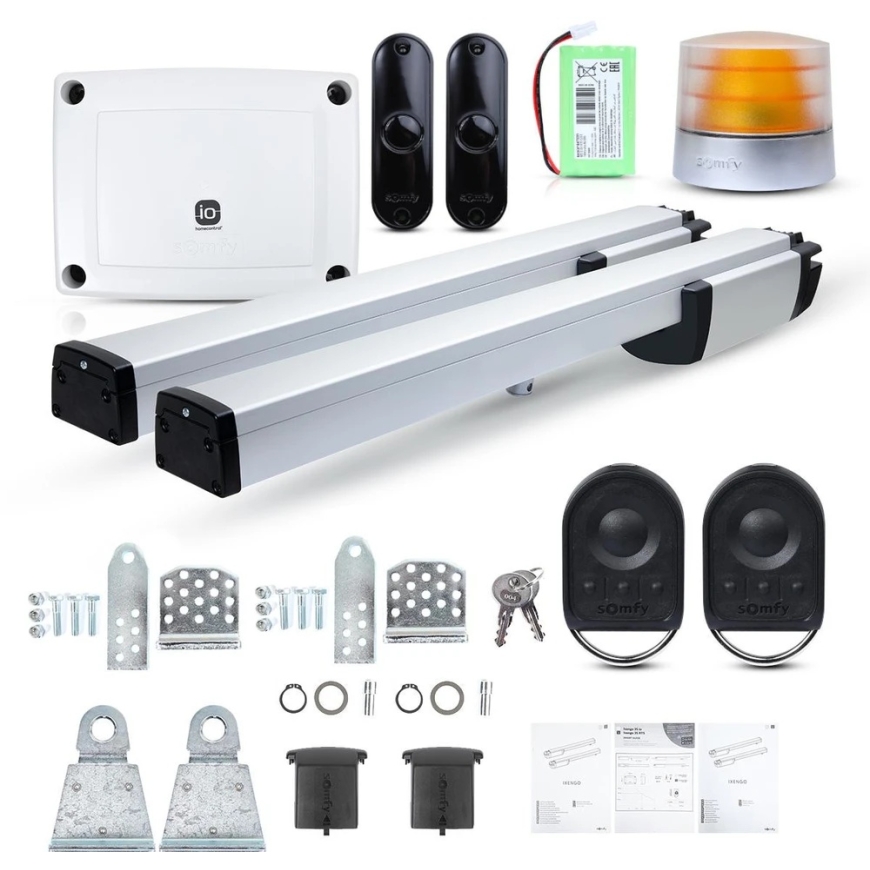

„Somfy Ixengo L 3S+ IO Comfort Pack“ 8 m for two-leaf gates
Model: 1246485
Main features
- Suitable for narrow 80 mm wide posts.
- Intuitive app “Fix & Go” designed for easy and successful drive installation and optimized performance.
- Very advanced and unique limit switch system, accessible from the top of the drive and indicating when the correct position is reached with a flashing LED.
- Non-intrusive mechanism ensures very high resistance to strong wind pressure and other forces.
- Simple and safe disconnection using a unique key.
- Gentle stopping and adjustable torque value.
- Very precise adjustment of closing position and closing force.
- Deceleration zone and displacement between two spans reduced to a minimum.
- Compatibility with solar energy systems when installed in hard-to-reach places for power cables.
- Emergency battery ensures gate operation during power outages.
- Photoelectric sensors ensure safe passage (two pairs recommended).
- Warning light alerts pedestrians about gate movement.
Purpose
This set is designed for swinging gates with a leaf length of up to 4 m and a weight of up to 400 kg. This product can only be installed by home automation and drive specialists. “SOMFY” installation instructions for professionals are included with the products.
io-homecontrol® technology
- Compatibility with all “Somfy” products that support “io” technology.
- Each two-way transmitter receives feedback signals from the controlled product.
- By connecting the “TaHoma®” switch to the system, it is possible to remotely control and monitor the current gate position.
Technical specifications:
- Power supply : 230 V (-15 % / +10 %) - 50 Hz
- Motor power supply : 24 V DC
- Energy consumption (max.) : 40 W
- Lighting power : max. 500 W.
- Accessories power supply voltage : 24 V DC / 1200 mA
- Maximum weight of two-leaf gates: 800 kg (400 kg per leaf)
- Maximum number of cycles per day: 30
- Radio frequency : IO 868–870 MHz
- Max. number of remote controls : 30 for opening/closing, 4 for lighting, 4 external outputs.
- Protection class : IP44
- Energy consumption in standby mode: 0.42 W
- Operating temperature : from -20°C to +60°C
