ACO CDNP8ACC ST (G3) (B) Intercom Central Station
4549539 CDNP8ACCST(G3)(B)
5905997383509
Shipping 11-15 b.d.
All about the product
ACO CDNP8ACC ST (G3) (B) CHILDREN'S IMAGE DOOR PANEL
Innovative intercom with proximity reader – features
We offer panels with a multitude of advanced features. This includes not only accommodations for people with disabilities, such as automatic or remote control options, but also the ability to install custom configurations tailored to the specifics of the premises, such as a hotel, as well as support for proximity keys. Regarding Aco products, intercom dimensions are 206 mm x 88 mm. Their installation, depending on the chosen frame, can be flush-mounted or surface-mounted. Due to high-quality materials and modern technologies, the device will remain functional for many years, ensuring daily convenience for residents. This is a solution that has already been chosen by many responsible for designing residential buildings, offices, and accommodation facilities.
We invite you to purchase intercoms with proximity reader !

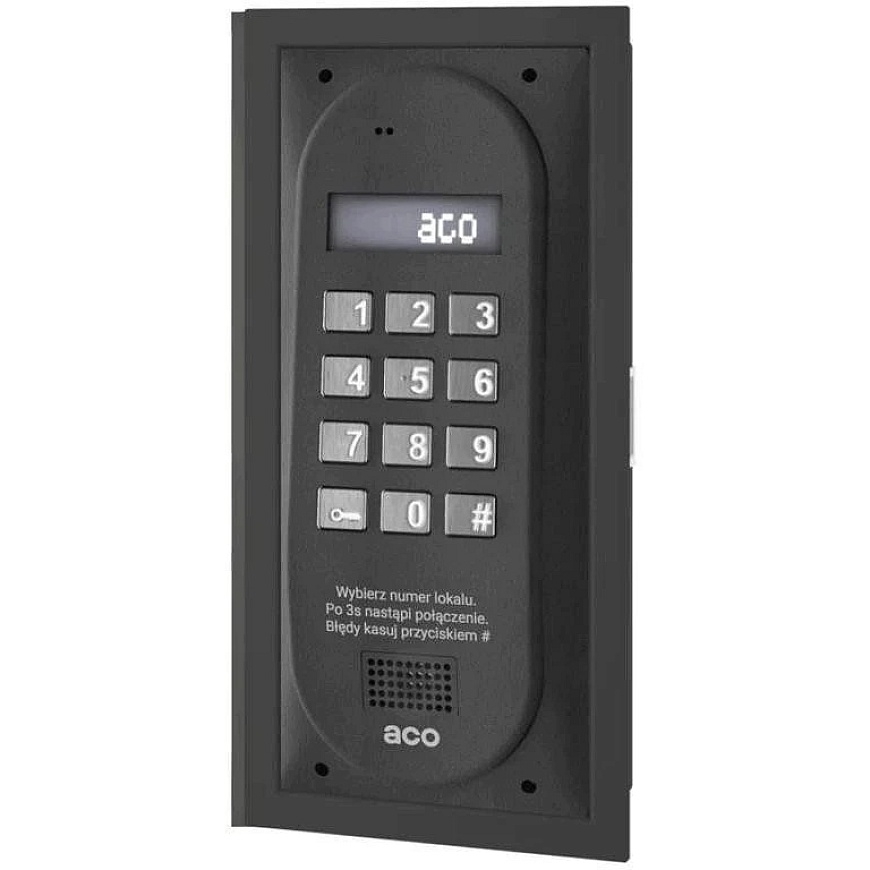

*The photo shows the dedicated frame CDN-R-S-AL ST in the same color.
Specification
| Index | CDNP8ACC ST (G3) |
| Description | Digital intercom with code lock and proximity reader |
| Execution | Aluminum alloy housing, powder-coated |
| Stainless steel keyboard with white backlighting | |
| Additional rear cover made of plastic, covering the electronics | |
| Available language options | PL-EN-DE-FR |
| Available colors | Steel (ST) |
| Modules | Code lock – individual four-digit opening code for each apartment |
| ACC – proximity key reader | |
| Max. number of subscribers | 255 apartments |
| Display | LCD (heated) |
| Mounting method | Depending on the chosen frame: |
| – flush-mounted: CDN-R-S-AL ST (frame shown in main photo) | |
| – surface-mounted: CDN-P-S NT | |
| Dimensions (mm) | 206×88 |
| Installation type | Digital: 2 wires |
| Line length | Max. 1000m |
| Power supply | 15V DC / 200mA or 12V ± 0.5V AC |
| Power consumption in standby mode | ~1W |
| Outputs | 2 x screw connections “ELOCK”: |
| – connection of traditional electric lock (max. 1A) or reversing (max. 0.5A) or CDN-PK relay module (max. 5A) | |
| 2 x screw connections | |
| – audio signal connection: “LINE+” and “LINE- (GND)” | |
| 2 x screw connections | |
| – connection of the second relay output (OUTPUT): “N” and “NO” (max. 2A, 30VDC) | |
| Inputs | 4 x screw connections: |
| – power connection: direct current “+DC” and “GND” or alternating current “AC” and “AC” | |
| 1 x screw connection “INPUT”: | |
| – connection of normally open (NO) button – activated temporarily by connecting with GND the system. For example, an external opening button | |
| 1 x screw connection: | |
| – audio signal connection from previous main station (Master Line): “ML+” | |
| 2 x “EXTMOD” sockets for connecting optional modules | |
| Facilities for the disabled | – lit keyboard buttons with Braille characters |
| – acoustic and visual indication of panel functions | |
| – automatic or remote (button) door opening without the need to answer the call (depending on the receiver model) | |
| Features | – vandal-resistant and weatherproof (from -20 to 50°C, IK07, IP42) |
| – supports up to 6144 proximity keys | |
| – supports multiple expansion modules that increase system functionality | |
| – unlimited number of keys assigned to each apartment (out of 6144) | |
| – universal Master and Slave configuration (the station can function as both Master and Slave) | |
| – home automation: control of external devices, e.g. entrance gates, barriers, lighting, blinds | |
| – ability to connect multiple receivers to the same number (depending on the receiver) | |
| – adjustable conversation time (40-120 seconds) and adjustable number of openings during the conversation (1-3) | |
| – individual settings for all parameters for each apartment (call number, opening automation, rights to the chosen CDN-I/O module | |
| – device serial number displayed in computer software | |
| – corridor opening function | |
| – call forwarding function to additional numbers | |
| – available codes: 255 residents (4 digits), 5 administrators (4 or 6 digits), 1 installer (8 digits) | |
| – support for various types of electric locks and electromagnetic locks | |
| – compatible with all digital devices from the groups: CDN, Inspiro, and Familio P/PV | |
| – programming from the station and computer via USB cable | |
| – free software for creating description lists and device configurations available in the “download” section | |
| – compatible with all steel CDN-R series frames (e.g., CDN-R-S, CDN-R-M, etc.) |
