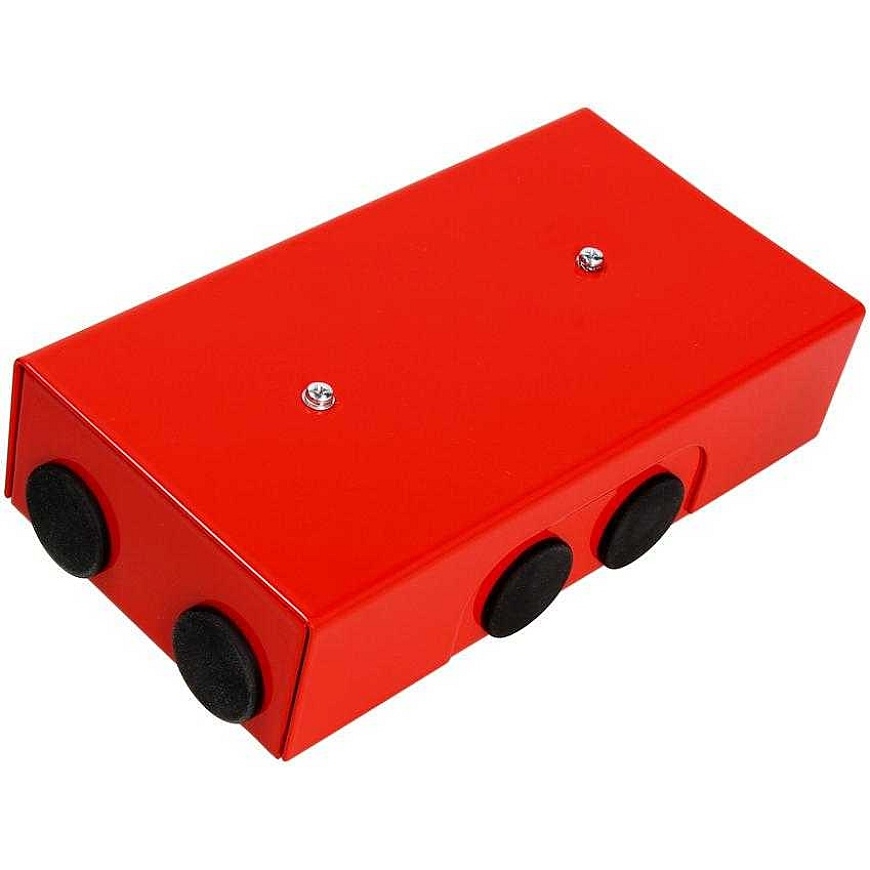

W2 PIP-5A fire installation box

All about the product

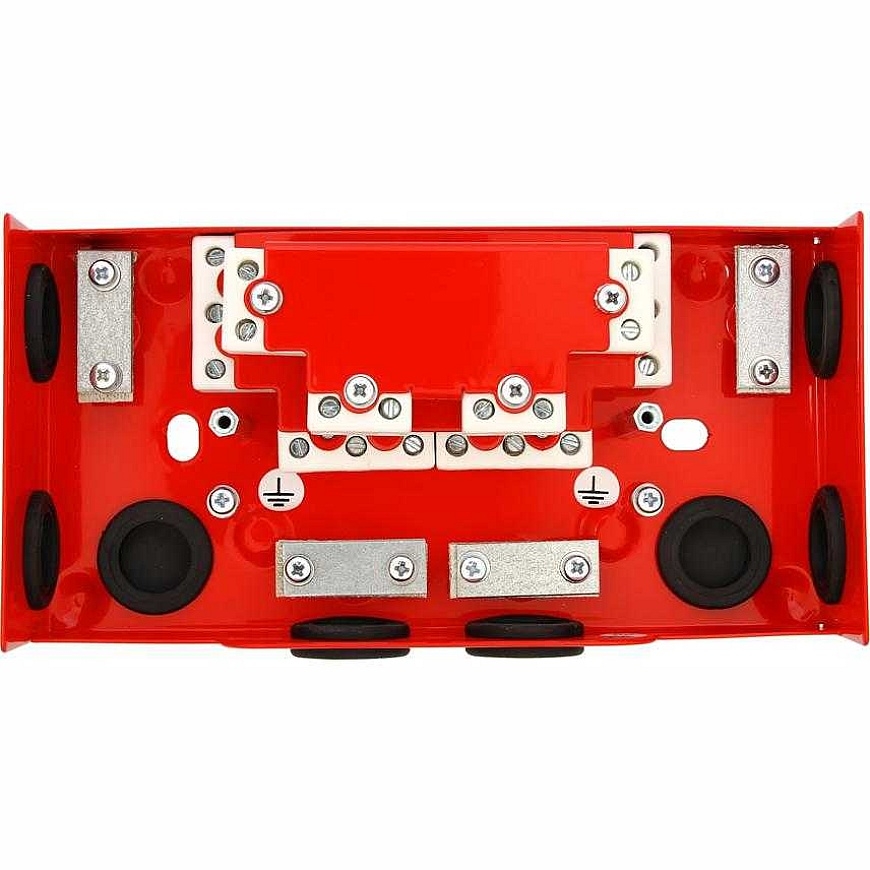

The fire installation box PIP-5AN is a certified solution that provides a secure connection of wires in fire alarm systems, ensuring high quality and functionality in challenging conditions. The fire resistance E90 guarantees functionality for 90 minutes in fire conditions, which enhances safety in case of threat. The maximum supply voltage of 400V AC and 16A current allow for the connection of various devices, making the box a versatile element of the installation. The ability to connect three independent actuators or one smoke exhaust flap with two actuators allows for flexible adaptation to the needs of the system. Ceramic terminals inside the box provide high resistance to high temperatures, which increases the durability and reliability of the installation. The dimensions of 174 x 91 x 47 mm and two mounting holes facilitate installation in various conditions, saving time and effort during assembly. Compatibility with fire-resistant wires of larger cross-sections enhances the application possibilities of the box in more demanding installations. Fire installation box PIP-5A – Safety in your home The fire installation box PIP-5AN is a product that combines high quality with certification, making it an excellent solution for connecting power and synchronizing wires of smoke exhaust actuators. With the ability to branch five-wire cables with maximum cross-sections of 4 mm² and a current carrying capacity of 16 A, this box guarantees reliability and safety in every situation. Key benefits of the PIP-5A box Fire resistance E90 – functionality for 90 minutes in fire conditions. Tested by CNBOP-PIB, which confirms its high quality and safety. The possibility of connecting three independent actuators or one smoke exhaust flap with two actuators and an end-of-line module. Built-in ceramic terminals arranged in layers, increasing connection efficiency. Compatibility with fire-resistant wires of larger cross-section. Description of the construction of the installation box The PIP-5AN box is made of metal coated with red powder paint, which not only gives it an aesthetic appearance but also ensures durability. It has two mounting holes, which facilitate installation. Inside, there are ceramic terminals, and wires can be introduced through conduits from both the bottom and the side walls of the box. The maximum diameter of the wire is 16 mm, allowing for flexible adaptation to various installations. Application in fire alarm systems The installation box PIP-5AN is intended for use in fire alarm systems, making it an essential element in every building. Thanks to its properties, it provides effective connections that are crucial in emergency situations. Its high resistance to fire makes it a product you can rely on. Manufacturer information – W2 W2 is a Polish company established in 1999 that specializes in solutions in the field of professional electronics. It offers design, production, service, and sales, making the products of this brand trusted by users. Technical specifications of the installation box PIP-5A Maximum supply voltage 400V AC Maximum current 16A Maximum diameter of installation cable Ø 16 mm Maximum wire cross-section 4 mm² Protection degree IP20 Dimensions 174 x 91 x 47 mm Weight 739 g Create the home of your dreams with the installation box PIP-5AN, which will ensure safety and comfort in your environment!
