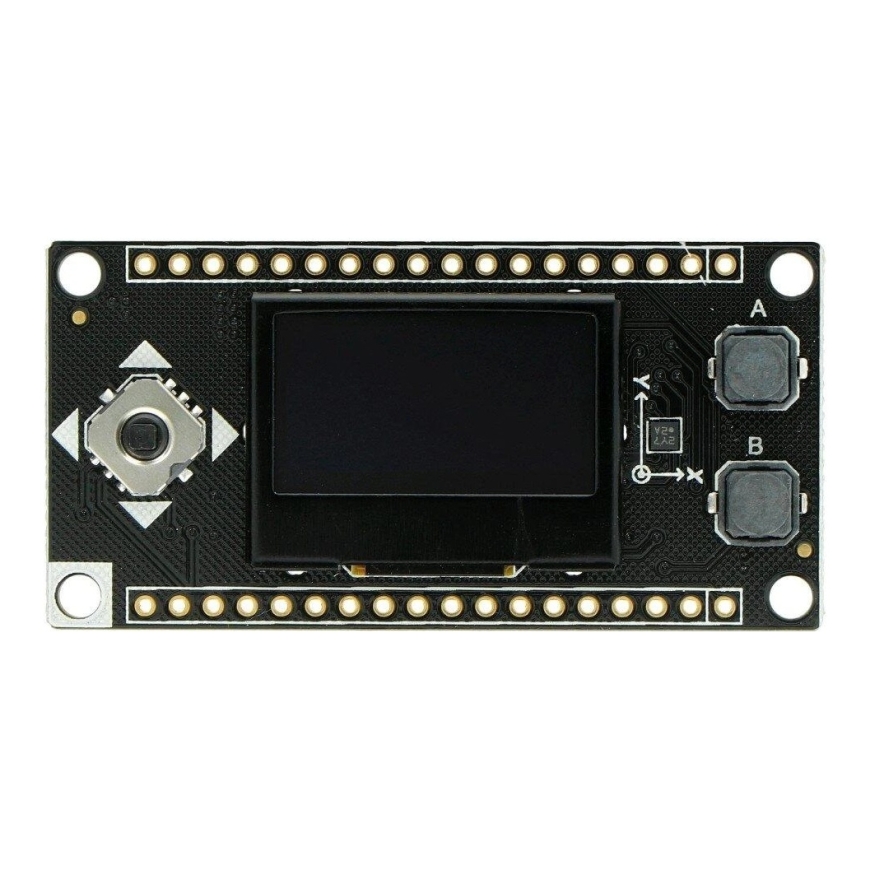

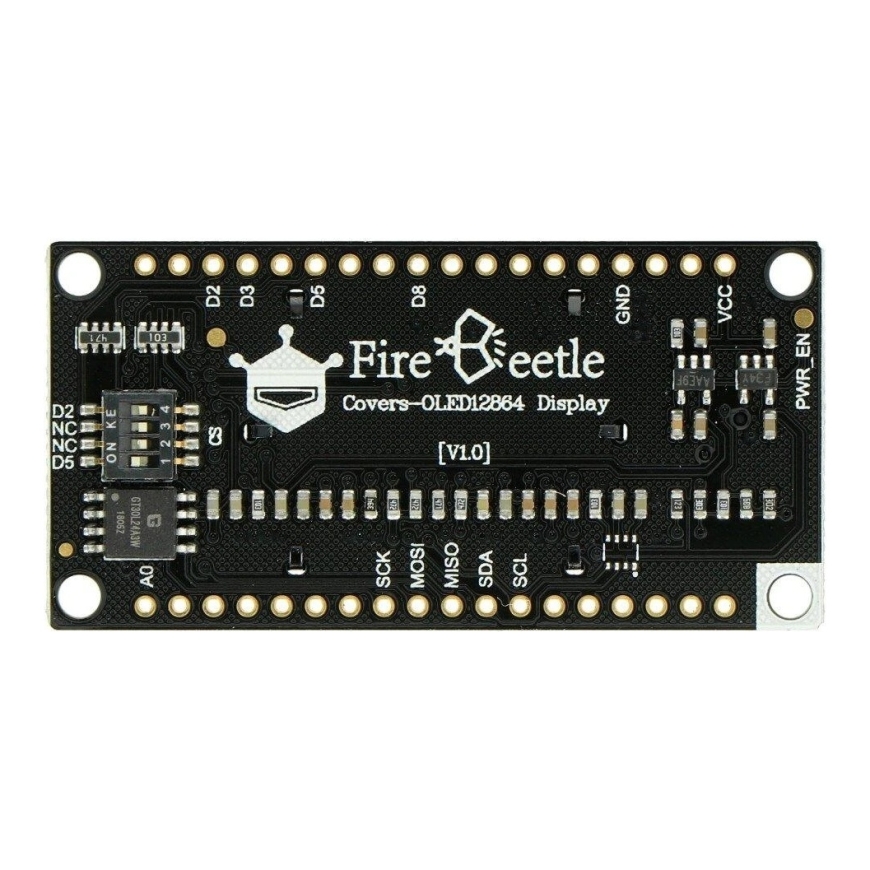

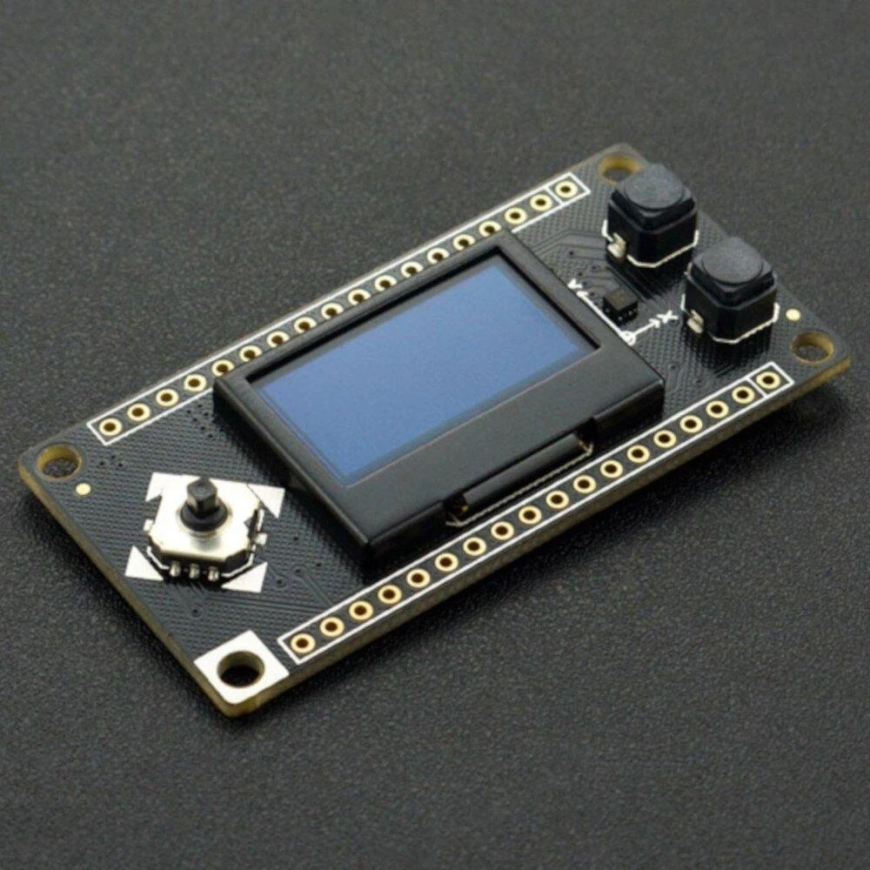

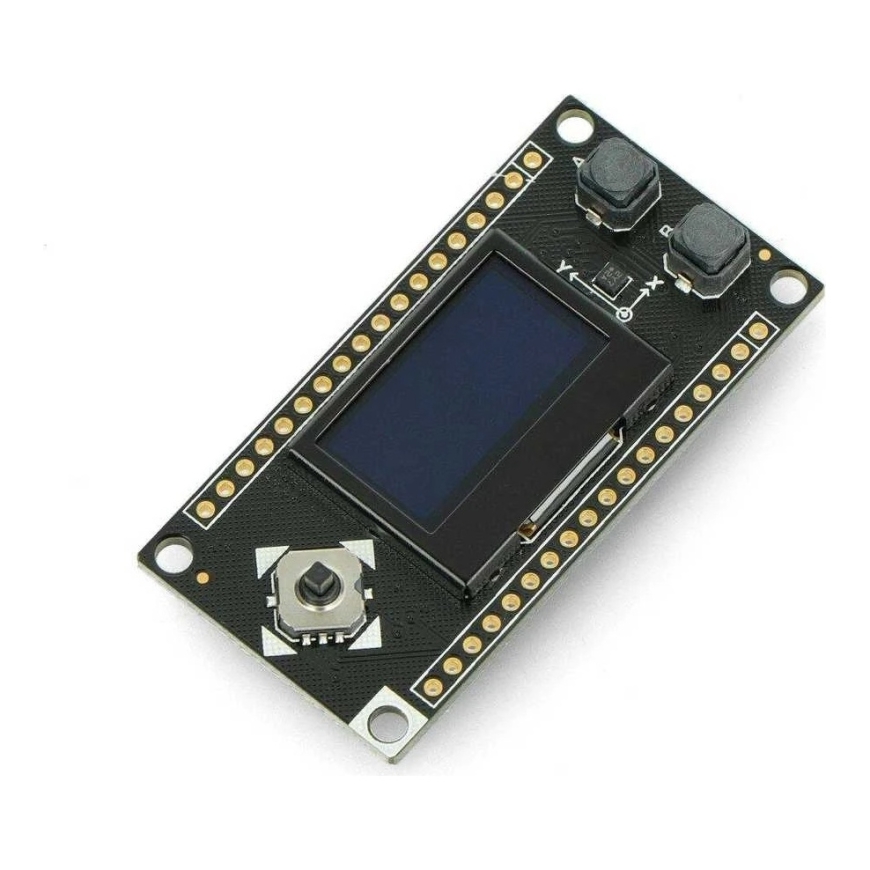

DFRobot OLED Blue Screen 0.96" 128 x 64 px, I2C, for FireBeetle
29.00 €
4548264 AN-12357
5904422319052
This product is no longer in stock
You are interested in this product?
All about the product
Blue OLED display with a diagonal of 0.96", and a resolution of 128 x 64 pixels, with 2 built-in buttons and a joystick. The display, based on the SSD1360 controller, operates at a voltage of 3.7 V to 5.5 V and supports communication via I2C.
Specifications:
- Power supply voltage: from 3.7 V to 5.5 V
- Buttons: 2 digital on D4 and D8 pins
- Joystick: 5-direction, analog on A0 pin
- 3-axis accelerometer BMA220:
- Interface: I2C
- Resolution: 6 bits
- Range: 2/4/8/16 g
- Current consumption: 250 uA
- OLED:
- Model: UG-2864HLBEG01
- Diagonal: 0.96"
- Resolution: 128 x 64 px
- Color: blue
- Interface: I2C
- Font layout: GT30L24A3W
- Interface: SPI
- Dimensions: 58 x 29 mm

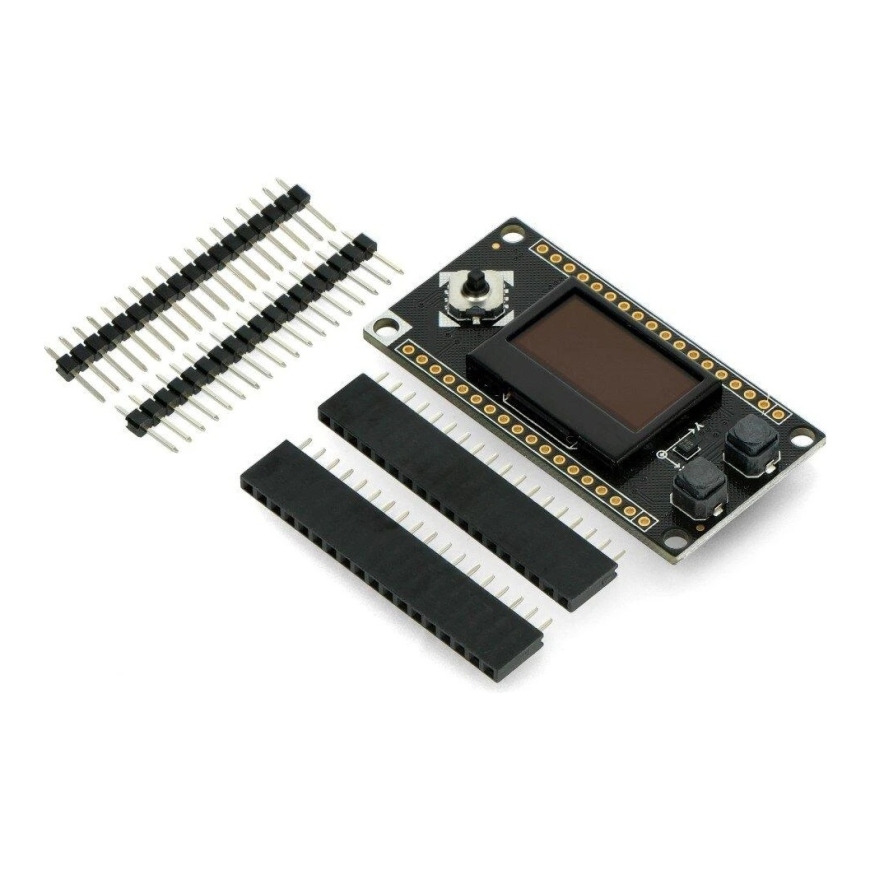

Included:
- 18 pin-2.54 mm strip x2
- long 18 pin-2.54 mm strip x2
