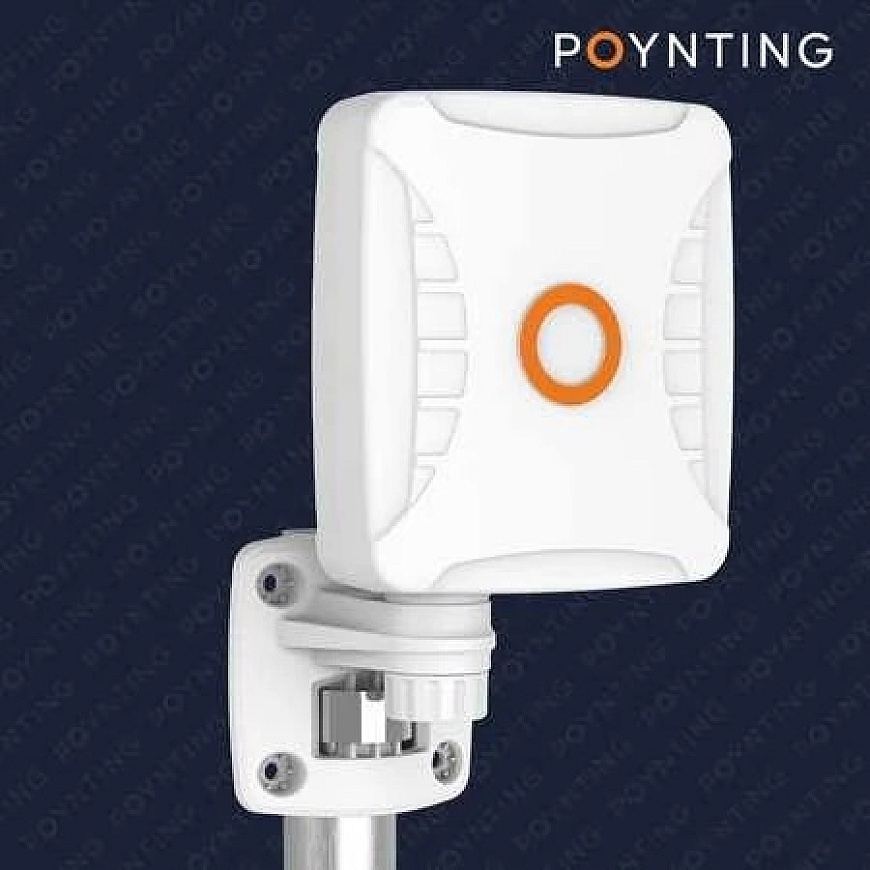

Poynting XPOL-1-V3-41 PLUS Panel Antenna
4548189 A-XPOL-0001-V3-41
6009710929230
Shipping 11-14 b.d.
All about the product
Main Information
The "XPOL-1-5G Plus" is an all-directional, 4x4 MIMO, X polarized outdoor 4G/5G antenna. Frequency range: 410–6000 MHz. Gain: up to 7 dBi. Weather-resistant housing (IP65). Supports 2G, 3G, 4G, and 5G technologies. Designed for mounting on a wall, pole, or window.
Application
This antenna is suitable for use both at home and in offices, retail locations, hotels, construction sites, banks, outdoor laboratories, schools, and mobile trading locations. Designed for cellular signal amplification, backup communication, and dual WAN systems.
Specification
Specification
Electrical Parameters
- Frequency band: 410–6000 MHz (including 410–450 MHz, 433 MHz, 450–470 MHz, 617–698 MHz, 698–803 MHz, 791–894 MHz, 868–915 MHz, 880–960 MHz, 1427–1517 MHz, 1700–1900 MHz, 1900–2200 MHz, 2300–2400 MHz, 2400–2500 MHz, 2500–2700 MHz, 3300–3800 MHz, 3800–4200 MHz, 4400–6000 MHz)
- Gain (max.): 7 dBi
- VSWR: 2.5:1
- Power supply: 10 W
- Polarization: X (+45°, -45°, V, H)
- Input impedance: 50 ohms
- Coaxial cable losses: 0.385 dB/m at 900 MHz, 0.52 dB/m at 1800 MHz, 0.58 dB/m at 2400 MHz, 0.66 dB/m at 3000 MHz, 0.75 dB/m at 3800 MHz, 0.95 dB/m at 6000 MHz
- DC throughput: Yes
Environmental Parameters and Certifications
- Wind resistance: 250 km/h
- Operating temperature range: from -40 °C to +80 °C
- Environmental conditions: Outdoor / Indoor
- Waterproof: IP65
- Salt resistance: MIL-STD 810G/ASTM B117
- Operating humidity: up to 98%
- Storage humidity: from 5 % to 95 %, non-condensing
- Storage temperature: from -40 °C to +80 °C
- Housing flammability class: UL 94-HB
- Shock resistance: IK 10
- Safety and environment: CE, RoHS, ISO 9001:2015
Mechanical Parameters
- Product dimensions: 246 × 157 × 88 mm
- Package dimensions: 271 × 191 × 120 mm
- Housing material: UV stabilized ASA
- Housing color: white (Pantone P 179-1 C)

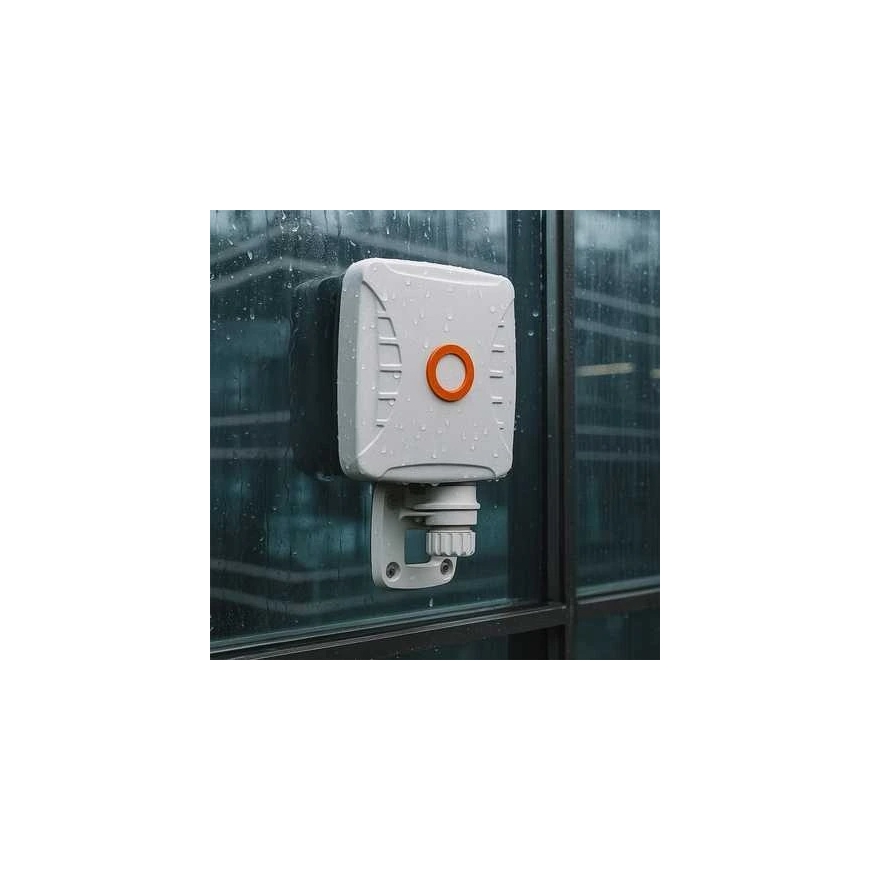

- Mounting type: wall, pole, glass (suction cups)
Package Contents
- Antenna A-XPOL-0001-V3-41
- Wall and pole mount
- Window suction cups
