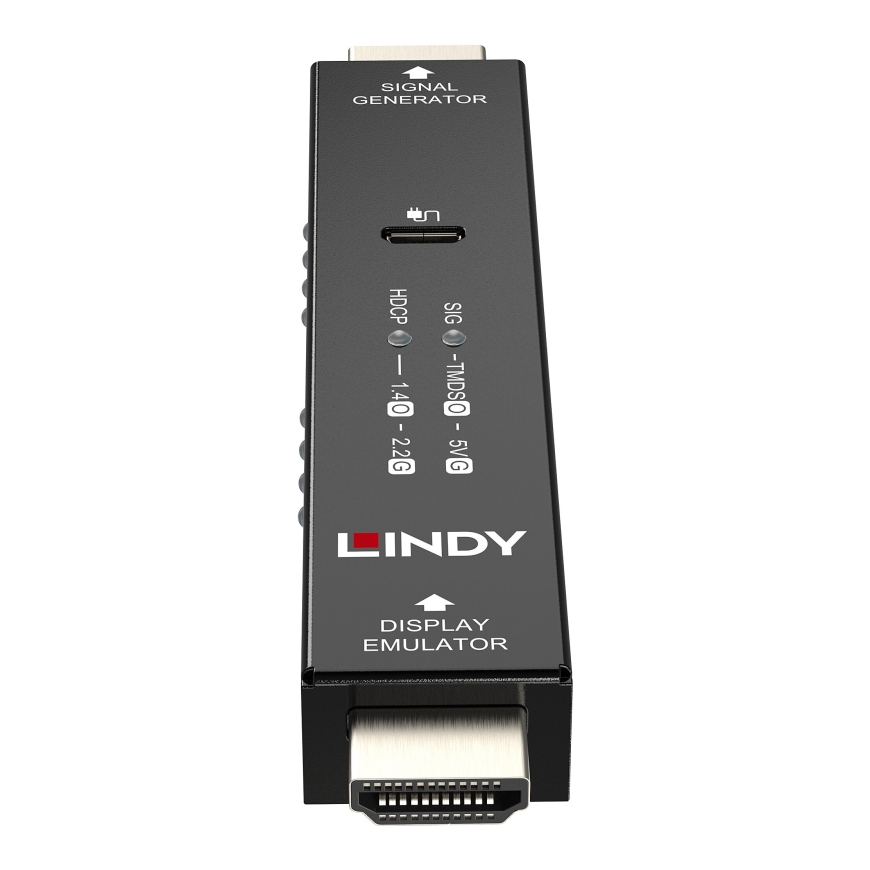

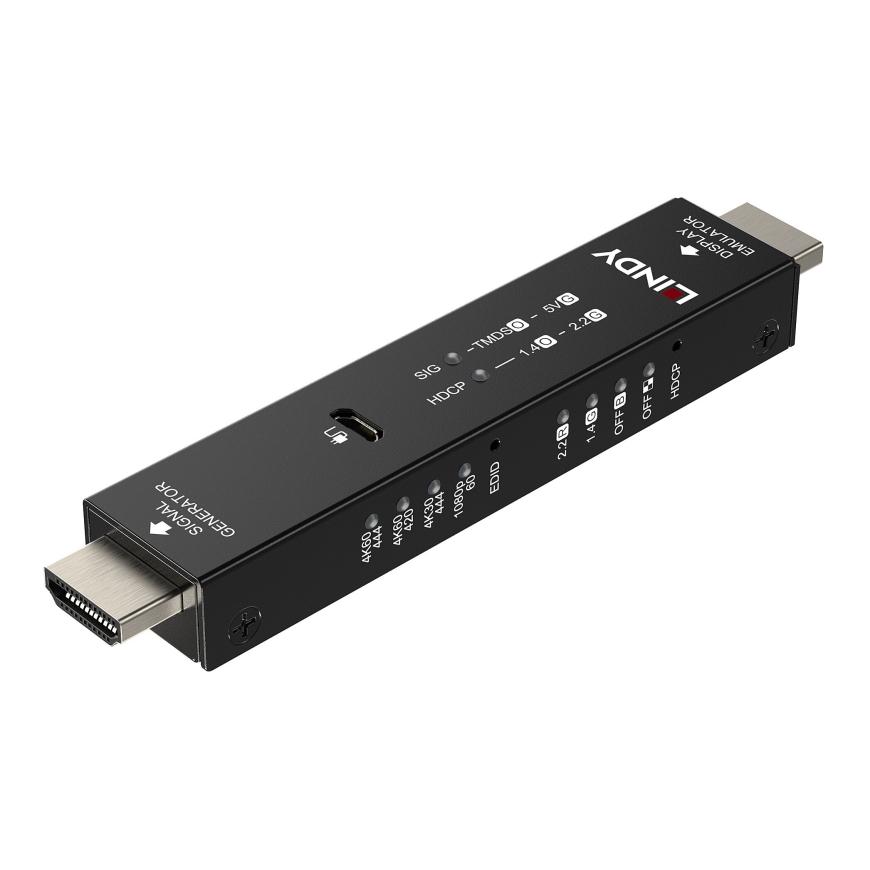

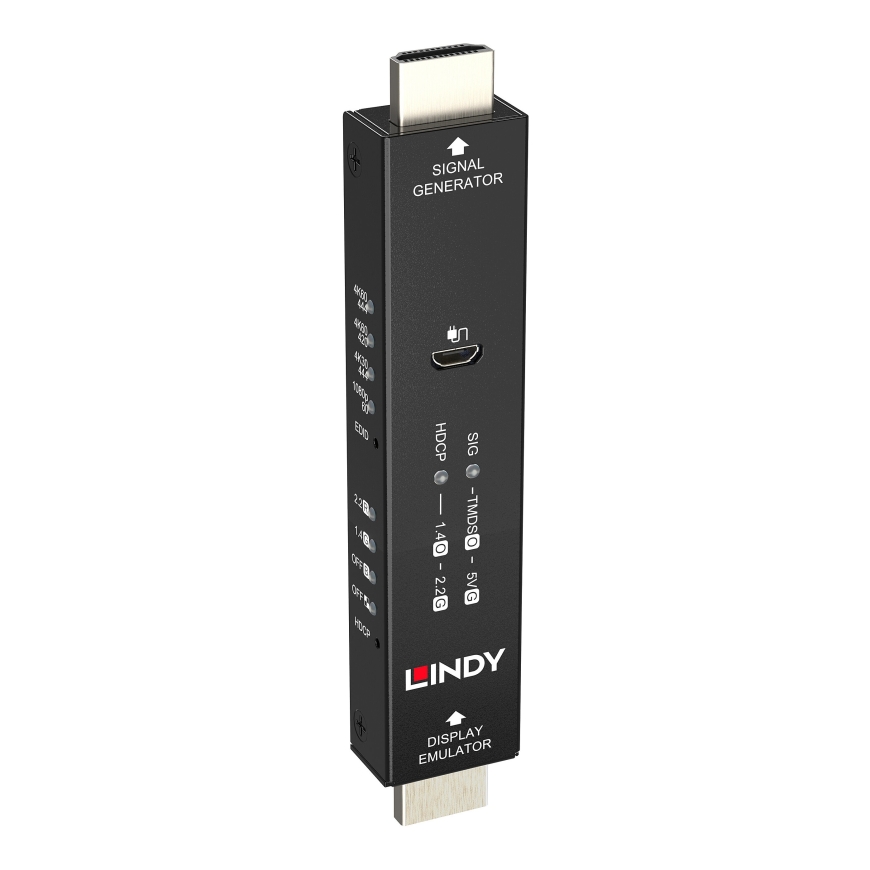

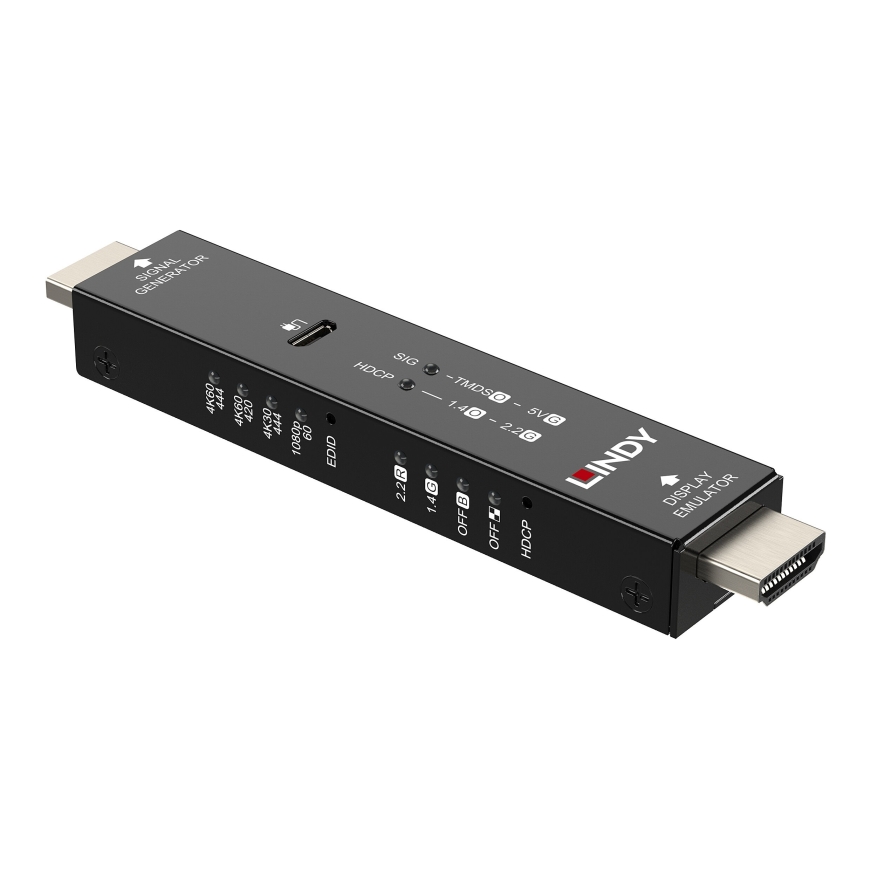

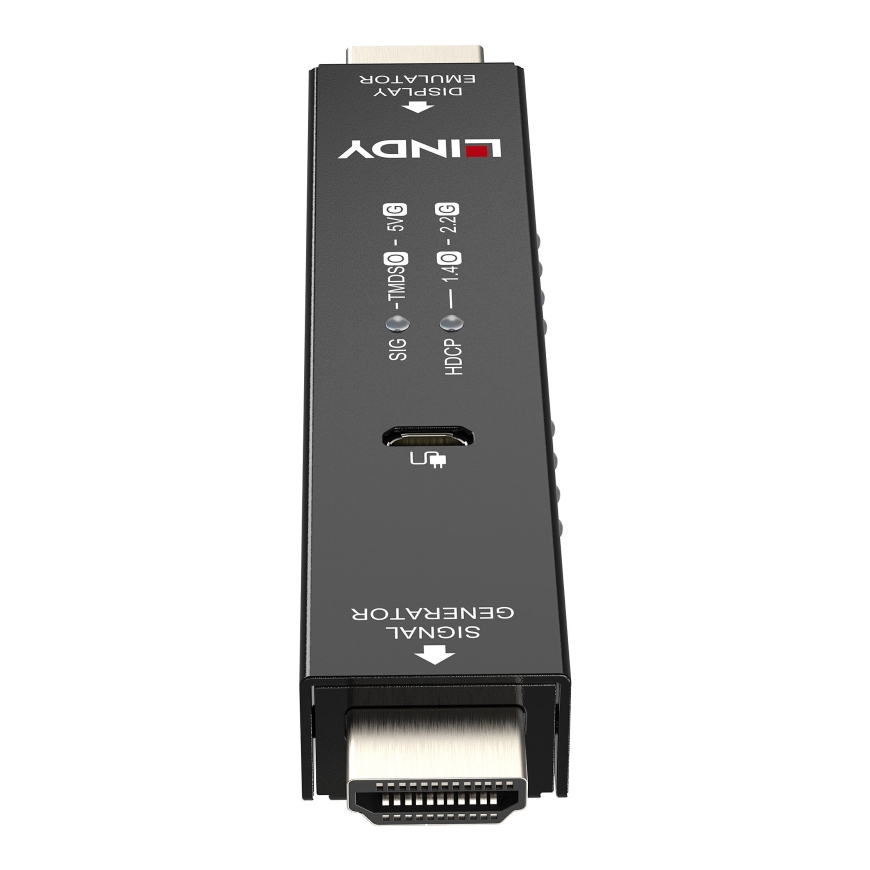

Lindy 32683 EDID emulator
129.00 €
Monthly payment from 4,22 €
4547859 32683
4002888326834
Shipping 17-19 b.d.
You are interested in this product?
All about the product
The Lindy HDMI® 18G Signal Generator & Display Emulator is an essential tool for AV installers and system integrators, to test and emulate HDMI® signals. This portable device provides 4 EDID HDMI® resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz. The selection can be done by pushing the EDID button on one side of the unit.Connecting as display emulator, the unit can detect the HDCP content and signal status (5V, TMDS); 4 different patterns show HDCP status while LEDs help the user selecting the desired choice.
No software or additional cables is needed, it can be connected directly to a source or display via HDMI® male connectors.
The unit is felf-powered from the HDMI® source when used as display emulator, while an external USB power supply is required when it's connected as signal generator.
With a extremely compact and portable design, this device can be easily added to any AV installers testing kit, perfect for on-the-go installers in both small home setups or larger scale professional installations.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features | |
| Product colour | Black |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
Packaging data | |
| Package height | 18 mm |
| Package width | 122 mm |
| Package weight | 75 g |
| Package depth | 60 mm |
Weight & dimensions | |
| Weight | 40 g |
| Depth | 22 mm |
| Height | 13.6 mm |
| Width | 100 mm |
Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
Other features | |
| Cables included | USB Type-A to USB micro Type-B |
| USB connector type | Micro-USB B |
Technical details | |
| Housing material | Metal |
Certificates | |
| Compliance certificates | CE, RoHS, REACH, Federal Communications Commission (FCC), UKCA |
Packaging content | |
| Manual | Yes |
