PXN PD LP Vector X gaming pedals

All about the product

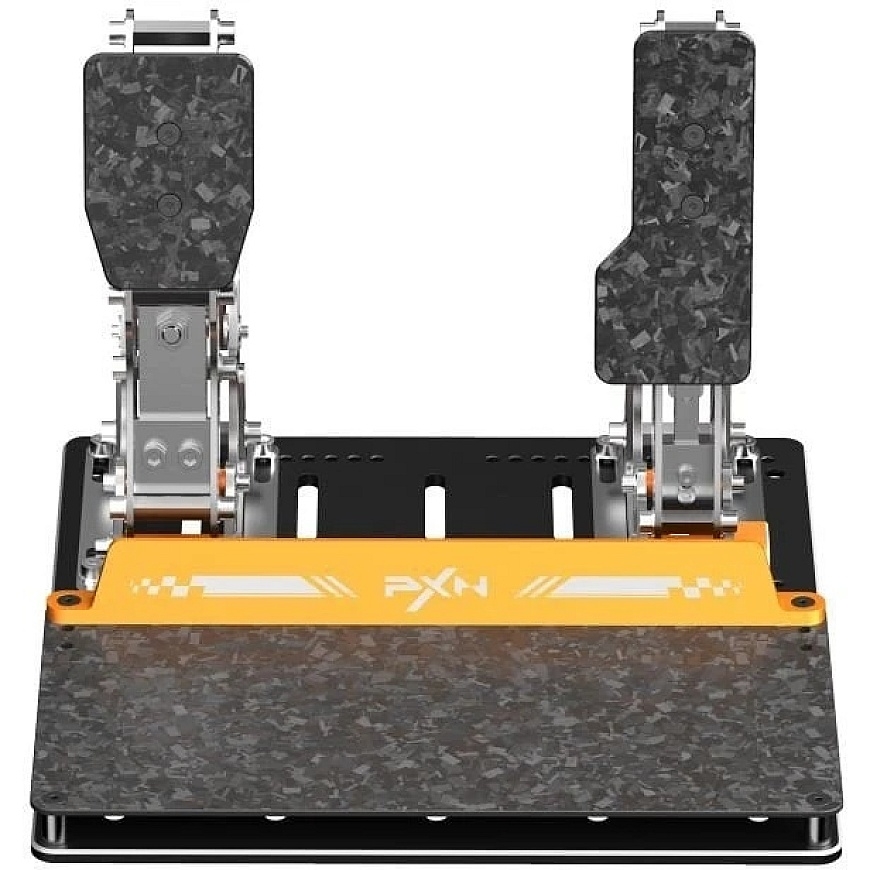

PXN PD LP Vector X gaming pedals

The “PXN PD LP Vector X” is an advanced pedal set designed for computer racing simulators, created with demanding simulation racing enthusiasts in mind. The model features a “Load Cell” brake with a pressure capacity of up to 200 kg, an accelerator pedal using “X-Cross Dual Sensor Fusion” technology, which combines an accurate angle sensor with a highly sensitive pressure sensor (“Load Cell”) and a patented “X-Cross” signal fusion algorithm. The device offers 24-bit data processing resolution, a wide range of pedal position and operation characteristics adjustments, and a modular interchangeable spring system. The construction, made of carbon fiber, 304 stainless steel, and CNC machined 6061 aluminum, ensures high durability, while a dedicated USB control module and “PXN SimRacing” software allow for precise tuning of the set’s performance to your preferences.

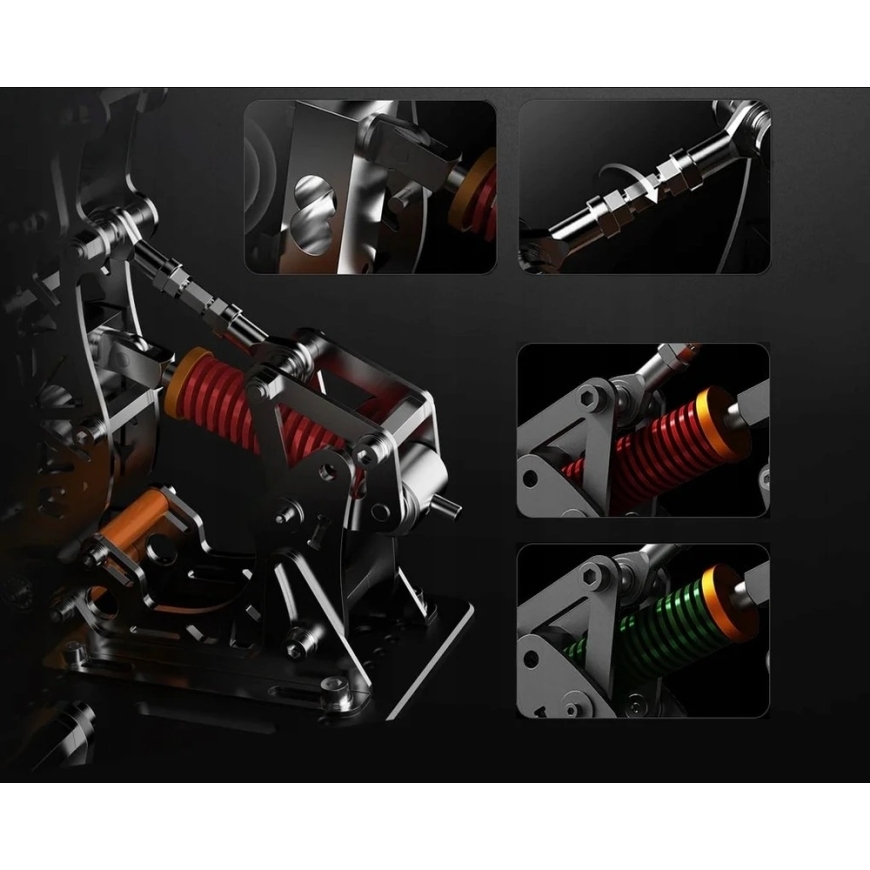

The brake load cell ensures repeatability of each braking action

The heart of the set – the brakes, using a load cell sensor with a maximum force of up to 200 kg. Unlike traditional solutions, they respond to the actual braking force, making it much easier to achieve consistent braking points and maintain vehicle control while driving. The mechanism uses a multi-lever kinematic structure that ensures smooth and progressive operation and allows for precise adjustment of the pedal force. Additionally, the modular interchangeable spring system allows changing the pedal resistance in just a few seconds, simulating a maximum load of up to 125 kg or even 187 kg, thus making the braking characteristics easily adaptable to different car classes and your personal preferences.

“X-Cross Dual Sensor” – exceptional accuracy of the accelerator pedal

The accelerator pedal uses a patented “X-Cross Dual Sensor Fusion” system, which combines an accurate angle sensor with a highly sensitive pressure sensor (“Load Cell”) and a patented “X-Cross” signal fusion algorithm. This solution eliminates signal disturbances and reduces the delay caused by sudden load changes, ensuring that the response to accelerator control remains very smooth and predictable. The “X-Cross” system offers up to 65,535 resolution levels, which means up to 16 times greater accuracy than traditional angle sensors with 4095 levels. The result is more precise power delivery, easier traction maintenance, and better control when exiting turns.

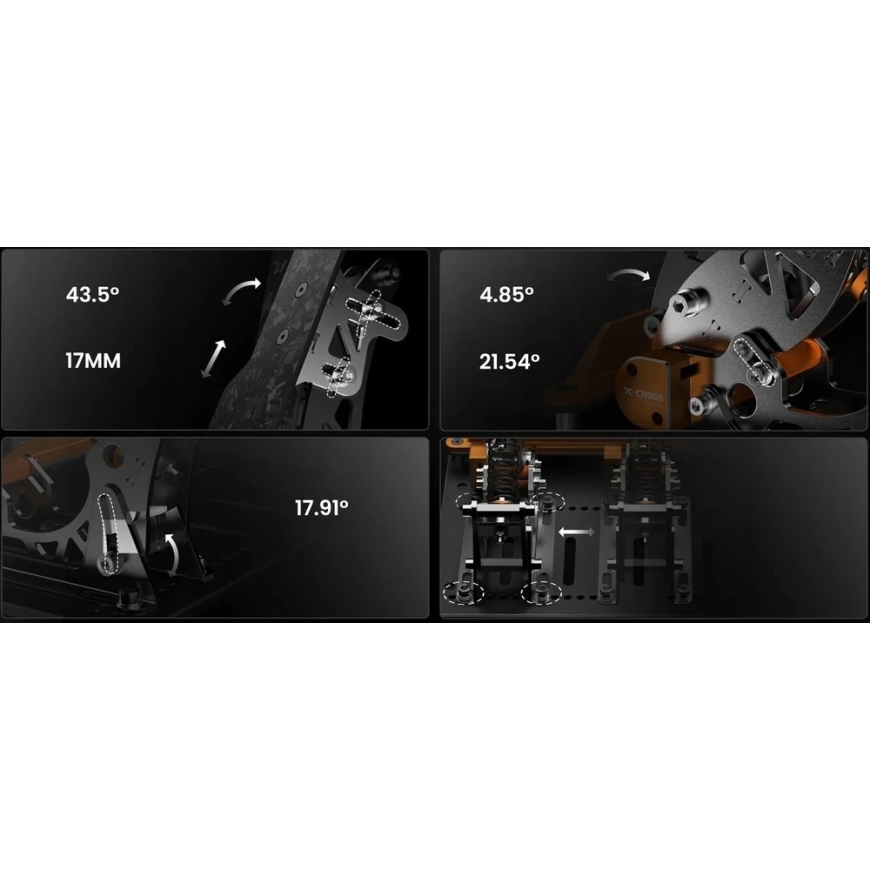

Full customization according to your driving style

The “PXN Vector X” offers a wide range of configuration options, allowing you to easily adjust the settings to your cockpit and preferred driving style. You can modify the height and angle of the pedal surfaces, their tilt, position, and distance, as well as the travel range of the mechanism. This allows for creating an ergonomic configuration for both long training sessions and online competitions. Such a wide range of customization options makes this set perfectly suited for both beginner simulator racers and experienced drivers seeking maximum precision.

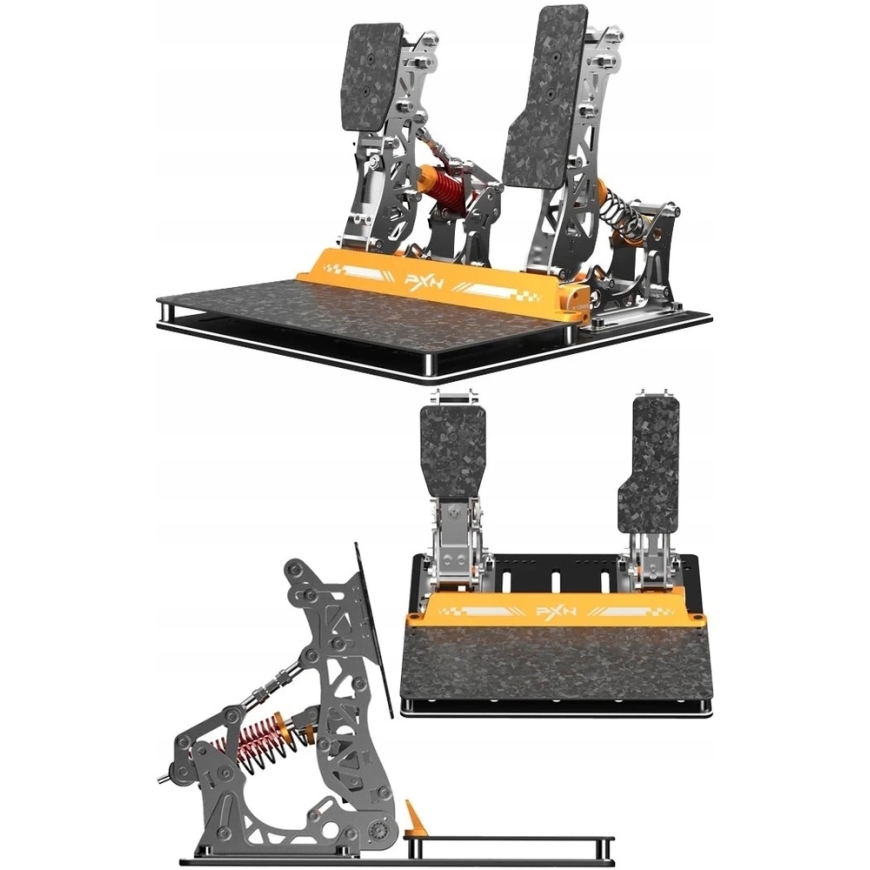

Durable construction for intensive use

The pedals are made of 304 stainless steel, CNC machined 6061 aluminum, and carbon fiber plates, ensuring high stiffness and resistance to heavy loads. The structure is based on a multi-link design that eliminates play and ensures stable operation of the mechanism even when braking abruptly. Special high-density silicone shock-absorbing bushings are also used, effectively absorbing vibrations and reducing noise caused by sudden load changes. As a result, the pedal movement remains smooth, stable, and more reminiscent of the feel of a real racing car.

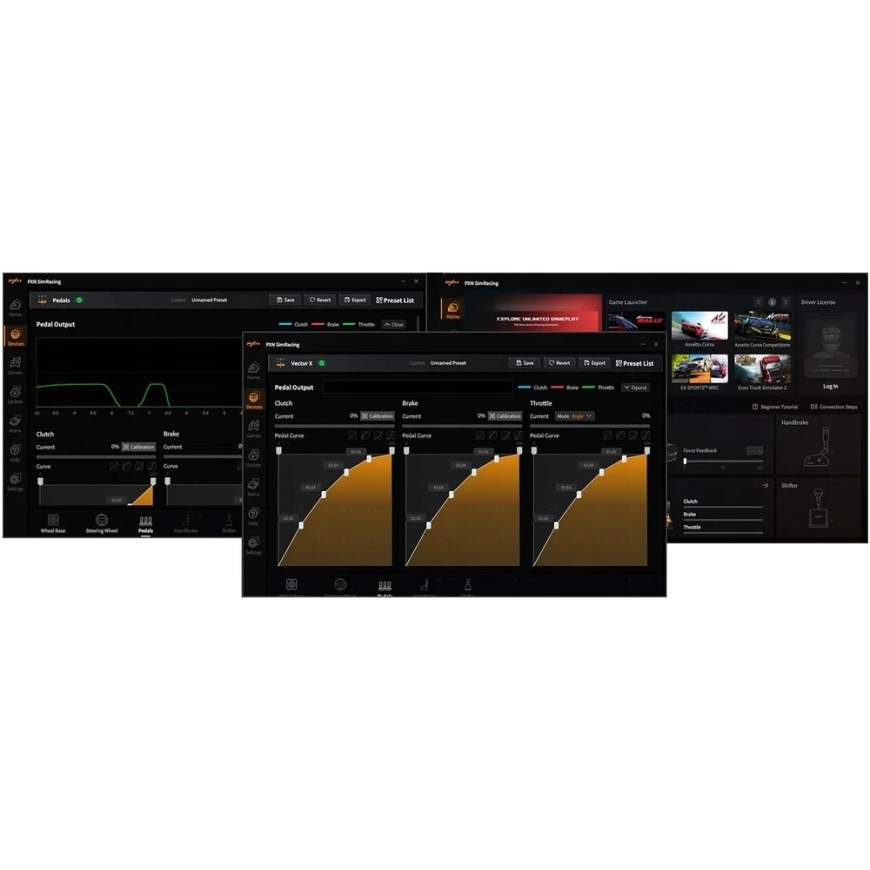

Special control module and “PXN SimRacing” software

The set includes an external control module with a 24-bit signal processing chip housed in a robust aluminum casing. It ensures fast data transmission and high resistance to interference, guaranteeing stable performance during intense racing. The “PXN SimRacing” software allows you to calibrate each pedal, adjust response curves, configure dead zones, and save custom settings profiles. This enables quickly adapting the performance characteristics of the pedal set to different cars, tracks, and simulators without altering hardware settings.

Expandable clutch pedal

The “PXN PD LP Vector X” can be expanded with an optional clutch pedal to create a complete three-pedal set. The clutch features a two-stage mechanism that more accurately replicates the operation of systems in cars with a manual transmission. An integrated 30 kg load sensor and progressive, three-phase operating characteristics allow for precise feel of the clutch engagement point and increased control when moving from a standstill and shifting gears. This solution is especially appreciated by users of realistic driving simulators.
