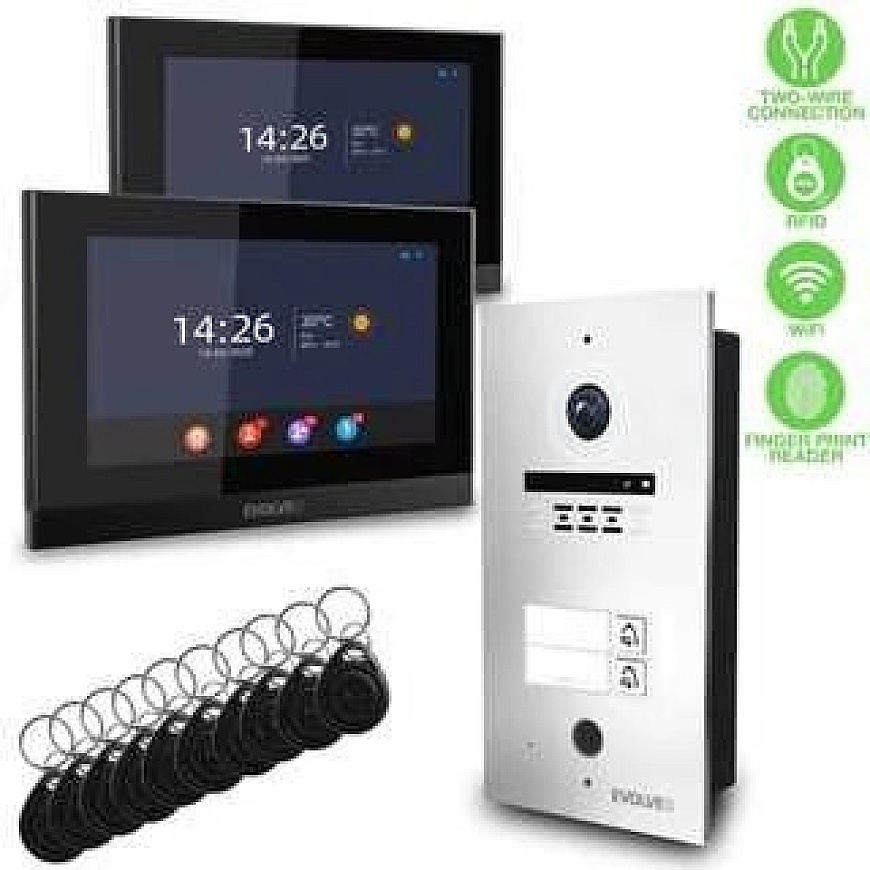

EVOLVEO intercom ID-2

All about the product

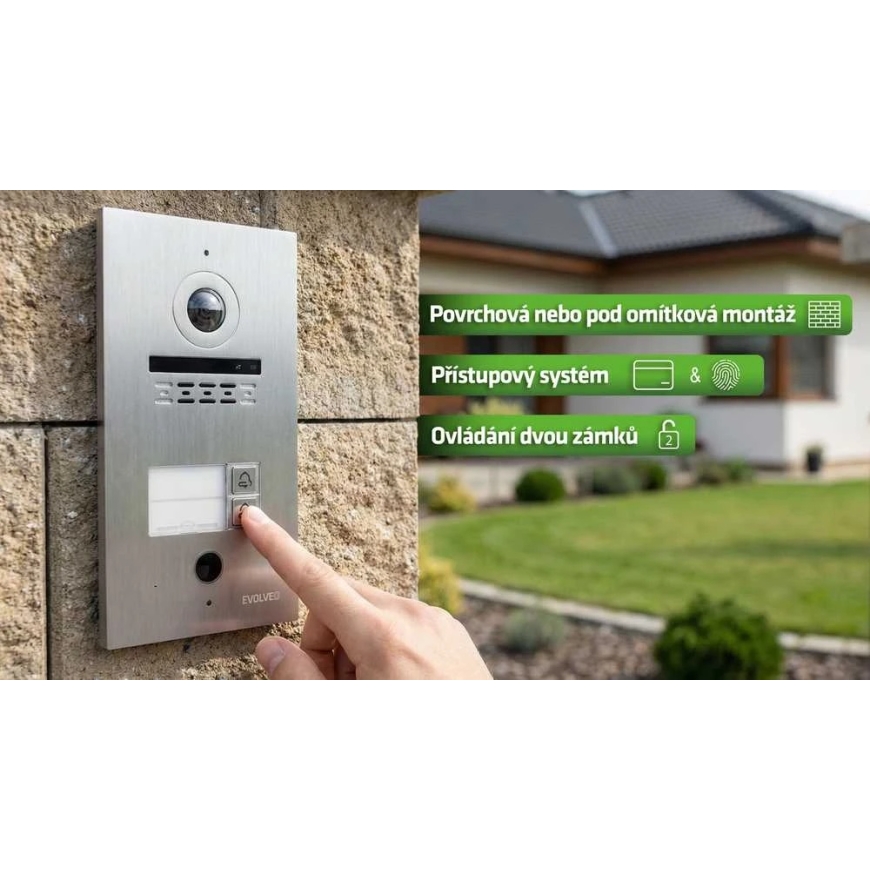

– 2 wire installation – quick mounting without complex wiring connections – Fingerprints + RFID – convenient unlocking without a key – “Full HD” camera (1080p) – clear image of the visitor – Wide 170° viewing angle – maximum visibility before entering – 2 call buttons – ideal for two households or separate entrances – TUYA app – for remote control The most advanced entry system for two households and more complex operations “EVOLVEO” intercom ID2 expands the capabilities of ID1 with a two-button outdoor unit, ideal for two-family homes, duplex houses, offices, or combinations of home and business. Each button can call a different monitor or group of monitors, allowing different parts of the home or business to operate independently, yet within the same system. The main part of the system is an integrated biometric fingerprint reader and support for RFID cards and chips. Are you coming home with full bags? Just place your finger and the door will open. A client comes to the office or a visitor to a second home? Everyone can have their own access, no need to pass around keys. The ID2 model allows configuration of up to four users, depending on the wiring, making it easy to adapt for larger homes or smaller business premises. Access control is performed directly in the system. Just deactivate the lost chip, add a new one in a few seconds, and you won't have to worry about changing locks or mechanical interference. All biometric data stays stored directly on the device and is not transferred anywhere. Access overview and expansion anywhere using additional cameras. Modern homes or businesses today do not end at the front door. The ID2 intercom allows remote control of the system via a mobile app, so you can manage your entry even when you are not on-site. Is the courier ringing while you’re at work? Your phone displays an image from the “Full HD” camera with a resolution of 1920 × 1080 pixels and a wide 170° viewing angle, allowing you to see not just the visitor but also the surrounding space. You can communicate with them and decide whether to open the entry or arrange another appointment. The system also supports ONVIF IP camera integration. Therefore, the monitor can display not only the image from the external device but also from other security cameras, such as those from the area by the gates, entrance to the property, or back entry. Practically, it serves as a central video point for the house or smaller building. When the call is made, the entry can be seen, instantly switching to the camera by the gate, providing a comprehensive view of the situation. 7-inch touch monitor as the communication and intercom center. The internal block is not just a screen for answering calls. A seven-inch capacitive touch monitor with a resolution of 1024 × 600 pixels acts as the communication hub for the entire system. ID2 fully supports intercom functionality between monitors. If there are multiple devices in the house, you can communicate inside them without using a phone. Practically, this means you can simply call upstairs from the first floor to inform your family about a visitor or connect the reception desk to the back entry of the office. The connection is two-way and natural, without any delays. The monitor can also be used as a digital photo frame. In standby mode, it displays photos stored on a microSD card and blends seamlessly with the interior. It doesn’t function as a technical panel but as a part of the home. The interface is clear and intuitive, allowing users and access rights to be managed directly on the screen in just a few steps. Control of doors, gates, and garage doors. The external block has two independent NO/NC relay outputs. One output can control the entry door or gate, the other, for example, sliding doors or... garage doors. Control is possible from the monitor, via the mobile app, fingerprint or RFID. Are you coming home by car? Open the gate before you arrive at the property. Are you expecting a customer or visitor? Open the entry without being physically present. The system adapts to both family homes and businesses. PARAMETERS: Internal monitors: - Screen: 7-inch TFT LCD, capacitive touch - Resolution: 1024 × 600 - Active area: 154 × 85 mm - Aspect ratio: 16:9 - Connection: 2 wire system (non-polarized), digital IP protocol - Connectors: BUS, POWER, BELL, CHIME, GATE2, LAN (RJ45), TF slot - Connection method: 2 wires without polarity (recommended 2 × 0.75–1.0 mm2) - Memory card: microSD/TF up to 128 GB (eXFAT) (not included) - Recording: photos and videos during call or motion detection - Photo frame: photo playback from microSD card in standby mode - Intercom: two-way communication - System support: up to 4 monitors, 2 outdoor units, 2 ONVIF IP cameras - Sound: built-in microphone and speaker, full duplex - Lock control: 2 independent outputs (doors/gates) - Lock output: potential-free relay 12V / max. 500mA - WiFi 2.4GHz (IEEE 802.11 b/g/n) + LAN (RJ45) - Power supply: DC 24 V / 1 A (via bus) - Power consumption: < 4 W (standby), < 7 W (in operation) - Operating temperature: from -20 °C to +50 °C - Relative humidity: 10-90 % non-condensing - Dimensions (width × height × depth): 200 × 133 × 24 mm - Weight: approx. 350 g - Material: ABS - Mounting: wall-mounted - Language menu: CZ/EN/SK/HU/RO - Software update: TF card / LAN “WiFi” and online functionality (“Tuya Smart”): - “WiFi” frequency: 2.4 GHz - Standards: IEEE 802.11 b/g/n - Network integration: “Tuya Smart Cloud” - Mobile app: “Tuya Smart” - Access sharing: up to 20 users in the home External device (ID2): - Number of buttons: 2 (independent calling to two devices/users) - Camera: 2 MP CMOS - Video resolution: 1920 × 1080 - Viewing angle: 170° - Video format: H.264 (MP4) - Photo format: JPEG - Night vision: IR LED illumination, automatic switching - Minimum illumination: 0.1 lux - Connection: duplex - Access system: 1) RFID reader 125 kHz (EM card) 2) Fingerprint sensor (capacitive) 3) Fingerprint capacity: up to 100 4) User support: 1-4 (depending on system configuration) - Lock control 3) Lock output voltage: DC 12 V / max. 500 mA - Communication interface: 2 wire bus (non-polarized) - OUTPUT button: available (external button can be connected) - Protection: IP65 - Material: aluminum alloy (resistant to oxidation and scratches) - Power supply: DC 24 V (via bus from the monitor) - Operating temperature: from -20 °C to +50 °C - Dimensions (W × H × D): 124 × 236 × 28 mm - Weight: about 700 g - Mounting: surface-mounted or recessed (compatible with EVOLVEO MSB box) Power adapter: - Input voltage: AC 100-240 V / 50-60 Hz - Output: DC 24 V / 1 A - Power: 24 W - Type: external switching adapter - Efficiency: > 85 % - Protection: short circuit, overvoltage, overheating, overload - Cable length: about ... 1.2 m – Weight: about 120 g. Package contents: – 2 × internal block (7 inch monitor) – 1 × ID2 external block (2 buttons, RFID + fingerprint reader) – 1 × DC 24 V / 1 A power adapter – 1 × mounting bracket and mounting materials – 1 × connecting cable set for 2 wire system – 10 × RFID chips 125 kHz – 1 × user manual
