Blow MAS838L XTREME digital multimeter

All about the product

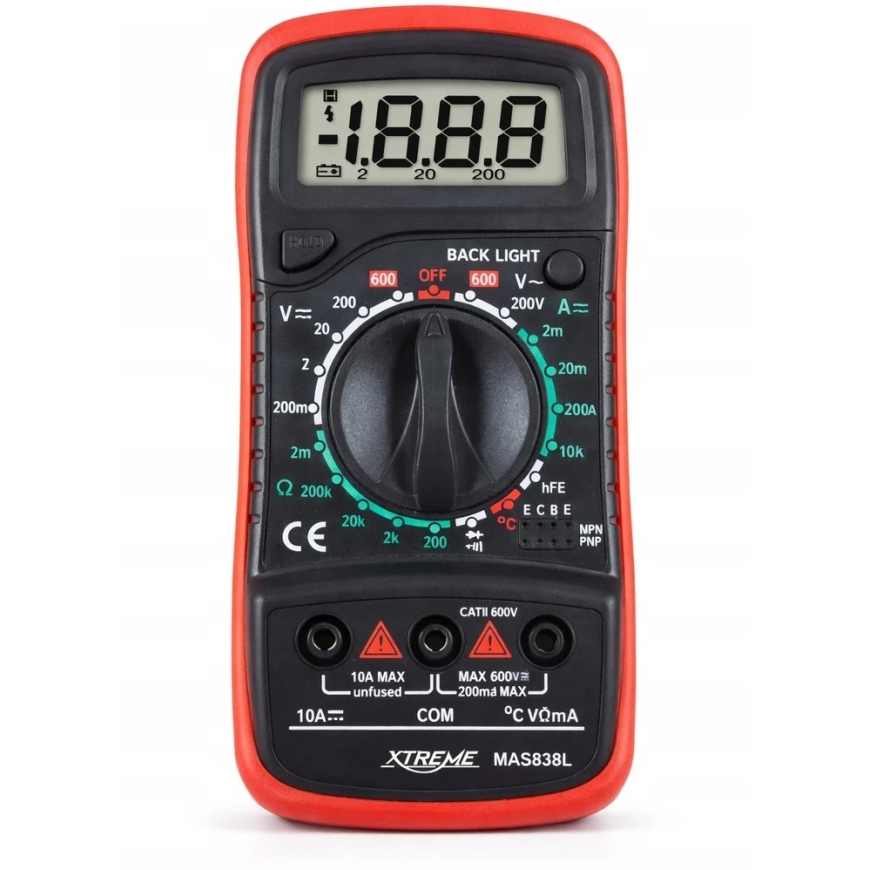

MAS838L XTREME digital multimeter

The multifunctional “XTREME” multimeter is designed not only for professionals but also for beginner DIY enthusiasts due to its ease of use. Thanks to its compact size, you can almost always have the device with you, allowing you to check parameters in various situations.

KEY DEVICE FEATURES

• 3-digit LCD display
• Rotary switch for selecting specific device functions, desired measurement ranges, and turning the meter on and off
• Powered by a 9 V DC battery
• Low battery indicator
• A universal tool for workshops, schools, as well as for home and hobbies.

What measurements can be made with the meter?

• Measurement of DC voltage
• Measurement of AC voltage
• Measurement of DC current
• Measurement of resistance
• Continuity testing of circuits
• Diode testing
• Measurement of temperature
• Transistor testing

Additional features:

• HOLD – freezes the result on the screen
• BACKLIGHT – screen backlight
• Battery indicator on the screen

SPECIFICATION:

• Power source: 9 V battery
• Display: LCD, range up to 1999
• Sampling rate: 2 times per second
• Measurement method: dual integral analog/digital converter
• Overrange indication: only the number “1” is displayed on the screen
• Polarity indication: negative polarity is indicated by “-”.
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: -10 °C ~ 50 °C
• Low battery indicator: battery icon on the screen
• Dimensions: 135 x 67 x 33 mm
• Weight with battery: 145 g
• Special connections: CAT II 600 V
• Measurement of DC voltage: 200 mV–600 V
• Measurement of AC voltage: 200–600 V
• Measurement of DC current: 2mA-10A
• Measurement of resistance: 200–2 M ohms
• Transistor hFE measurement: diode testing: YES
• Measurement of temperature: YES
• Acoustic continuity tester: YES


The kit includes:

• XTREME XL830L digital multimeter + rubber case

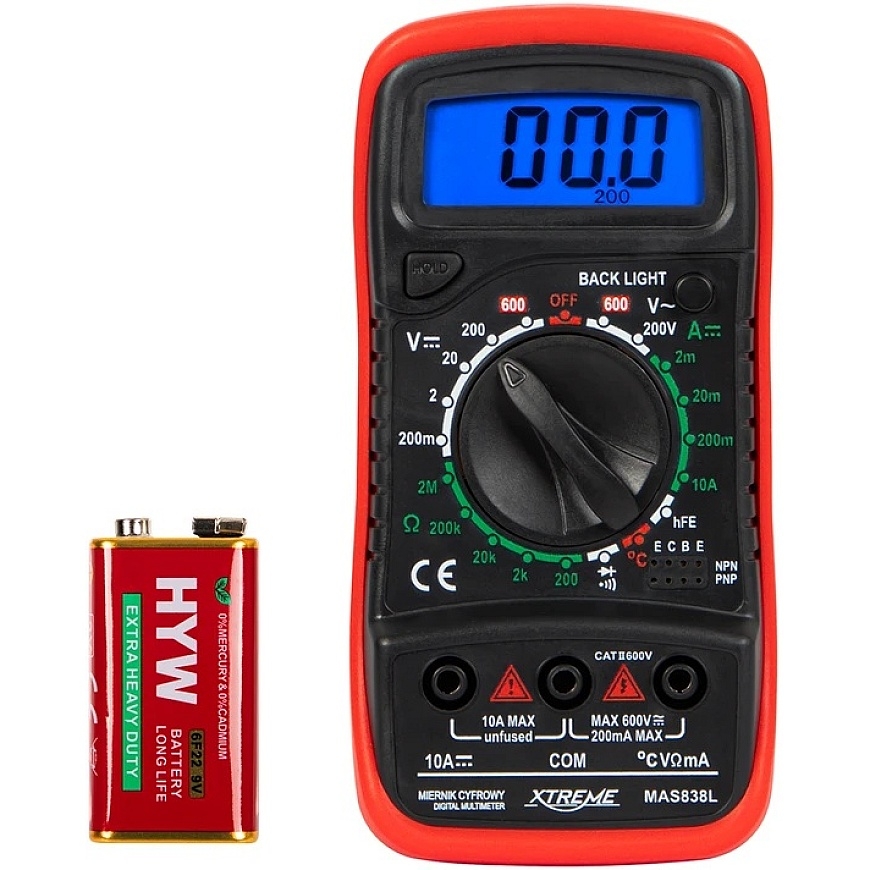

• 9 V battery

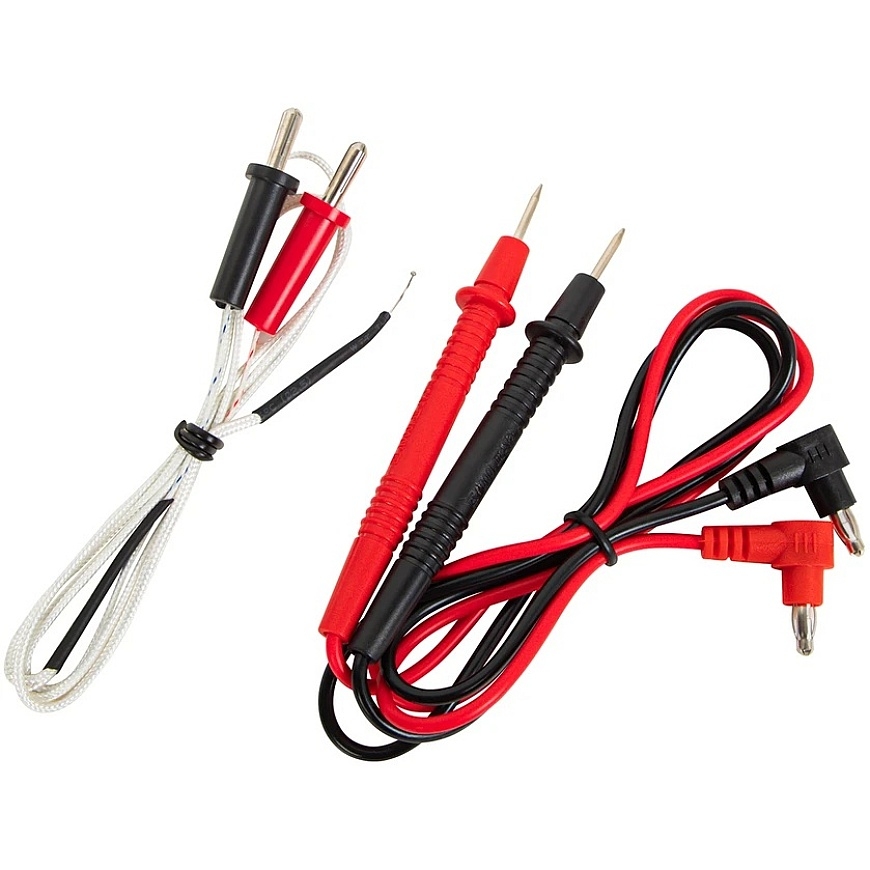

• Measurement cables
• Operating instructions in Polish
