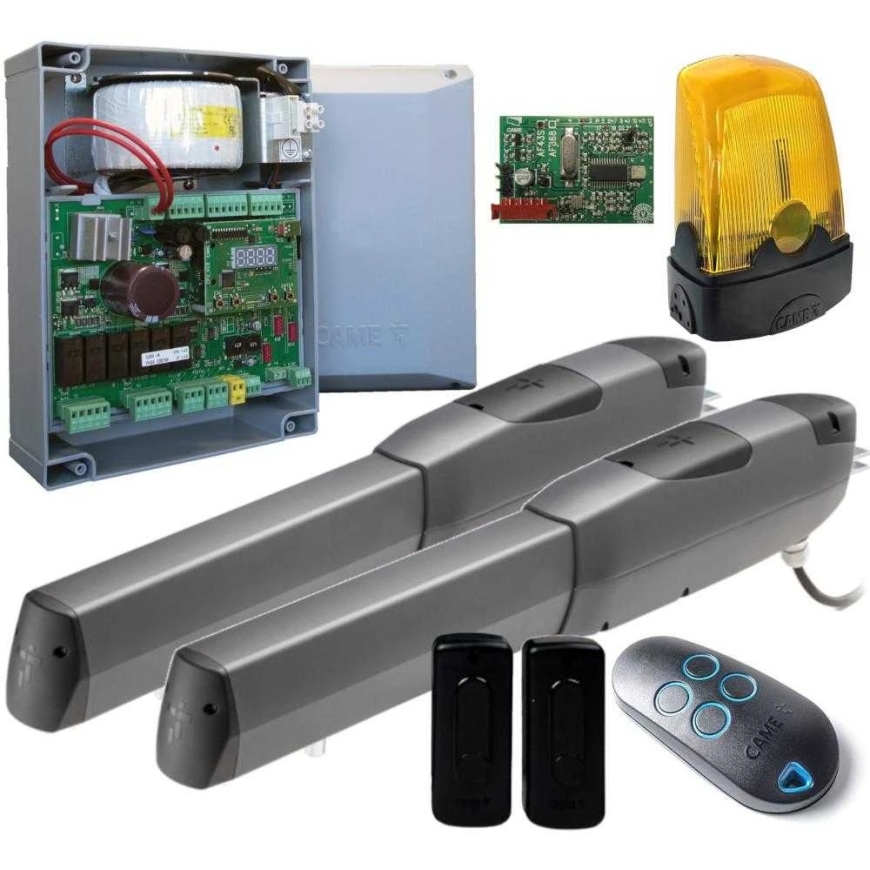

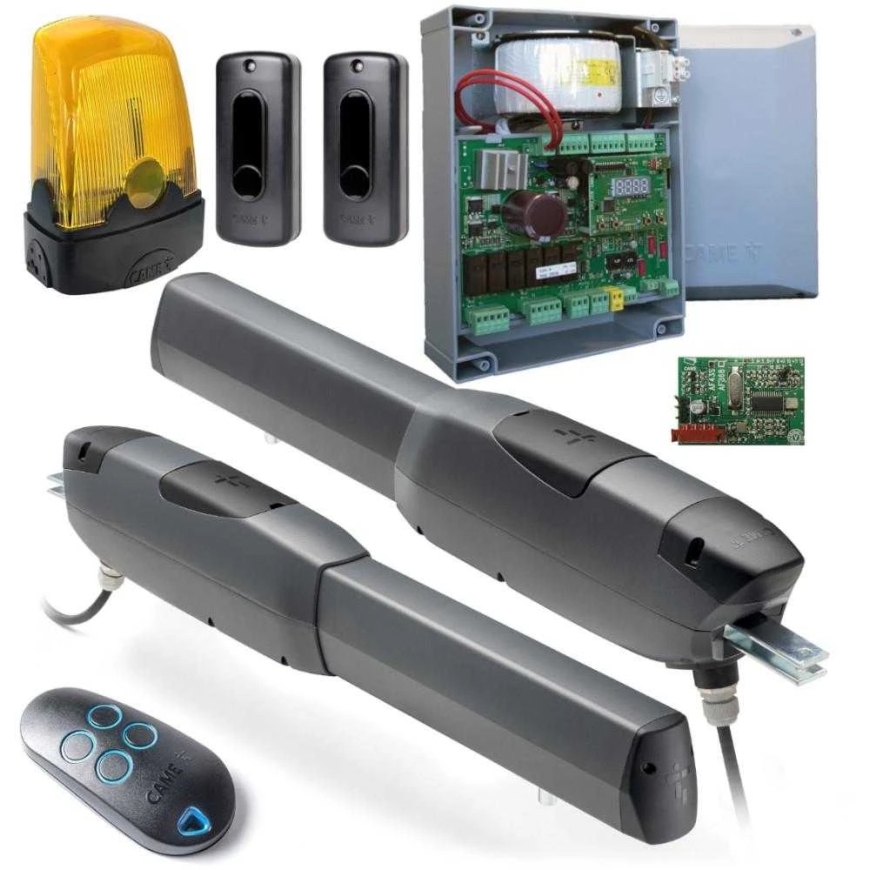

CAME NEW ATI30DGF SAFE 24V TOP set for 6 m double-leaf gates
Model: 8K01MP-058
Purpose
THE NEW ATI is the result of CAME's experience in designing for long-term use. The mechanism is based on a planetary gearbox, protected by cast aluminum housings, ensuring optimal durability and an IP 54 protection class. Designed to withstand the harshest climate conditions, it ensures reliable operation at temperatures from -20° to +55°C.
The provided set is intended for installation on double-leaf gates with a maximum entrance width of 6 meters and a maximum weight of 1600 kg.
- The maximum width of one door leaf is 3 meters.*
- The maximum weight of one wing is 800 kg.*

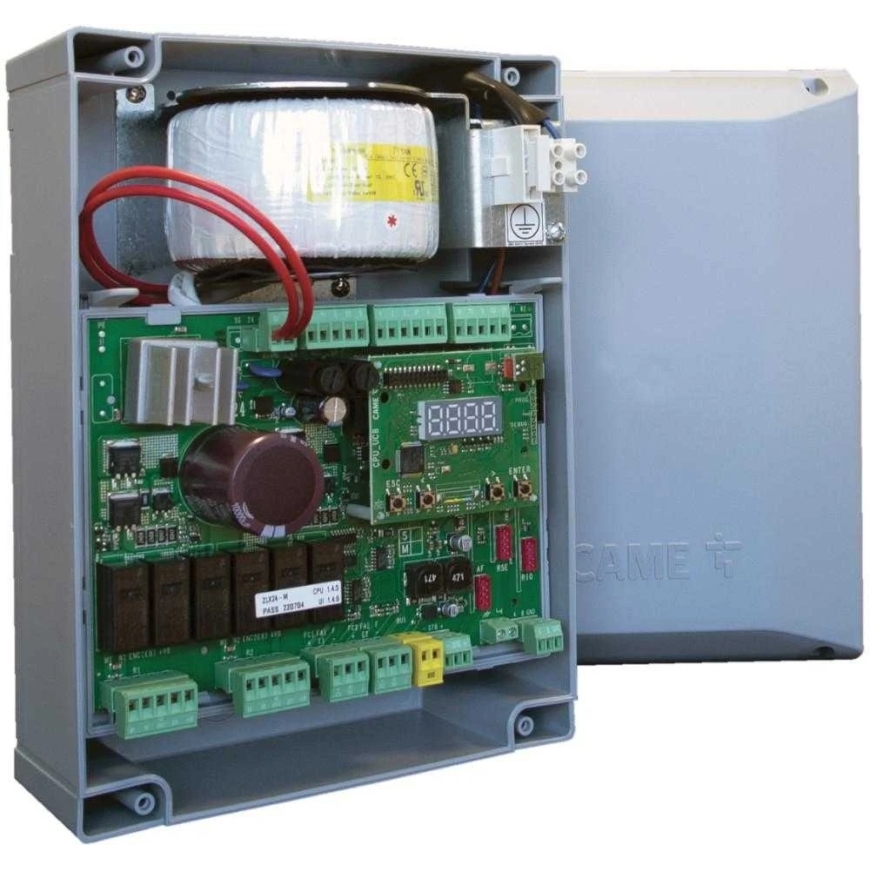

ZLX24MA control panel technical specifications:
- Setting: F menu
- Configurable safety inputs: 2
- CXN bus inputs: YES
- RIO system 2.0 compatibility: YES
- CAME KEY and CAME gate sockets: YES
- AST adaptive speed and torque control: YES
- Virtual encoder: YES
- Maximum number of users: 250
- Open Modbus protocol: YES
- Encoder / limit switch input: YES
- Display: 7 segments
- CAME Connect compatibility: YES
- App control: YES
- Safety contact type: NC or resistance 8K02
- Virtual encoder: YES
- Stop: time-based or encoder-based
- Power supply type: transformer
- External box size: 273.5 x 204 x 132 mm
Technical specifications of the gear:
- Model: 801MP-0210
- Protection class: IP54
- Motor power supply: 24 V DC
- Power: 120 W
- Opening time to 90°: 13 sec.
- Working cycles: intensive use
- Operating temperature: from -20 °C to +55 °C
- Color: RAL7024
