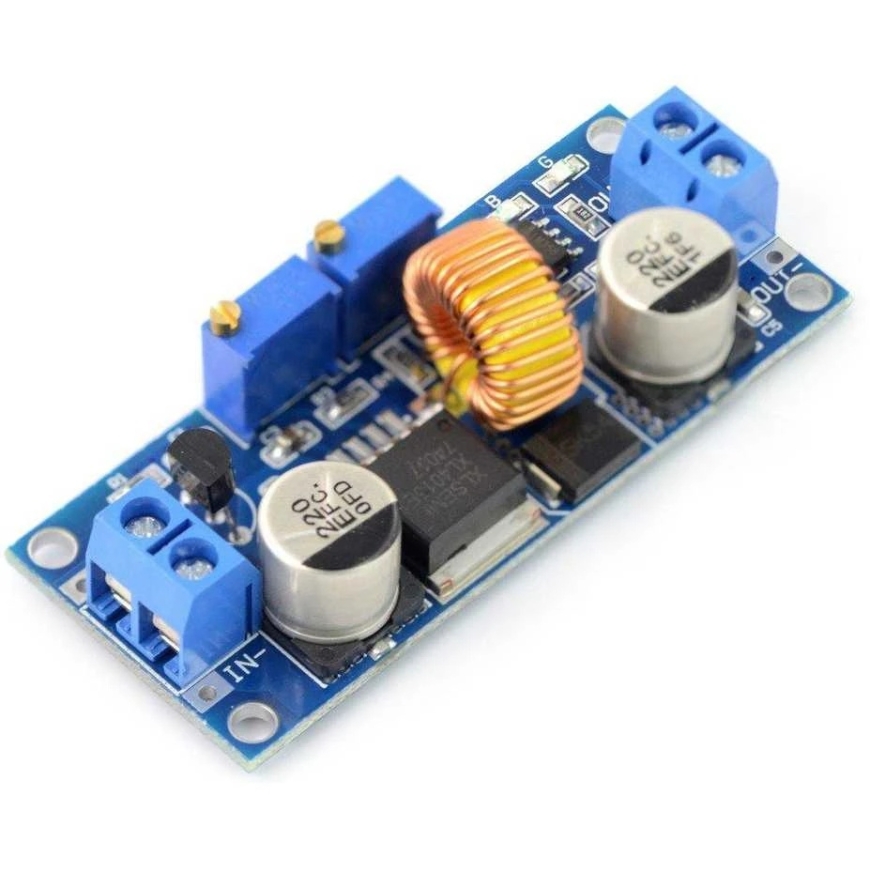

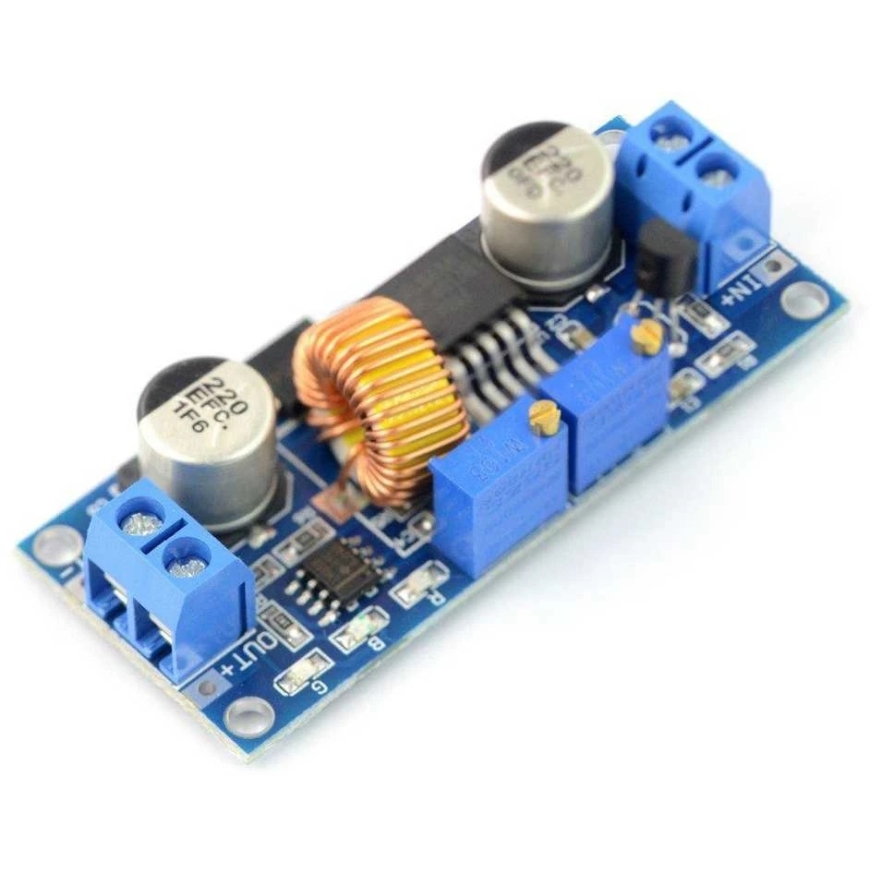

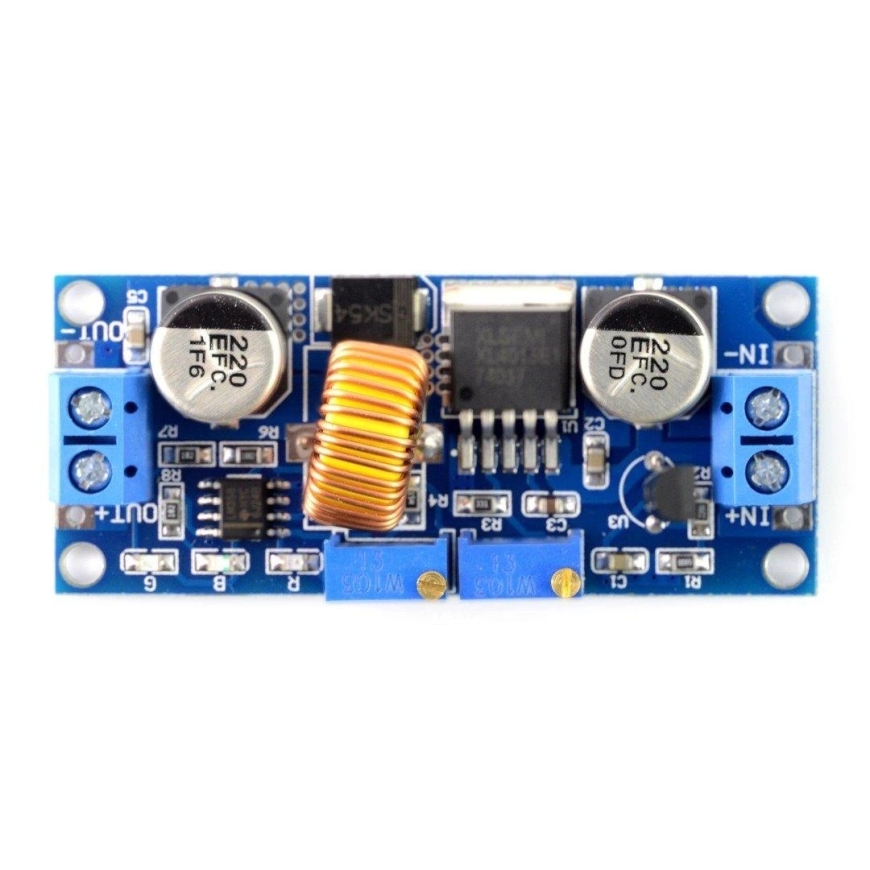

OEM Step-Down Voltage Regulator XL4015 - 1.3V-36V 5A
19.00 €
4546953 AN-08103
5904422336202
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Module with XL4015 step-down converter. Input voltage from 3.3 V to 36 V. Maximum continuous output current 5 A. Output voltage adjustable from 1.3 V to 36 V.
Specifications:
- Input voltage: from 3.3 V to 36 V
- Output voltage adjustable from 1.3 V to 36 V
- Maximum continuous output current: 5 A (with cooling)
- XL4105 controller
- Efficiency: less than 90% (depending on power consumption)
- Switching frequency: 300 kHz
- Two built-in potentiometers:
- Left: output voltage adjustment
- Right: output current control
- 3 LED indicators:
- Green: power information
- Blue: high current alert
- Red: maximum current range reached
- Four mounting holes with a diameter of 2.5 mm
- Board dimensions: 62 x 26 x 12 mm
- Weight: 20 g
