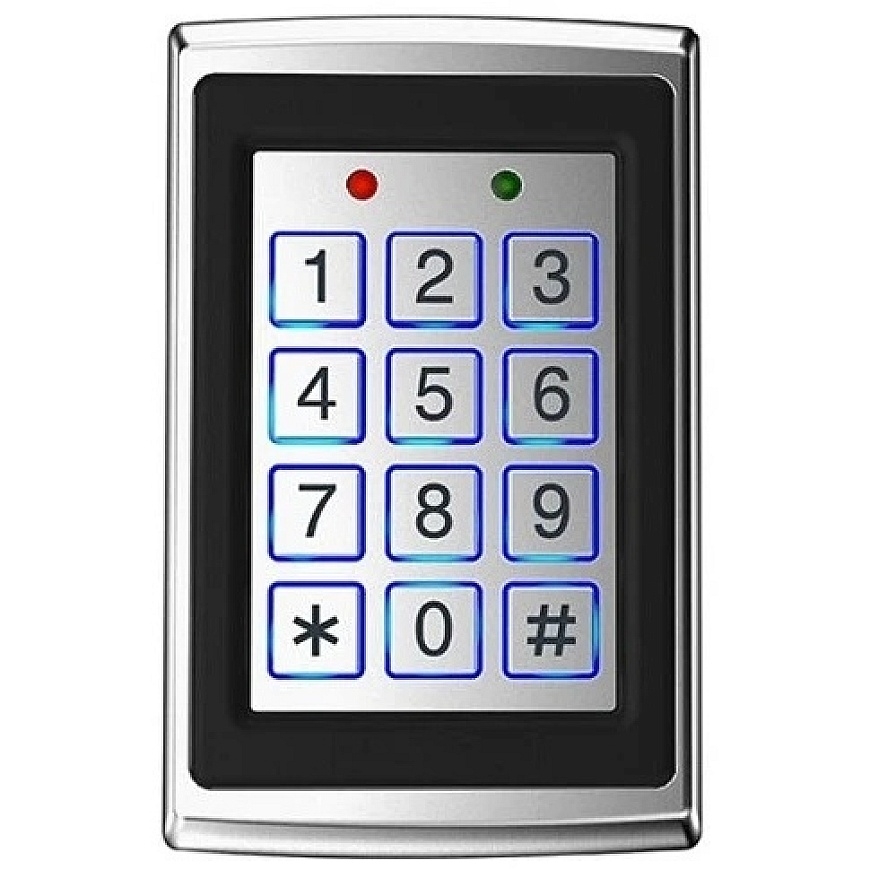

Hismart Multifunction Keyboard with Remote Card Reader and Integrated Controller, Mifare
4545153 TV993772
9990000993772
Shipping 8-11 b.d.
All about the product
Multifunctional keyboard with a remote card reader and integrated controller, Mifare 13.56 MHz, Wiegand 26/34, 12-24V DC
Features:
This is a compact standalone access control unit with a keyboard and a remote card reader that supports Mifare 13.56 MHz cards.
Access control in 3 ways: card, PIN code, or card + PIN.
Supported operating modes: standalone, relay switching, Wiegand 26/34 reader.
The digital keyboard with backlighting ensures convenient use in poor lighting conditions.
The metal buttons are resistant to heavy use, mechanical impact, and wear, ensuring long-lasting and reliable operation of the device.
With 2 LED indicators.
The zinc alloy housing is designed for extreme weather conditions, -40°C~+60°C temperature, has water and dust resistance, suitable for outdoor or indoor use.
Technical Specifications:
Access: PIN, card, PIN + card.
Number of users (cards): 2000.
Supported card frequency: Mifare 13.56 MHz.
Voltage: 12V-24V DC.
Relay output load: up to 3 A.
Standby current: up to 30 mA.
Card reading distance: 2~5 cm.
Number of supported doors: 1.
Output protocol: Wiegand 26/34 bit.
Wired connections: DC 12-24 V, GND, Wiegand D0/D1, relay output, exit button, doorbell.
Relay: 1 (for lock, No, Nc, Com contacts).
Adjustable relay activation time: 0-99 seconds.
Operating temperature: -40°C~+60°C.
Operating humidity: 10% - 90%RH.
Housing material: zinc alloy.
Dimensions: 120 x 76 x 22 mm.
Color: silver.
Warranty: 24 months.
