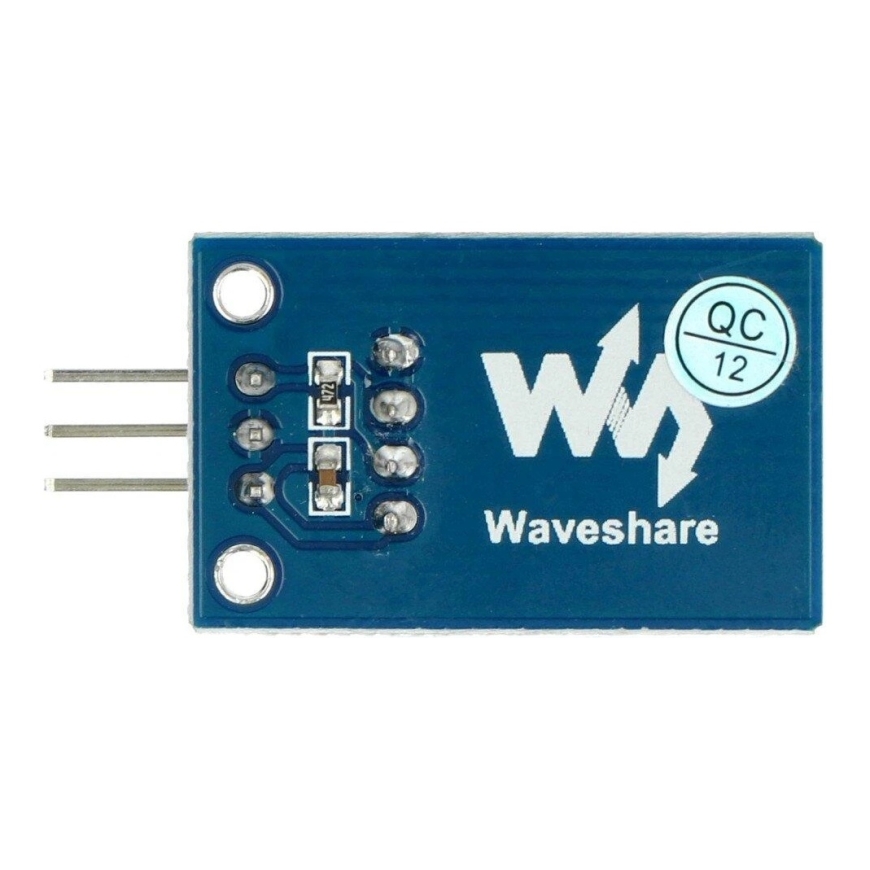

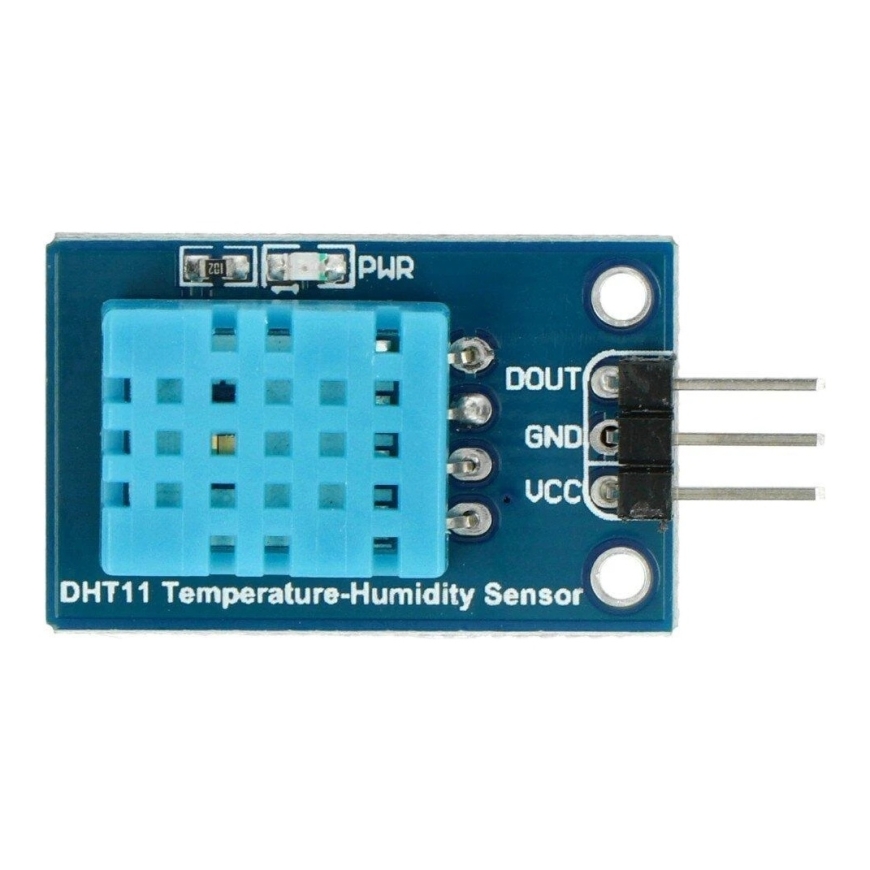

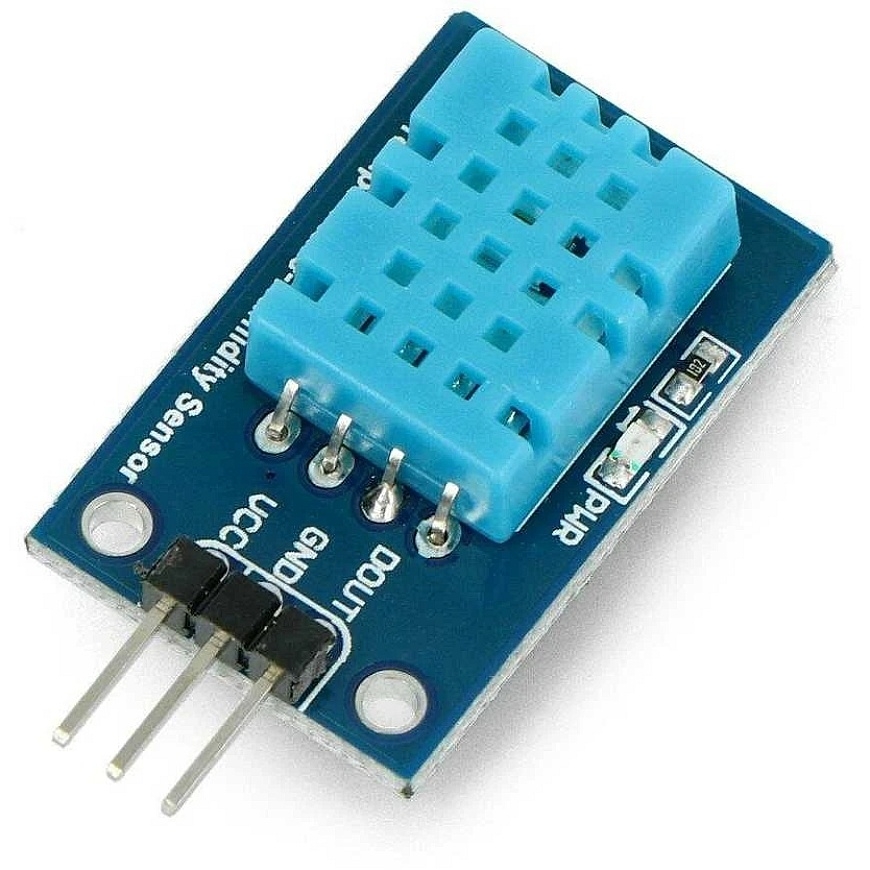

Digital Temperature and Humidity Sensor DHT11, Waveshare 9535
19.96 €
4542748 AN-17383
5904422345808
Shipping 8-12 b.d.
You are interested in this product?
All about the product
DTH11 digital temperature and humidity sensor module from Waveshare. It allows measuring temperature from 0 °C to 50 °C, measurement accuracy ± 2 °C, and environmental humidity from 20% to 90%, accuracy - ± 5%. The module is powered from 3.3 V to 5.5 V. It uses a standard one-wire interface. It can be successfully used in projects such as a weather station or humidity controller.
Specifications:
- Temperature:
- Resolution: 1 °C
- Accuracy: ± 2 °C
- Measurement range: from 0 °C to 50 °C
- Humidity:
- Resolution: 1% RH
- Accuracy: ± 5% RH (0–50 °C)
- Measurement range: from 20% to 90% relative humidity (at 25 °C)
- Operating voltage: from 3.3 to 5.5 V
- Recommended storage conditions
- Temperature: from 10 °C to 40 °C
- Humidity: 60% or less
- Outputs:
- VCC - power supply from 3.3 V to 5.5 V
- GND - system ground
- DOUT - communication port pin
- Module dimensions: 29.21 x 18.03 mm
- Mounting hole dimensions: 2 mm

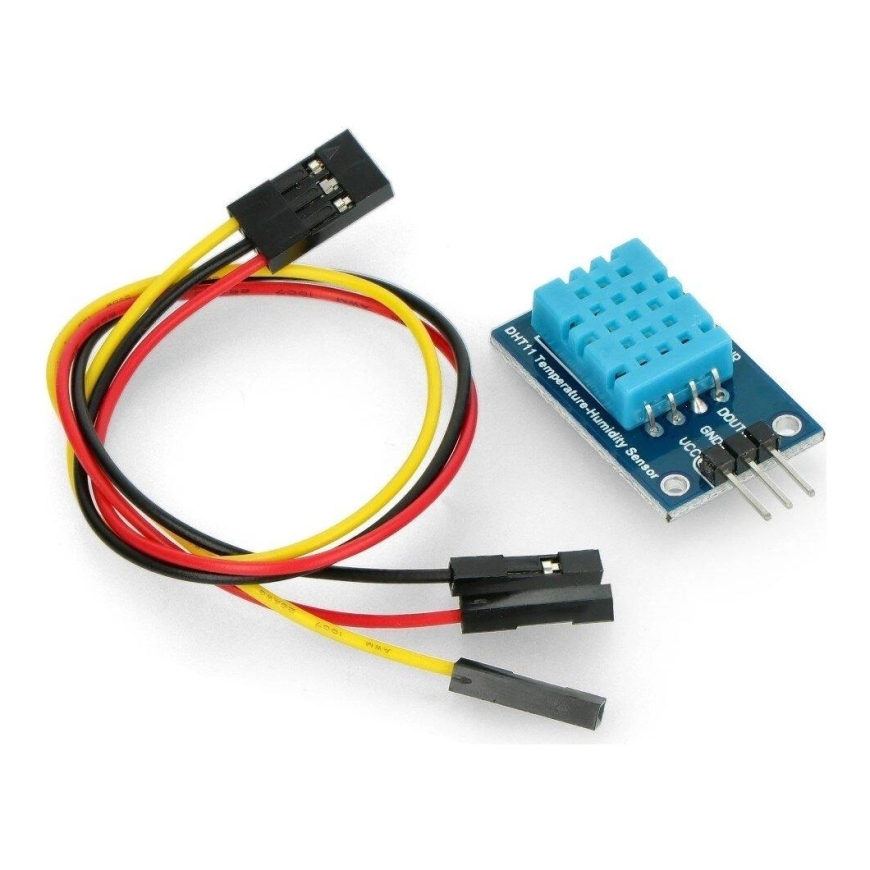

Package includes:
- DHT11 temperature and humidity sensor
- Special 3-pin cable
Links:
Manufacturer's page
Manual
