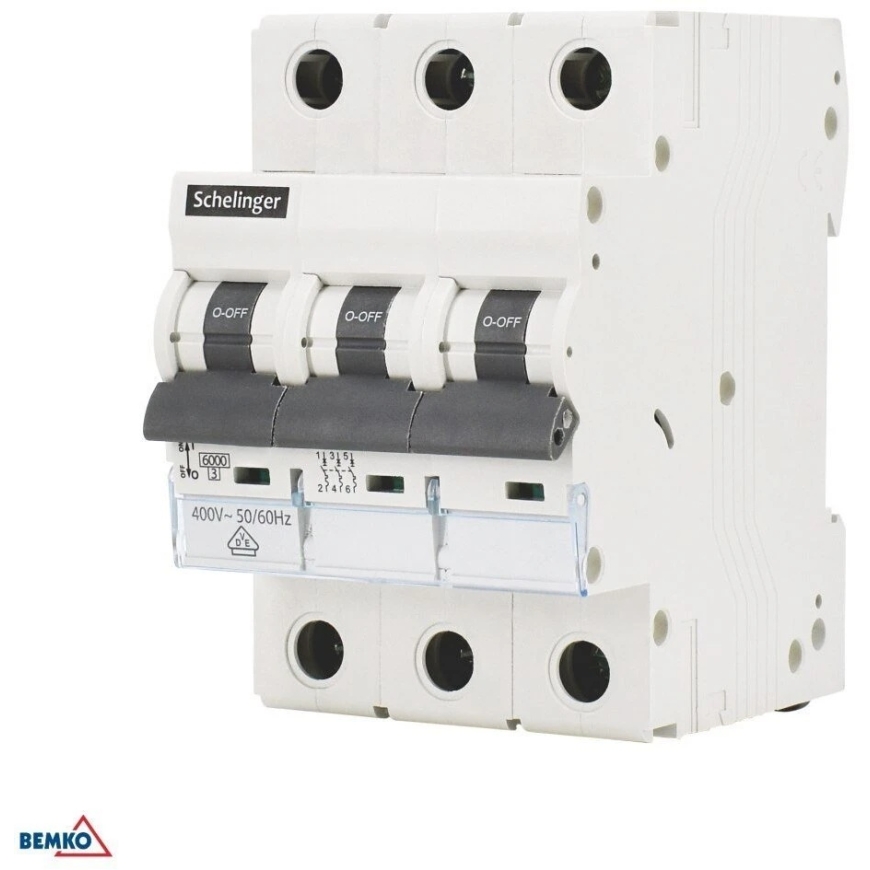

Circuit Breaker 6KA 3P B 50A VDE SCHELINGER

All about the product

The 6KA 3P B 50A VDE A02-G8-3P-B50 circuit breaker from Schelinger is a solid device that provides protection against overload in electrical installations, ideal for indoor use. The rated current of 50A allows effective protection of circuits with high loads, increasing the safety of the electrical installation. The operating voltage of 400V makes the breaker suitable for standard electrical installations in residential and commercial buildings. The B characteristic is dedicated to resistive circuits, making it an ideal solution for heating and lighting devices. The IP20 protection rating ensures adequate protection against solid bodies, making the product intended for indoor use. The short-circuit breaking capacity of 6000A guarantees an effective response to short circuits, increasing the reliability of the electrical system. The impulse voltage of 4kV protects against surges, enhancing the safety of using the device in variable electrical conditions. The 6KA 3P B 50A VDE A02-G8-3P-B50 circuit breaker – Safety and reliability in your home The 6KA 3P B 50A VDE A02-G8-3P-B50 circuit breaker from Schelinger is an essential element of any electrical installation that offers solid overload protection. With high-quality workmanship and compliance with VDE standards, you can be sure that your home will be both safe and comfortable. Key features of the Schelinger circuit breaker Rated current 50A Rated voltage 400V Protection rating IP20 B characteristic, ideal for resistive circuits Short-circuit breaking capacity 6000A Dimensions and protection rating IP20 The breaker features compact dimensions of 81 mm in length, 53 mm in width, and 69 mm in height, making it easier to install in various installations. The IP20 protection rating indicates that it is intended for indoor use, making it an excellent choice for home electrical installations. Current and voltage characteristics The Schelinger circuit breaker stands out with an impulse voltage of 4kV and a rated insulation voltage of 400V. The operating temperature range of -5°C to +30°C ensures its reliability in various weather conditions. Application and functionality of the circuit breaker The 6KA 3P B 50A VDE A02-G8-3P-B50 circuit breaker is an excellent solution for protecting electrical circuits in your home. With B characteristic, it will perform perfectly in resistive circuits, ensuring safety and comfort of use. Technical specifications of the 6KA 3P B 50A VDE A02-G8-3P-B50 circuit breaker Brand Schelinger Type circuit breaker Rated current 50.00 A Operating voltage 230.00 V Protection rating IP IP20 Color white Number of modules 3 Number of poles 3 Compliance certificates CE Length 81 mm Width 53 mm Height 69 mm Impulse voltage 4 kV Rated insulation voltage 400 V Operating temperature -5°C / +30°C Short-circuit breaking capacity 6000 A
