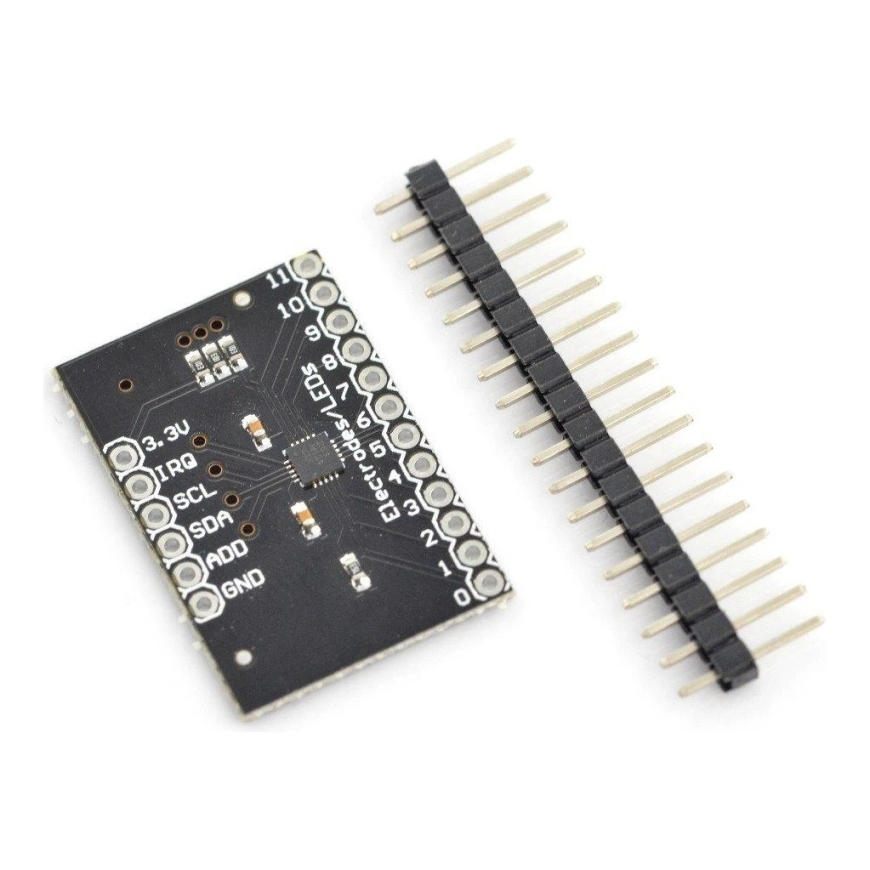

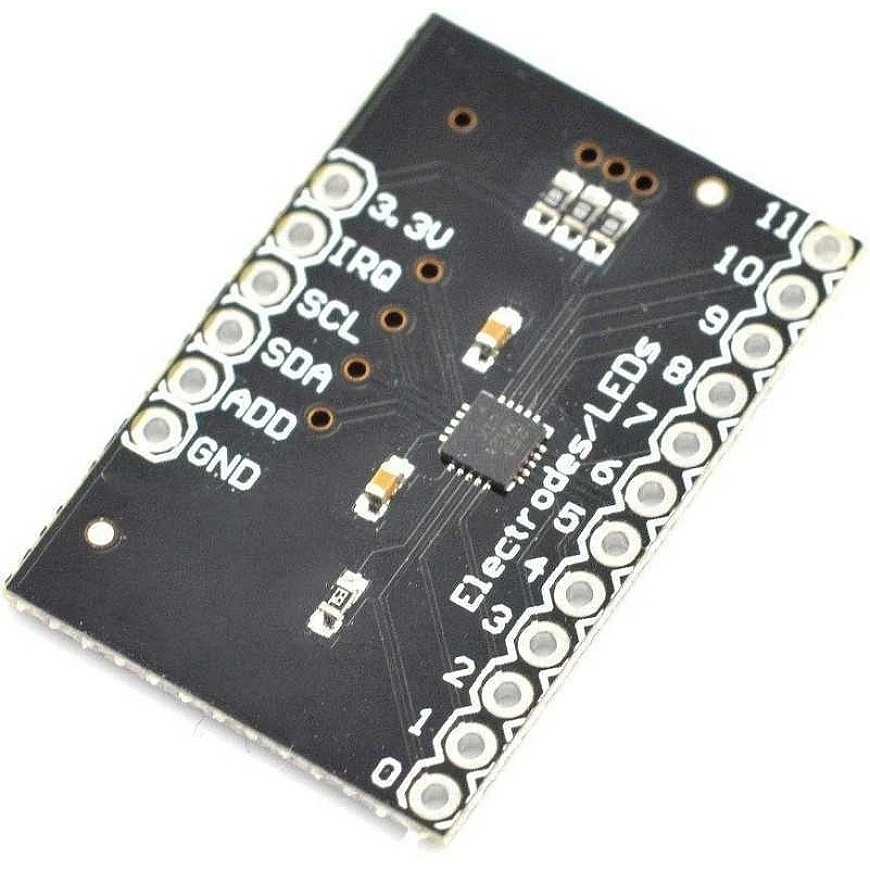

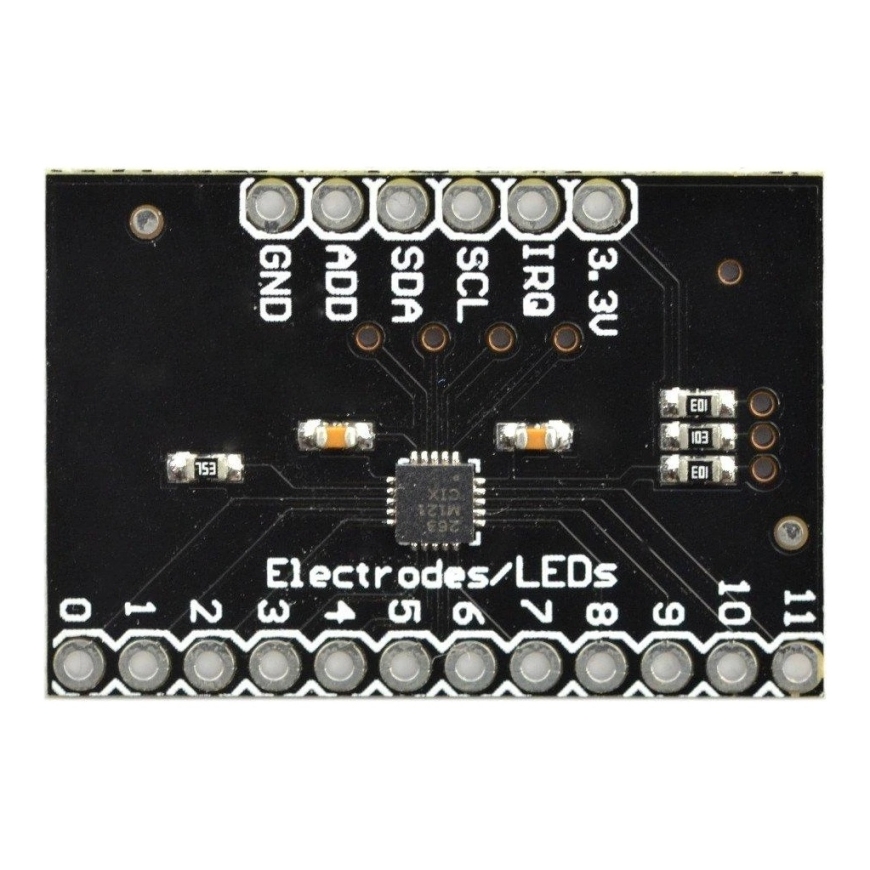

OEM 12 Button Capacitive Touch Sensor - MPR121
19.43 €
4540139 AN-07565
5904422310554
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with MPR121 system, which implements the connection of 12 capacitive touch buttons. You can connect any conductive elements using wires to the holes with a pitch of 2.54 mm and create a keyboard from them. The device works with metallic tools, fruits, vegetables, and water.
Specifications:
- Supply voltage: from 2.5 V to 3.6 V
- Interface: I2C bus
- Holes are suitable for mounting a gold pin header with a pitch of 2.54 mm (kit for self-soldering)
- Dimensions: 30 x 20 x 2 mm
- Weight: 2.5 g
