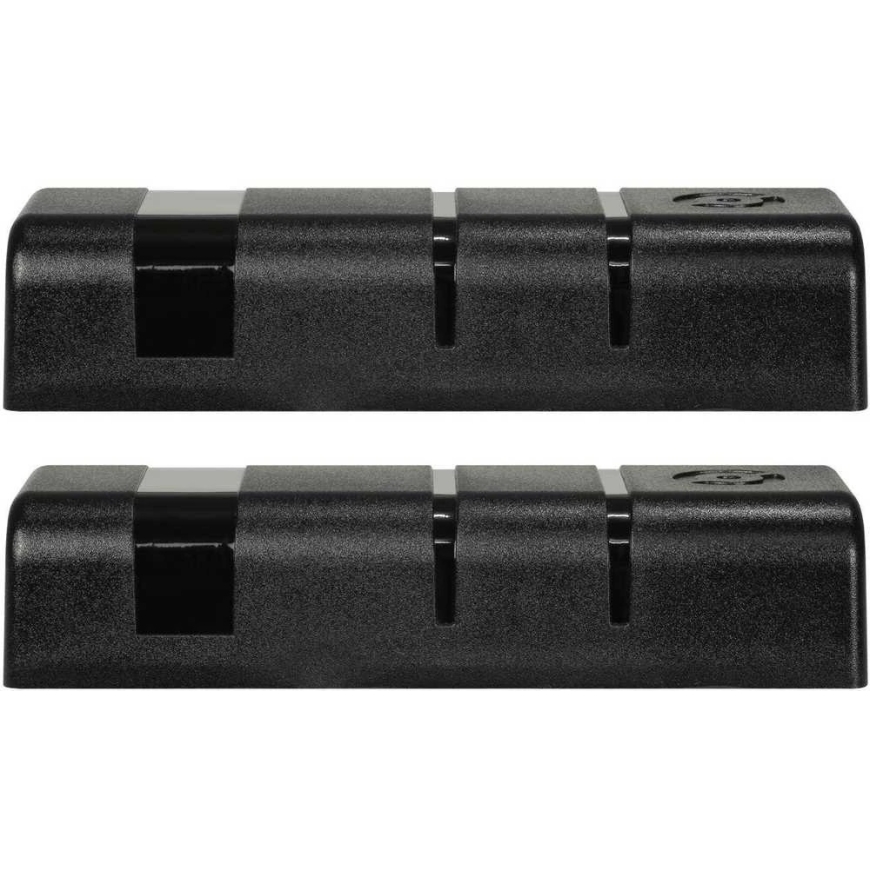

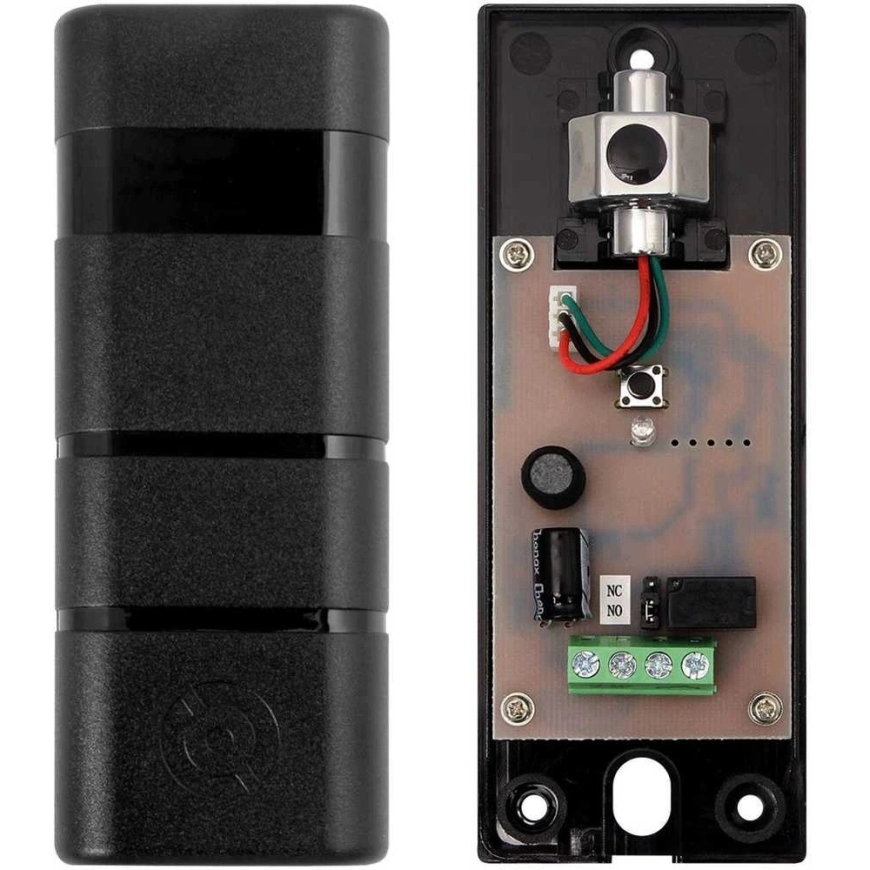

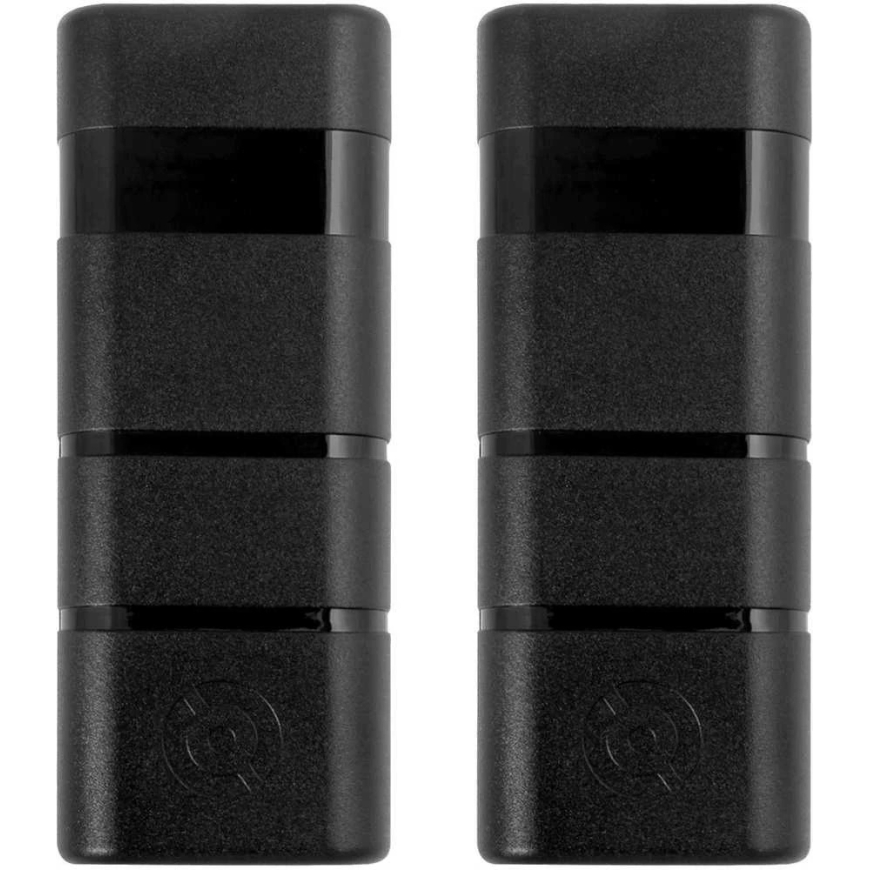

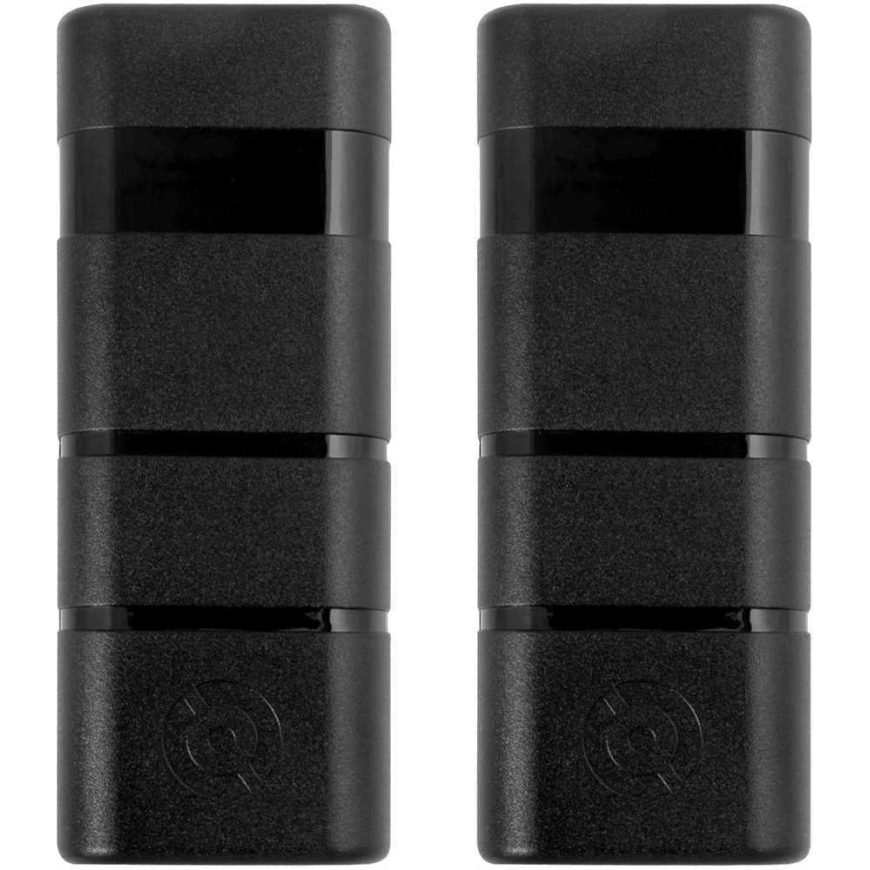

"Proxima PSA" photoelectric sensors (collision protection)
31.05 €
4539802 PSA
5904151008395
Shipping 11-15 b.d.
You are interested in this product?
All about the product
„Proxima PSA“ photoelectric sensors (collision protection)
Model: PSA
Fate
PSA is an analog photoelectric sensor designed to function in gate systems as a safety device. It has a safety feature that returns the receiver's output to a damaged state if the receiver's microprocessor fails.
Main features:
- Rotating heads – the heads can be rotated 190°, allowing the sensor to be used both inside and outside the gate opening.
- Four transmission power levels – the adjustable transmission power helps to avoid potential problems arising from the characteristics of the gate and the environment.
- Collision protection – up to four sensors can be installed at the gate opening. Due to collision protection (specific transmitter pairing with the receiver on a certain channel), the sensor's receiver will operate continuously even when receiving signals from transmitters operating on different channels.
- Information about range limit and coaxiality – using a light-emitting diode, the range limit can be determined and the coaxiality of the transmitter and receiver can be established.
Technical specifications:
- Power supply: 12–24 V AC/DC
- Transmission and reception angle: +/- 5°, rotation 190°
- Wavelength: 950 nm
- Maximum distance: 15 m
- Number of collision protection channels: 4
- Maximum transmitter current consumption: 12 V – 22 mA, 24 V – 12 mA
- Maximum receiver current consumption: 12 V – 12 mA, 24 V – 7 mA
- Maximum output load: 30 V DC, 0.5 A
- Protection class: IP54
- Operating temperature: from -20º to +60º C
- Dimensions: 50 x 127 x 28 mm
- Weight: 133 g
