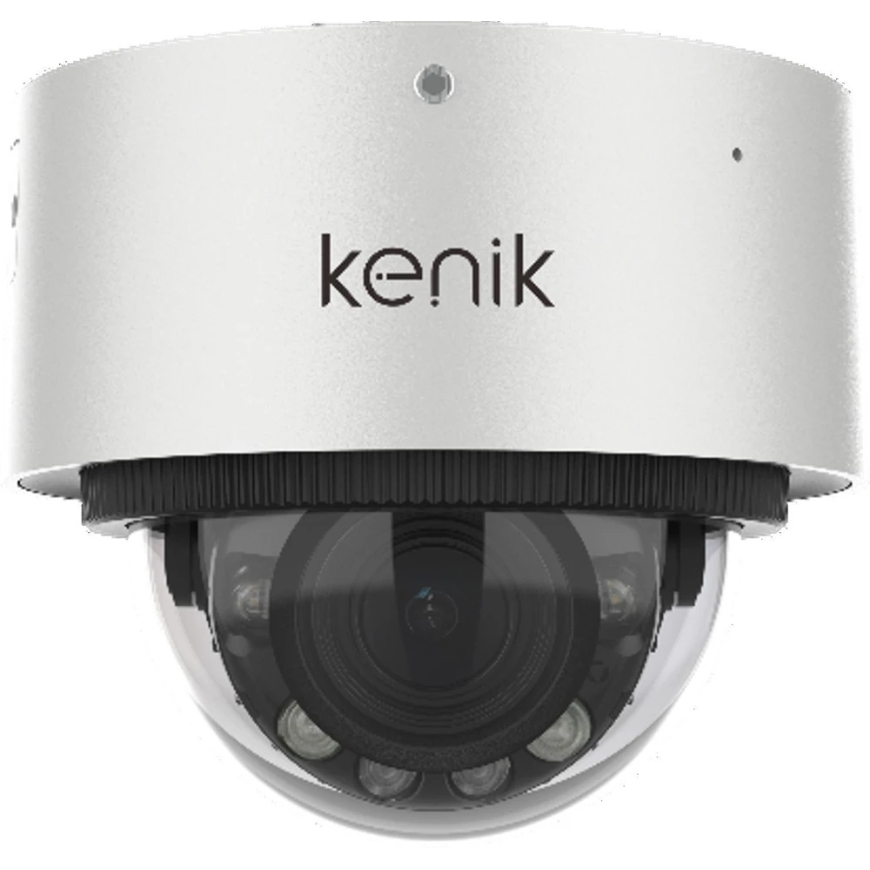

KENIK KG-8G40VZAS-ILCD IP CAMERA
349.00 €
Monthly payment from 9,89 €
4539759 KG-8G40VZAS-ILCD
5903716301186
Shipping 11-15 b.d.
You are interested in this product?
All about the product
IP CAMERA KENIK KG-8G40VZAS-ILCD
Model: KG-8G40VZAS-ILCD
Main features:
- 8 MPX (3840 x 2160) resolution, 25 frames per second
- 1/1.8 inch sensor
- H.265+/H.264+ compression
- WDR (130 dB), day/night (ICR), 3DNR, AWB, AGC, BLC
- 2.8–12 mm (F1.2) motorized lens
- AI-IPT GeckoVu technology
- Color night vision 3.0
- Integrated dual microphone
- Active deterrence (siren + red and blue LEDs)
- IR + LED illuminator up to 40 m / 40 m
- MicroSD card reader up to 512 GB
- Smart video analysis IVS (SMD+PP 2.0), people counting, face detection
- IG function
- Reset button
- Corridor mode
- alarm input/output 1/1
- audio input/output 1/1
- Dual power supply 12 V DC / PoE (802.3af)
- IP67, IK10 rated enclosure
- Supports ONVIF 2.6 standard
- Mobile viewing on smartphone (“Android”, “iPhone”)
- Free software in Polish for registration on your computer
Purpose
The camera is designed for outdoor use. The casing allows it to be mounted on both ceilings and walls. It is ideal for monitoring parking lots, sports fields, arenas, squares, government institutions, schools, and more.
Technical specifications:
| Model | KG-8G40VZAS-ILCD |
| Image sensor | 1/1.8 inch CMOS progressive scan |
| Minimum illumination | Color: 0.0008 lux (F1.2, AGC on), 0 lux in ambient light |
| Illumination range | 40 m (IR light), 40 m (warm light) |
| StrobeLight | NO |
| Smart IR | Yes |
| Lens | |
| Focal length | 2.8–12 mm |
| Aperture | F1.2 |
| Field of View (FOV) | Horizontal: 105°–50°, vertical: 56°–28°, diagonal: 127°–55° |
| Lens mount | M16 |
| Compression standard | |
| Video compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 profile | Baseline / Main / High |
| H.265 profile | Main |
| Video bit rate | 11 Kbps–16 Mbps |
| Triple stream | Supported |
| Audio compression | G.711A / G.711U |
| Audio bit rate | 64 Kbps |
| Image | |
| Maximum video resolution | 8 MP (3840 × 2160) |
| Main stream | 50 Hz: 25 fps 8 MP (3840 × 2160), 25 fps 6 MP (3200 × 1800), 25 fps 5 MP (3072 × 1728), 25 fps 4 MP (2560 × 1440), 25 fps 1080P (1920 × 1080) |
| 60 Hz: 30 fps 8 MP (3840 × 2160), 30 fps 6 MP (3200 × 1800), 30 fps 5 MP (3072 × 1728), 30 fps 4 MP (2560 × 1440), 30 fps 1080P (1920) × 1080) | |
| Auxiliary stream | 50 Hz: 25 fps (720P / 1280 × 720, D1 / 704 × 576, CIF / 352 × 288) |
| 60 Hz: 30 fps (720P / 1280 × 720, D1 / 704 × 480, CIF / 352 × 240) | |
| Third stream | 50 Hz: 25 fps (CIF/352 × 288) |
| 60 Hz: 30 fps (CIF/352 × 240) | |
| Video settings | Brightness, contrast, saturation, hue, sharpness |
| Shutter speed | Automatic / manual, 1/3 sec. ~ 1/100000 sec. |
| Day/night mode | IR cut filter |
| Wide dynamic range (WDR) | 130 dB |
| Noise reduction | 2D/3D DNR |
| BLC / HLC / ROI / Rotation | Supported |
| Smart features | |
| Main events | motion detection (SMD human/vehicle/motorcycle), video masking |
| Smart events | Line crossing, intrusion detection, entry/exit from zone (people/vehicle/motorcycle), loitering detection |
| People counting | Yes |
| Face detection | Yes |
| Network | |
| Online journal | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System compatibility | ONVIF (S, G, T profiles), SDK |
| Security | Password protection, complex password, HTTPS encryption, IP address filtering, main and digest authentication HTTP/HTTPS, TLS 1.1/1.2 support, WSSE and digest authentication for open network video interface (ONVIF). |
| Users | Up to 40 users |
| Web browsers | Requires direct view with plugins: IE 10, IE 11 Direct view without plugins: “Chrome 57.0+”, “Firefox 52.0+”, “Edge 89+” Local service: “Chrome 57.0+”, “Firefox 52.0+” |
| Mobile app | “Android”, “iOS” |
| Active deterrence | |
| Warning of red and blue traffic signal | Yes |
| Audible warning | Yes |
| Interfaces | |
| Communication interface | 1 × RJ45 10/100/1000M adaptive Ethernet |
| Internal memory | Up to 512 GB |
| Microphone | Yes, built-in |
| Speaker | Yes |
| Audio input/output | 1/1 |
| Input / output alarm | 1/1 |
| RS485 | 1 interface |
| Reset button | Yes |
| General | |
| Operating conditions | -40°C ~ 60°C, humidity ≤95% (non-condensing) |
| Power supply | 12 V DC ±25 % |
| PoE | PoE (802.3 at) |
| Power consumption | Max. 12 W |
| Protection level | IP67 / IK10 |
| Enclosure material | Metal |
| Dimensions | Φ140.5 × 119.3 mm |
| Total weight | 1371 g |
