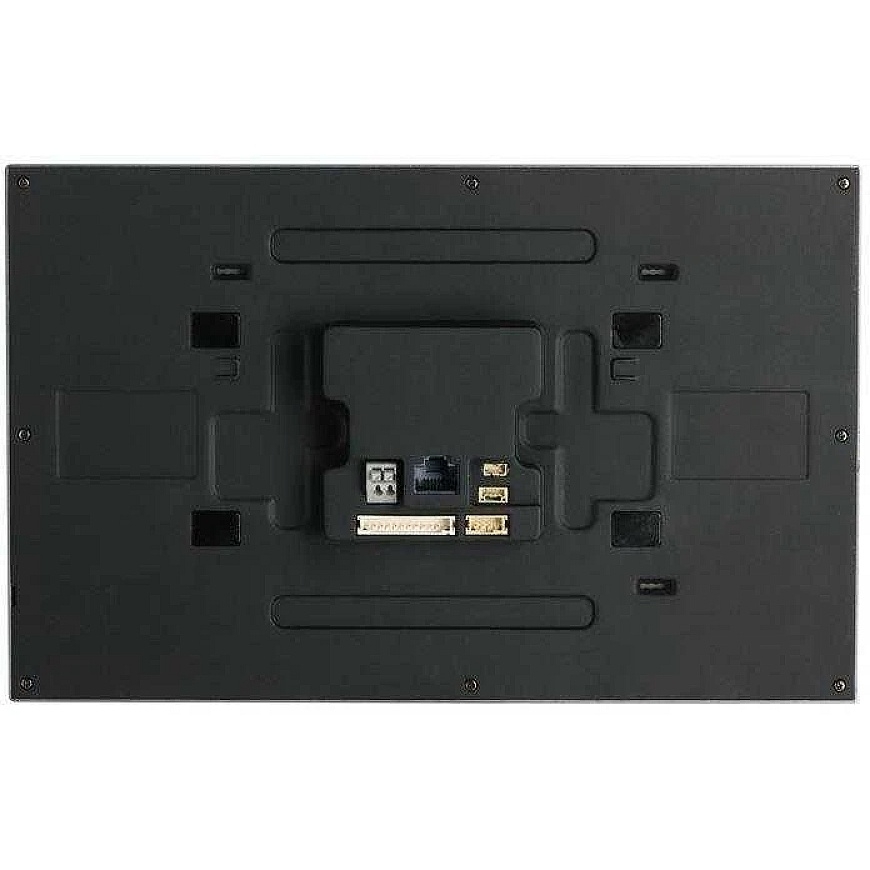

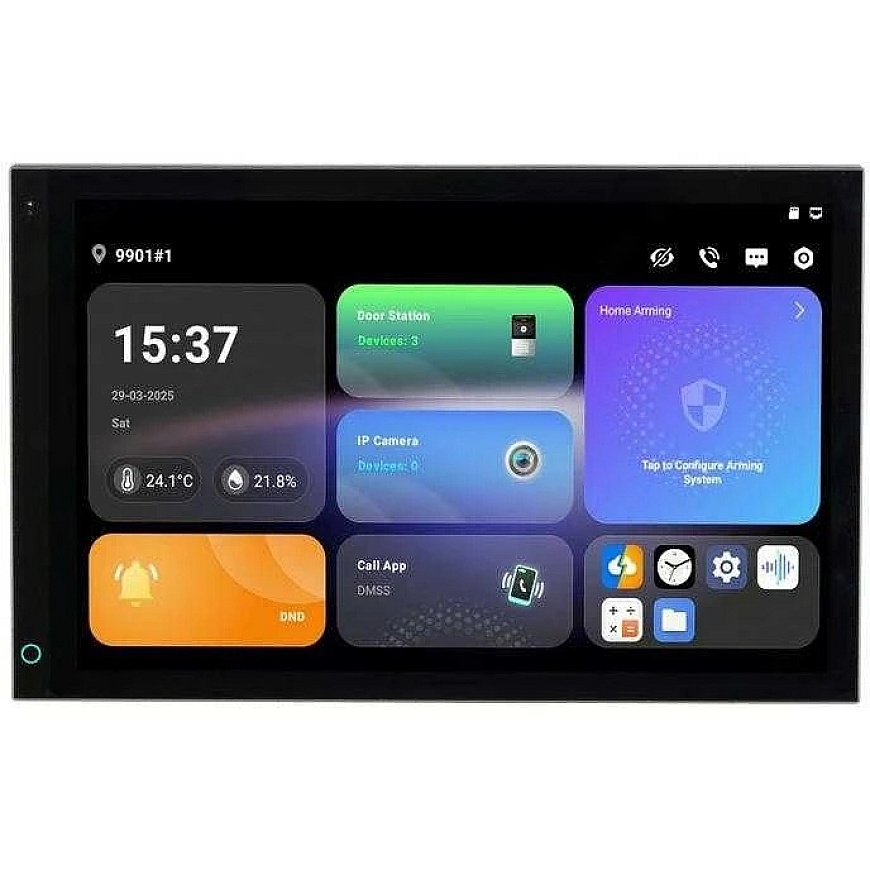

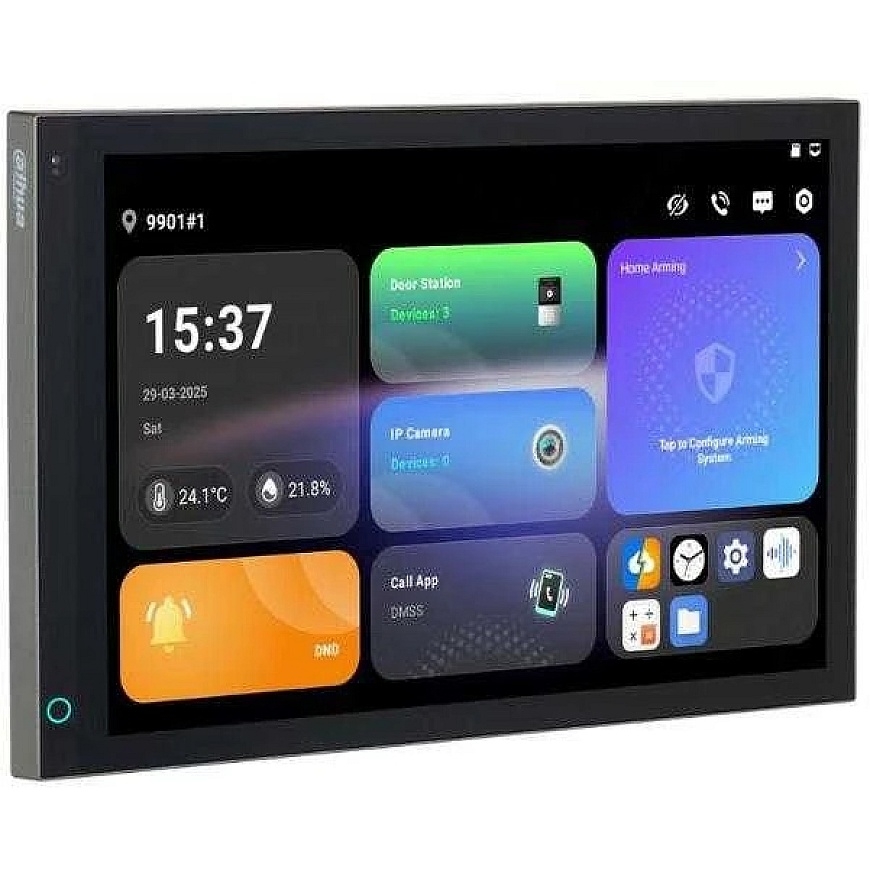

Dahua Technology SCP3044A-BZ IP / Wi-Fi / 4-Wire DAHUA Indoor Control Panel
379.01 €
Monthly payment from 10,66 €
4538363 67465
6937552406162
Shipping 11-15 b.d.
You are interested in this product?
All about the product
DAHUA SCP3044A-BZ Video Intercom Monitor
Model: SCP3044A-BZ
SCP3044A-BZ Specifications
| System | |
| Processor | Integrated high-performance processor |
| Operating system | Android 14 |
| Service | Touch screen graphical interface V4.8 |
| Works with systems | IP (SIP), 4 wires (hybrid) |
| Network protocol support | IPv4, RTSP, UDP, DNS, FTP, RTP, TCP, SIP |
| Main | |
| Screen type | Capacitive, touch screen |
| Screen | 10.1 inch color IPS LCD screen |
| Resolution | 1280x800 |
| Screen viewing angle | 80° vertically and horizontally |
| Integrated light sensor | Yes |
| Audio compression | G.711a, G.711u, PCM |
| Audio input | Omnidirectional microphone |
| Audio output | Built-in speaker |
| Audio mode | Two-way voice call |
| Audio enhancement | Echo cancellation, digital noise reduction |
| Audio transmission | 16 kHz, 16 bits |
| Features | |
| Communication method | Fully digital |
| Displayed information | Receiving and viewing text messages sent from the control center |
| Elevator control | Ability to control the elevator via the internal monitor |
| Built-in temperature and humidity sensor | Yes, monitor conditions at any time |
| Leave video/photo message | Support required (SD card needed for female or door station) |
| Do Not Disturb (DND) mode | Support available (time and mode setting) |
| Auto wake-up function | Support available (when a person approaches) |
| Integrated additional modules | ZigBee module |
| Wireless 868 MHz sensor module | |
| Bluetooth module | |
| Internal connections | Villa: 1 main VTH + extension 9 |
| Apartments: 1 main VTH + extension 4 | |
| Memory | MicroSD / microSDHC / microSDXC card slot up to 512 GB |
| Wireless connection (Wi-Fi) | |
| Standard support | IEEE 802.11a/802.11b/802.11g/802.11n/802.11ac/802.11ax |
| Wireless frequency | 2.4 GHz / 5 GHz |
| WiFi 6 | Support |
| Execution | |
| Housing material | PC + ABS material |
| Interface | |
| RS485 | 1x port (485A, 485B) |
| RS485 interface for future applications! | |
| USB | 1x USB-C port |
| Alarm input (wired) | 8 ports (IN1 / IN2 / IN3 / IN4 / IN5 / IN6 / IN7 / IN8) |
| Inputs for NO/NC sensors, including doorbell connections | |
| Alarm output | 1x port |
| Relay output NO/COM | |
| Power | 1 x DC 12V 200mA port (12V_OUT) |
| e.g., for powering alarm sensor | |
| Doorbell | Yes (using 1 alarm input) |
| Communication | Ethernet: 1x RJ45 10/100Mbps |
| 4 wires: 1 x 4-pin port (4 WIRES | P / V / A / G) | |
| You can only select one of the interfaces | |
| Miscellaneous | |
| Installation type | Recessed (includes 2 boxes) |
| Color | Dark gray |
| Number of supported cameras | 32 |
| Installation range | TCP/IP, SIP: monitor and gateway for switches – 100 m (5e cat.) |
| 4 wires: from monitor to station, from monitor to monitor – 50 m | |
| Power supply | 12 V / 2 A DC |
| Standard PoE DC 48V (802.3af) | |
| Power consumption | Max. 12 W (in standby mode) |
| Max. 15 W (in operation) | |
| Operating temperature | -10°C ~ +55°C |
| Operating humidity | 10 % ~ 95 % (non-condensing) |
| Weight | 1291 g |
| Dimensions (width / length / height) | 246.5 x 33 x 156.1 mm |
| Warranty | 36 months (standard) |
| 5-year warranty (with project submission) |
