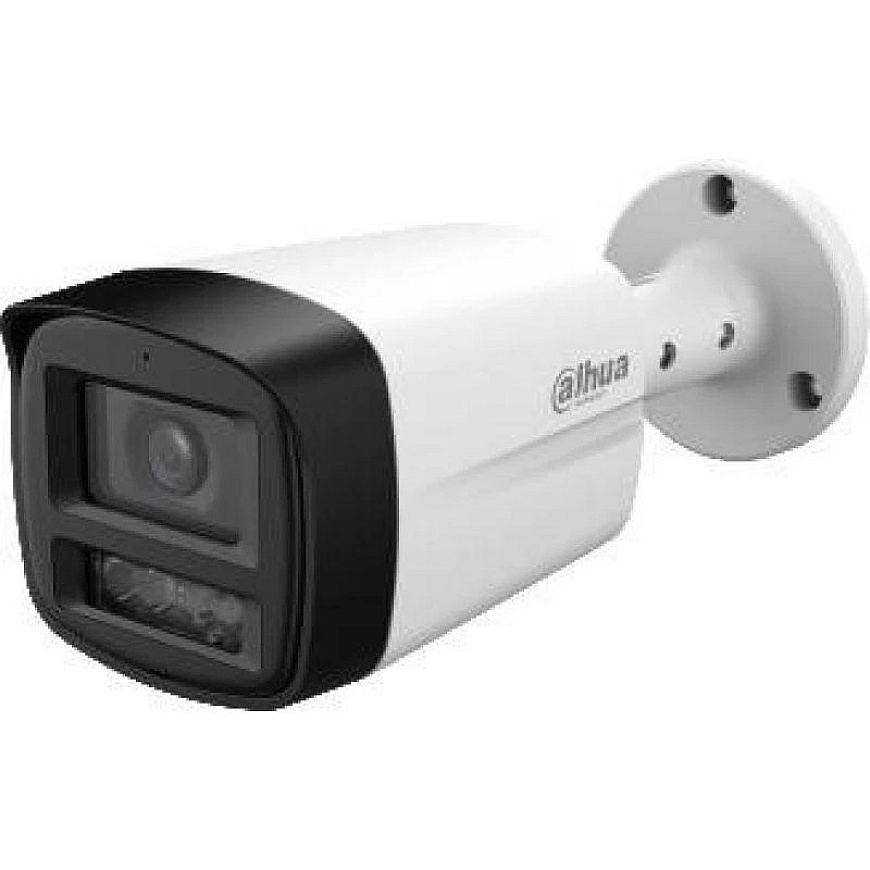

4W1 Dahua camera HAC-HFW1509TLM-A-LED-0360B-S3
49.00 €
Monthly payment from 2,16 €
4537727 HAC-HFW1509TLM-A-LED-0360B-S3
6939554929366
Shipping 11-15 b.d.
You are interested in this product?
All about the product
Dahua HAC-HFW1509TLM-A-LED-0360B-S3 4in1 camera
Model: HAC-HFW1509TLM-A-LED-0360B-S3
Main features:
- Max. 25 frames per second at 5 MP resolution (16:9 video output)
- Super Adapt , true WDR 120 dB , 3D noise reduction
- Color image all day long
- Smart Light+ – intelligent lighting control
- Intelligent zone lighting – intelligent zone lighting
- Built-in microphone
- Lighting distance: 40 m
- Supports multiple standards: CVI / CVBS / AHD / TVI (switchable)
- 3.6 mm fixed focal length lens
- Environmental resistance: IP67 , power supply 12 VDC
Technical specifications:
| Parameter | Description |
| Camera | |
| Image sensor | 5 MP CMOS |
| Maximum resolution | 2880 (high) × 1620 (vertical) |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/3 s – 1/100 000 s; NTSC: 1/4 s – 1/100 000 s |
| Minimum illumination | 0.001 lux at F1.0 (color, 30 IRE); 0 lux (with flash on) |
| Signal-to-noise ratio (S/N) | >65 dB |
| Lighting range | 40 m (131 ft.) |
| Light control | Automatic / Manual |
| Number of diodes | 4 (warm light) |
| Angle adjustment | Rotation: 0°–360°; Tilt: 0°–90°; Swivel: 0°–360° |
| Lens | |
| Lens type | Prime |
| Auto focus | NO |
| Mounting | M12 |
| Focal length | 2.8 mm; 3.6 mm |
| Stop | F1.0 |
| Viewing angle | 2.8 mm: H: 112°; V: 57°; D: 132° |
| 3.6 mm: H: 88°; V: 46°; D: 104° | |
| Aperture control | Fixed |
| Minimum focusing distance | 2.8 mm: 1.6 m; 3.6 mm: 2.3 m |
| DORI (detect / observe / recognize / identify) | 2.8 mm: 67.4 m / 27.0 m / 13.5 m / 6.7 m |
| 3.6 mm: 80.0 m / 32.0 m / 16.0 m / 8.0 m | |
| Video | |
| Frame rate | CVI: PAL: 5M @ 25 frames per second; 5M @ 12.5 frames per second; 4M @ 25 frames per second; 1080p @ 25 frames per second |
| NTSC: 5M @ 25 frames per second; 5M @ 10 frames per second; 4M @ 30 frames per second; 1080p @ 30 frames per second | |
| AHD: PAL: 4M@25 fps; NTSC: 4M@30 frames per second | |
| TVI: PAL: 5M 16:9@20 fps; 4M @ 25 frames per second | |
| NTSC: 5M 16:9 @ 20 frames per second; 4M @ 30 frames per second | |
| CVBS: PAL: 960H; NTSC: 960H | |
| Resolution | 5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960 H (960 × 576 / 960 × 480) |
| Day / night mode | Color |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White balance | Auto; manual |
| Gain | Automatic / Manual |
| Noise reduction | 3D noise reduction |
| Lighting mode | Intelligent lighting |
| Additional features | Electronic fog reduction, 4× digital zoom, mirror |
| Privacy masks | Up to 8 zones |
| Sound | |
| Built-in microphone | Yes |
| Ports | |
| Video output | CVI/TVI/AHD/CVBS (1 × BNC) |
| Alarm output | 1 channel |
| Power supply | |
| Power supply | 12 V DC ± 30 % (recommended separate power supply for the camera) |
| Power consumption | Max. 9 W (12 V DC, LED light on) |
| Operating environment | |
| Operating temperature | –40 °C ~ +60 °C |
| Operating humidity | <95 % relative humidity, non-condensing |
| Storage temperature | –40 °C ~ +60 °C |
| Storage humidity | <95 % relative humidity, non-condensing |
| Safety | IP67 |
| Corrosion resistance | Basic protection |
| Enclosure | |
| Material | Metal front + plastic rear case + metal handle |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81 inches × 3.16 inches × 3.00 inches) |
| Net weight | 0.31 kg |
| Gross weight | 0.48 kg |
| Installation | Wall mount; ceiling mount; on vertical pole |
