POE POWER ADAPTER AEPI-1-50 ATTE
4537404 AEPI-1-50
5902143691365
Shipping 11-15 b.d.
All about the product
AEPI-1-50 - is a gigabit, 1 channel power adapter (PoE injector) designed for 10/100/1000 Mbps data transmission and device power supply according to PoE 802.3af/at and PoE PASSIVE standards. The device allows for up to 90 W of power transmission. PoE power is supplied to the LAN+PoE port, while independent screw terminals allow for the selection of twisted pair cables and the transmission of two different voltage levels between two AEPI-1-50 adapters while maintaining a speed of 1000 Mbps.
| Output power : | max. 90 W (total) |
| Number of inputs : | 1 pc. RJ-45 2 pcs. screw terminals |
| Input voltage : | 10 ... 56 V DC - PoE |
| Output voltage : | 10 ... 56 V DC - voltage is the same as at the beginning |
| Indicator LEDs : | Presence of PoE power source at the port |
| Main features : | Ability to transmit data and two voltage levels through one twisted pair cable Two independent power inputs and outputs (one for pairs 1-2, 3-6, the other for pairs 4-5, 7-8) Ingress protection class : IP20 |
| Safety features : | - |
| Case : | Plastic |
| Color : | Red |
| Operating temperature : | -25 °C ... 50 °C |
| Weight : | 0.03 kg |

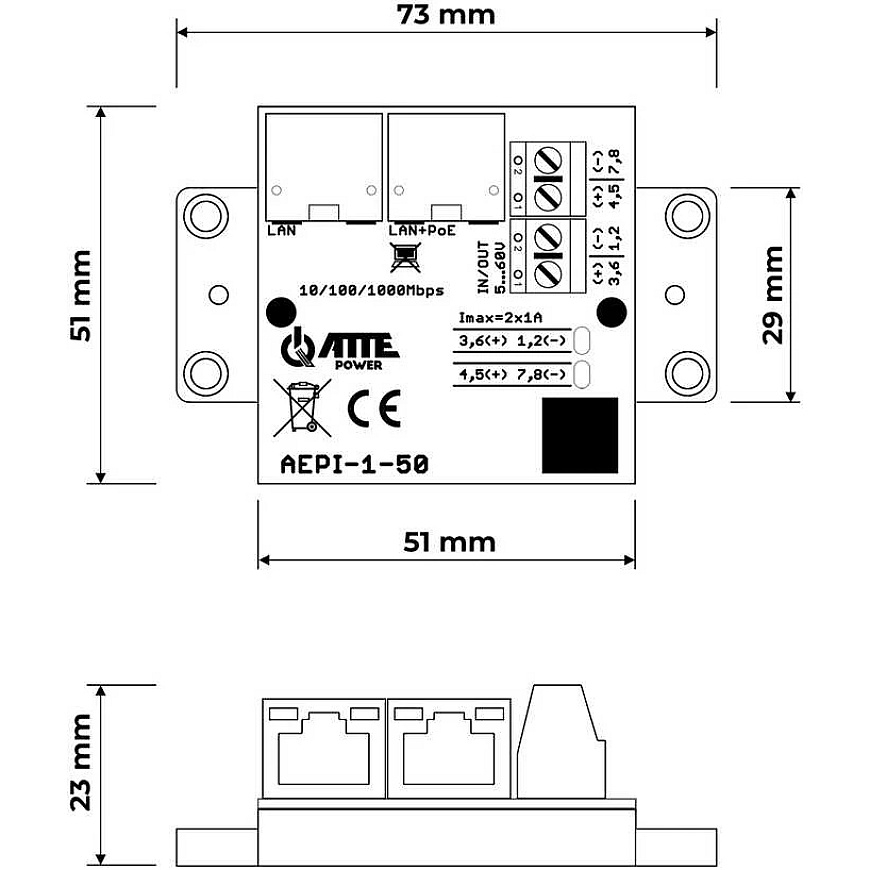

| Dimensions : | 73 x 51 x 23 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 2 years |
