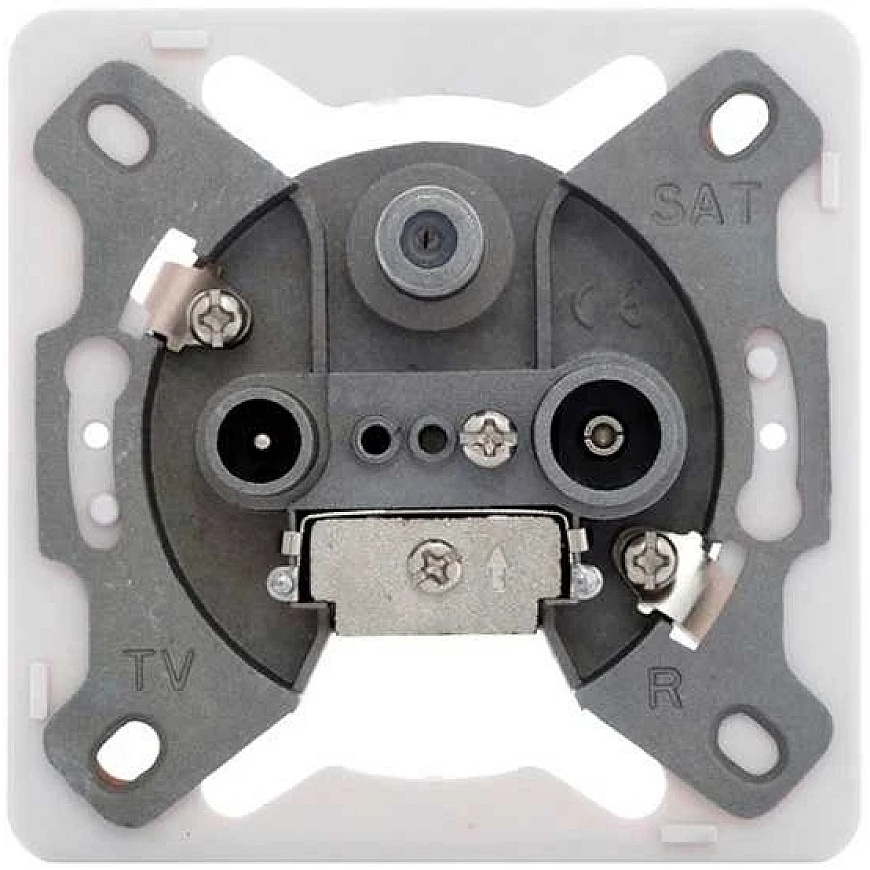

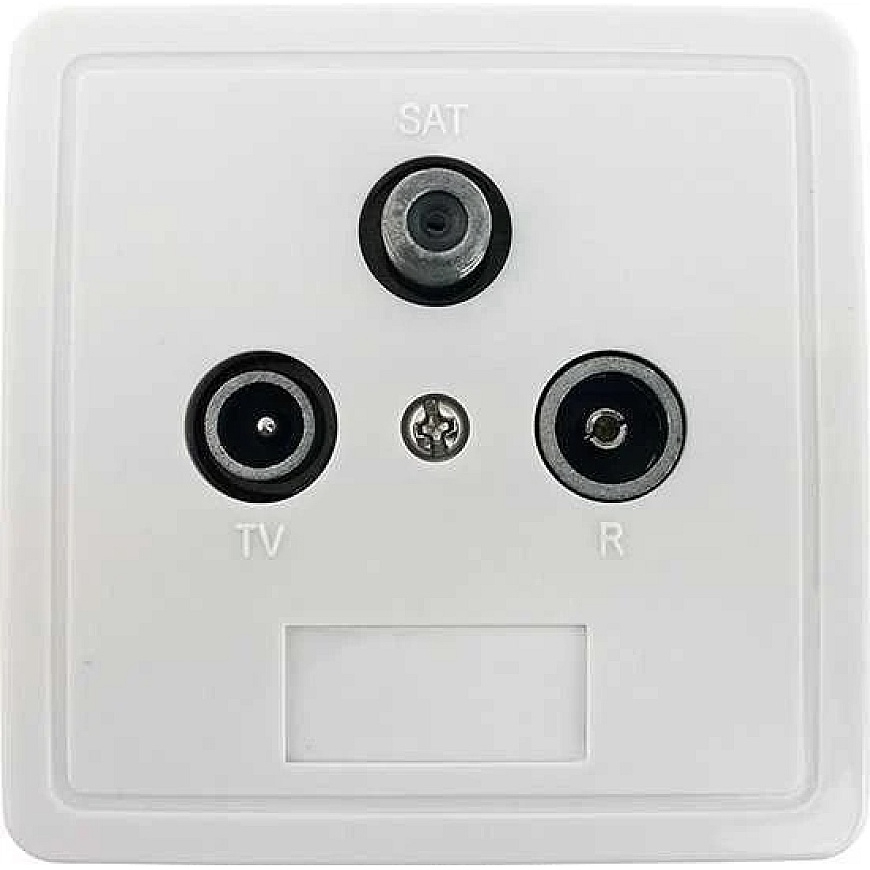

SAT/RTV DSE SS5-1-T antenna socket
4537190 5903031002553
Shipping 11-14 b.d.
All about the product
Main Information
R/TV/SAT socket for connecting a radio receiver, television, or satellite receiver. Includes a frame and cover. Suitable for surface or recessed installation.
Application
Designed for radio, television, and satellite television devices in residential and commercial buildings.
Specifications
Working Range
- Frequency range: 5–2400 MHz
- TV connection: 120–862 MHz, 5–65 MHz
- R connection: 87.5–108 MHz
- SAT connection: 950–2400 MHz
- Internal separation: 30–40 dB
- Voltage pass-through: yes
Attenuation
- Television attenuation: max. 2 dB
- Return channel attenuation: max. 3 dB
- R attenuation: max. 2.2 dB
- SAT attenuation: max. 2.5 dB
Dimensions
- 76 mm x 76 mm x 39 mm
